r10.9b RECUMBENT BIKE
FMEX82522
This upgraded biking experience comes with a simplified console made smarter with the addition of the exerciser’s smart device. Use “as is” and the bike tracks workout essentials such as calories, time and distance. Sync a personal device and choose from workouts filmed on location around the world and the bike will match the workout with increased/decreased resistance.
additional features
Quick Select Start & Stop
Start and stop the workout at anytime with the touch of a single button.
Easy-glide Seat with Lumbar Support
This oversized, cushioned seat provides a comfortable workout experience and supports the lower back through intense workouts. Quick pop-pin adjustments allow the seat to slide horizontally or vertically to create a custom fit.
Extra-wide Ergonomic Foot Pedals
With adjustable straps, these pedals are designed to keep feet in place for a comfortable workout.
Built-in Workouts
Choose between 8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb and Heart Rate workouts with the touch of a button.
24 Levels of Digital Resistance
To burn more calories, increase intensity or improve muscle tone, simply adjust the bike’s one-touch resistance.
Dual Grip Pulse Sensors
Get, and stay, in the ideal heart-training zone with the built-in convenience of this EKG monitor.
Dual Water Bottle Holders
Convenient water bottle holders are built-in for easy access.
Personal Entertainment
Entertainment capabilities make the workout experience even better. Add an optional 15.6 in (39 cm) Personal HDTV Screen.
Specifications
Console Features
Display Type
Simplified User Interface
Resolution
N/A
Controls
On-handle Digital Controls
Workout Metrics
Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace
Number of Programs
24
Preset Programs
8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training
Google Maps
N/A
Console Language(s)
EN, ES, DE, IT, PT, CH, NL, FR
Featured Languages
EN, also DE, ES, FR, IT, PT, RU, ZH
Additional Options
N/A
Entertainment
TV Tuner
N/A
Closed Captioning
N/A
Optional Upgrades
Personal HDTV (15.6 in / 39.6 cm) with On-Console Controls (FMTV82518-16 / FMTV82518-16INT)
900/800 MHz TV receiver (MYE900RCVR)
Connectivity
Recommended Internet Connection
N/A
Ethernet Requirements
N/A
WiFi Connection
2.4 / 5 GHz
WiFi Requirements
10 Mpbs per unit download, 500 Kpbs per unit upload
Video Connections
N/A
Audio Connections
3.5 mm Audio Out
CSAFE
Enabled
ECOFIT
N/A
Product Features
Crank & Axle
3-Piece Crank
Drive Belt
Quiet Belt Drive System, Hutchinson
Pedals
Oversized, Self-leveling Pedals
Gear Ratio
N/A
Resistance System
400 Watt Self-Generator Resistance System
Heart Rate Monitoring
EKG Grip Pulse/POLAR Receiver Included
Workout Fan
N/A
Accessory Charging
N/A
Accessory Holder(s)
Dual Water Bottle Holder
Grips
Soft touch, upper-body grips
Seat
Overmolded Quick Adjust Seat
Accessibility
Highly-Accessible Step-Thru™ Design
Positioning
Large Adjustable Leveling Feet
Transport Wheels
2 in / 5 cm plastic transport wheels
Color Options
N/A (Dell Gray is standard color)
Unit Options
Metric or Imperial
Power Options
110-120 VAC, 2 Amp
220-240 VAC, 1 Amp
Product Specifications
Maximum User Weight
400 lb / 182 kg
Resistance Levels
1-24 Levels of Resistance

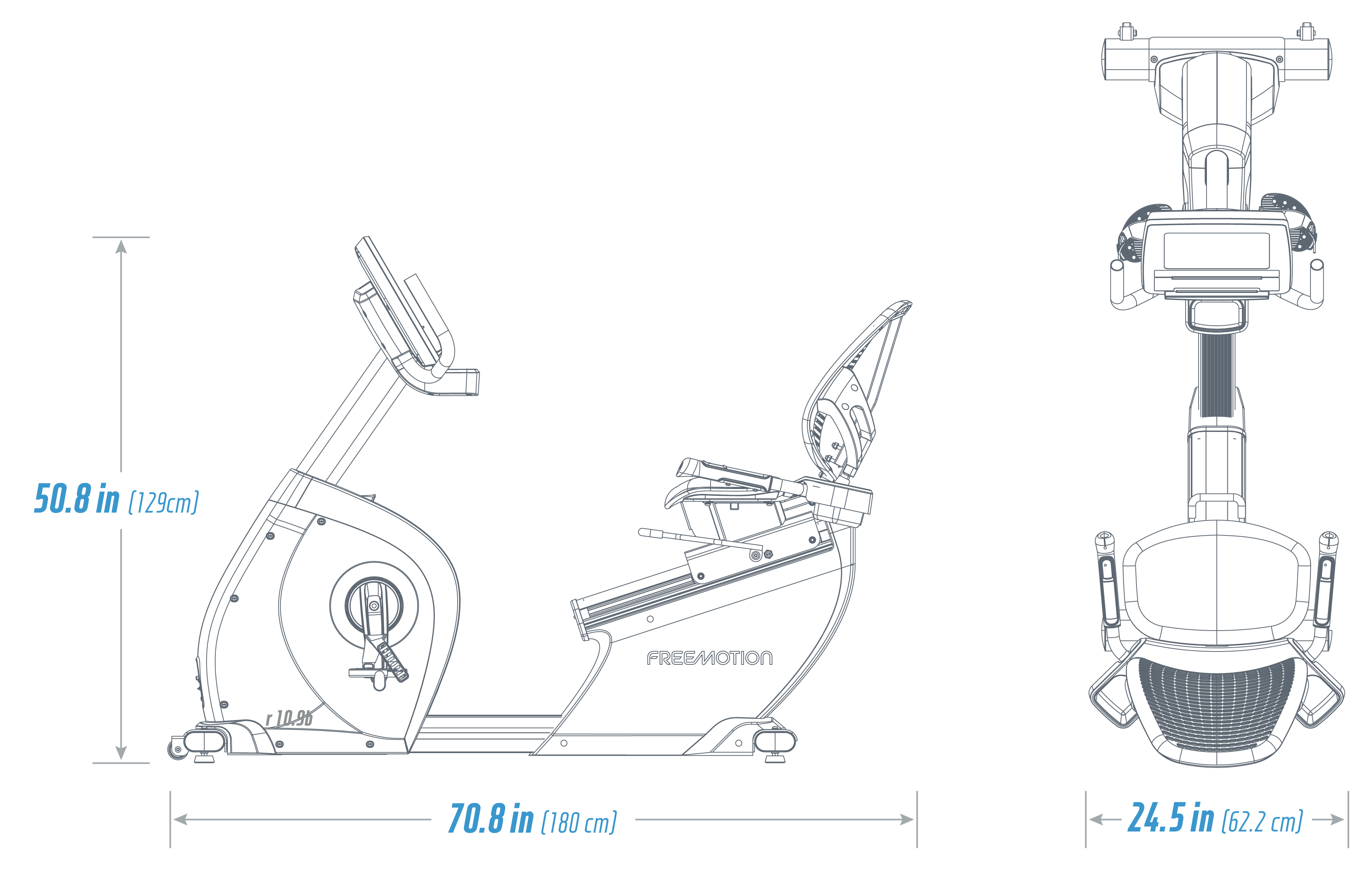

Dimensions & Weight
Product Dimensions L x W x H
70.9 x 24.5 x 50.8 in / 180 x 62.2 x 129 cm
Product Weight
204.6 lb / 93 kg
Shipping Dimensions L x W x H
68.7 x 17.7 x 30.2 in / 174.4 x 44.9 x 76.7 cm
Shipping Weight
220 lb / 100 kg
Power Requirements
U.S. & Canada
110-120 VAC, 2 Amp
International
220-240 VAC, 1 Amp
Certifications
CE
High-usage Warranty (US & Canada)
Frame
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
High-Usage Warranty (International)
Frame
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
Low-usage Warranty (US & Canada)
Frame
7 Years
Parts
3 Years
Console
3 Years
Labor
3 Years
Cosmetic & Wear Items
6 Months
Low-Usage Warranty (International)
Frame
7 Years
Parts
3 Years
Console
3 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months

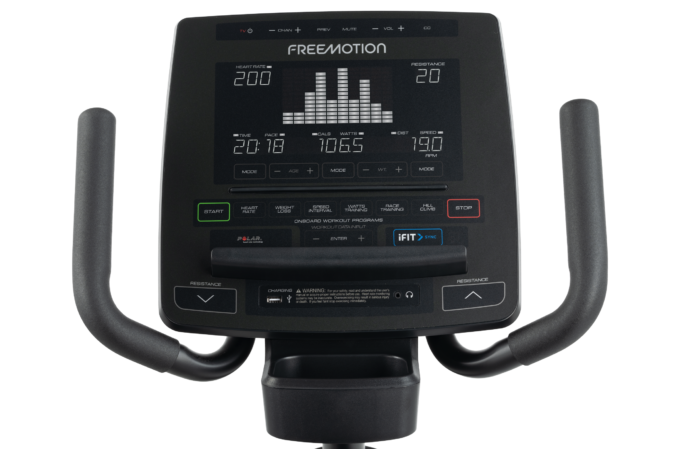

FRONT AND CENTER
Members can keep an eye on everything that keeps them motivated: RPM/speed, distance/time, watts/calories, level and heart rate on the simplified user interface.
CONNECT WITH YOUR WORKOUT LIKE NEVER BEFORE
Experience ‘What’s Next’ in smart training. The console on the r10.9b Recumbent Bike powered by iFIT goes from simple to interactive when synced with a smart device. As the industry’s first “Bring Your Own
Device”-solution, the recumbent has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.

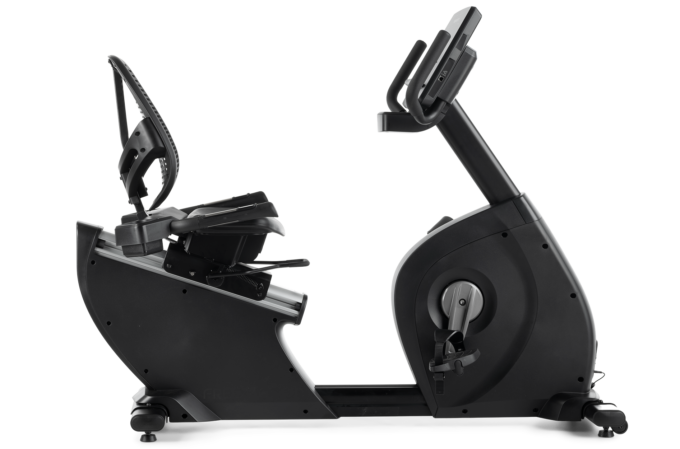

STEP-THRU™ DESIGN
This bikes innovative design eliminates the traditional base, making it easier to get on and off the bike.
