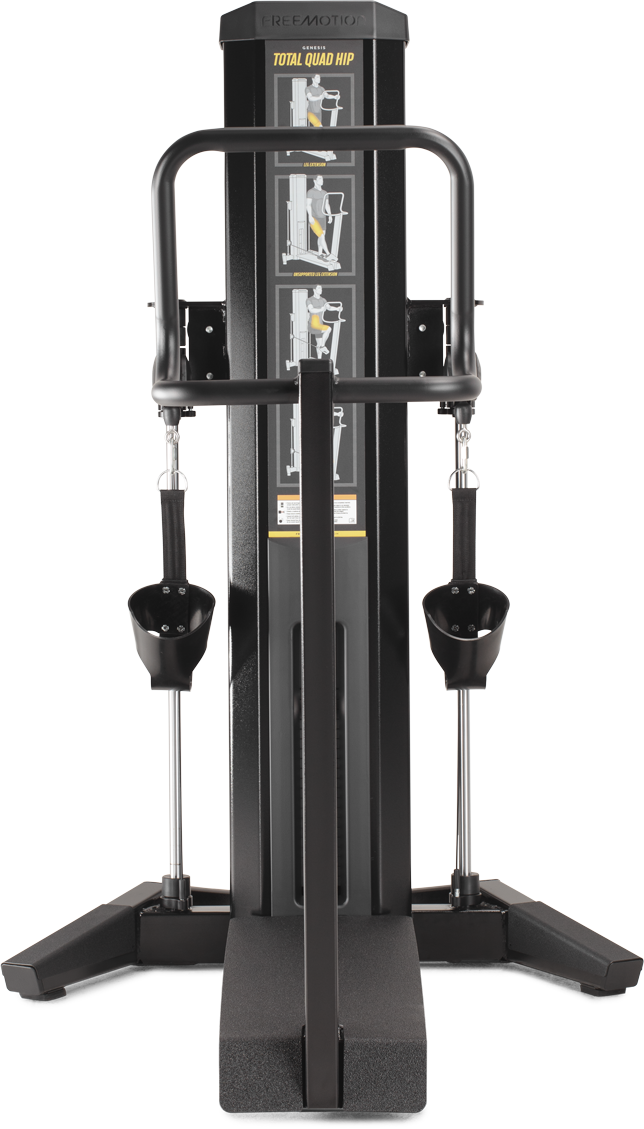

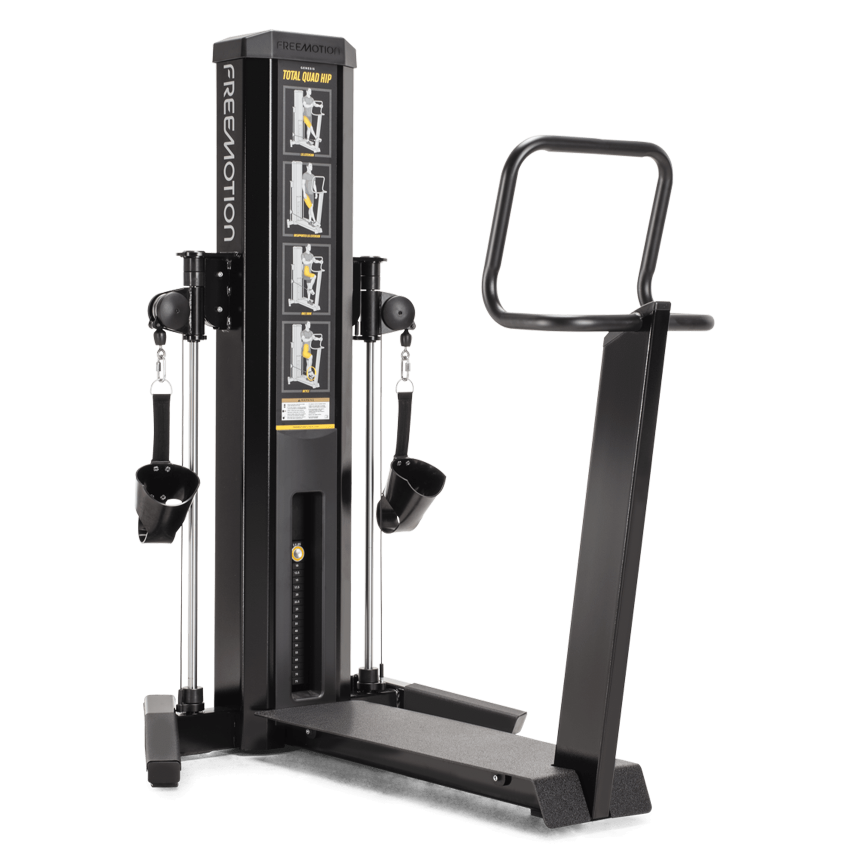

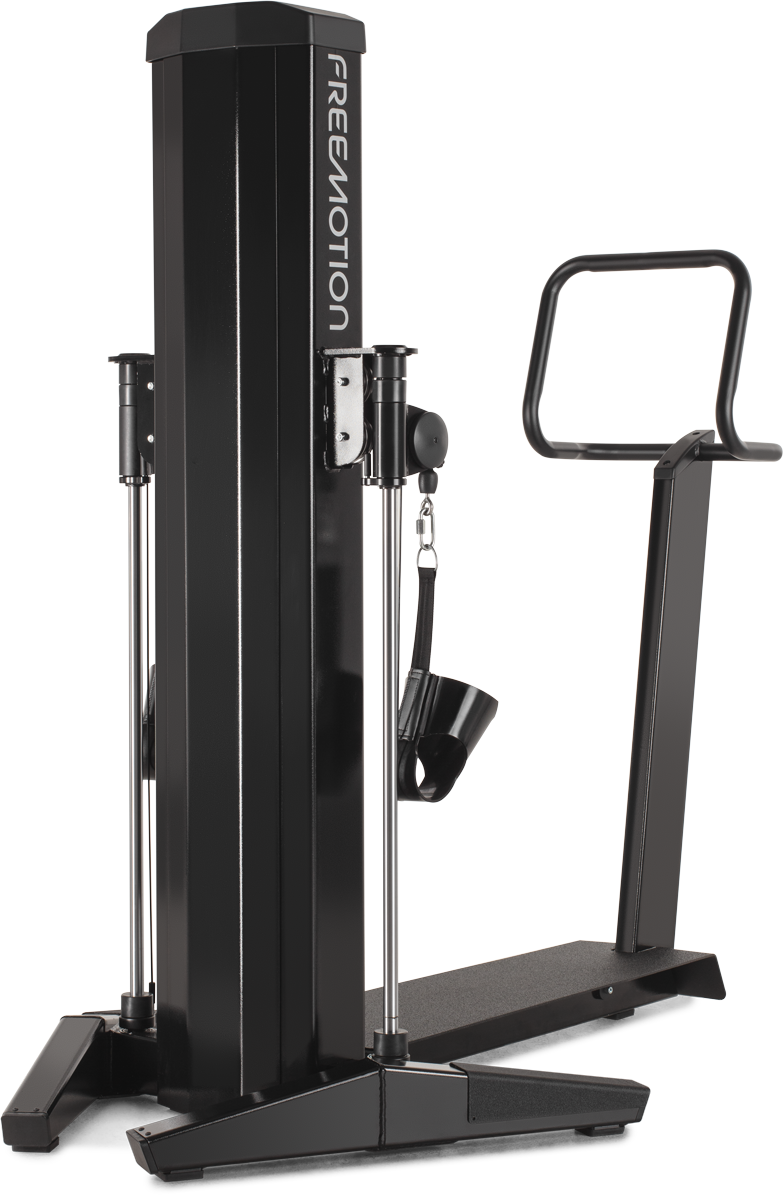

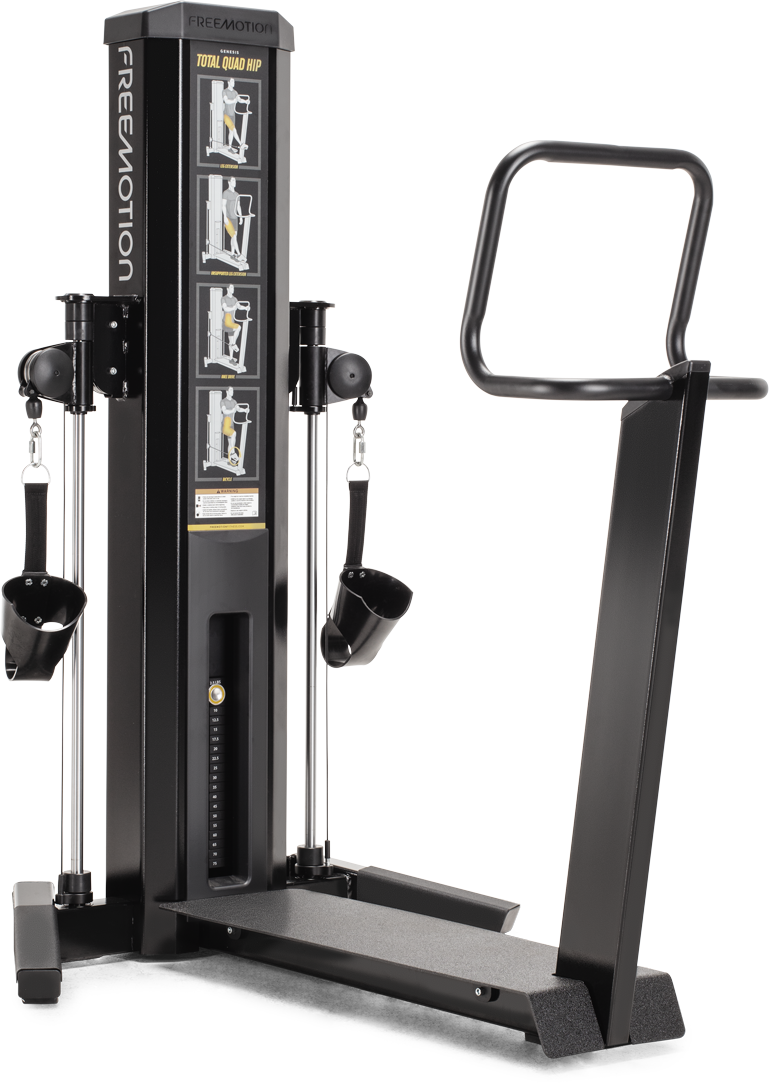

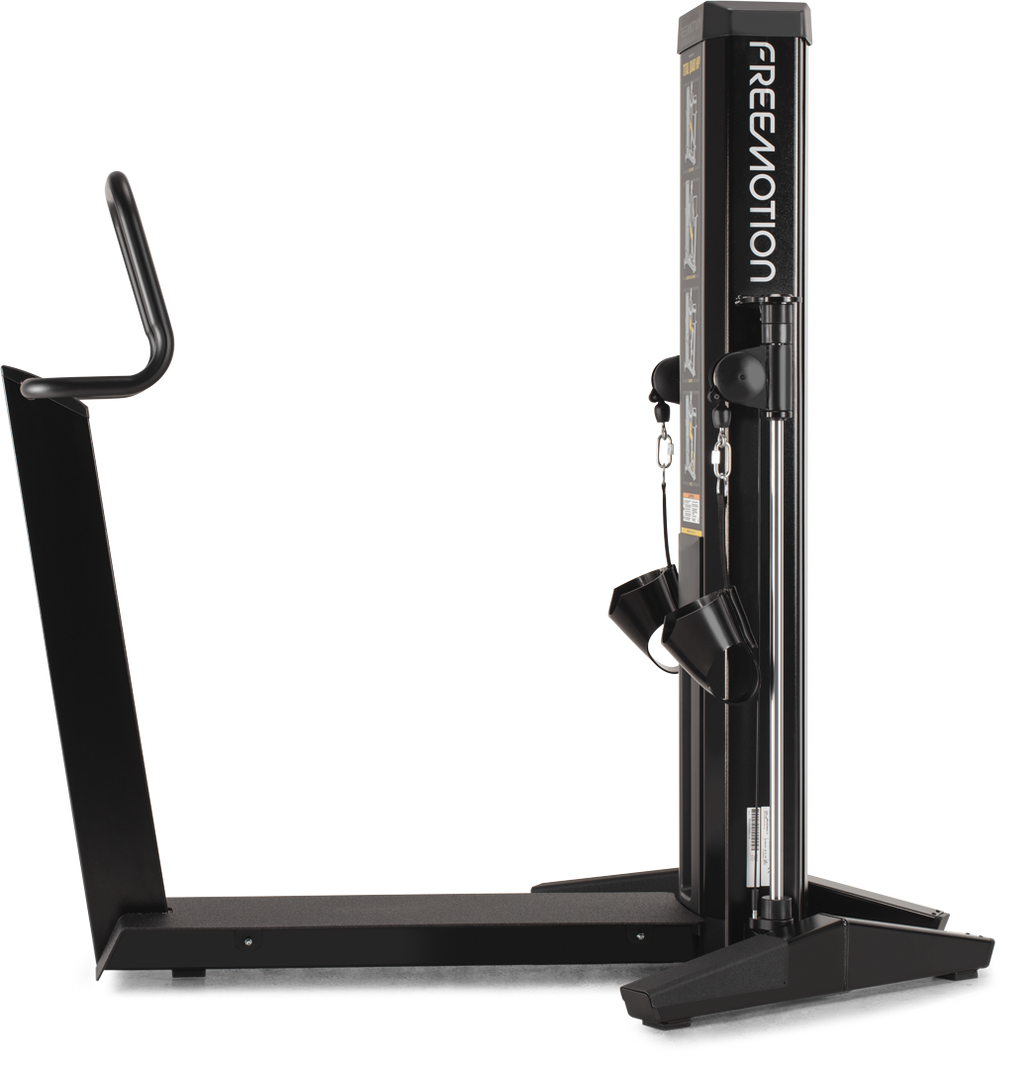

TOTAL QUAD / HIP
G628

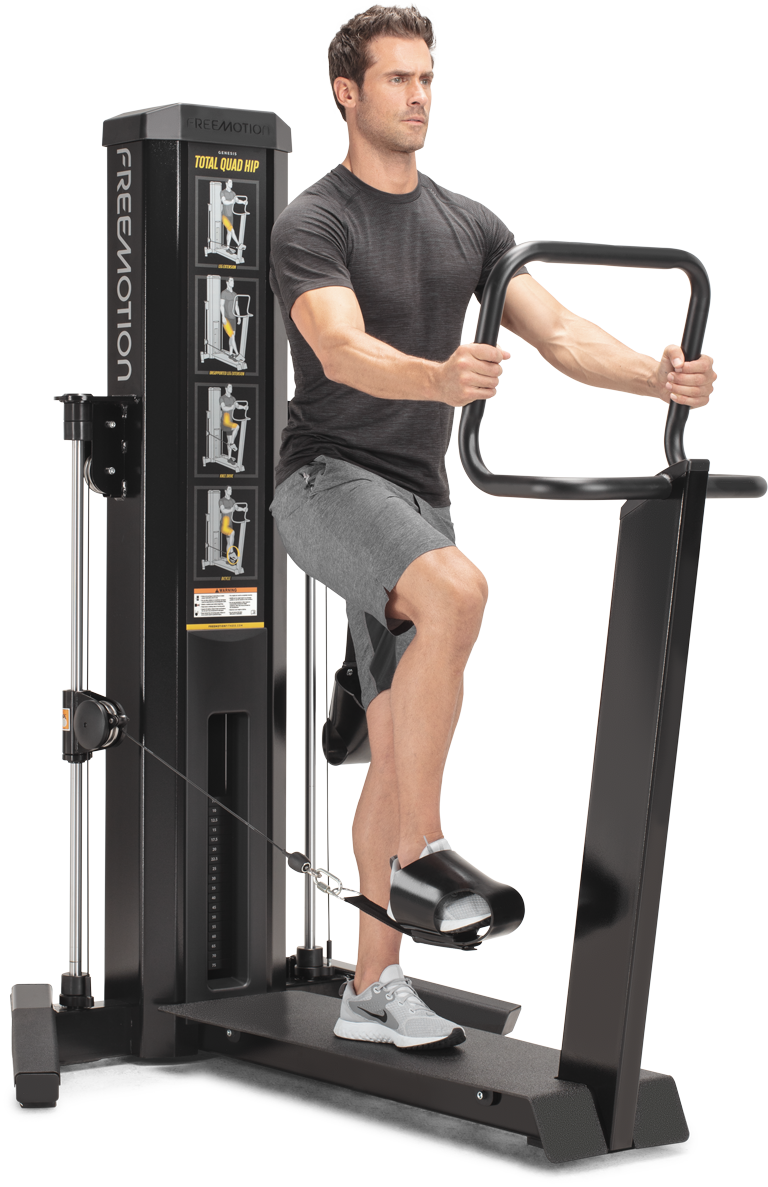

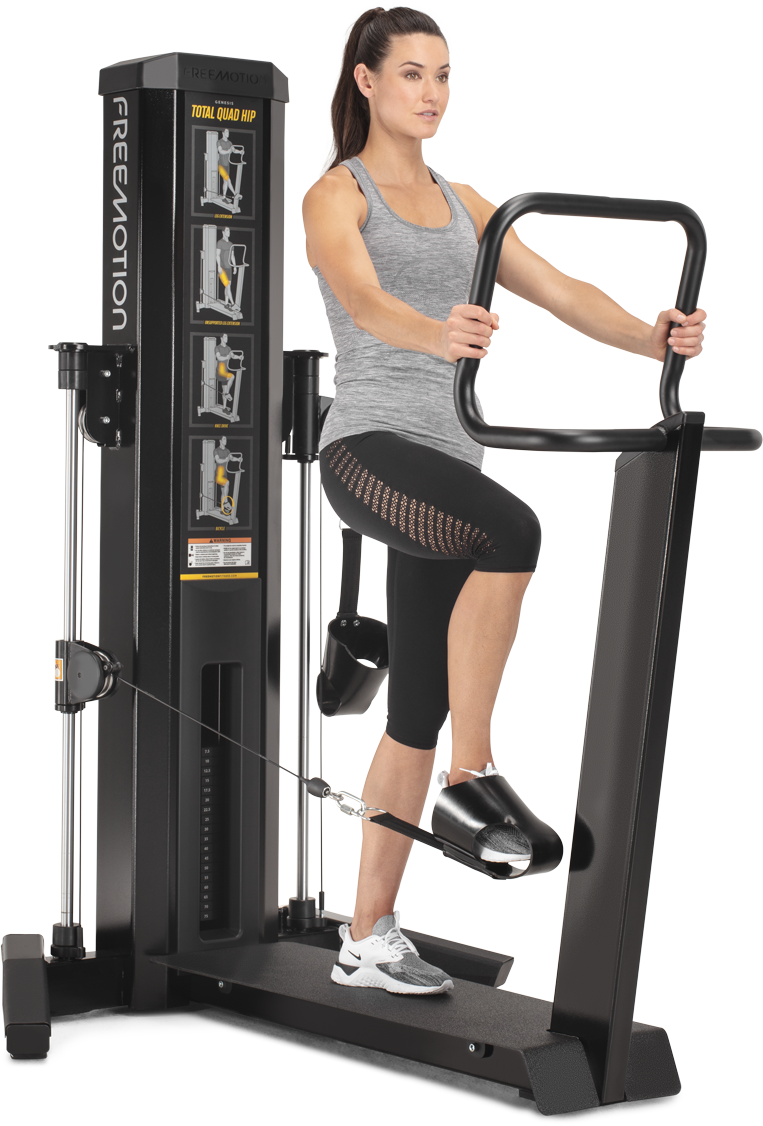

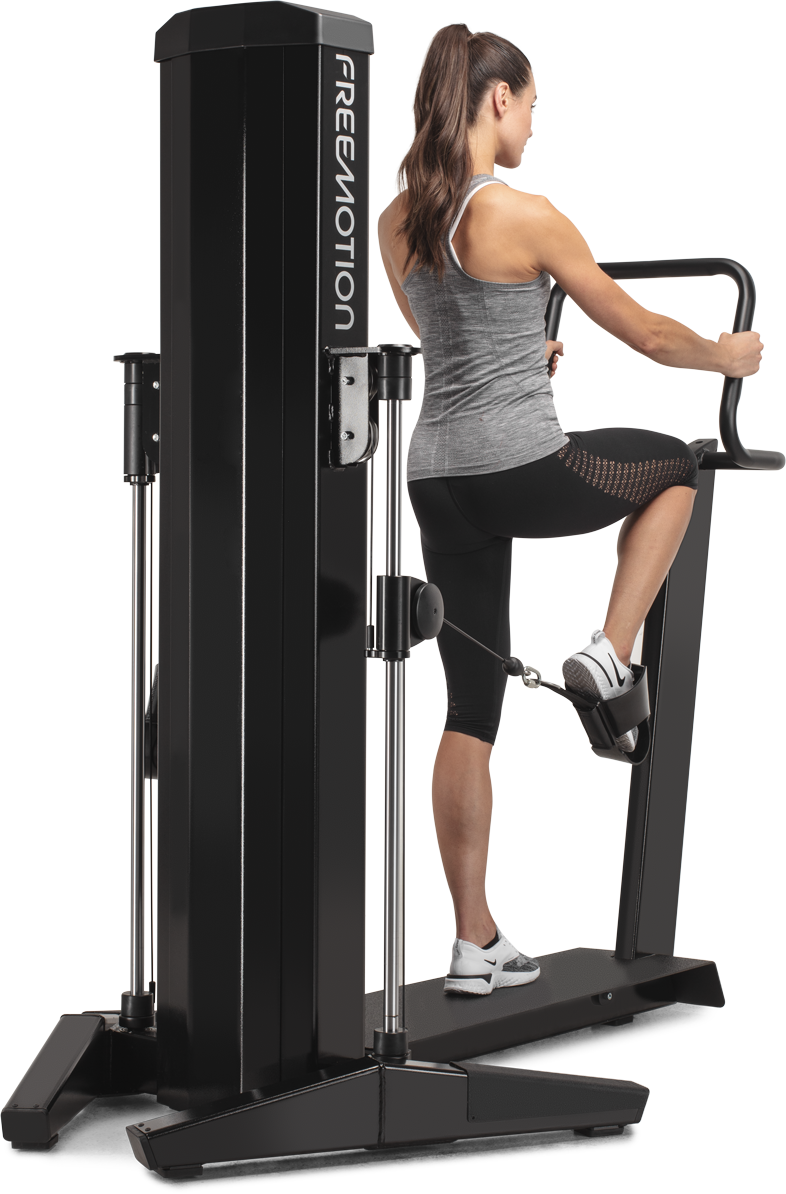

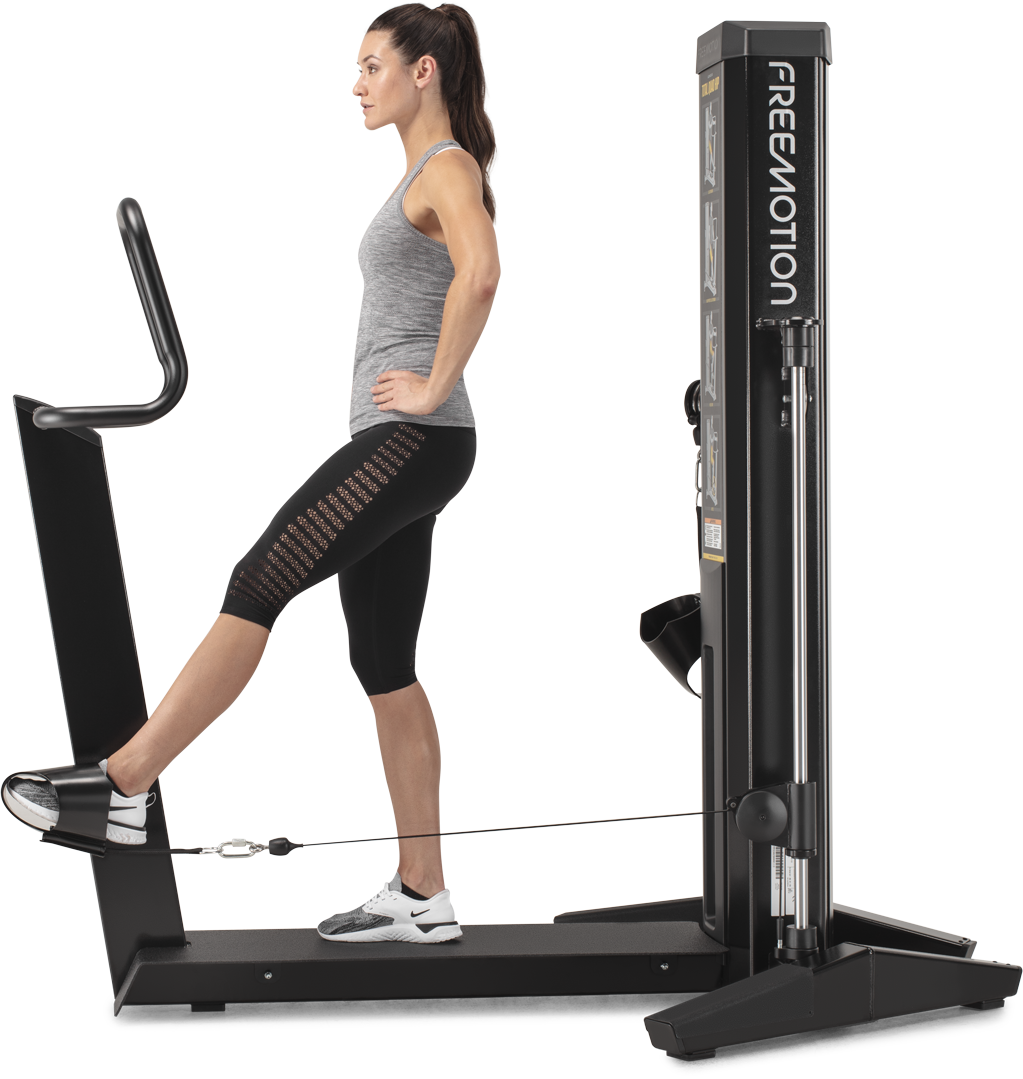

Performing leg extensions or simulating soccer kicks on the GENESIS Total Quad/Hip functionally trains the lower body from hips to ankles. This helps to build balance and increase strength in both the large muscle groups and joint stabilizers. The swivel pulleys travel along a linear guide to create progressive resistance that builds throughout the range of motion.
additional features
Isolation to Integration
The machine features a multi-grip handle for balance and to isolate the upper body. Users can simply let go to work out unsupported and integrate more muscle groups.
Walk Up and Work Out
With no required adjustments, users can simply walk up, put on the foot harness and start moving.
Foot Harness
Specially designed foot harness has a boot-like shape to fit users’ various foot sizes.
Extensive Cable Travel
Cable length allows for full flexion and extension: 37 in / 93.9 cm.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
N/A
Resistance
150 lb / 68 kg
Seat
N/A
Pulleys
Swivel Pulleys
Cable Travel
37 in / 93.9 cm
Rubber Feet
Molded floor protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
150 lb / 68 kg
Drop Down Weight
N/A
Weight Stack Configuration
5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg
Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color
Custom colors available upon request
Plastic Color
Ebony
Standard Upholstery Color
N/A
Optional Upholstery Color
N/A
Product Dimensions & Weight

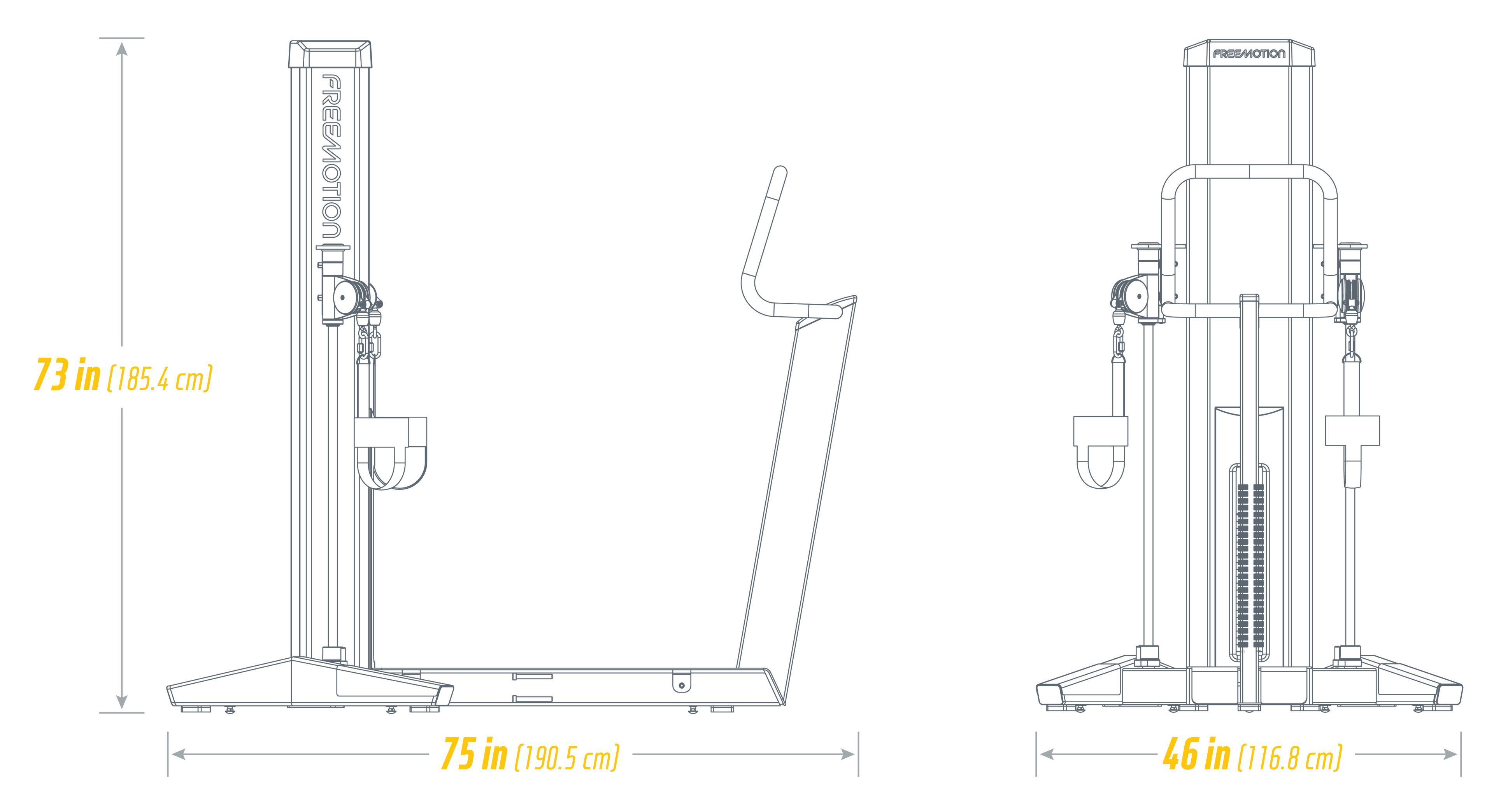

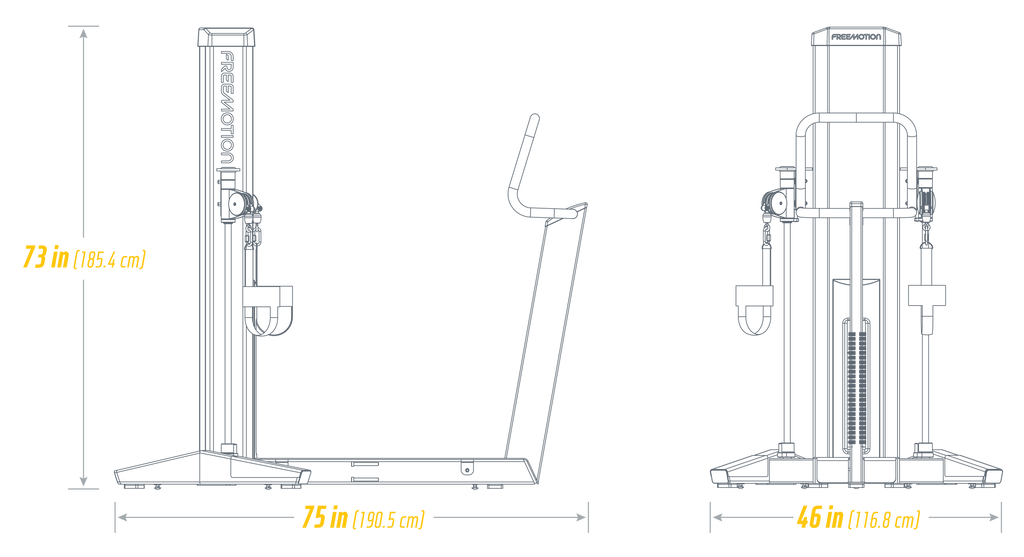

Dimensions L x W x H
75 x 46 x 73 in / 190.5 x 116.8 x 185.4 cm
Footprint
75 x 46 in / 190.5 x 116.8 cm
Weight
513 lb / 232.6 kg
Shipping Dimensions
74.8 x 63.2 x 76.6 in / 189.9 x 160 x 194.5 cm
Shipping Weight
528 lb / 239.4 kg
Certifications
EN957, CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

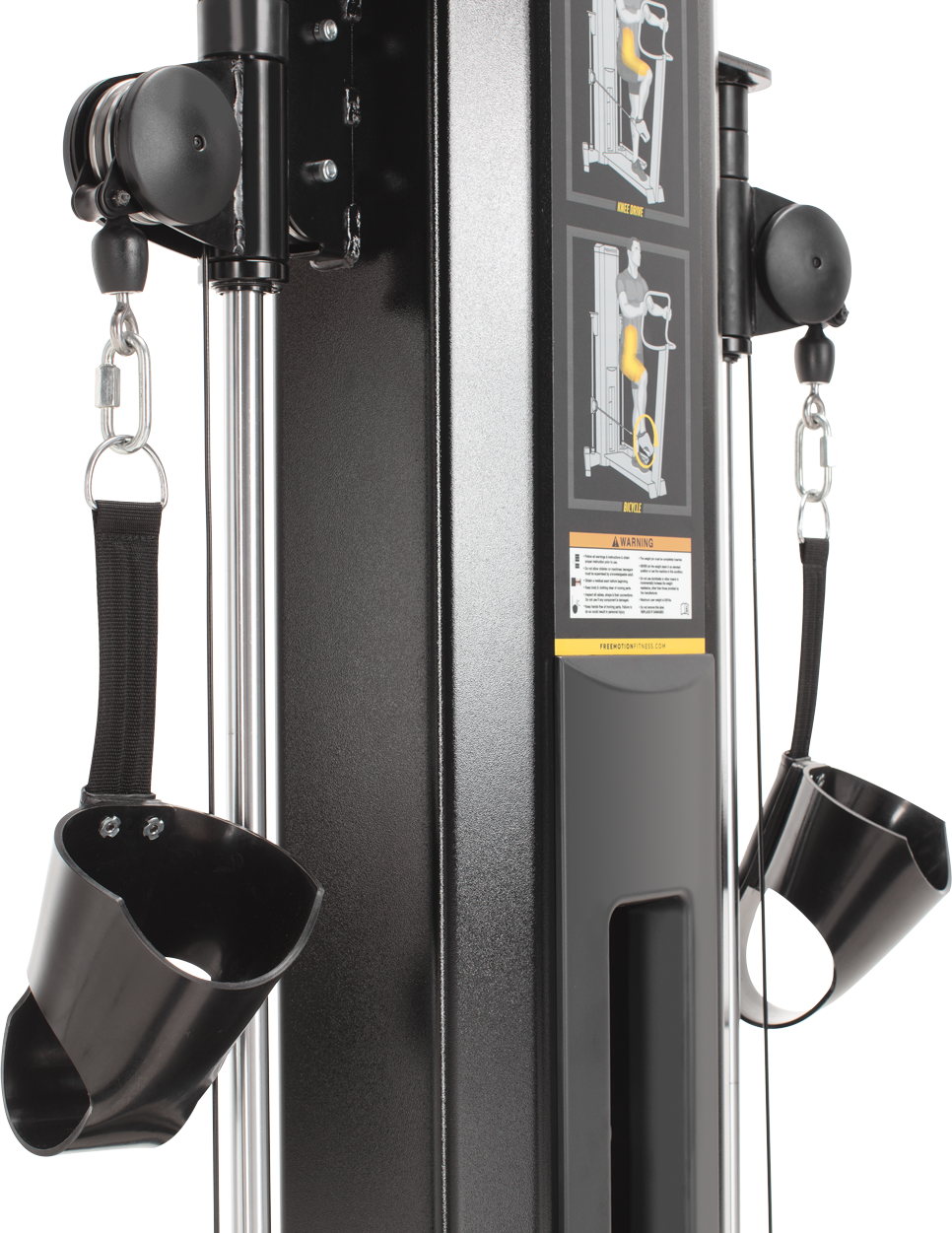

BUILD RESISTANCE THROUGH THE MOTION
Swiveling pulley slides along a guide, changing the angle of the movement offering progressive resistance that increases through the motion.
FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

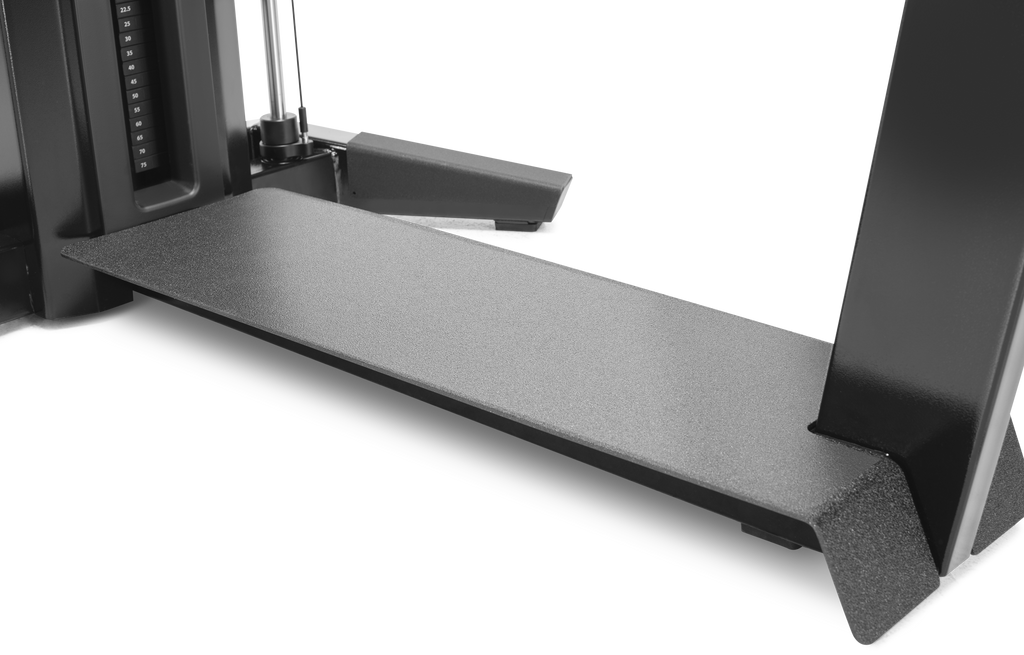

SURE FOOTING
Textured platform helps ensure secure foot placement even under heavy loads.
