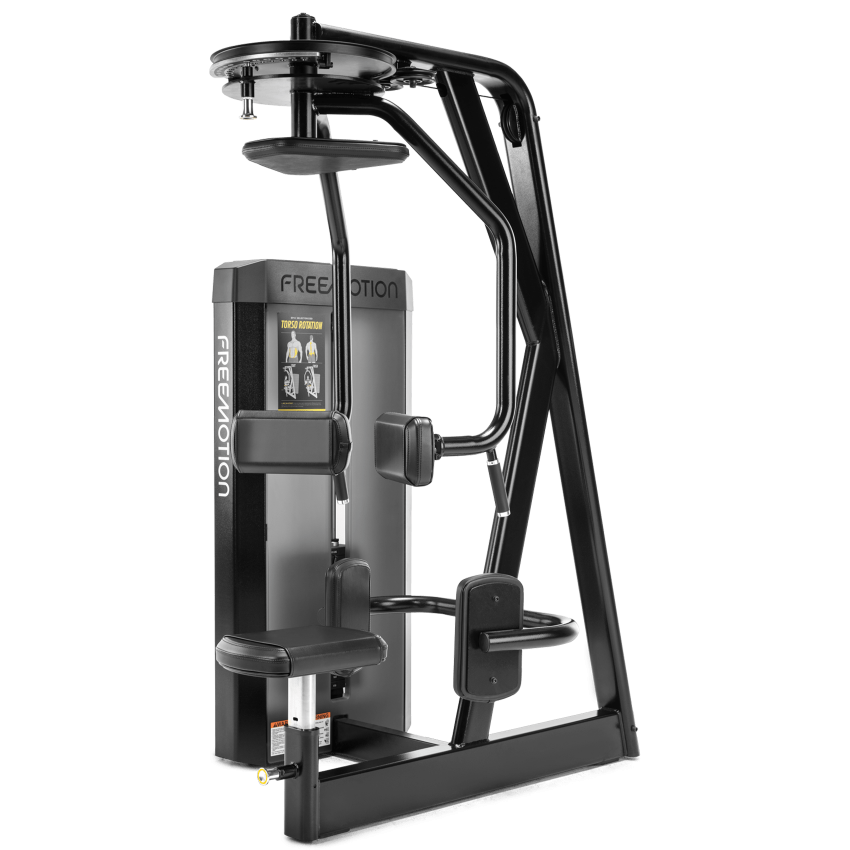

TORSO ROTATION
ES818
The EPIC Selectorized Torso Rotation trains the large core muscles in addition to the smaller, spine stabilizing muscles. Adjustable seat bottom, leg pads and chest pads are precisely placed to give comfortable support where it is needed. Set the start position for a customized range of motion to fit the user.
additional features
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Multiple Seat Adjustments, Multiple Start Positions
Resistance
175 lb / 79.3 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
175 lb / 79.3 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-170 x 10 lb / 4.5 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight

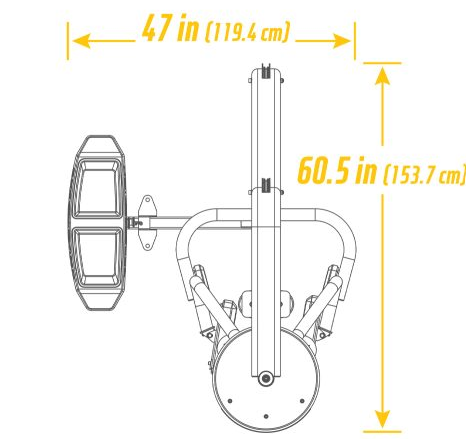

Dimensions L x W x H
60.5 x 47 x 79.2 in / 153.6 x 119.3 x 201.1 cm
Footprint
60.5 x 47 in / 153.6 x 119.3 cm
Maximum workout area
60.5 x 47 in / 153.6 x 119.3 cm
Weight
573.2 lb / 260 kg
Shipping Dimensions
Box 1: 93 x 30.3 x 58 in / 236.2 x 76.9 x 147.3 cm
Box 2: 31.1 x 20 x 3.5 in / 78.9 x 50.8 x 8.8 cm
Shipping Weight
Box 1: 684.5 lb / 310.4 kg
Box 2: 15.4 lb / 6.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
SET THE RANGE

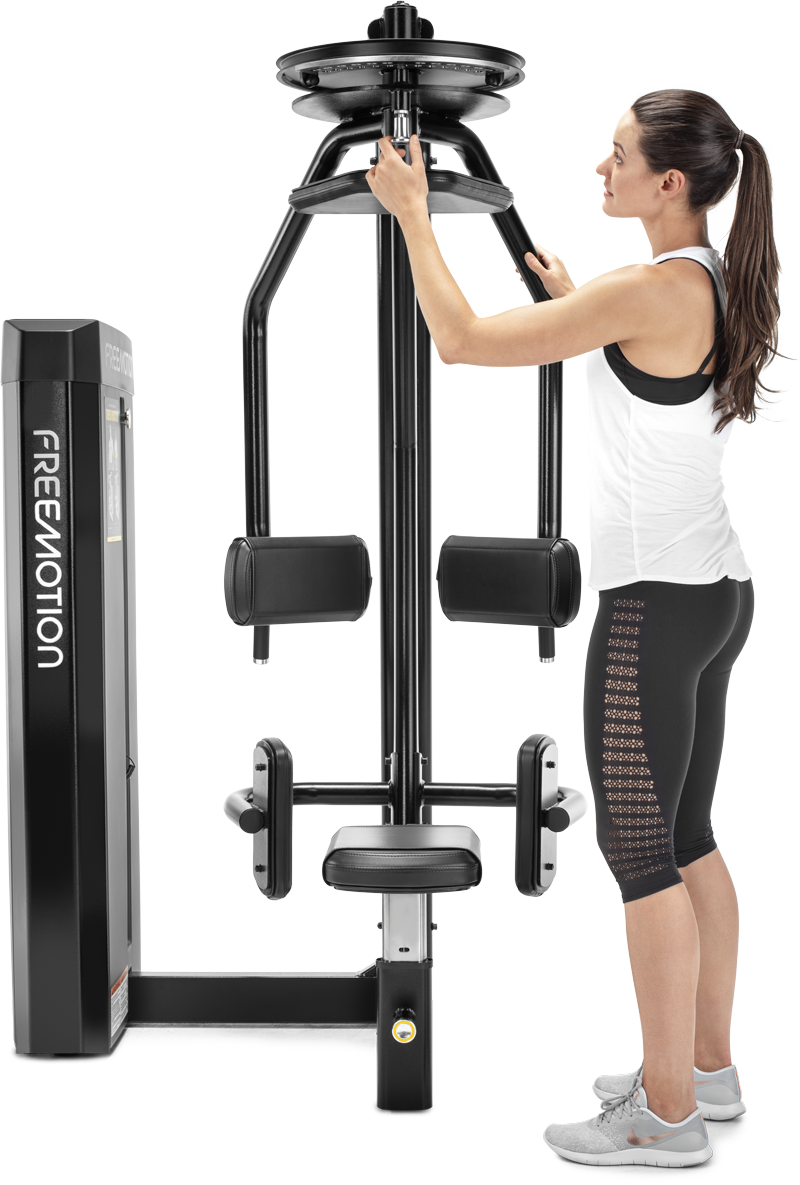

Built to fit users of various sizes and abilities, the upper body assembly adjusts to fit their range of motion.
COMFORTABLE BY DESIGN

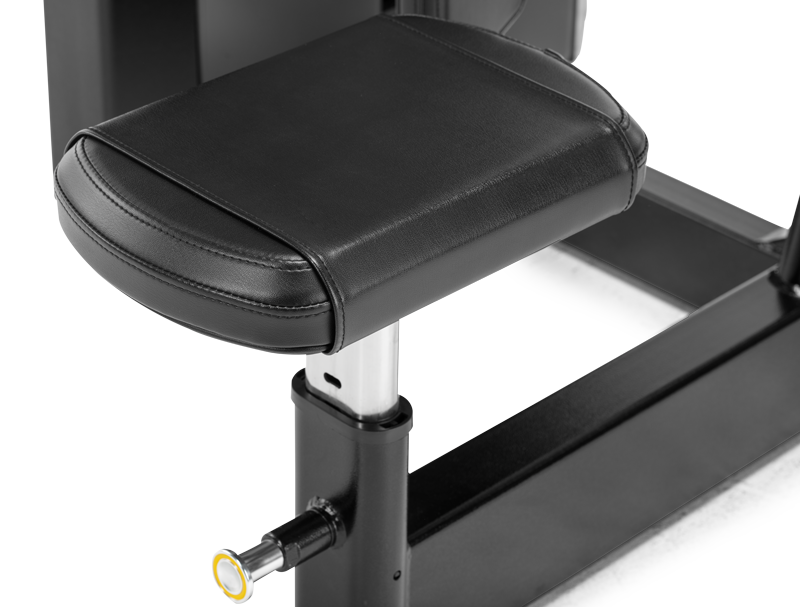

Seat bottom adjusts for height and leg and chest pads are positioned for a comfortable fit.
SMALLER FOOTPRINT
The new EPIC Lateral Torso has a smaller, narrower footprint to free up your square footage.
