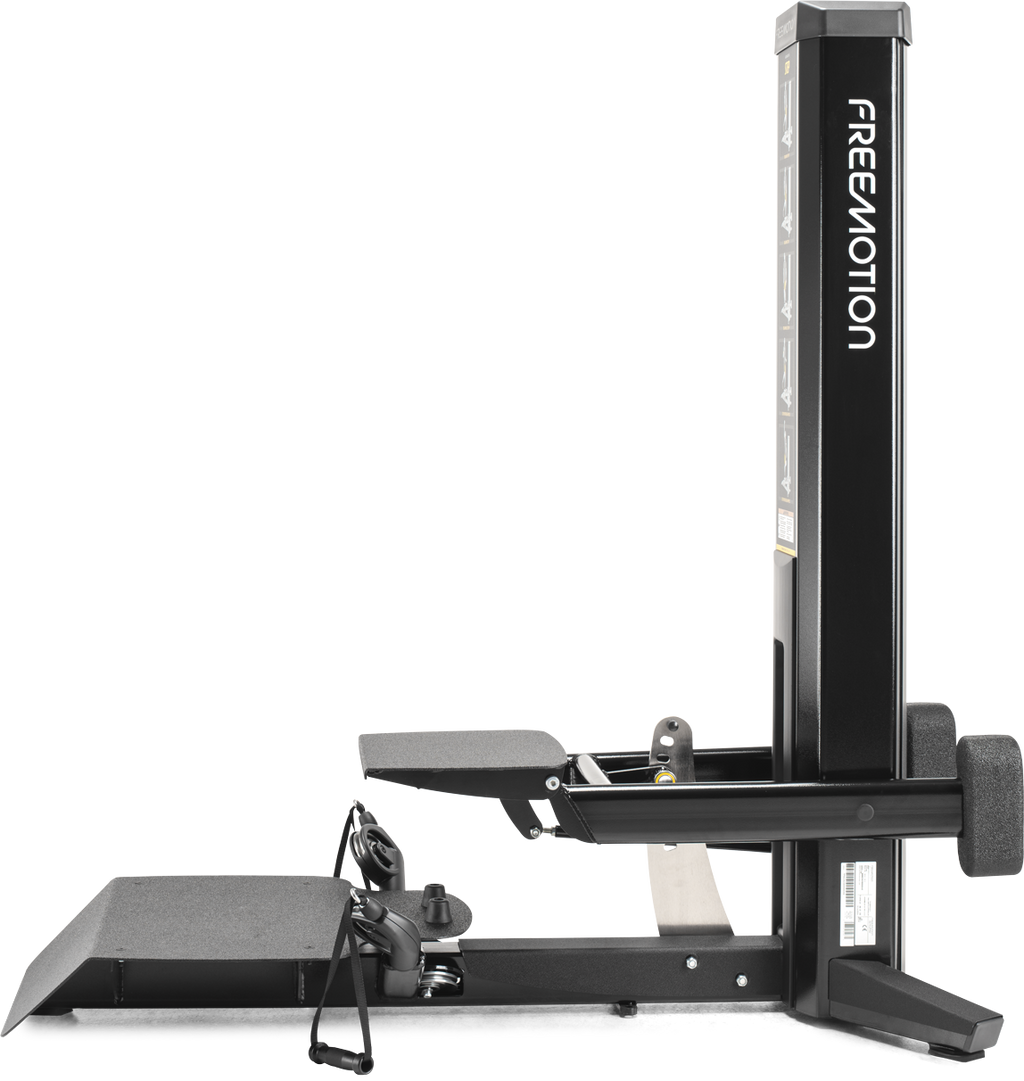

STEP
G614

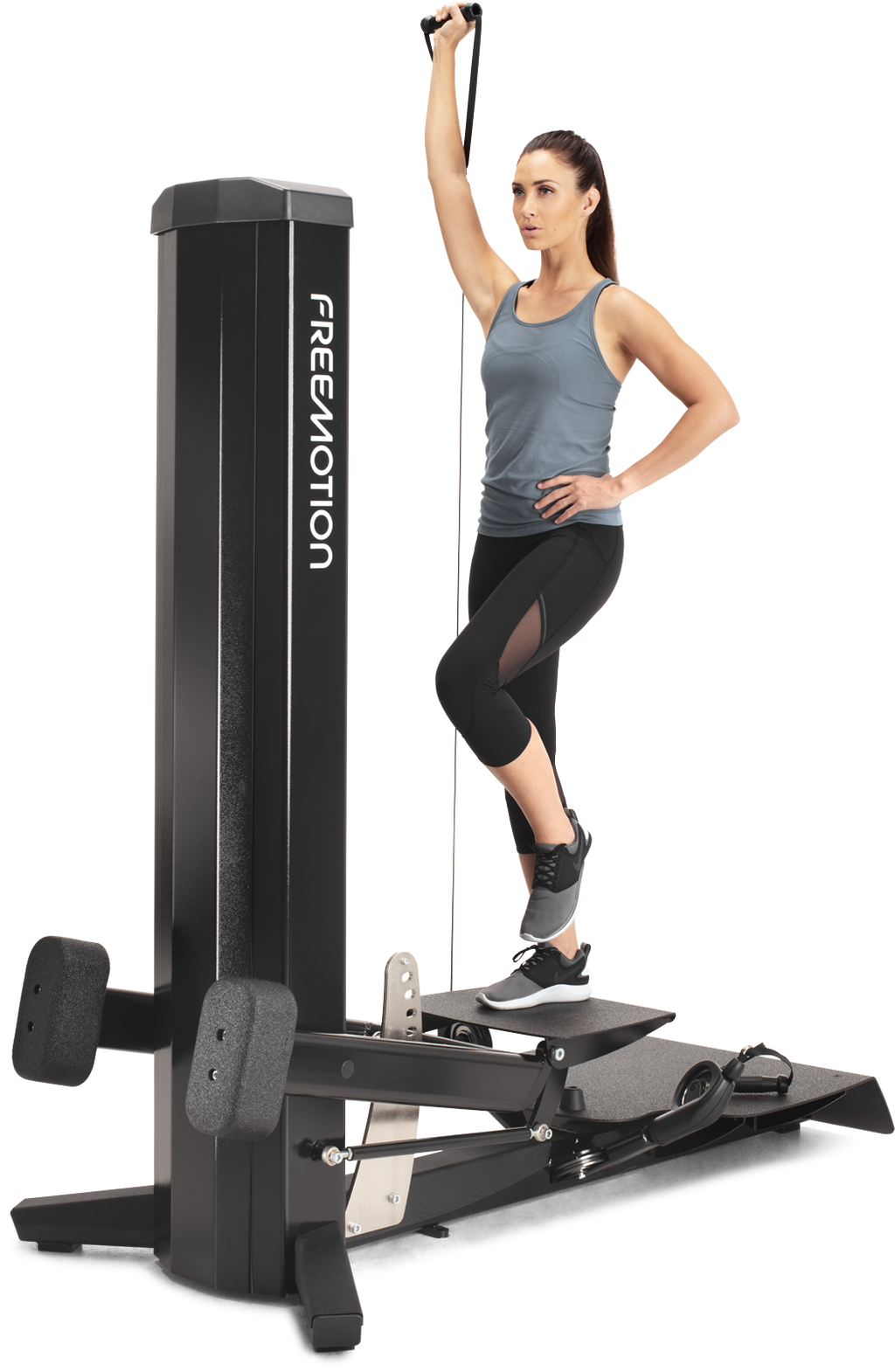

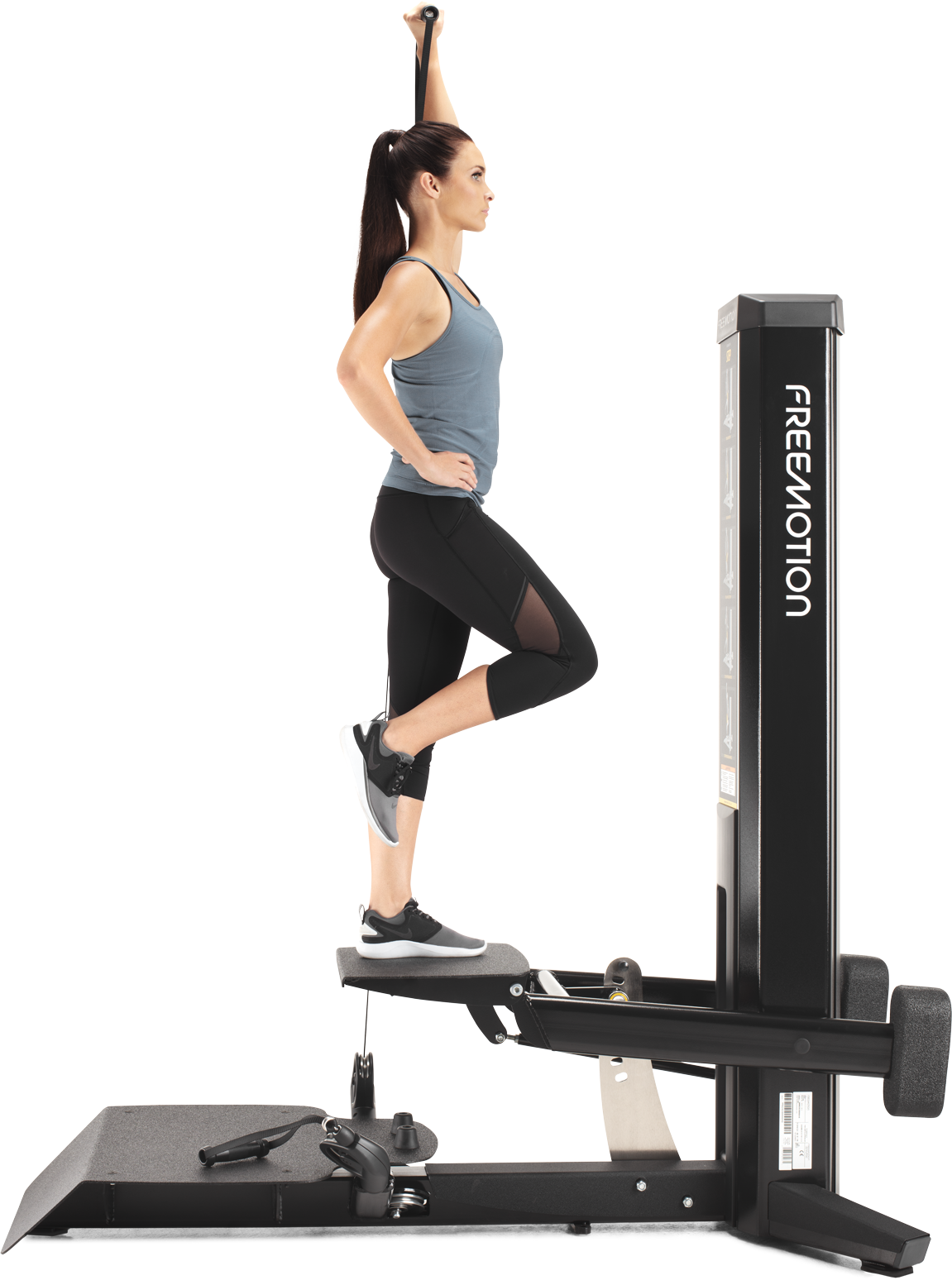

The GENESIS Step is designed to accommodate a wide range of motion for compound exercises through all planes of motion. The counterweighted step with hydraulic assist makes for easy adjustment. Swivel pulleys with 79.5 in / 201 cm cable travel for a single arm adds to the versatility for adding overhead presses to a step-up. Grip texture on the platform and step helps keep feet planted.
additional features
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Movement Variety
Handles move independently for single and alternating side exercises.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features

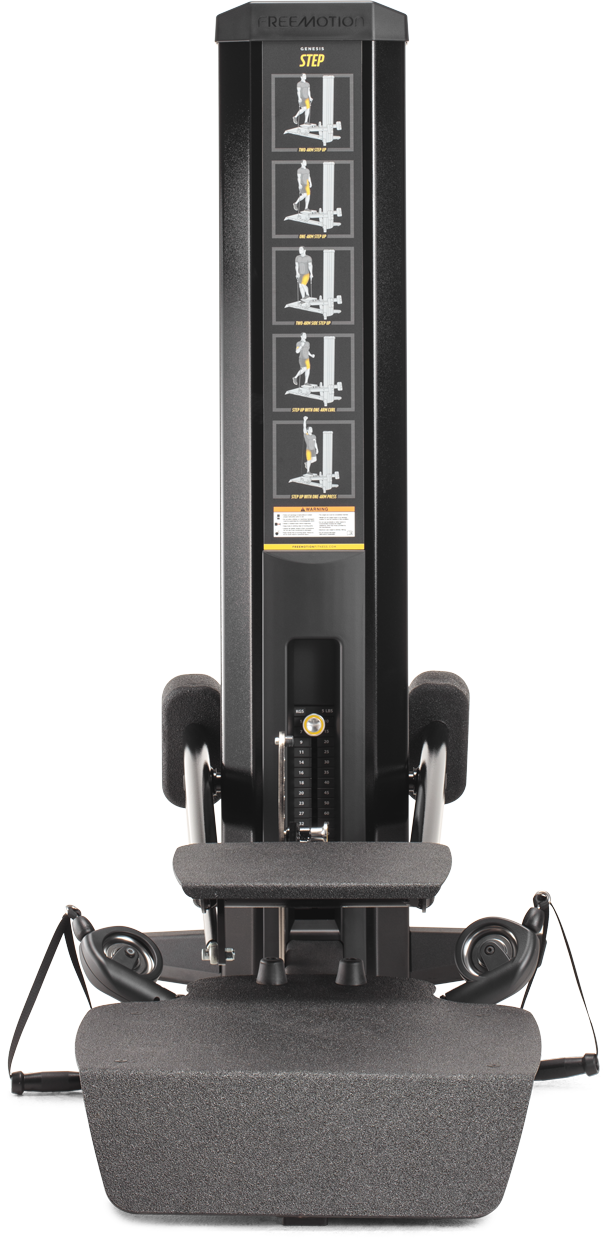

Instructional Placards
Yes
Adjustments
Adjustable step with 7 settings
Resistance
1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg
Seat
N/A
Pulleys
Dual lower swivel pulleys
Cable Travel
79.5 in / 201.9 cm
Rubber Feet
Molded floor protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
150 lb / 68 kg
Drop Down Weight
N/A
Weight Stack Configuration
0 – 45 x 5 lb / 0 – 20.4 x 2.2 kg
50-150 x 10 lb / 22.6 – 68 x 4.5 kg
Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color
Custom colors available upon request
Plastic Color
Ebony
Standard Upholstery Color
N/A
Optional Upholstery Color
N/A
Product Dimensions & Weight

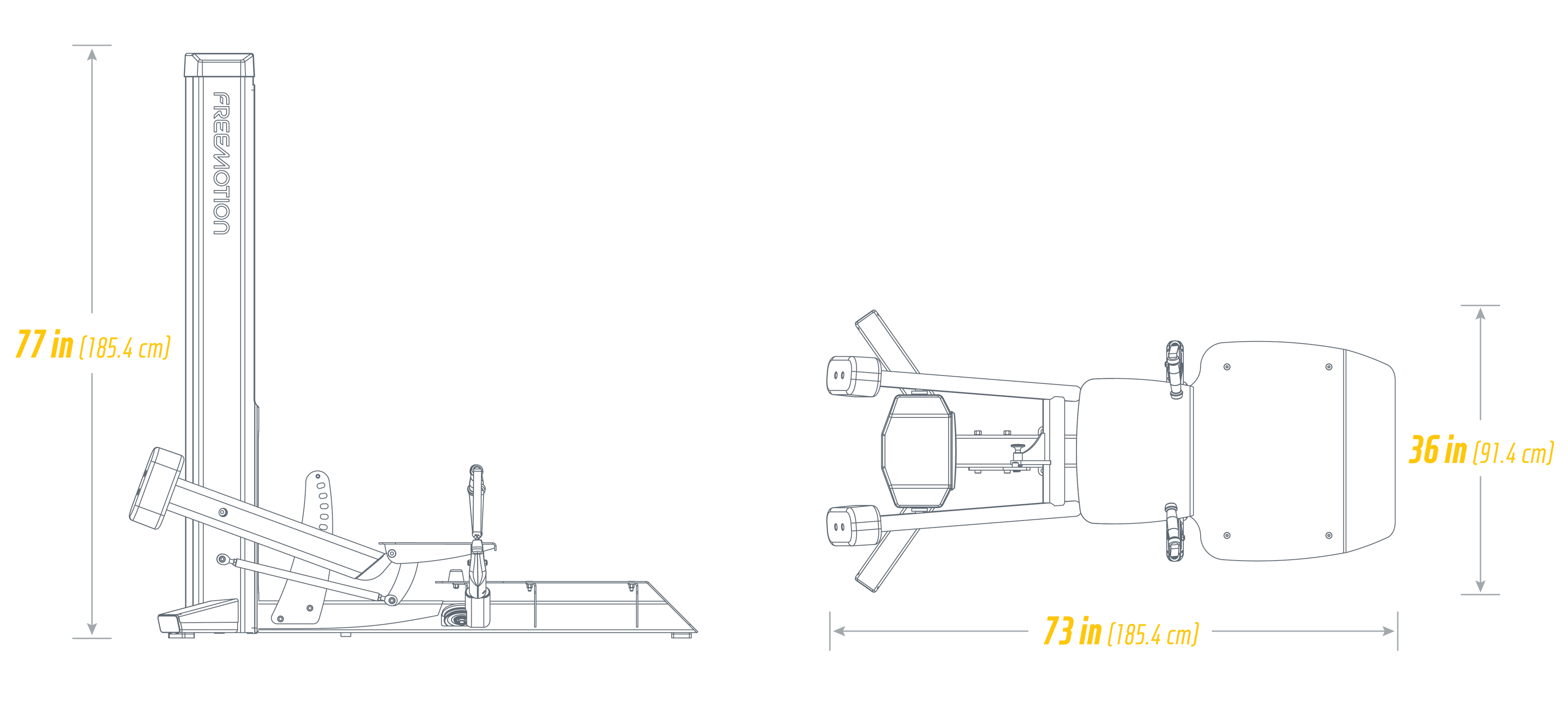

Dimensions L x W x H
73 x 36 x 77 in / 185.4 x 91.4 x 195.5 cm
Footprint
73 x 36 in / 185.4 x 91.4 cm
Weight
223 lb / 101.1 kg
Shipping Dimensions
57.5 x 30.5 x 8.5 in / 146 x 77.4 x 21.5 cm
Shipping Weight
602 lb / 273 kg
Certifications
EN957, CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
FINE-TUNE RANGE OF MOTION
The step adjust vertically to customize range for users of varying heights and fitness abilities.
FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY
Handles move independently for single and alternating arm exercises.

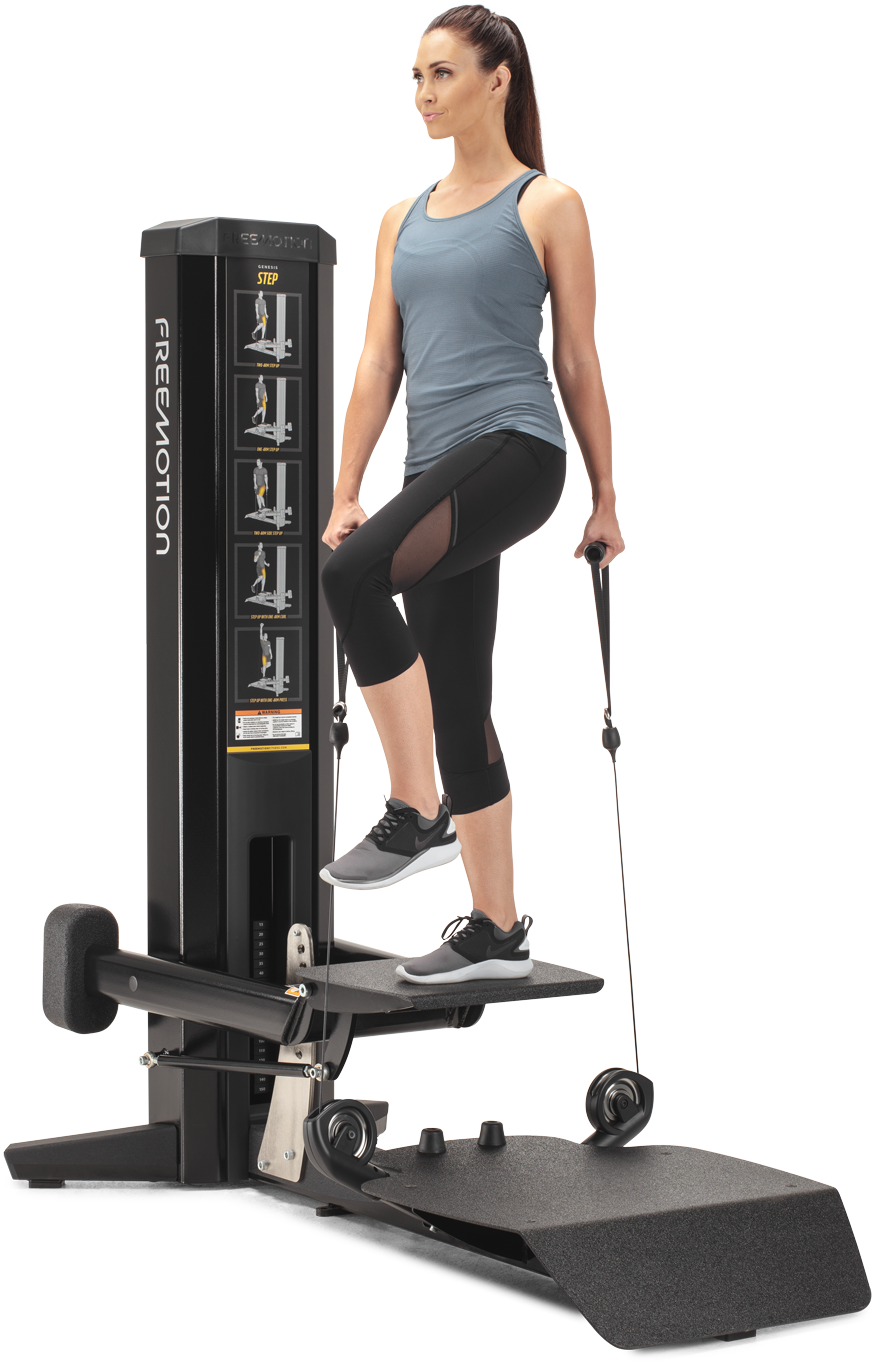

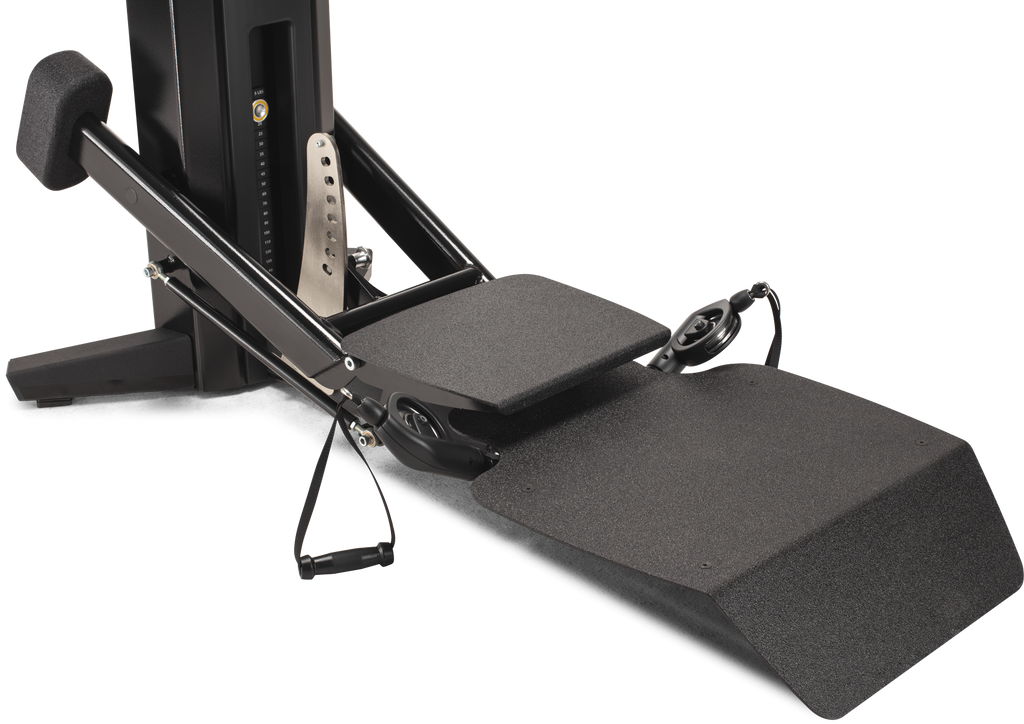

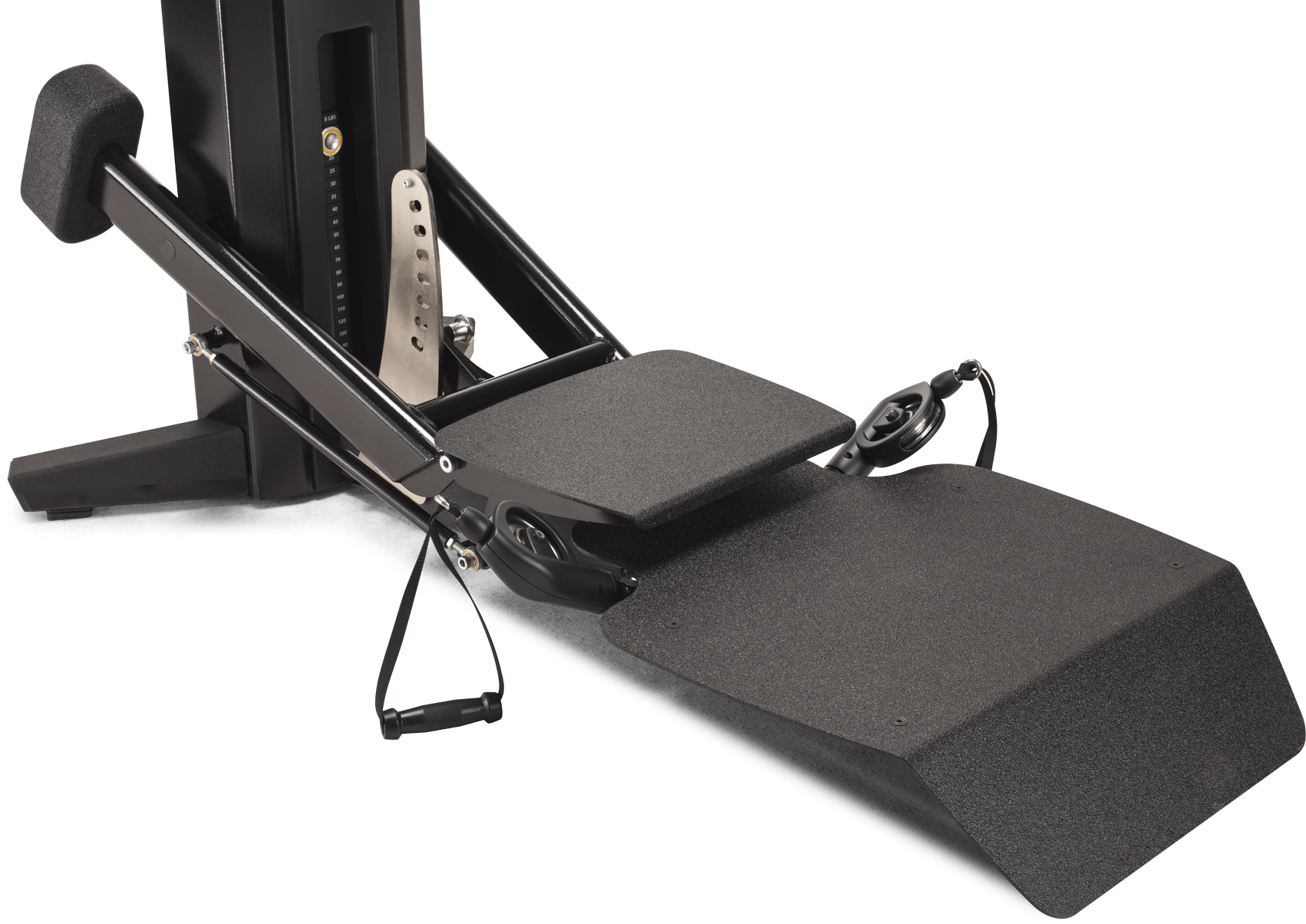

SURE FOOTING
Textured step and platform help ensure secure foot placement even during dynamic exercise.
