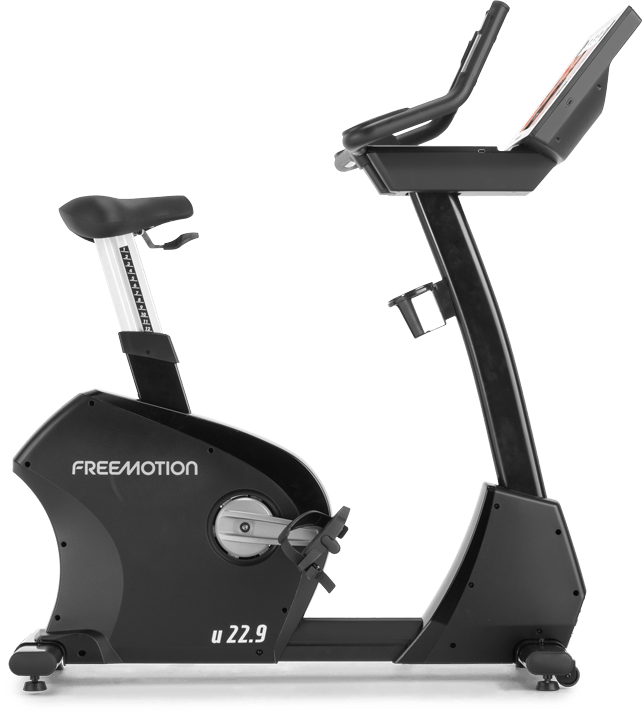

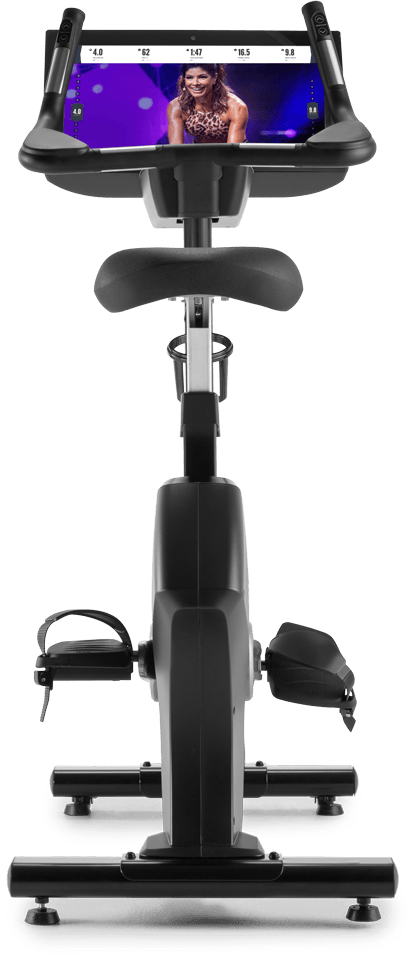

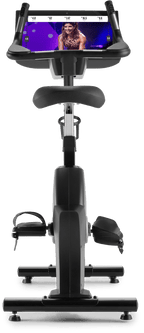

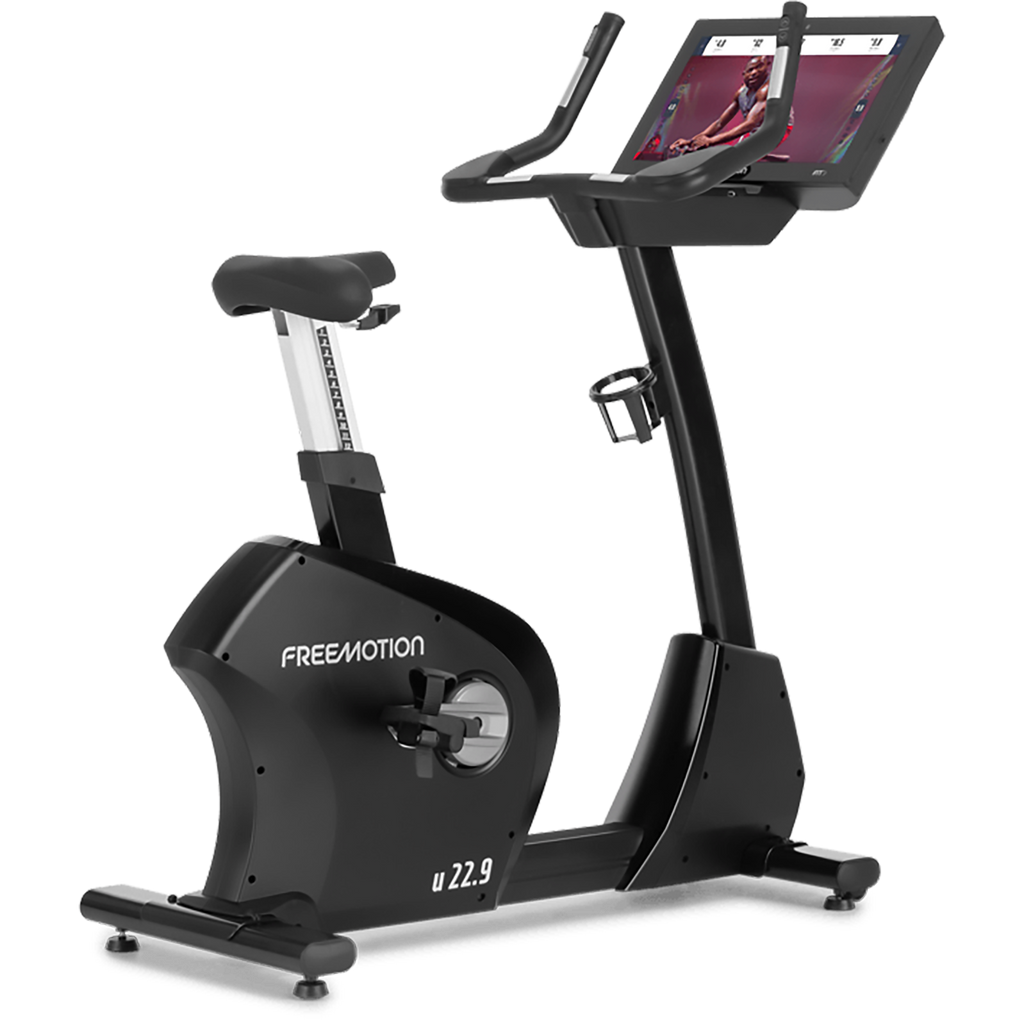

u22.9 UPRIGHT BIKE
FMEX82420
Offer your members the consistent, effective, and low-impact cardio solution found on the Freemotion Upright Bike, while allowing them to cycle the world, right from the cardio floor.
additional features
Consistent Cycling Solution
From the Quicklift™ Overmolded Seat to the Step-Thru™ design, this bike is poised to be your go-to cardio solution. Give yourself a consistent and efficient cardio experience by choosing between sitting down and starting to pedal or exploring the world with your favorite trainer through thousands of coach-led workouts.
Accessible and Engaging Solution
Participate in the high-intensity studio classes you’ve been wanting to attend but
may not have felt comfortable joining because the equipment accessibility. With a Step-Thru™ design and ergonomically engineered seat, you have the equipment to thrive.

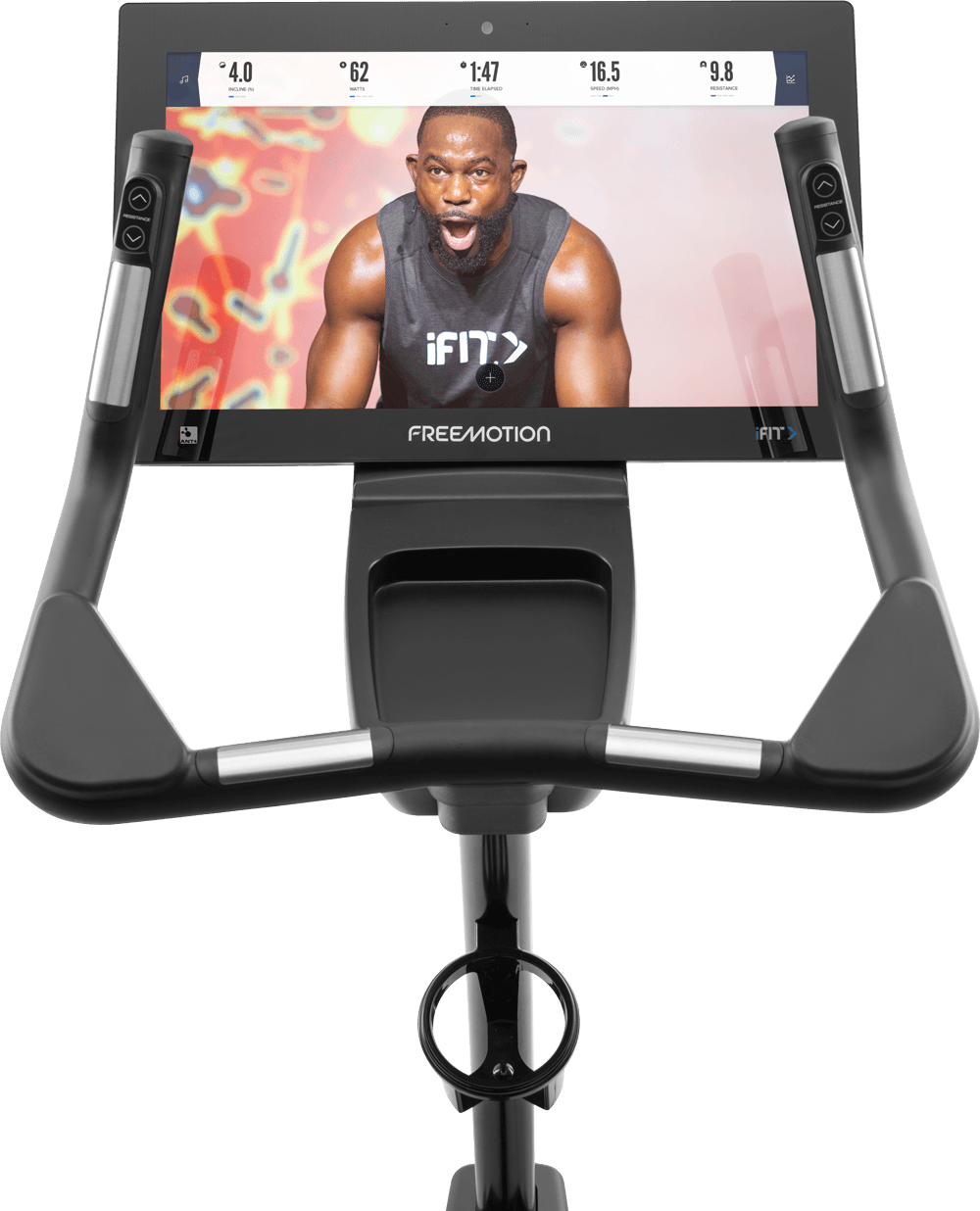

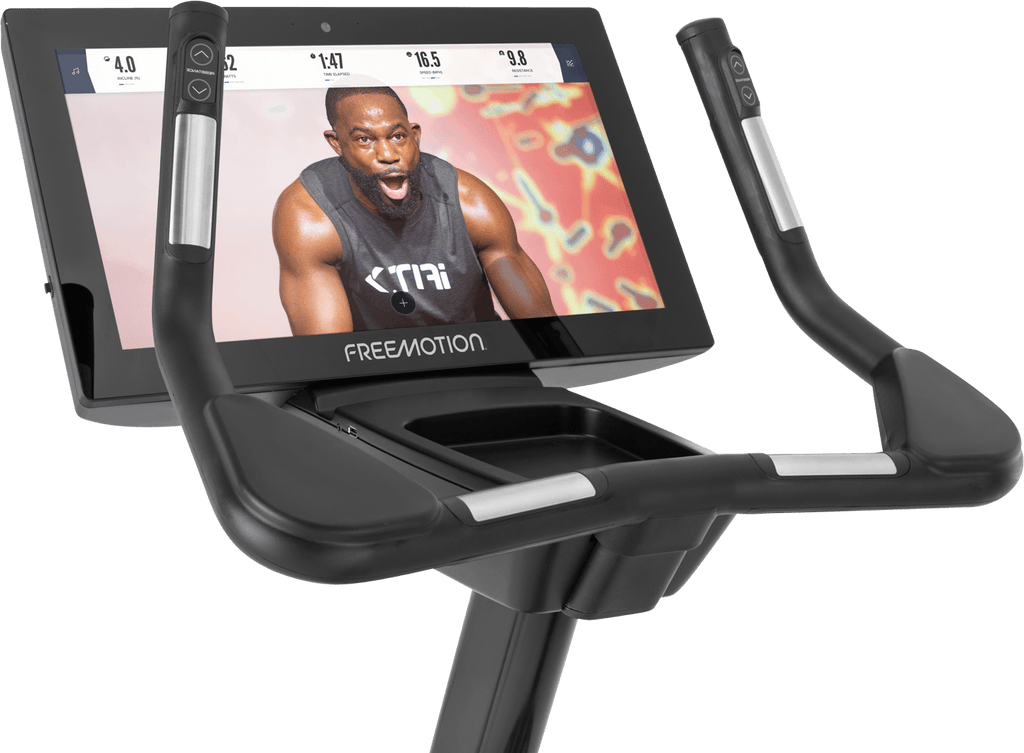

High-definition Display

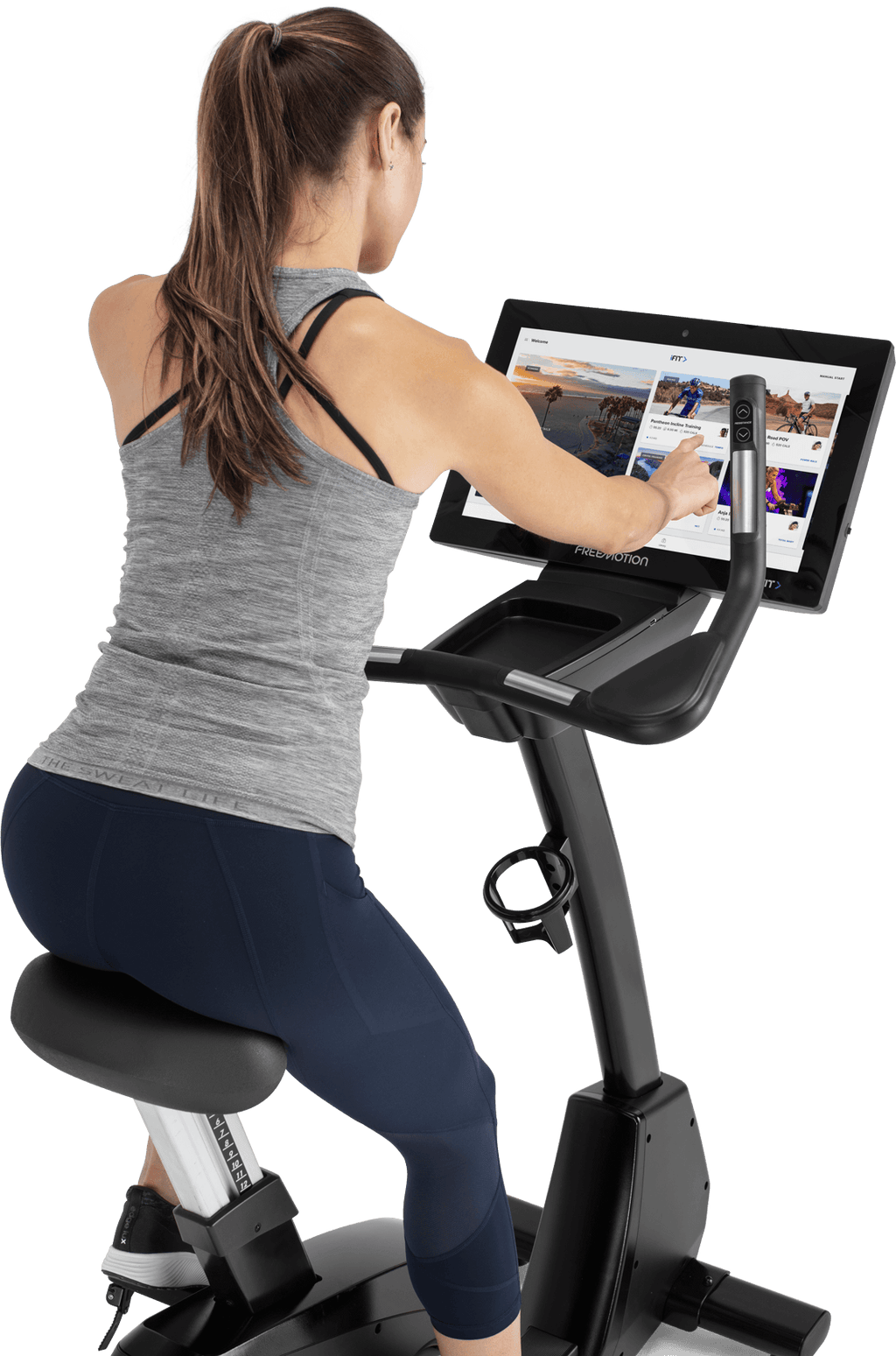

Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22in / 55cm capacitive touchscreen.
On-the-fly Adjustments
Override or adapt the programming to meet your needs by quickly adjusting the resistance with controls conveniently placed directly on the handlebars.
Know your Zone
Get real-time data during your workout with built-in EKG grips, so you know when you’re in the ideal heart-healthy zone. Also compatible with ANT+ and Polar®.
Low-impact Cardio Workout
Treat your joints to a low-impact cardio workout while engaging your muscles,
heart, and mind in a stimulating and effective workout.
Advanced Workout Metrics
Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.
Audio-enhanced Experience
Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.
Power Up
Charge your devices during your workout with a convenient USB port.
Specifications
Console Features
Display Type
22 in / 55 cm HD Capacitive Touchscreen
Resolution
1080p ISP LCD Screen
Controls
Touchscreen, On-handle Digital Controls
Workout Metrics
Speed, Incline, Distance, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT
Preset Programs
Limitless iFIT Training Options
Google Maps
Enabled
Console Language(s)
English
Featured Languages
EN, also DE, ES, FR, IT, PT, RU, ZH
Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)
Maximum Pause Time
60 Seconds
Additional Options
Quick-Start Manual Mode
Entertainment
TV Tuner
US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
Closed Captioning
CC1-4, TEXT 1-4
Connectivity
Recommended Internet Connection
Dedicated Ethernet – Cat 6
Ethernet Requirements
Cat6 Preferred (Cat5e or higher required)
WiFi Connection
2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
Video Connections
Coax, HDMI Input
Audio Connections
3.5 mm Audio Out, Bluetooth
Product Features
Crank & Axle
3-Piece Crank
Drive Belt
Quiet Belt Drive System, Hutchinson
Pedals
Oversized, Adjustable Pedals
Gear Ratio
N/A
Resistance System
400 Watt EMS Brake Resistance System
Heart Rate Monitoring
Dual EKG Pulse Sensors, ANT+ and Polar Compatible
Workout Fan
N/A
Accessory Charging
USB Charging Port
Accessory Holder(s)
Dual Water Bottle Holders, Phone Holder
Grips
Soft touch, upper-body grips
Seat
Overmolded Quick Adjust Seat
Accessibility
Highly-Accessible Step-Thru™ Design
Positioning
Large Adjustable Leveling Feet
Transport Wheels
2 in / 5 cm plastic transport wheels
Color Options
N/A (Flat Black is standard color)
Unit Options
Metric or Imperial
Power Options
110-120 VAC, 2 Amp
220-240 VAC, 1 Amp
Product Specifications
Maximum User Weight
400 lb / 181 kg
Resistance Levels
1-24 Levels of Resistance
Dimensions & Weight
Product Dimensions L x W x H
50 x 24 x 58 in / 127 x 60.9 x 147.3 cm
Product Weight
176.4 lb / 80 kg
Shipping Dimensions L x W x H
53 x 24 x 58 in / 134.6 x 60.9 x 147.3 cm
Shipping Weight
206 lb / 93.4 kg
Power Requirements
U.S. & Canada
110-120 VAC, 2 Amp
International
220-240 VAC, 1 Amp
Certifications
cTUVus, FCC/IC, BQB
High-usage Warranty (US & Canada)
Frame
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
High-Usage Warranty (International)
Frame
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
Low-usage Warranty (US & Canada)
Frame
7 Years
Parts
3 Years
Console
3 Years
Labor
3 Years
Cosmetic & Wear Items
6 Months
Low-Usage Warranty (International)
Frame
7 Years
Parts
3 Years
Console
3 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
WORLD-RENOWNED FITNESS COACHES
We’ve hand-selected 200+ Olympic champions, celebrities, physical therapists, marathoners, and location guides to be your iFIT coaches.
With unique training styles and personalities that motivate and inspire, you’ll quickly find your new favorite trainer.
GLOBAL WORKOUTS
Explore the world without leaving the room with thousands of inspiring training videos beautifully filmed in stunning locations around the globe, including 60+ countries and all 7 continents. Your machine’s resistance will even adjust to match the terrain and instructions of your coach.
HIGH-ENERGY STUDIO CLASSES
Experience the hype of a high-intensity studio class alongside other participants and taught by fitness instructors that motivate and inspire you to finish strong. Let your coach guide you through the workout and
virtually control your machine.
