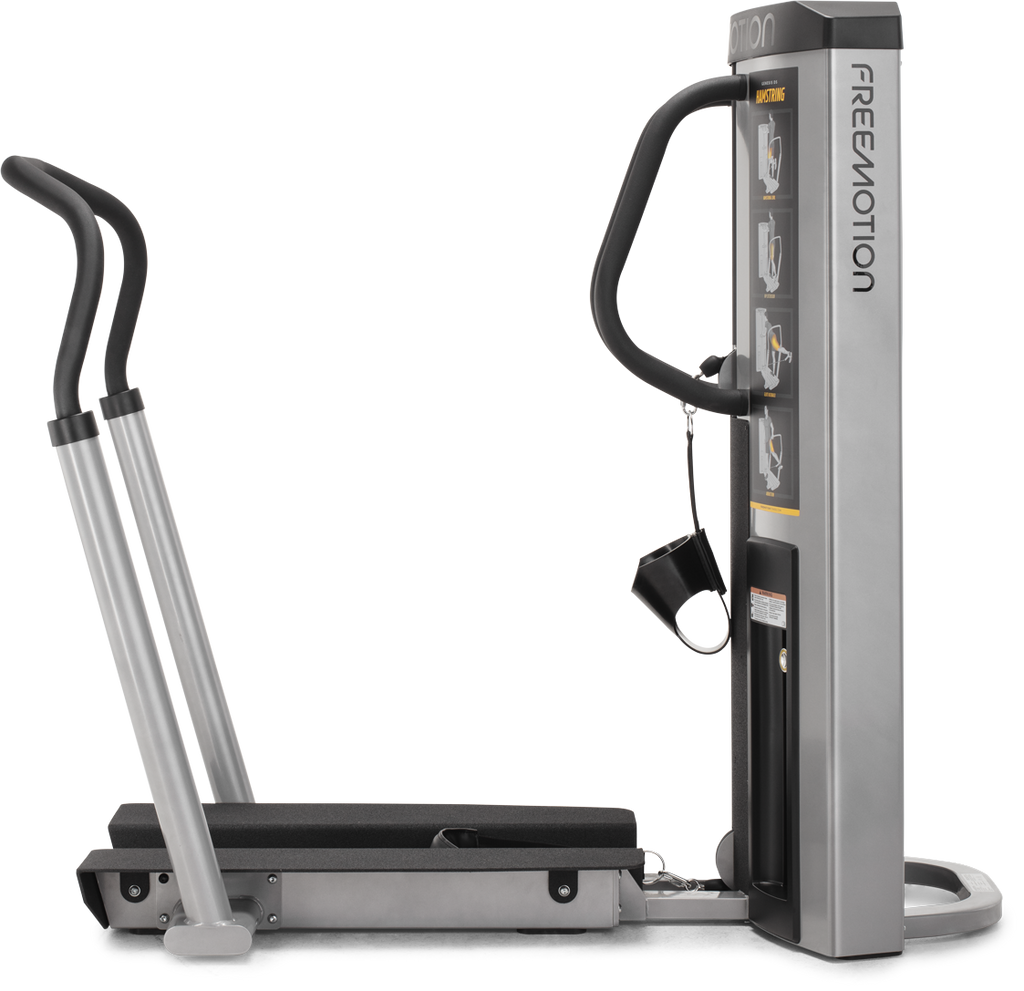

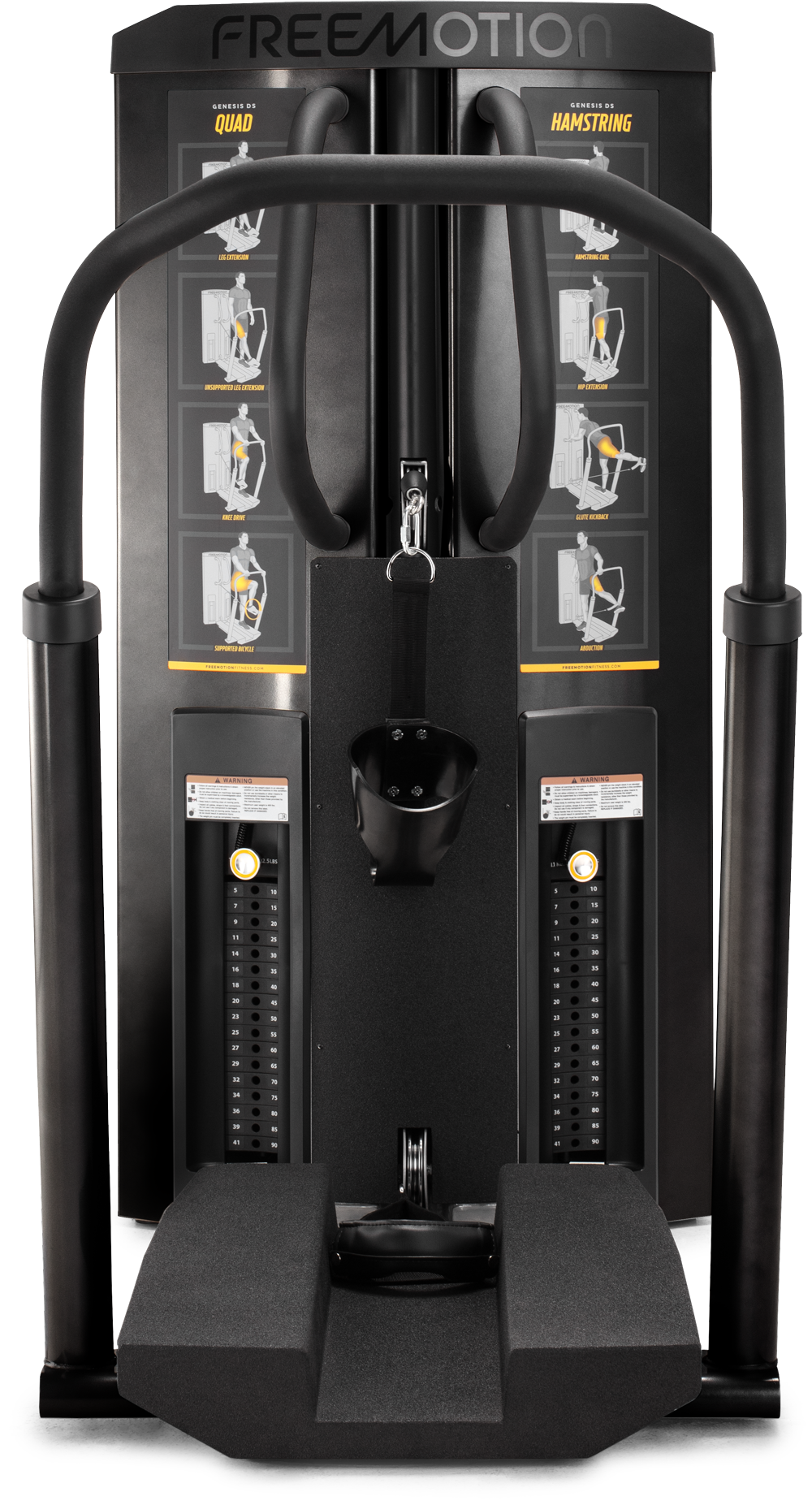

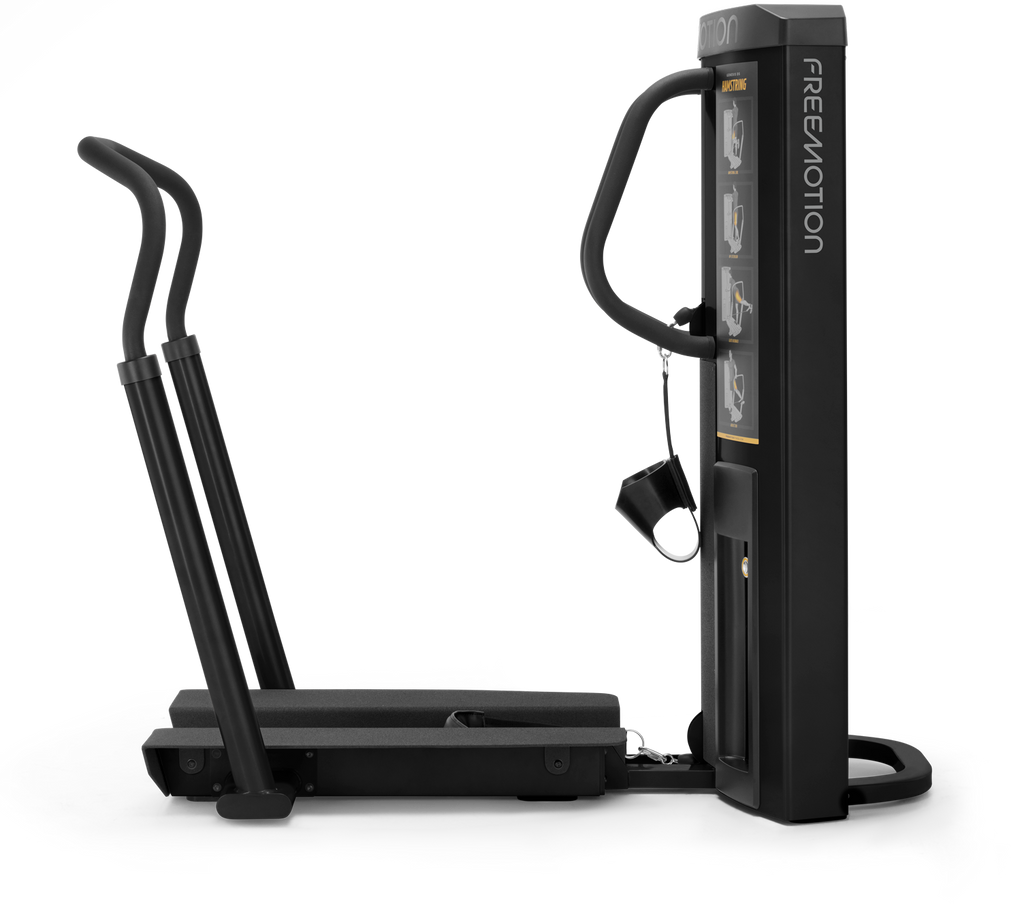

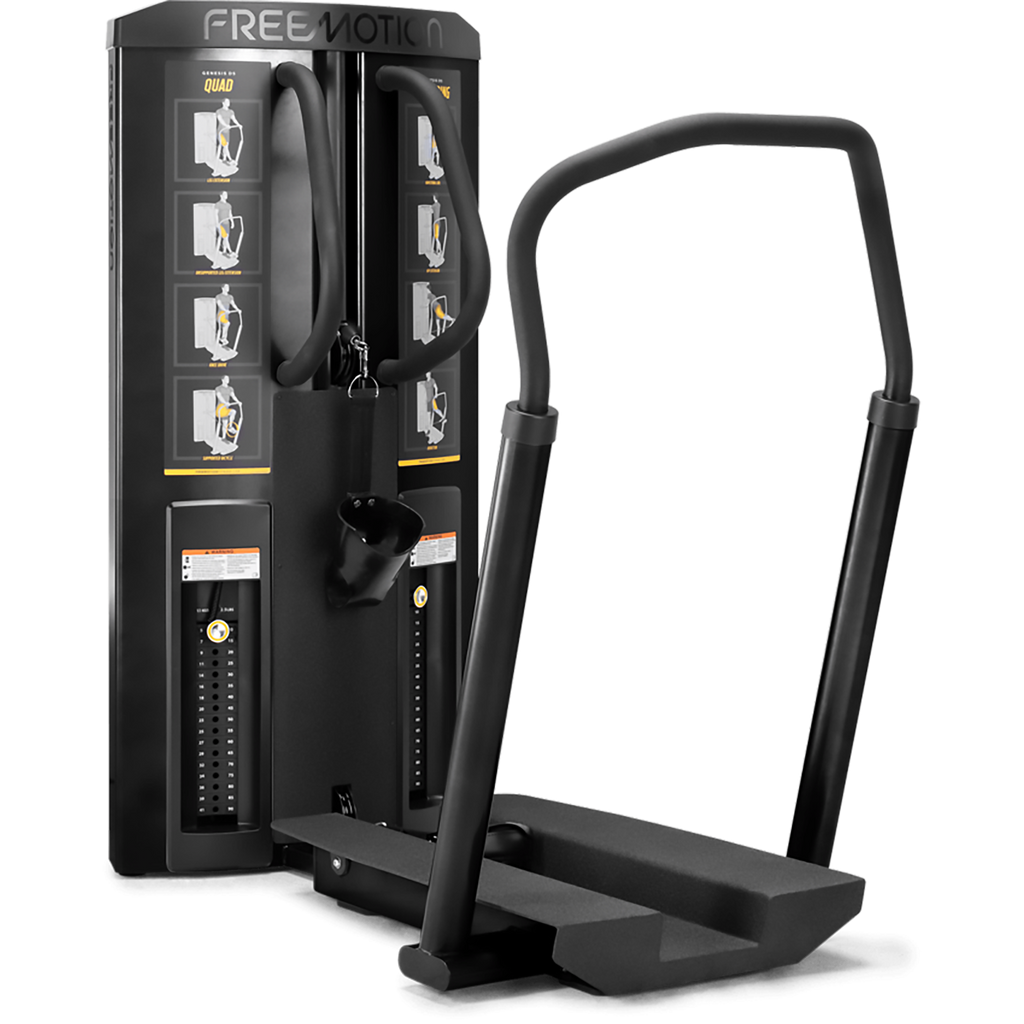

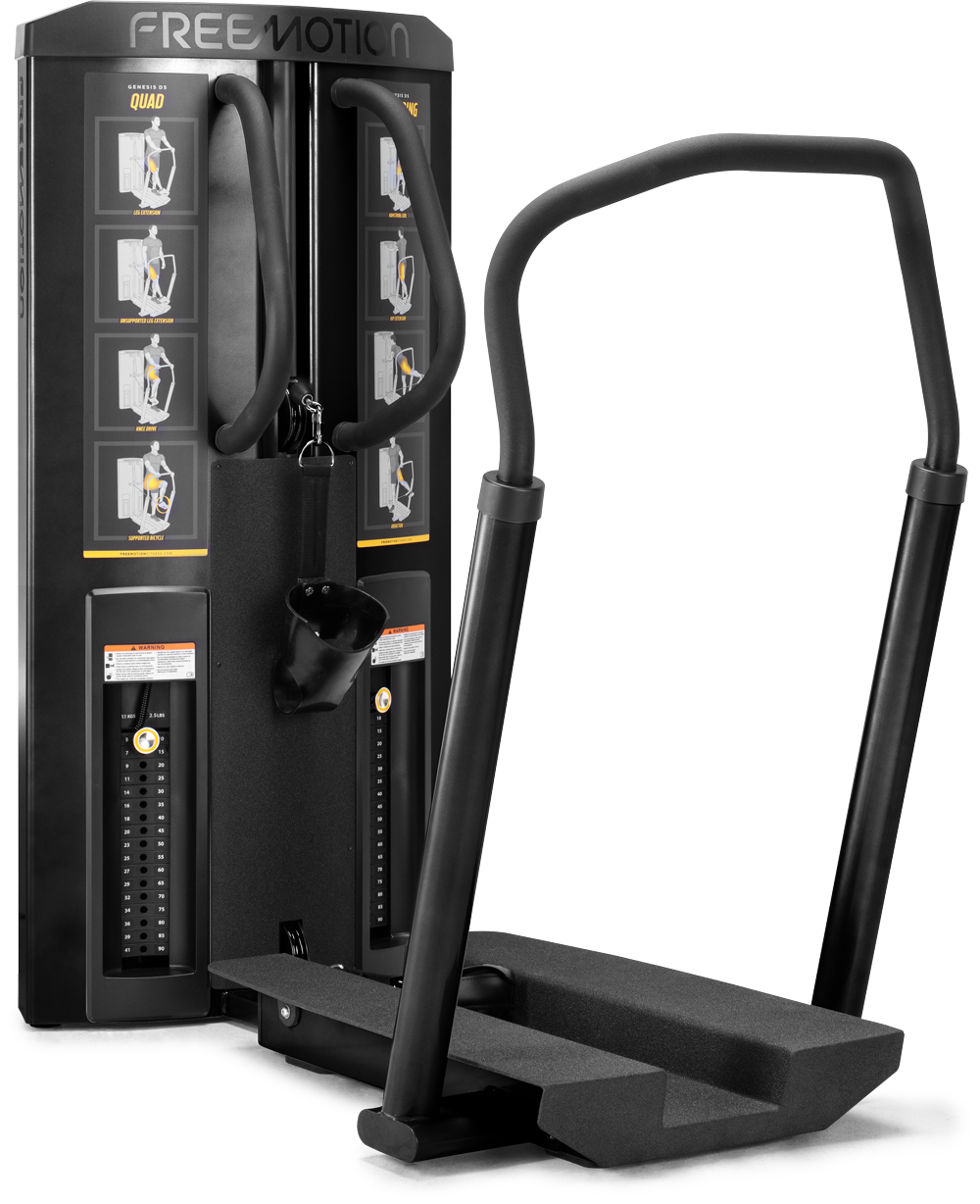

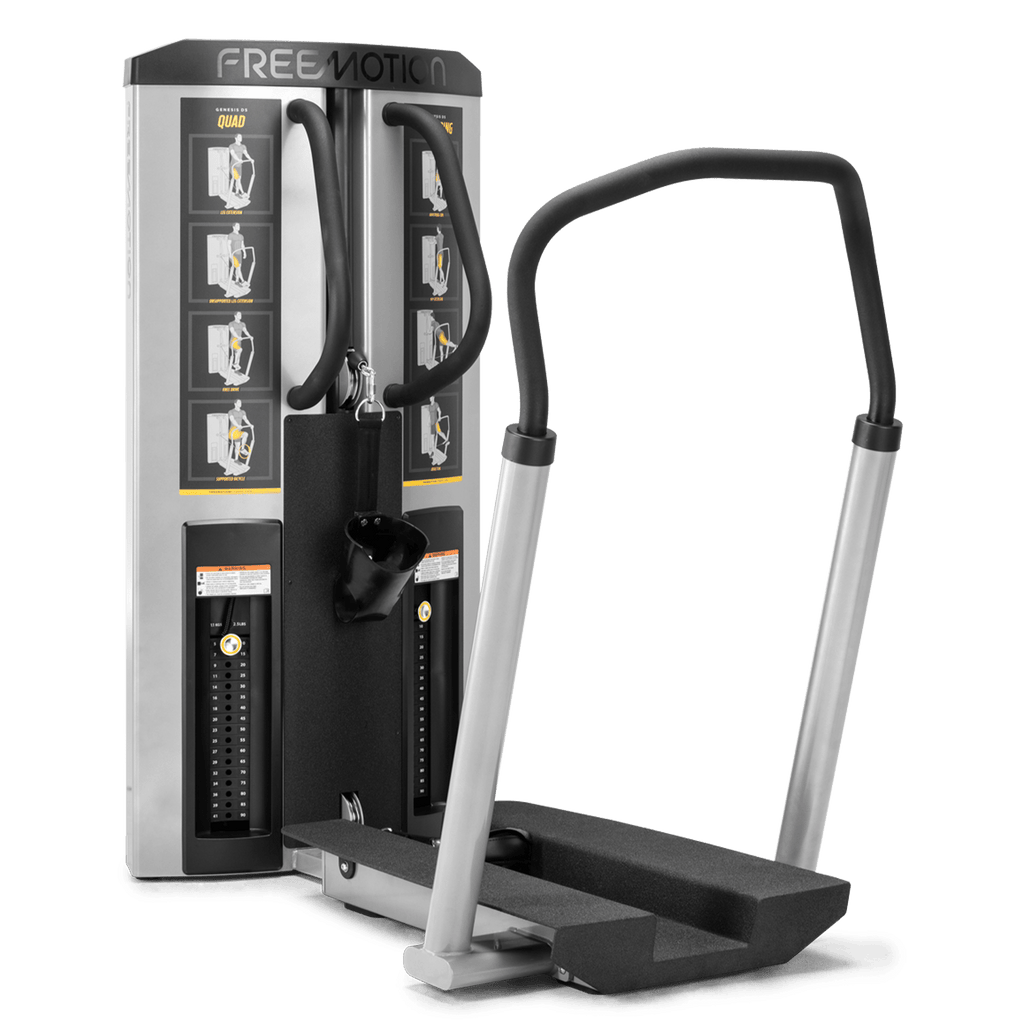

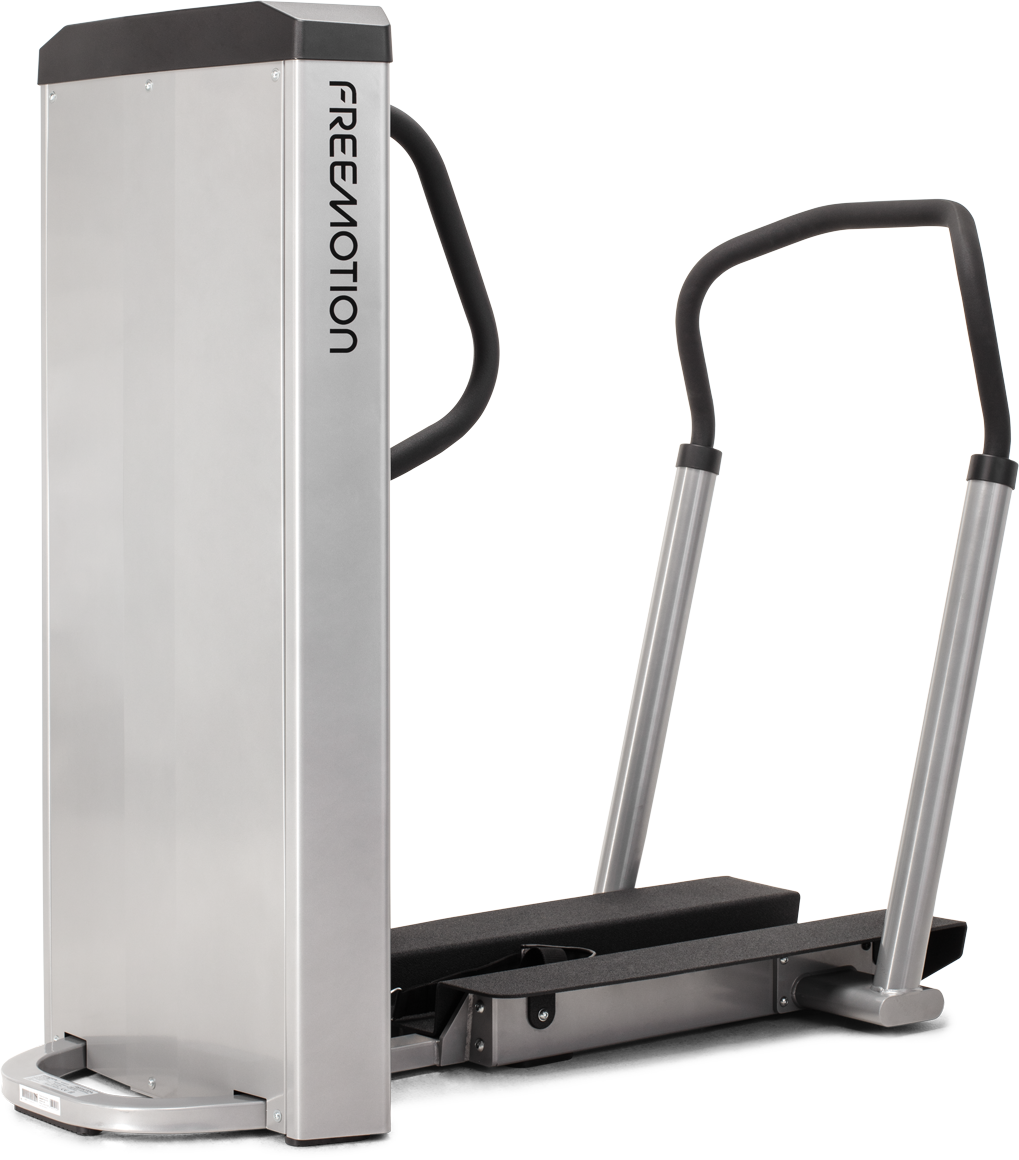

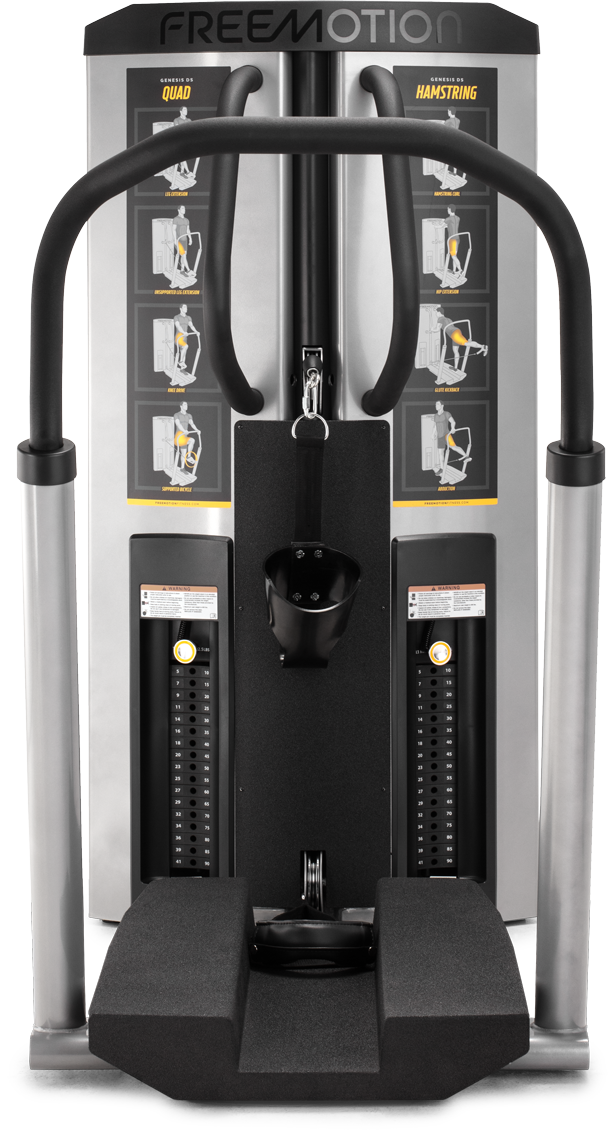

QUAD / HAMSTRING
GD503

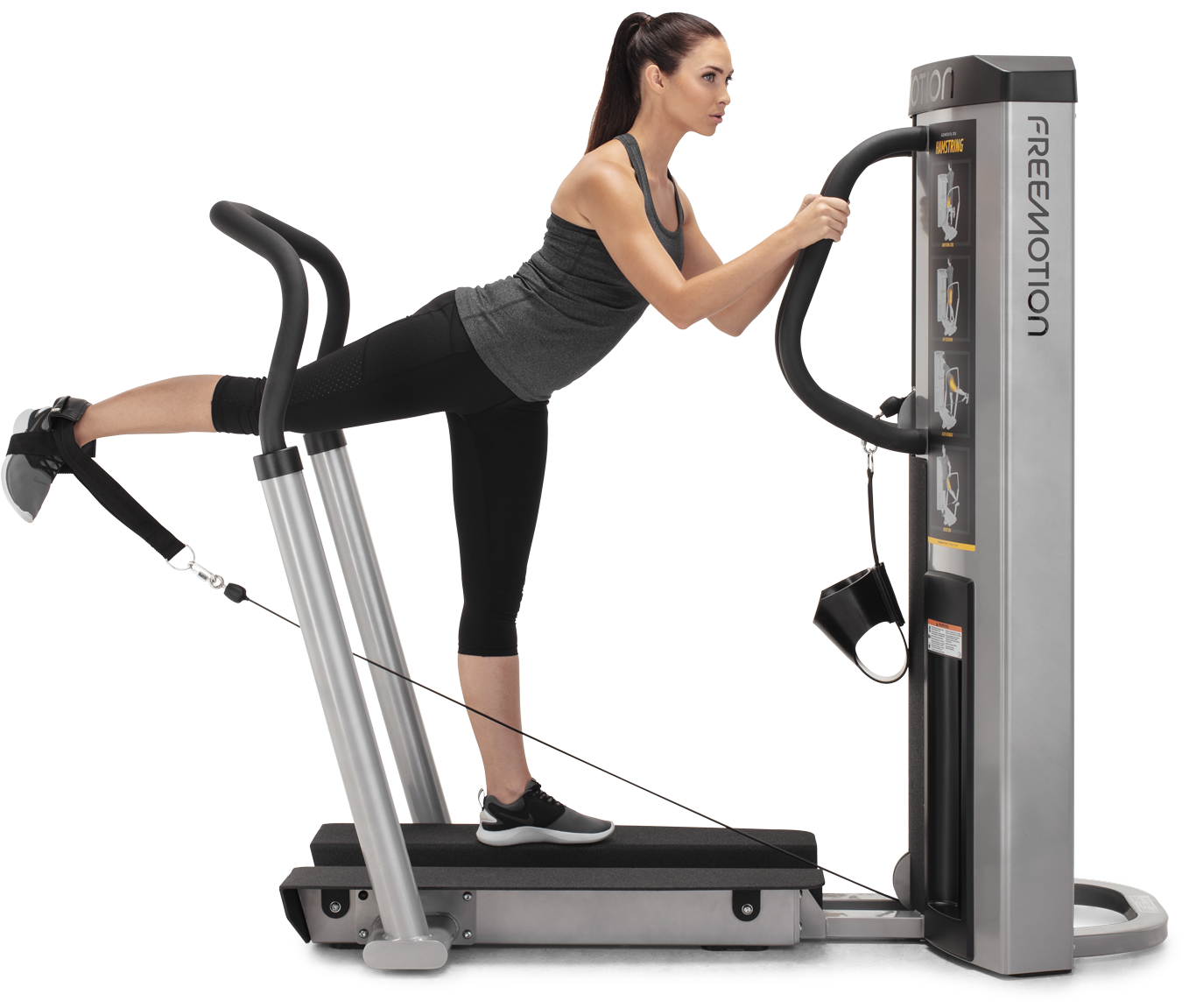

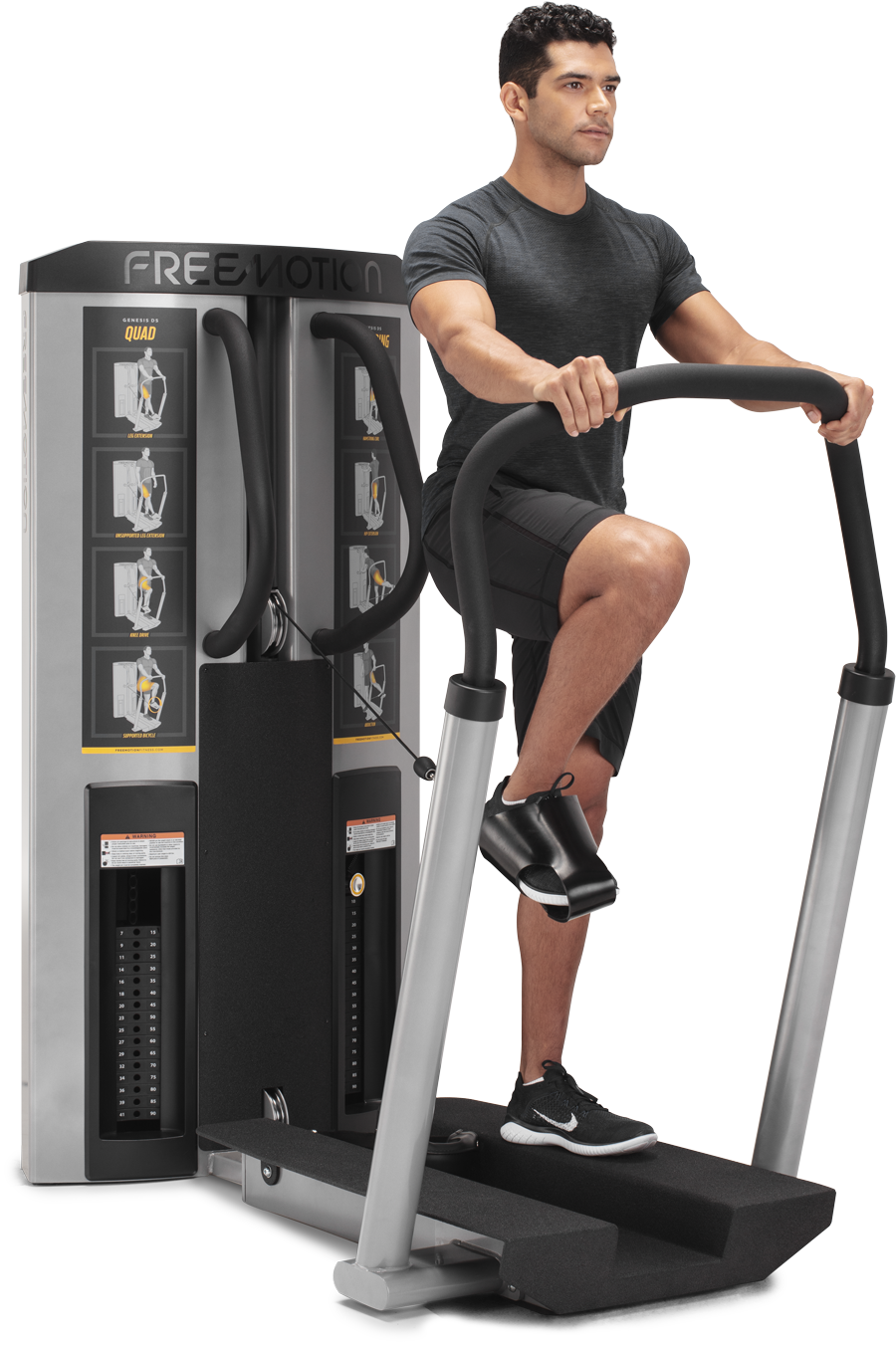

This machine functionally trains all of the leg muscles to work together for sports or engaging in activities of daily living. The DS

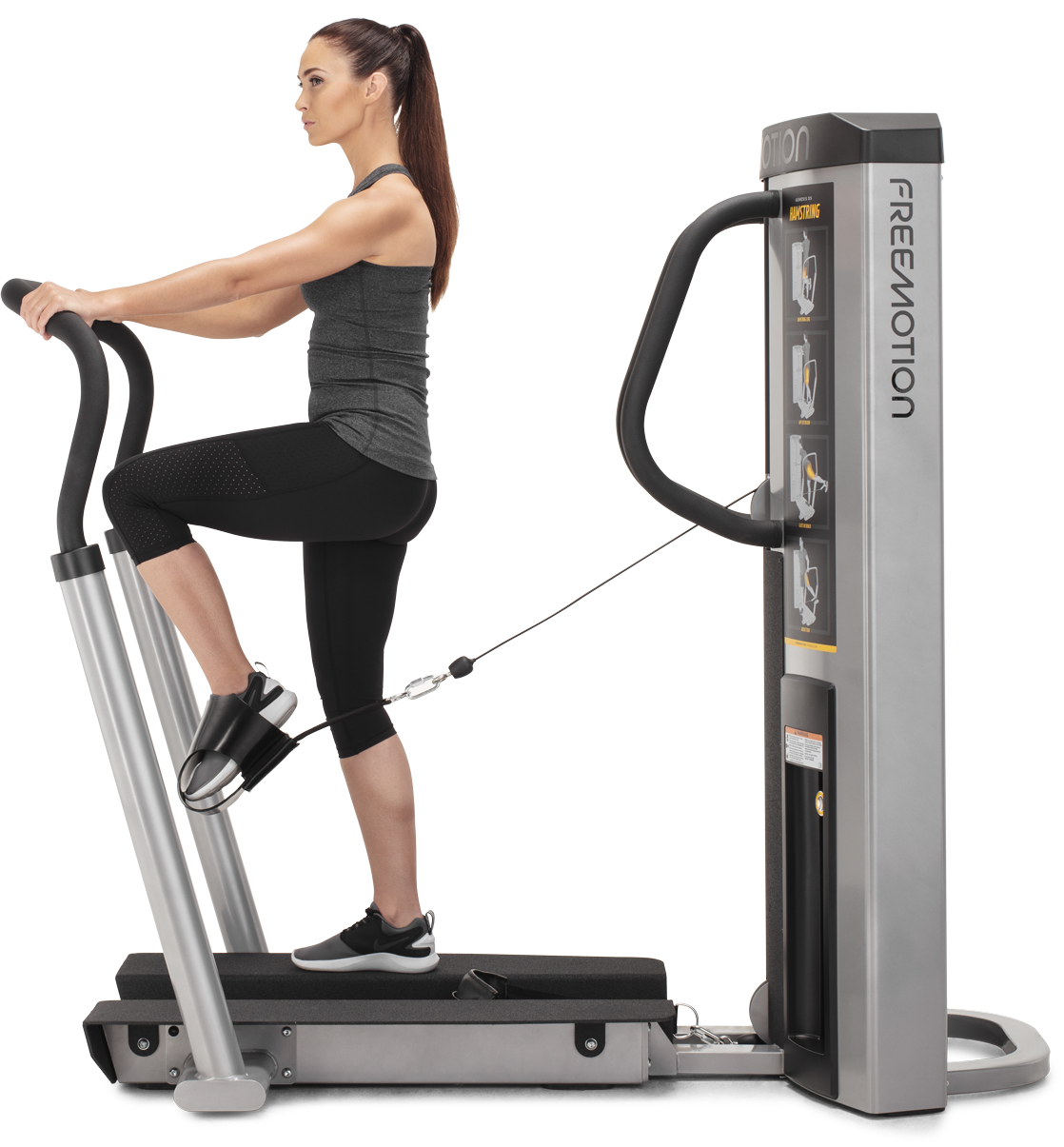

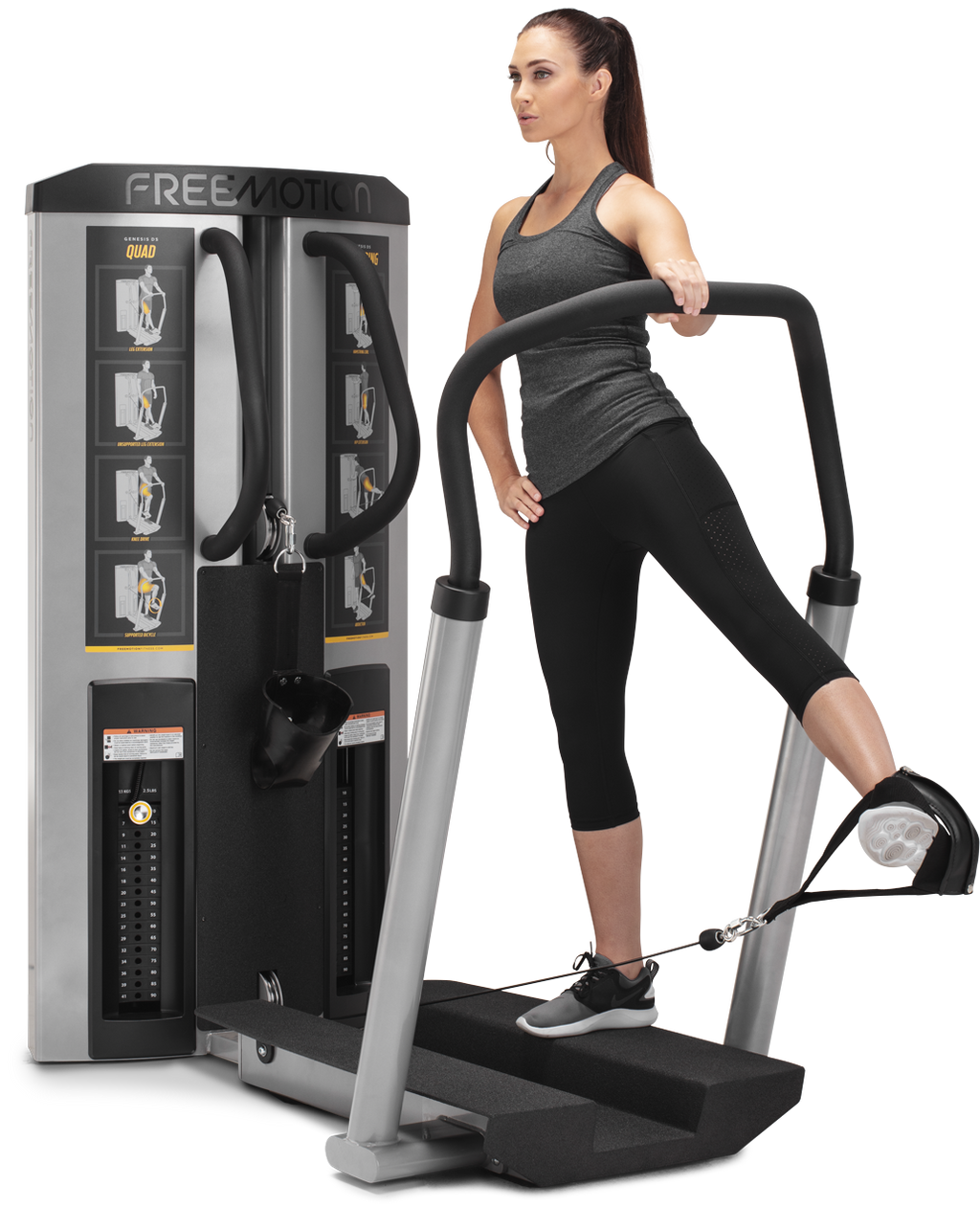

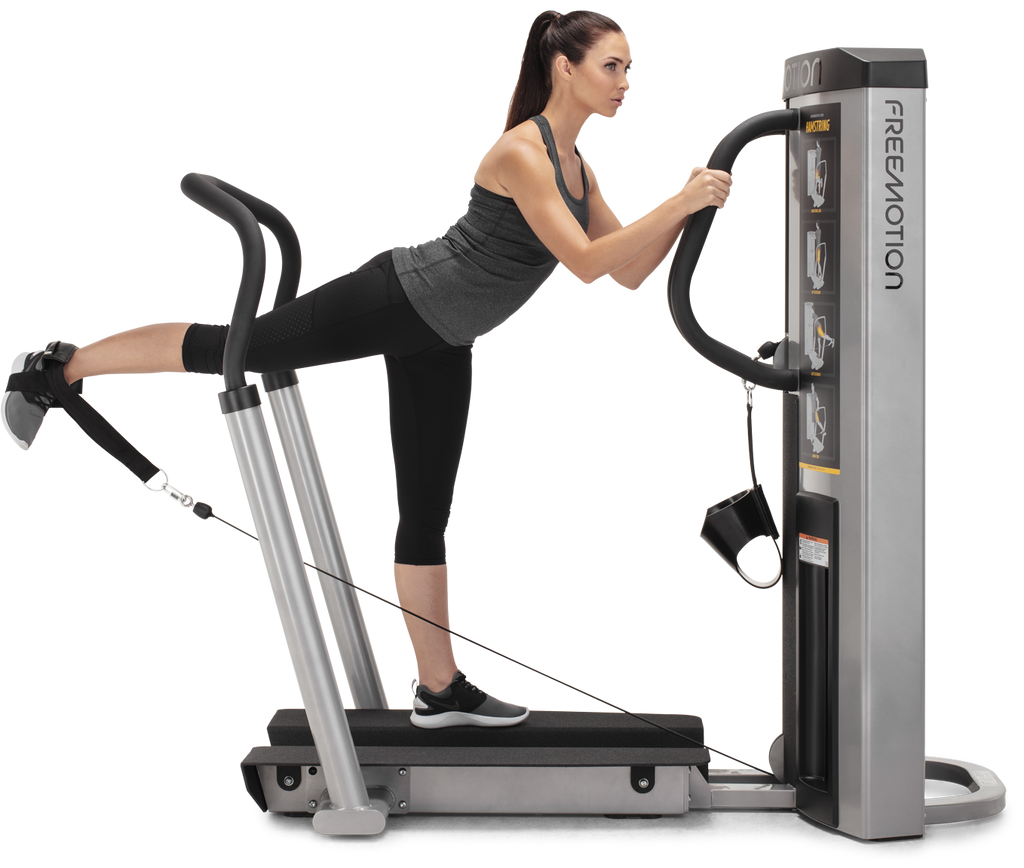

Quad/Hamstring machine uses the GENESIS™ swiveling pulleys and extensive cable travel to offer fluid motion whether performing a standing curl or dynamic soccer kick. The ability to train the entire lower body on one unit saves valuable floor space in the weight room.
additional features
Walk Up and Work Out
With no required adjustments, users can simply walk up, put on the foot harness and start moving.

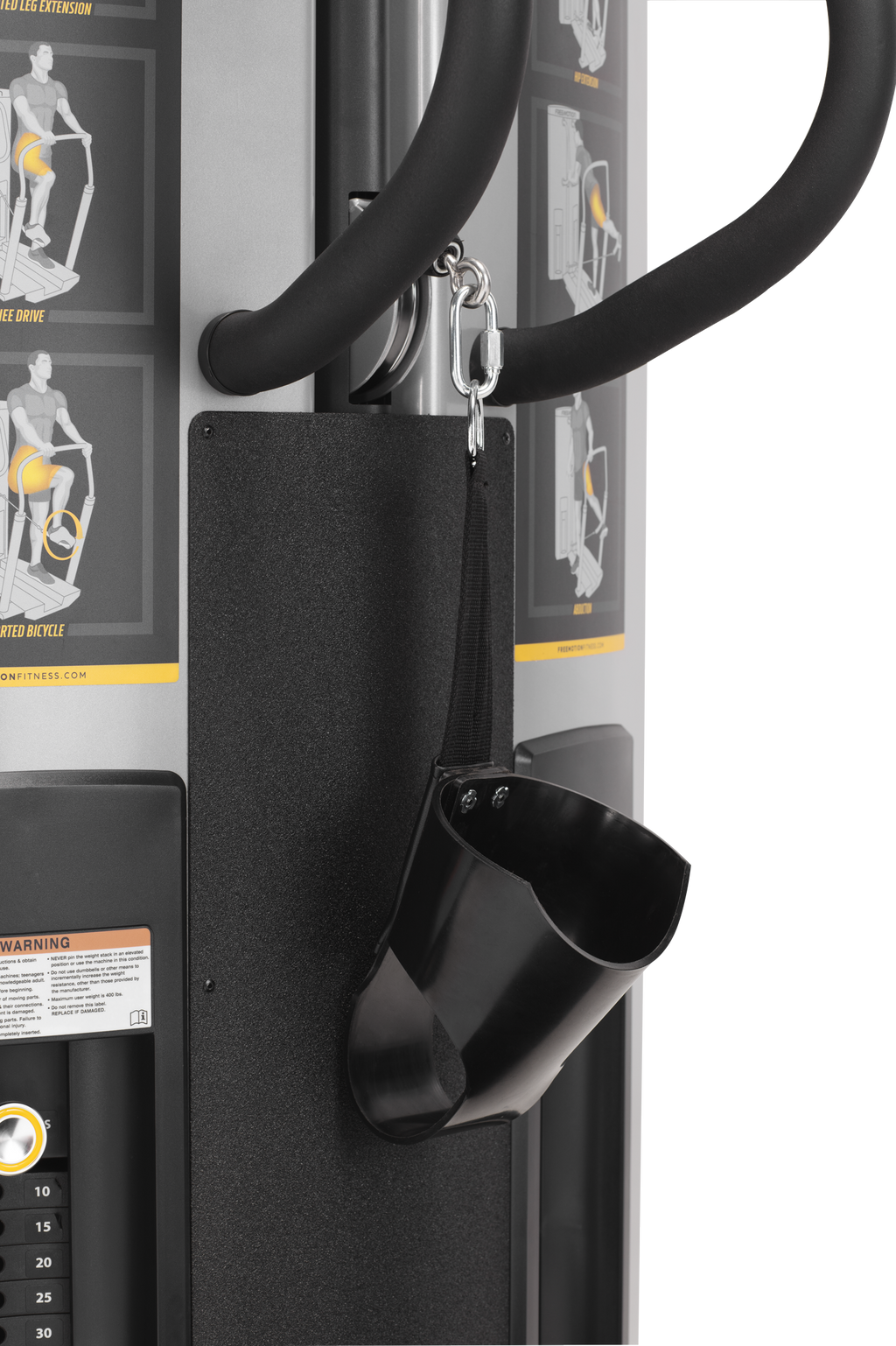

Foot Harnesses
Specially designed foot harnesses help to keep feet secure throughout the movement.
Extensive Cable Travel
Cable length allows for full flexion and extension: 37 in / 93.9 cm.
Enclosed Weight Stacks
The weight stacks are enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
N/A
Resistance
1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg
Seat
N/A
Pulleys
Aluminum swivel pulleys
Cable Travel
72 in / 182.8 cm per arm
Rubber Feet
Soft PVC
Maximum User Weight
400 lb / 181.4 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
QTY 2 – 180 lb / 81.6 kg weight stacks
Drop Down Weight
N/A
Weight Stack Configuration
2 – 10 lb top plates, 34 – 10 lb plates
2 – 4.5 kg top plates, 34 – 4.5 kg plates
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
N/A
Optional Upholstery Color
N/A
Product Dimensions & Weight
Dimensions L x W x H
70 x 32 x 64 in / 177.8 x 81.2 x 162.5 cm
Footprint
70 x 32 in / 177.8 x 81.2 cm
Weight
615 lb / 279 kg
Shipping Dimensions
74.8 x 39.9 x 34.7 in / 198.9 x 99 x 88.1 cm
Shipping Weight
866.4 lb / 393 kg
Certifications
EN957,CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
DUAL STATIONS
Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

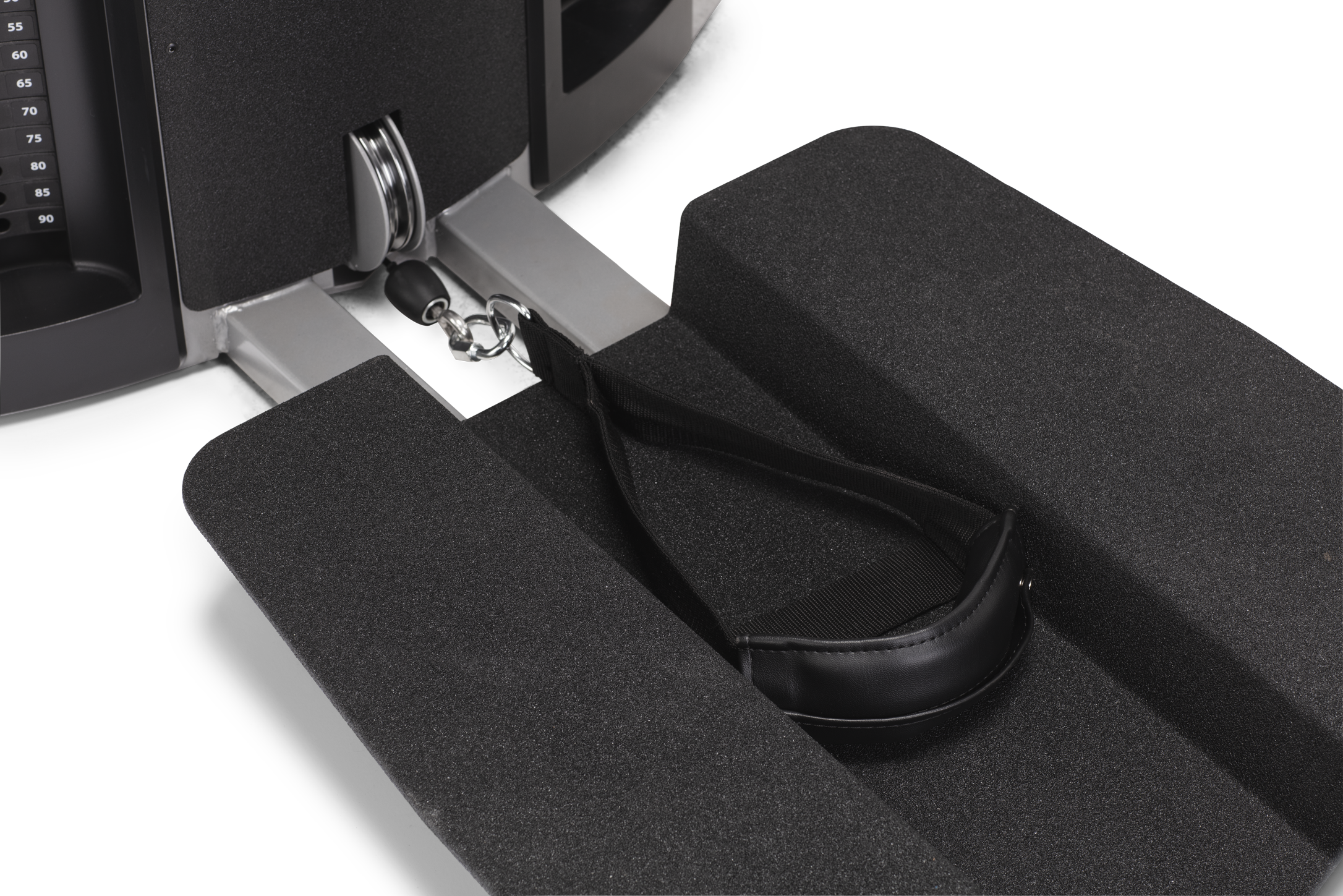

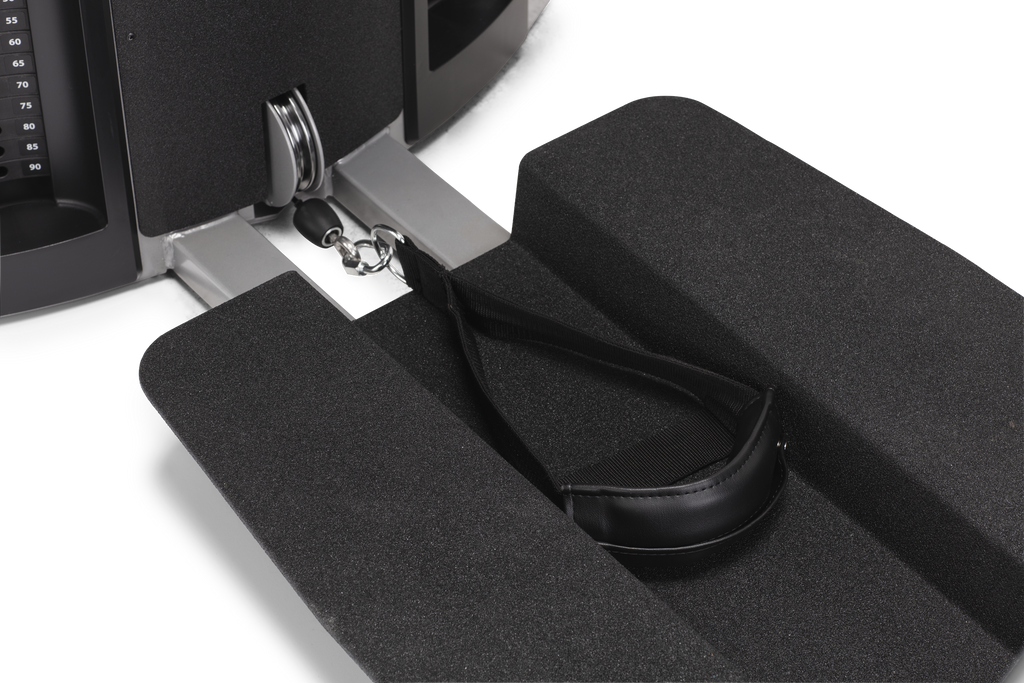

SURE FOOTING
Textured platform helps ensure secure foot placement even under heavy loads.
FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
ISOLATION TO INTEGRATION
The machine features a multi-grip handles for balance and to isolate the upper body. Users can simply let go to work out unsupported and integrate more muscle groups.
