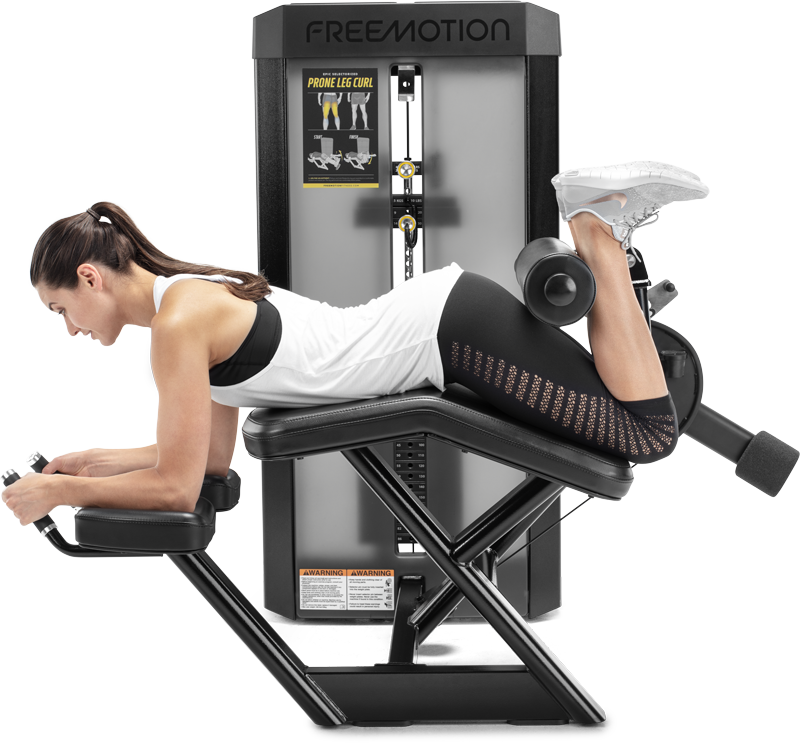

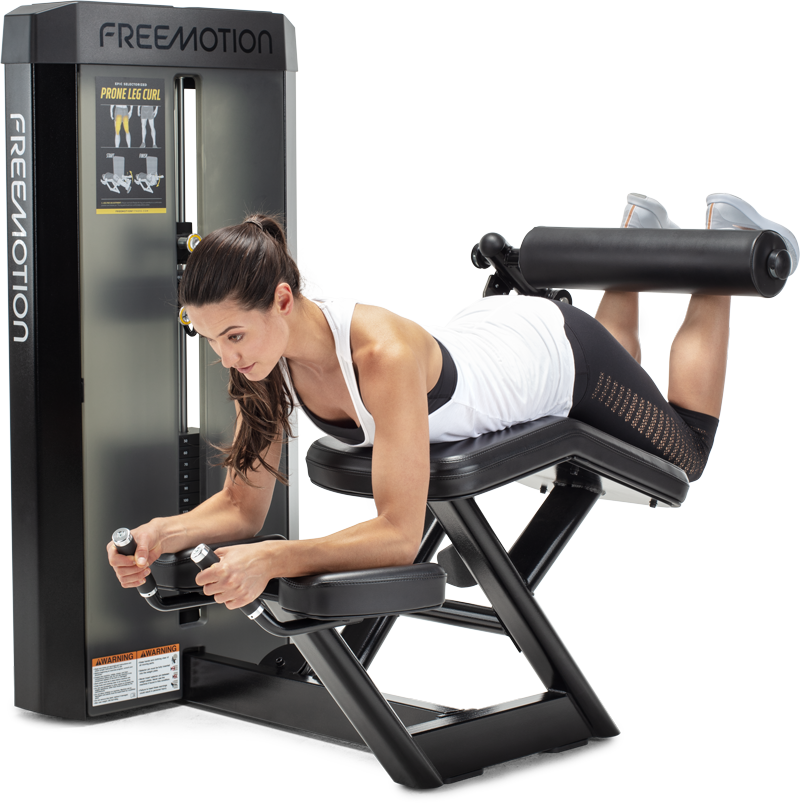

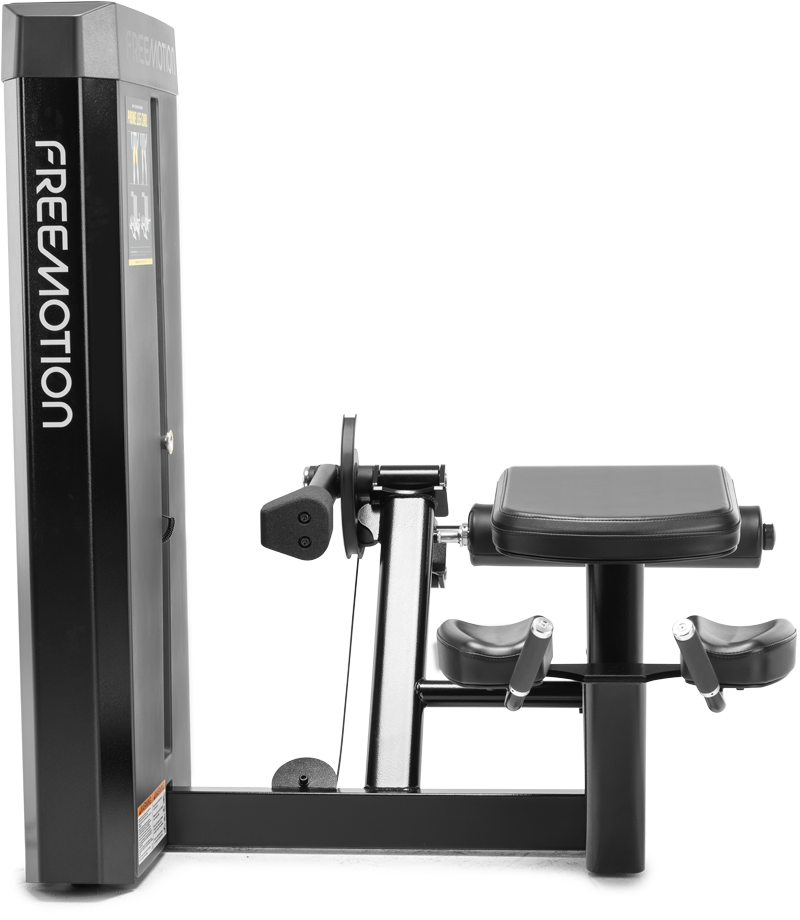

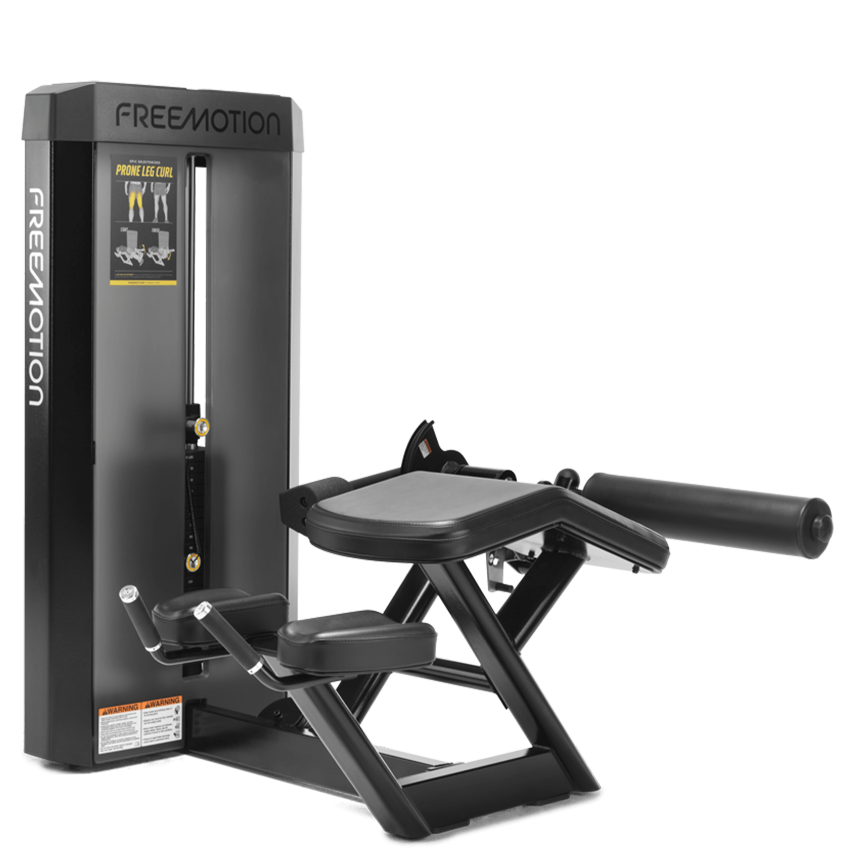

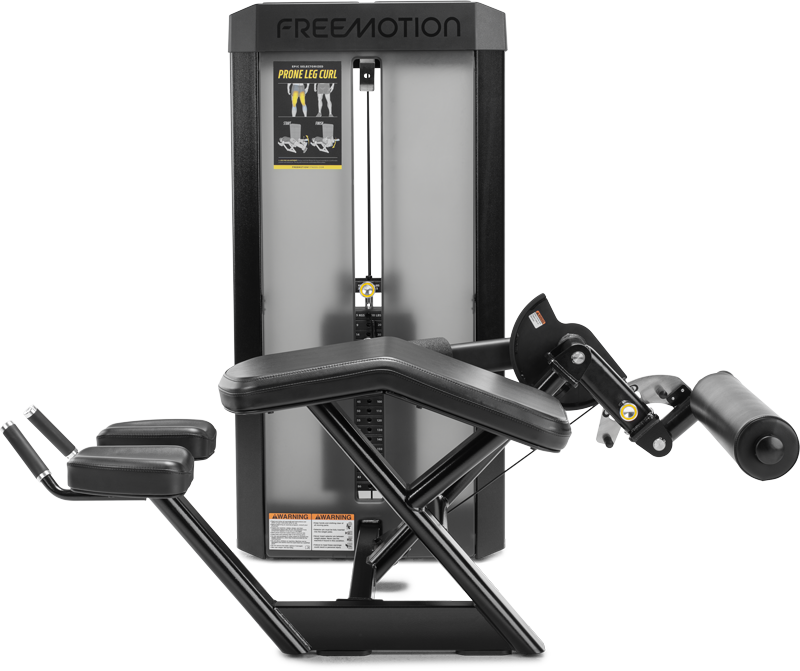

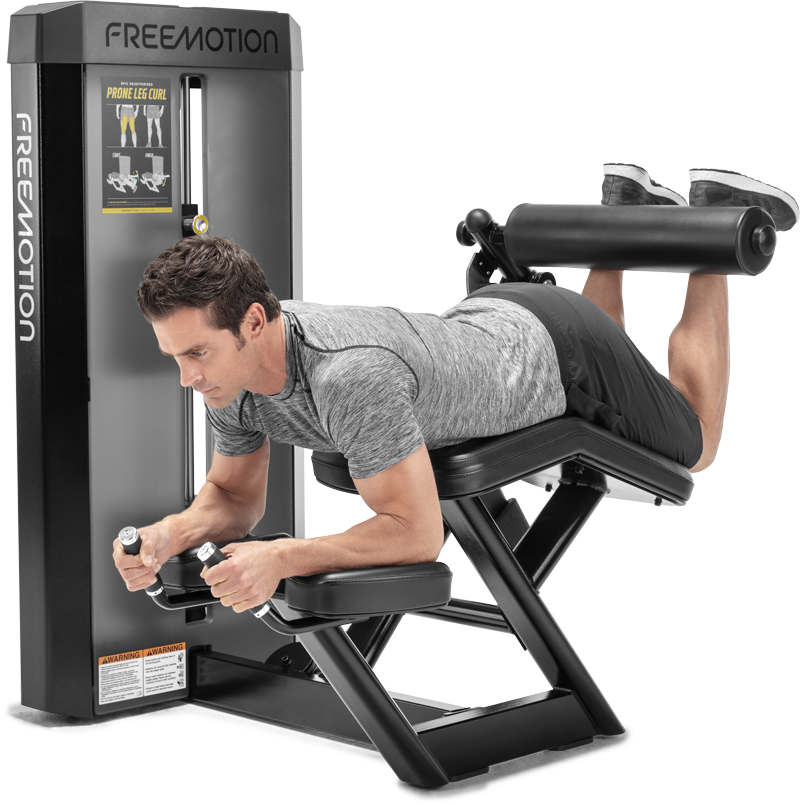

PRONE LEG CURL
ES814
The EPIC Selectorized Prone Leg Curl has contoured forearm pads and optimized torso support for comfort even under heavy loads. Adjustable leg assembly provides a great fit for users of various heights and fitness abilities. Prone positioning focuses effort on the hamstrings.
additional features

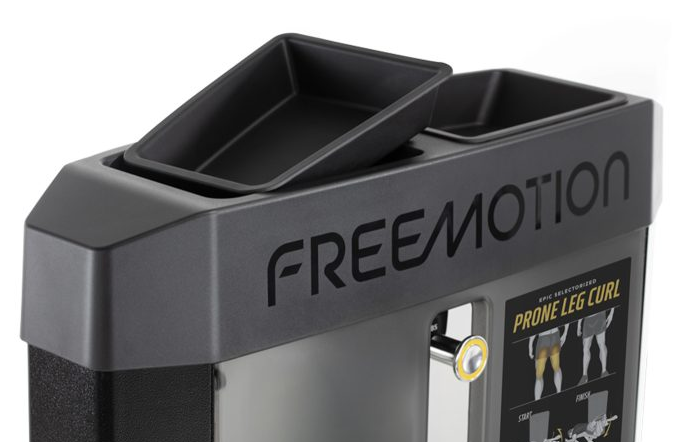

Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Adjustable Leg Assembly
Resistance
195 lb / 88.4 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
195 lb / 88.4 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-190 x 10 lb / 4.5 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight
Dimensions L x W x H
53.4 x 66.4 x 57.8 in / 135.6 x 168.6. x 146.8 cm
Footprint
53.4 x 66.4 in / 135.6 x 168.6. cm
Maximum workout area
53.4 x 66.4 in / 135.6 x 168.6. cm
Weight
487.4 lb / 221.1 kg
Shipping Dimensions
Box 1: 75.9 x 27.1 x 40.9 in / 192.7 x 68.8 x 103.8 cm
Box 2: 31.1 x 22.4 x 7.4 in / 78.9 x 56.8 x 18.7 cm
Shipping Weight
Box 1: 617.2 lb / 279.9 kg
Box 2: 22 lb / 9.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
SET THE RANGE
Users can set the legs’ start position to define the range of motion for users of varying heights and fitness abilities.
COMFORTABLE BY DESIGN

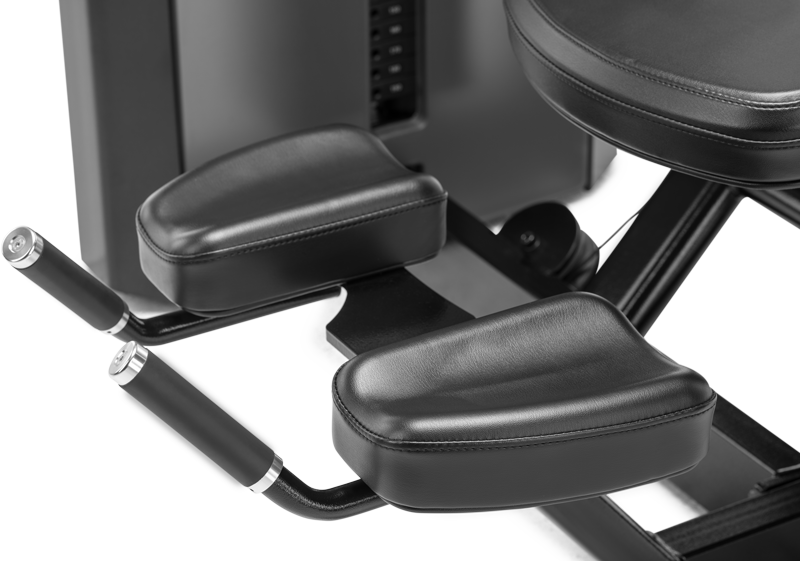

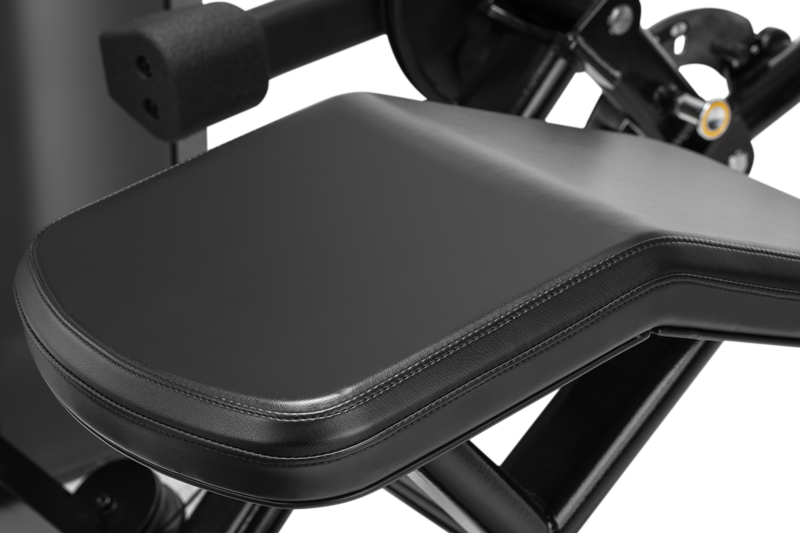

Forearm pads are contoured for comfortable support. Padded torso pad helps to isolate the body to focus on the hamstrings.
LOW PROFILE WEIGHT STACK
Approachable, compact design also features accessory trays so users can keep their essentials within reach.
