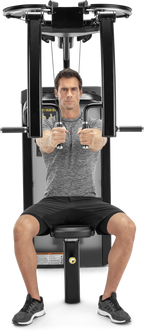

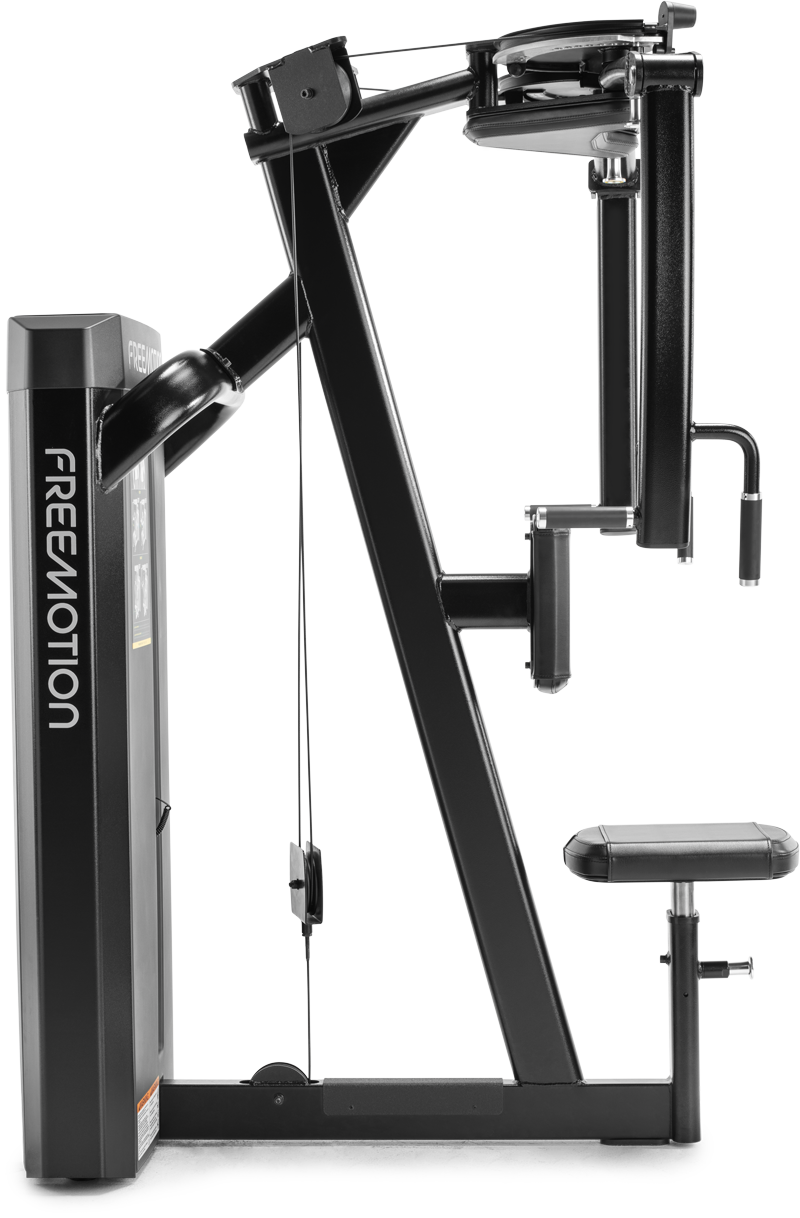

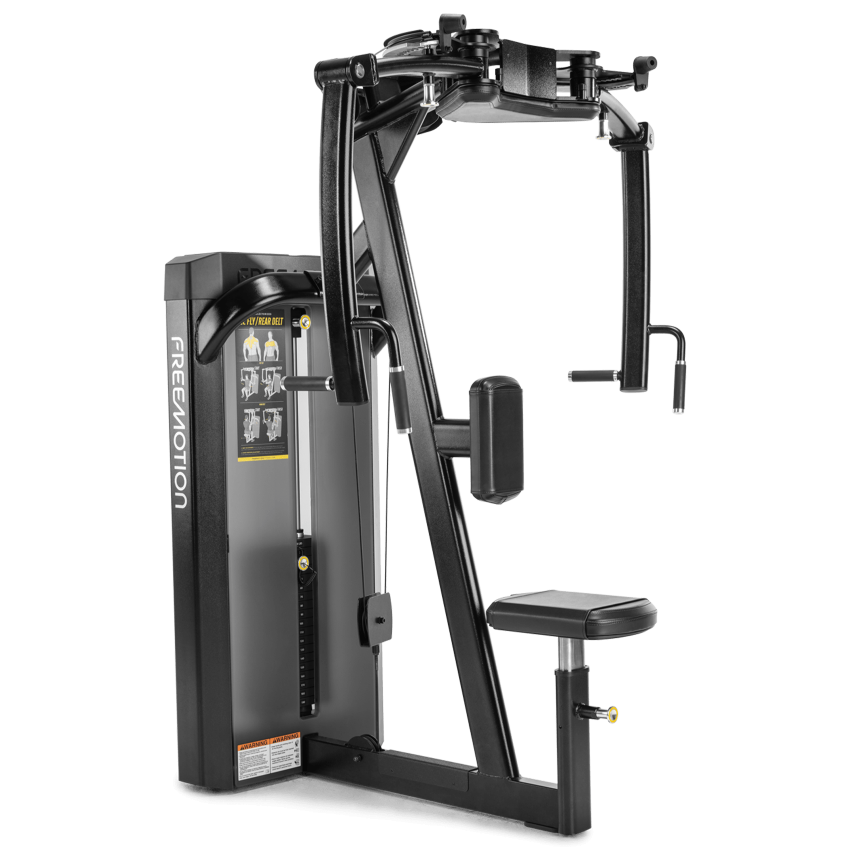

PEC FLY / REAR DELT
ES806

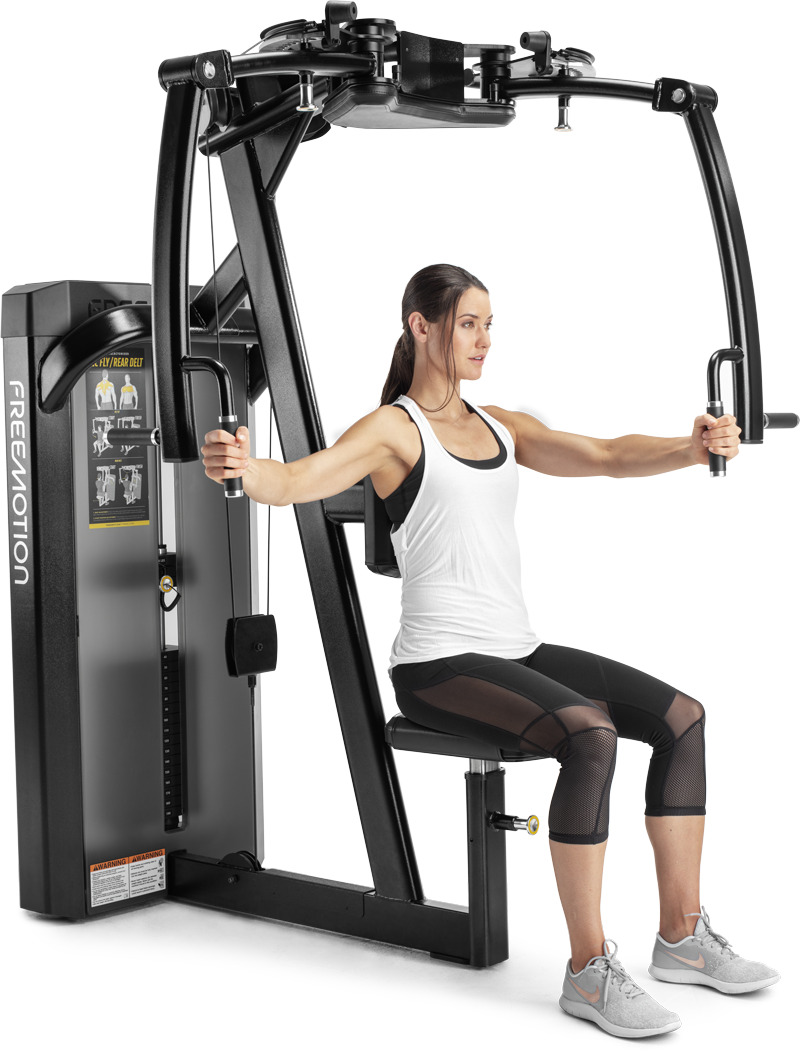

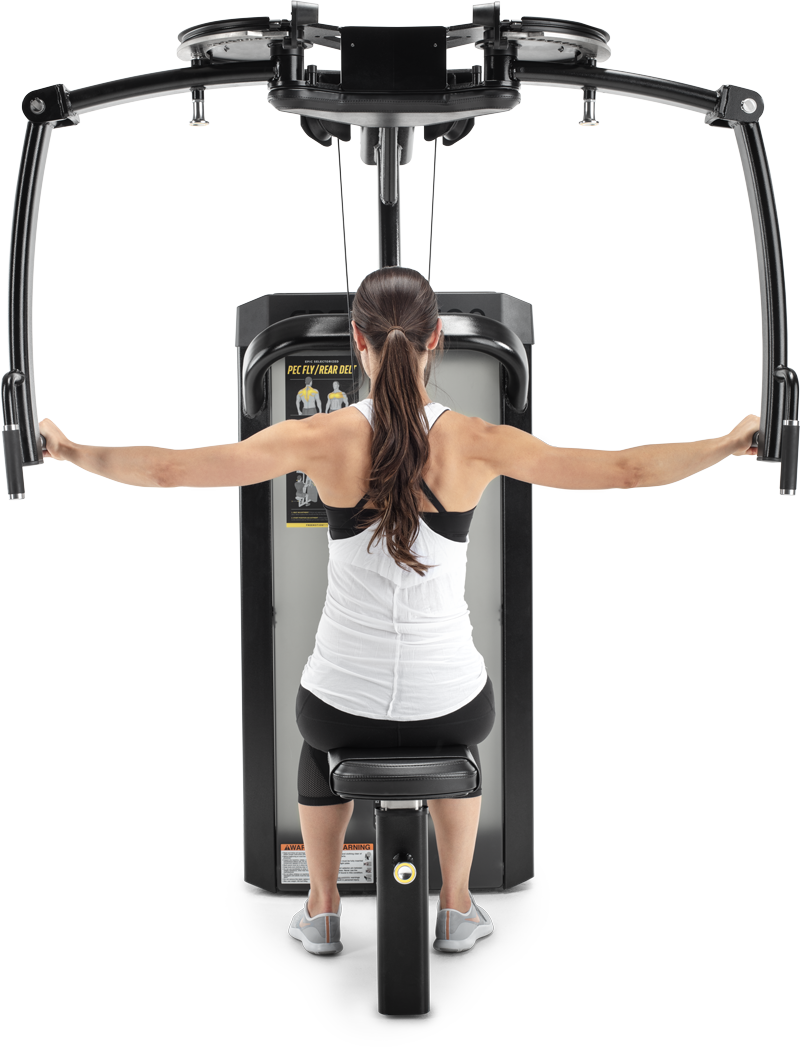

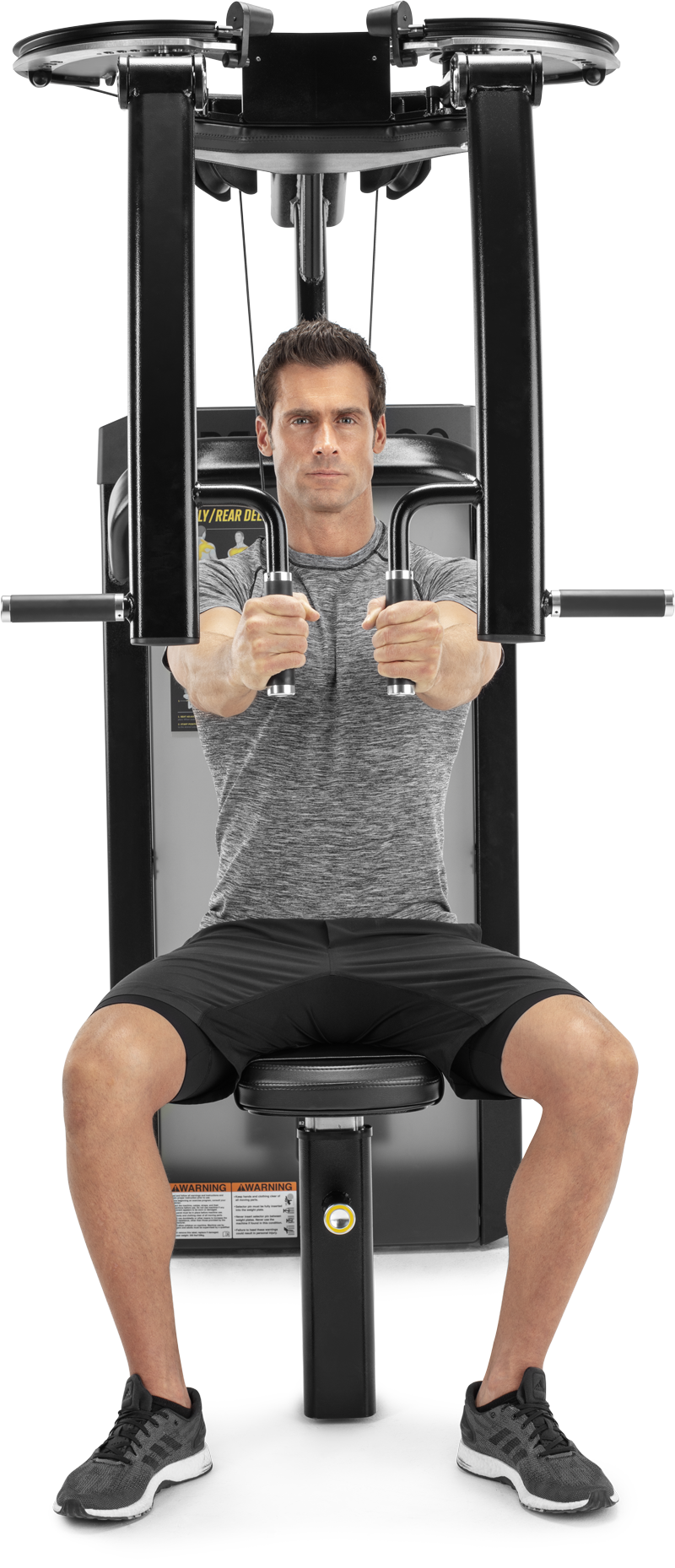

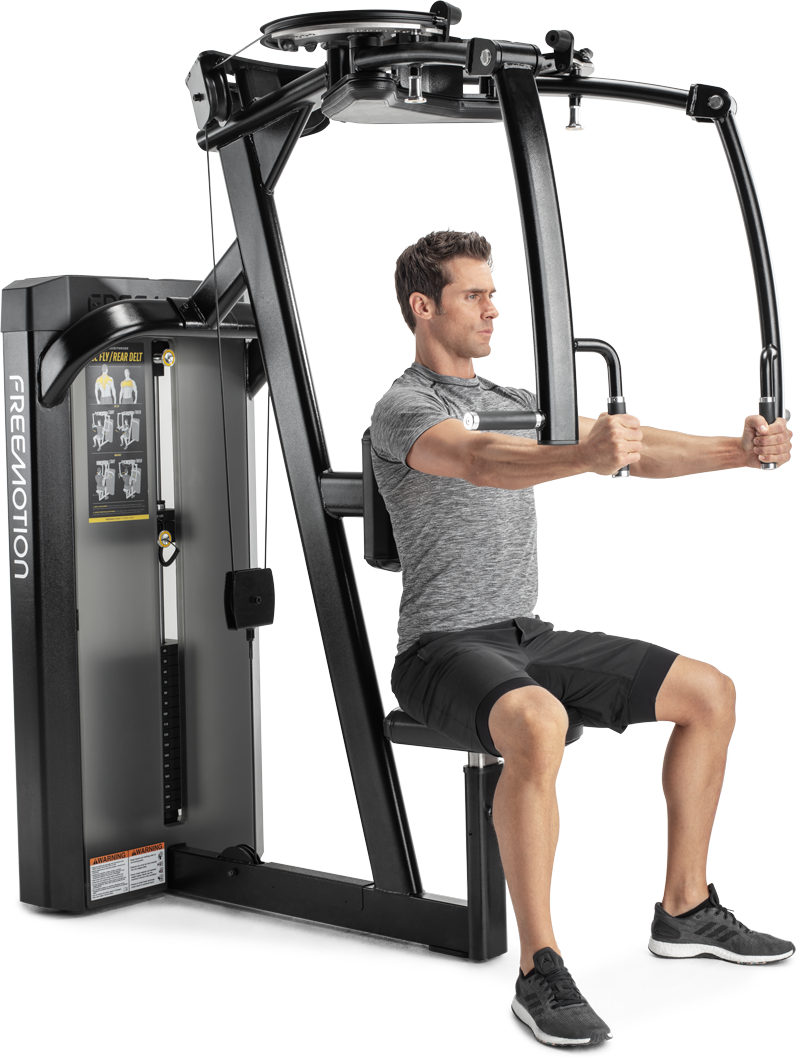

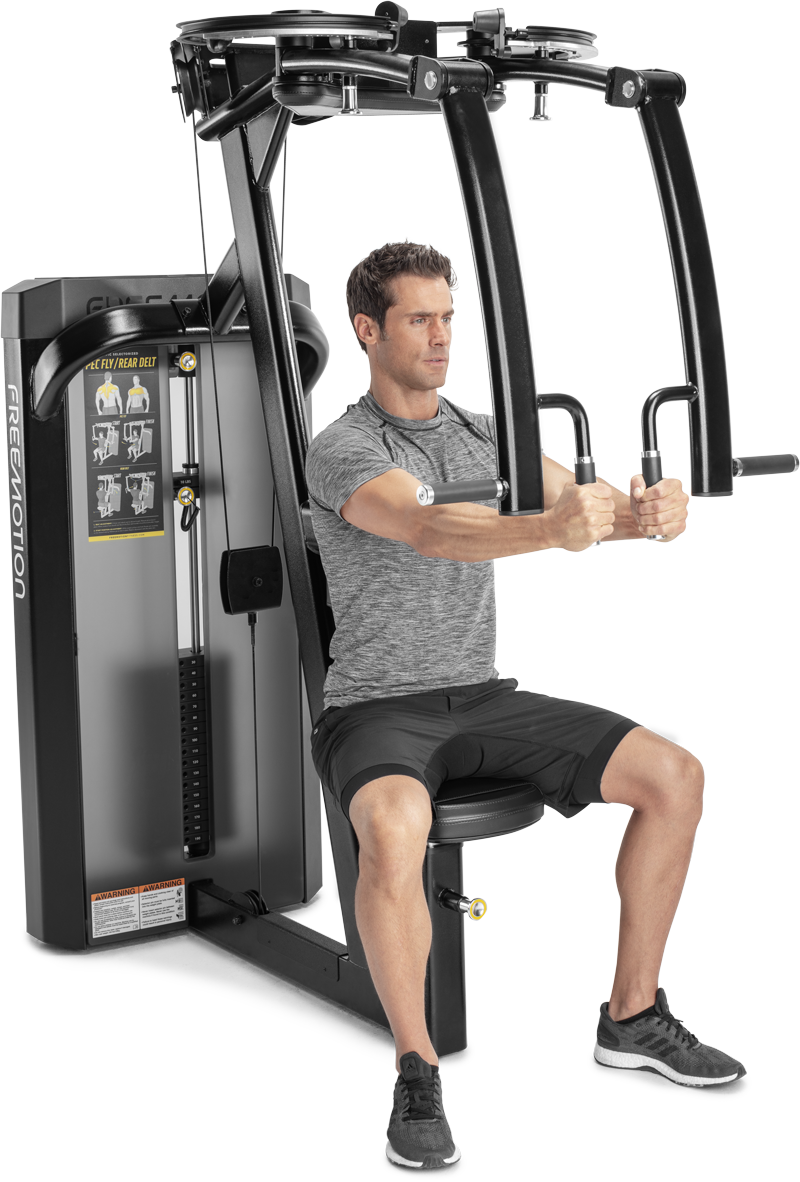

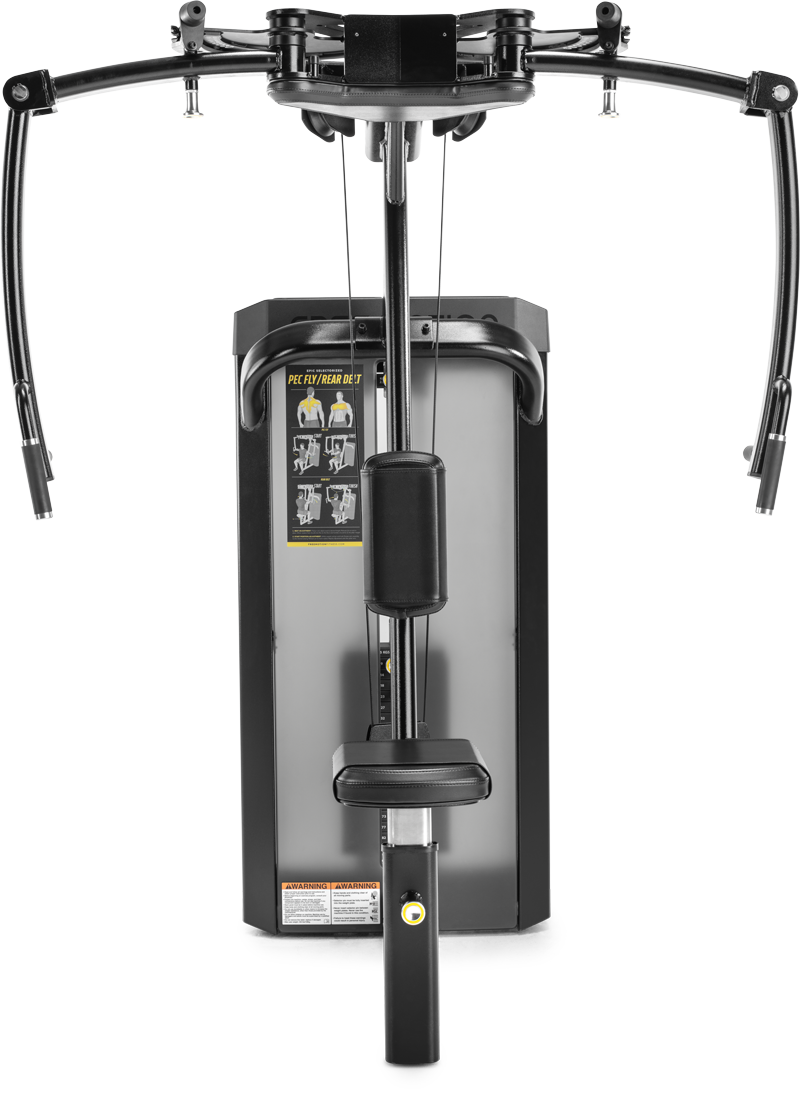

The EPIC Selectorized Pec Fly/Rear Delt machine provides two exercises in one compact machine. Users can superset their back and chest exercises without having to switch machines. Adjustable seat bottom and
pivoting arms allow members to get in proper position. Multi-grip handles offer plenty of grip options.
additional features
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

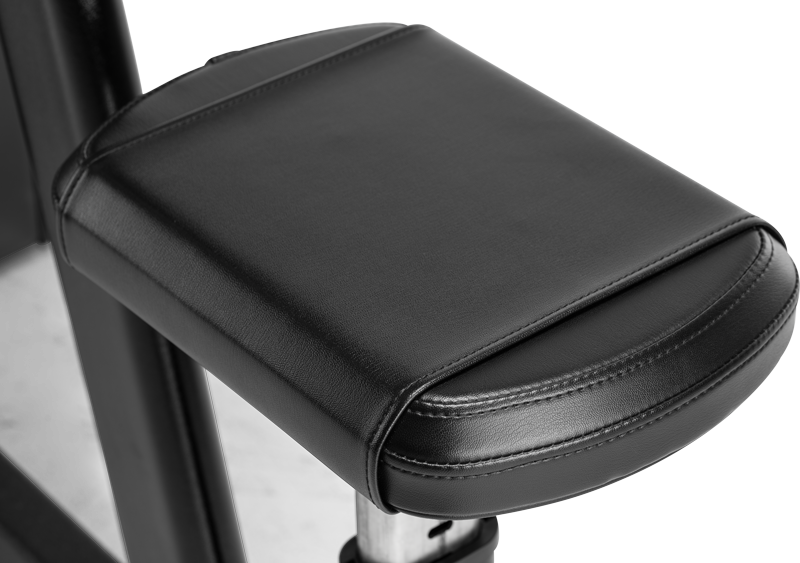

Comfortable Support
Both the seat bottom and chest/back pad provide comfortable support. Seat bottom adjusts for precise fit.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Adjustable Position Pivoting Arms, Seat Adjusts to Multiple Positions
Resistance
195 lb / 88.4 kg
one arm vs. two?
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
195 lb/ /88.4 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-190 x 10 lb / 9 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight
Dimensions L x W x H
33.3 x 53.5 x 76.2 in / 84.5 x 135.8 x 193.5 cm

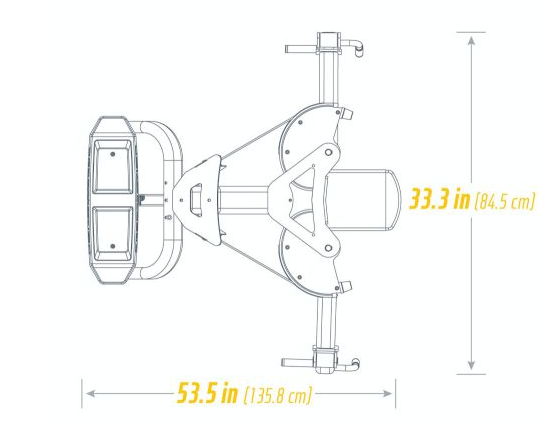

Footprint
33.3 x 53.5 in / 84.5 x 135.8 cm
Maximum workout area
33.3 x 53.5 in / 84.5 x 135.8 cm
Weight
529.1 lb / 240 kg
Shipping Dimensions
Box 1: 82 x 30.3 x 49.2 in / 208.2 x 76.9 x 124.9 cm
Box 2: 16.9 x 13 x 6.3 in / 42.9 x 33 x 16 cm
Shipping Weight
Box 1: 661.6 lb / 300 kg
Box 2: 11 lb / 4.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
SET THE RANGE
Whether performing a chest fly or reverse fly, users can set the arms’ start positions to set the range of motion.
DUAL STATIONS
Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.
MOVEMENT VARIETY
Multi-grip handles provide optimal hand positioning and move independently for single and alternating side exercises.
