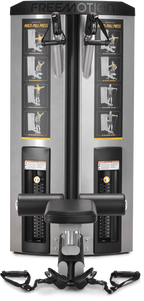

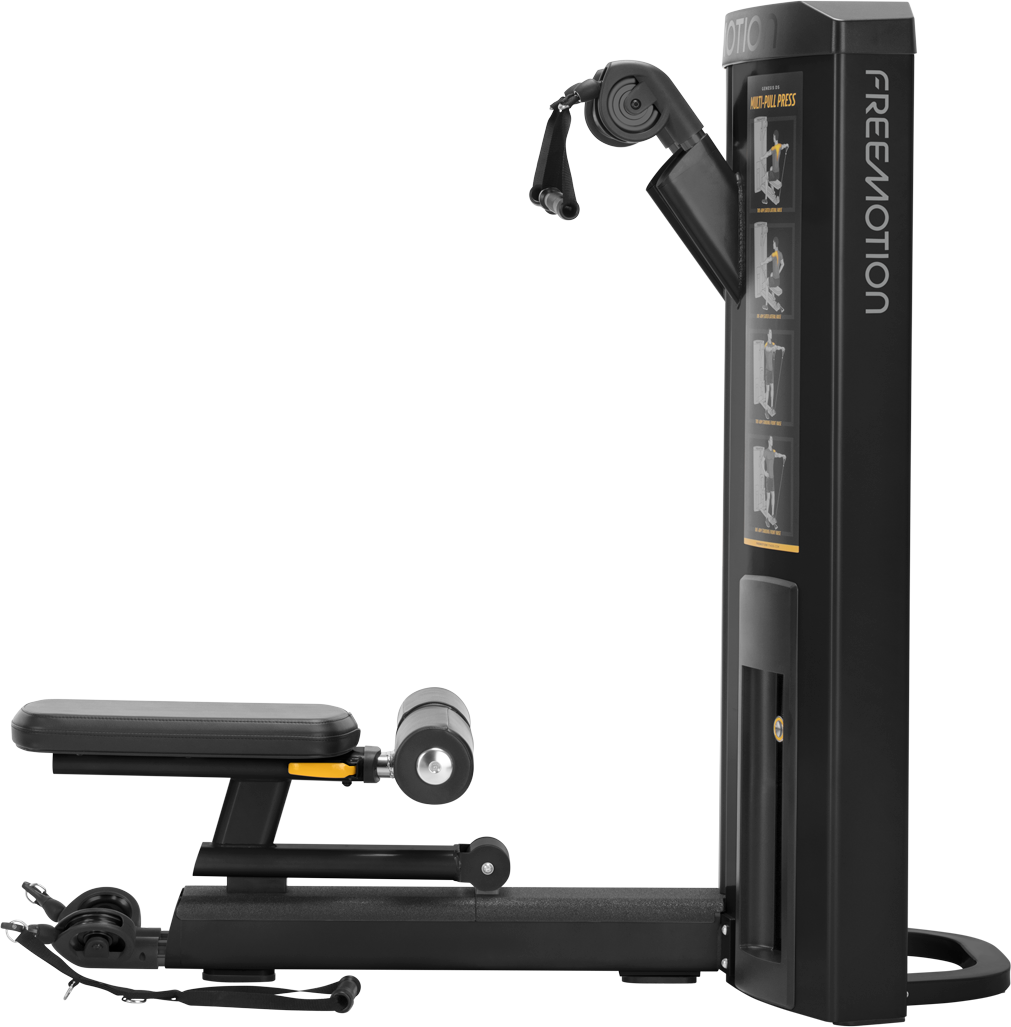

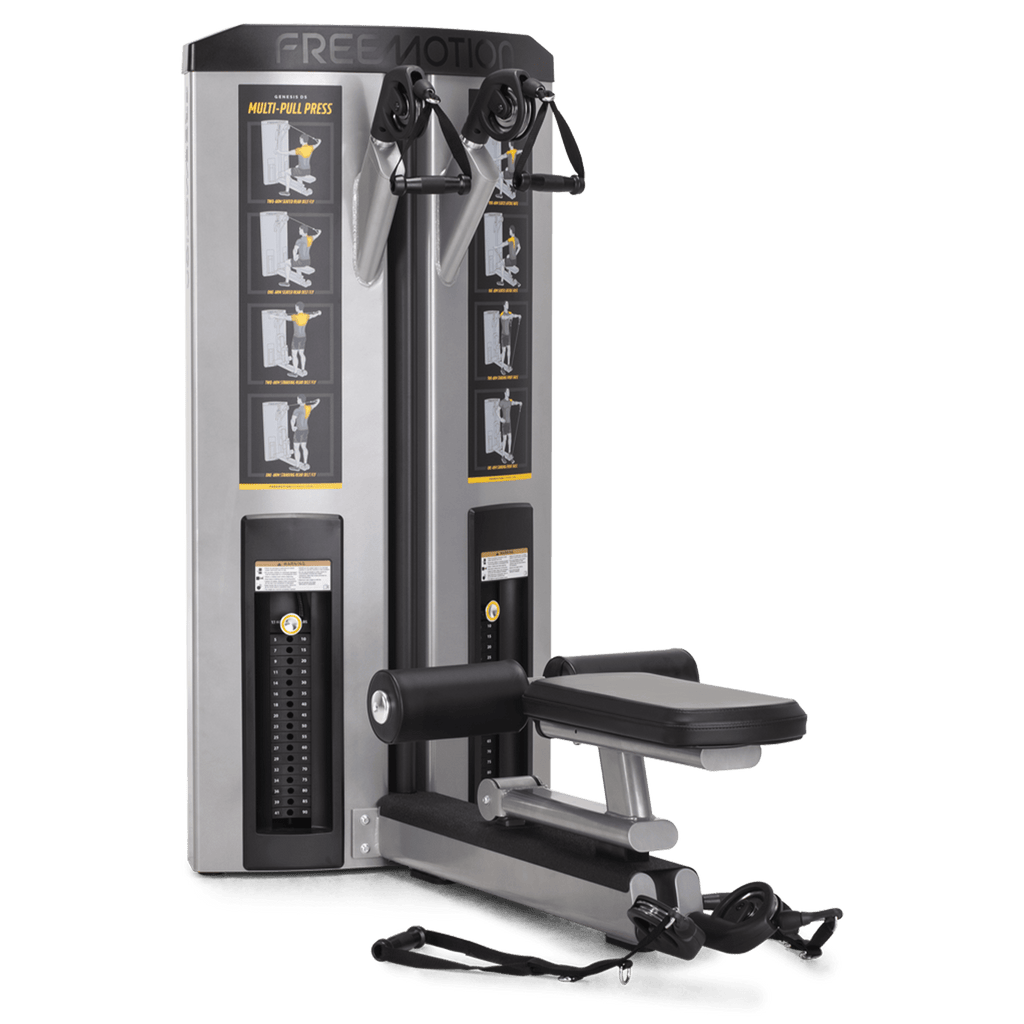

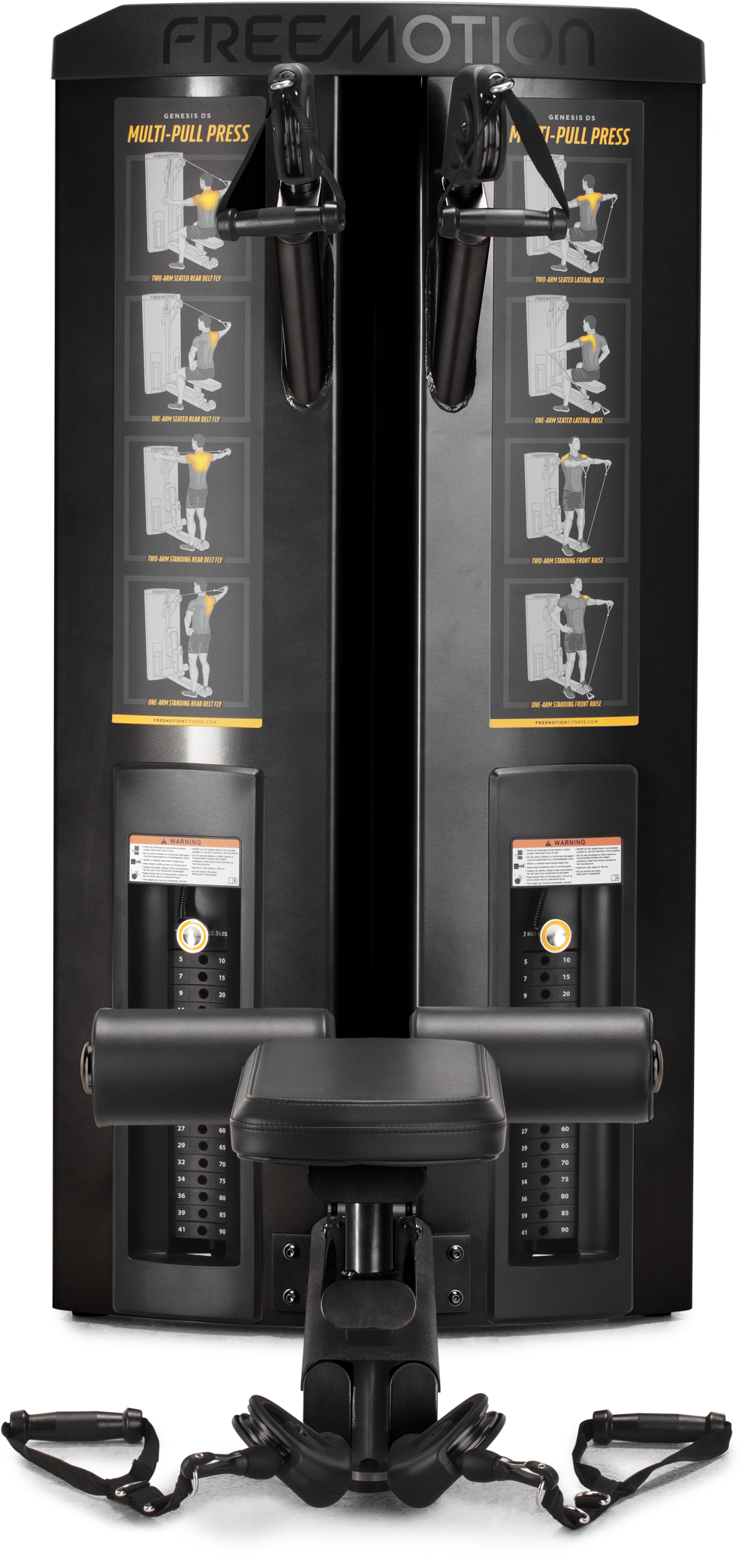

MULTI-PULL PRESS
GD505
Facility owners will love the space-saving design. Trainers will love the versatility. And users will love its intuitive function. Constructed with heavy-duty steel with an electrostatic powder coating makes this machine durable to live up to its popularity on the strength floor. The GENESIS DS™ Multi-Pull Press gives trainers and users the freedom to add challenges to their workout without sacrificing function.
additional features

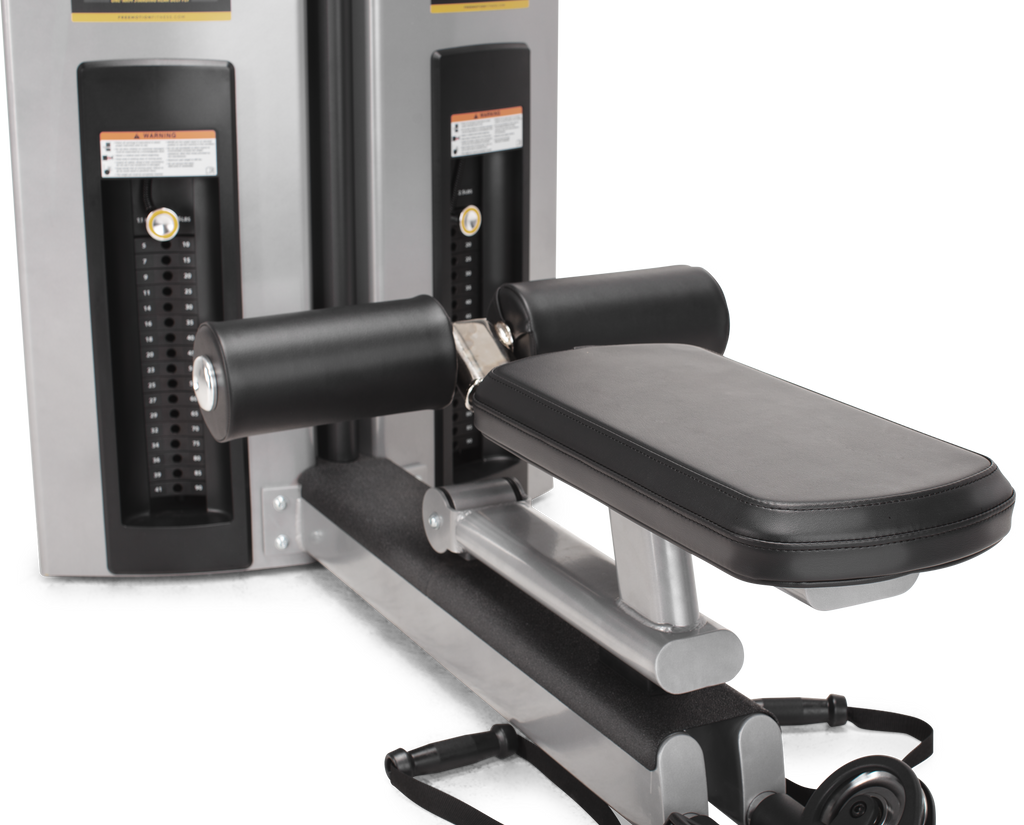

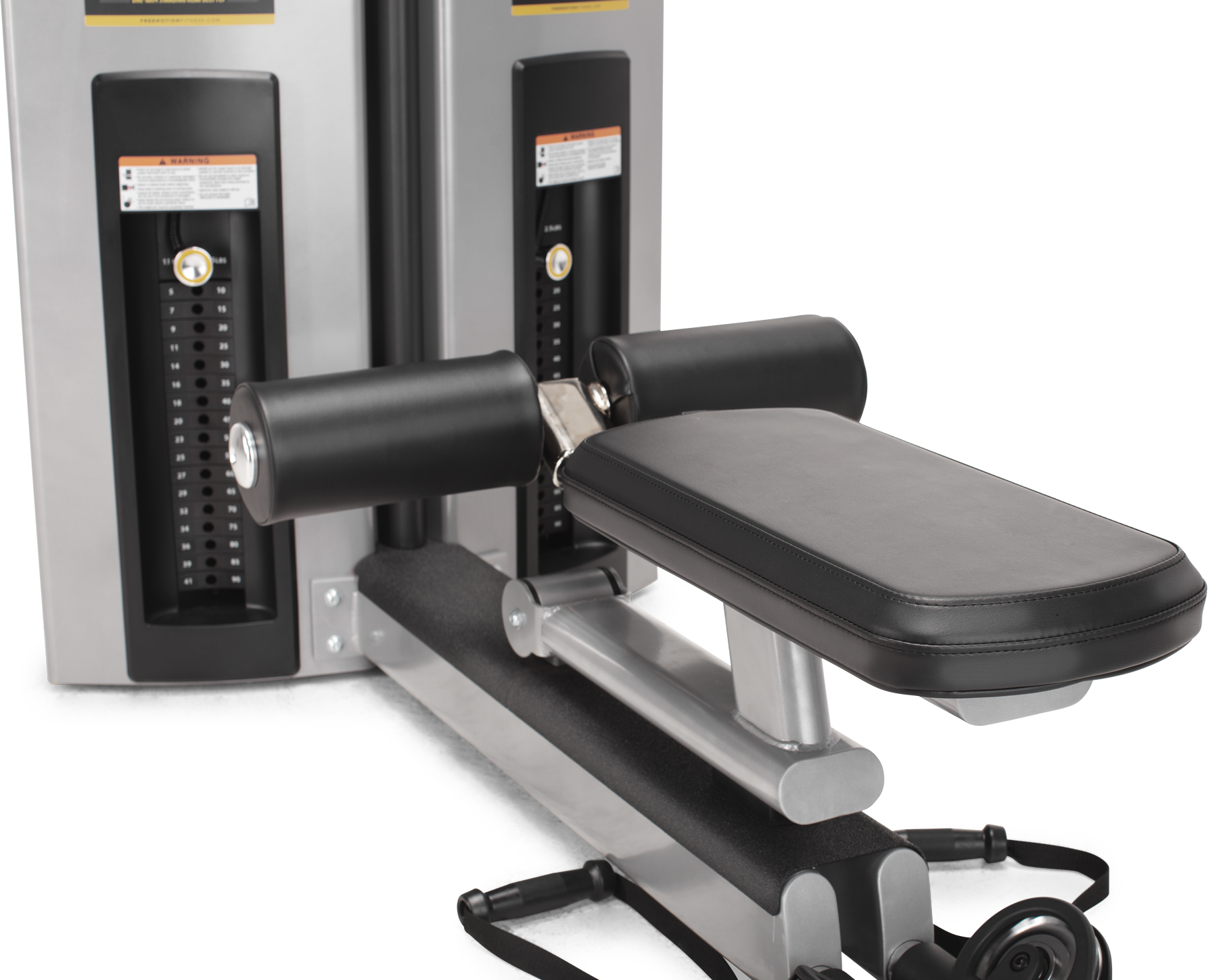

Padded Seat and Thigh Pads
Rolled thigh pads swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Enclosed Weight Stacks
The weight stacks are enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Pivot seat/thigh pad for standing movements
Resistance
1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg
Seat
Vinyl with 2 in / 5 cm thick foam
Pulleys
Aluminum swivel pulleys
Cable Travel in (cm)
72 in / 182.8 cm per arm
Rubber Feet
Soft PVC
Maximum User Weight
400 lb / 181.4 kg
Americans with Disabilities Act (ADA)
Wheelchair Accessible
Product Specifications
Weight Stack
QTY 2 – 180 lb / 81.6 kg weight stacks
Drop Down Weight
N/A
Weight Stack Configuration
2 – 10 lb top plates, 34 – 10 lb plates
(2 – 4.5 kg top plates, 34 – 4.5 kg plates)
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Product Dimensions & Weight
Dimensions L x W x H
66 x 31 x 64 in / 167.6 x 78.7 x 162.5 cm
Footprint
66 x 31 in / 167.6 x 78.7 cm
Shipping Dimensions
74.8 x 38.9 x 33.5 in / 189.9 x 99 x 85.1 cm
Shipping Weight
764.7 lb / 346.9 kg
Certifications
EN957,CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

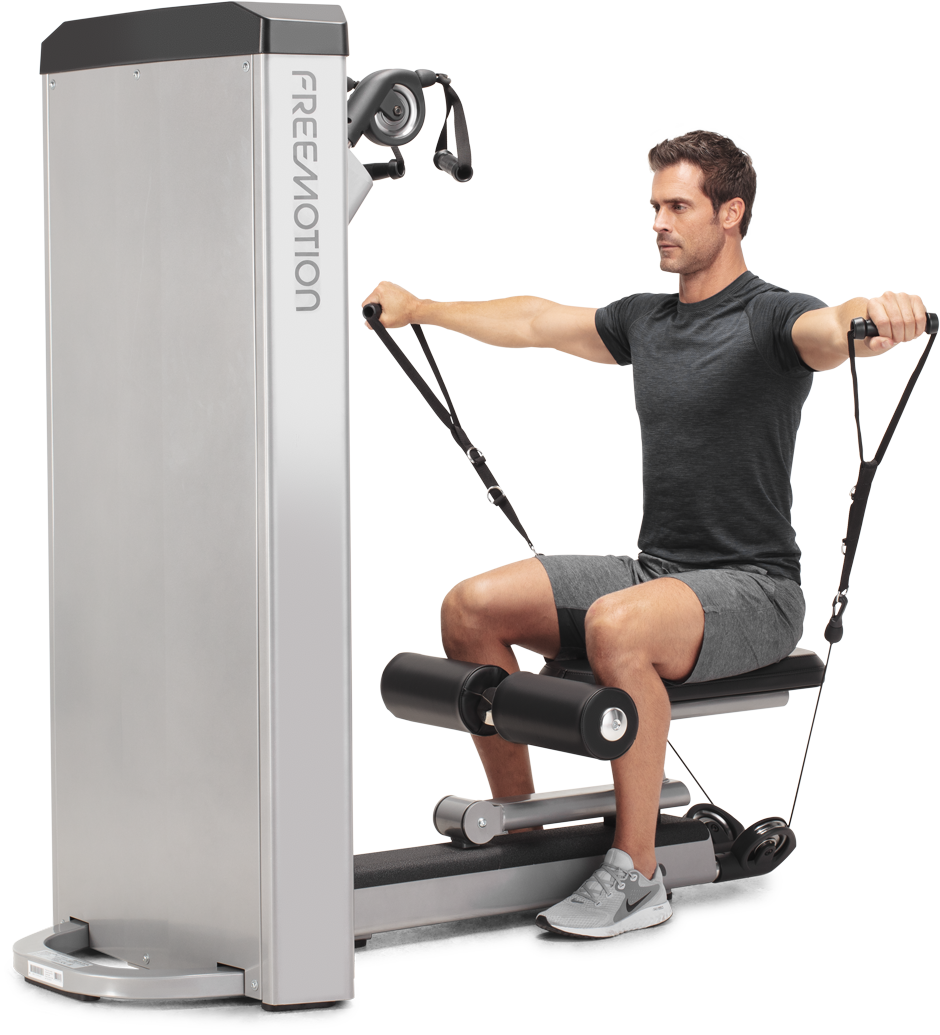

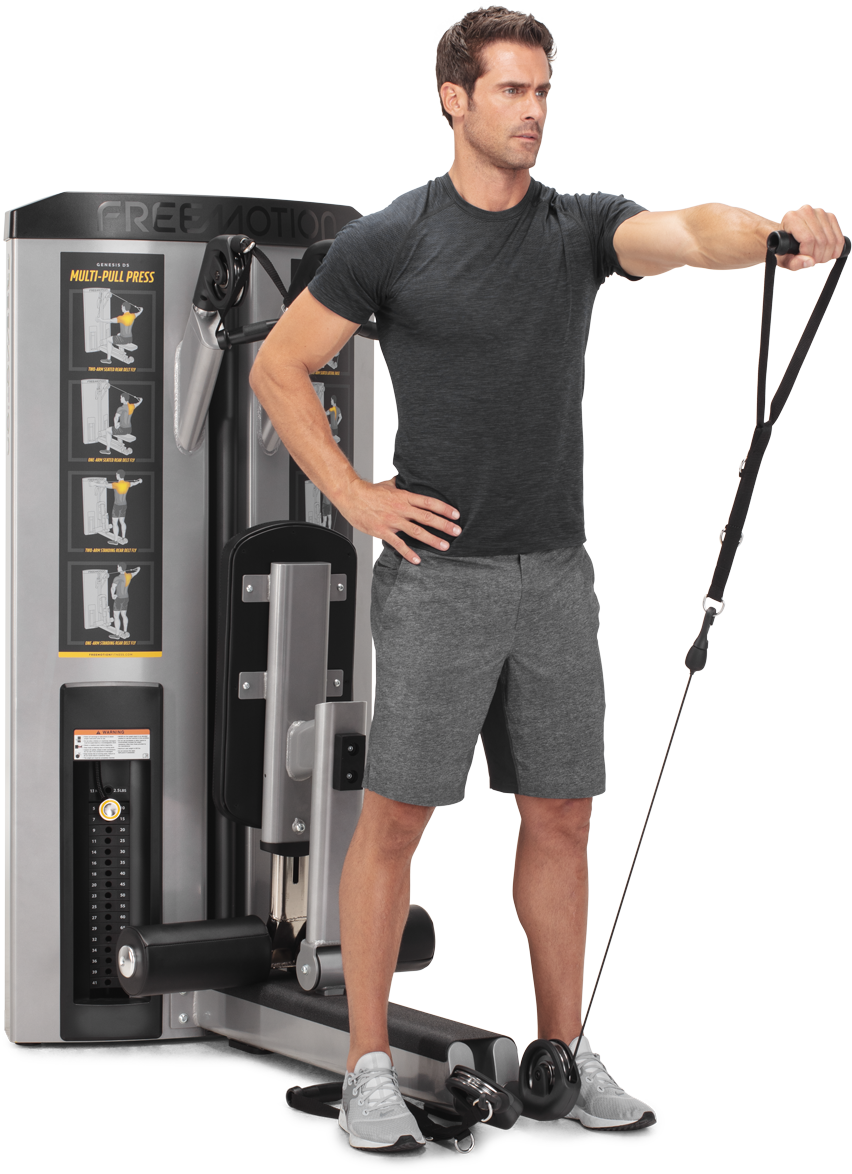

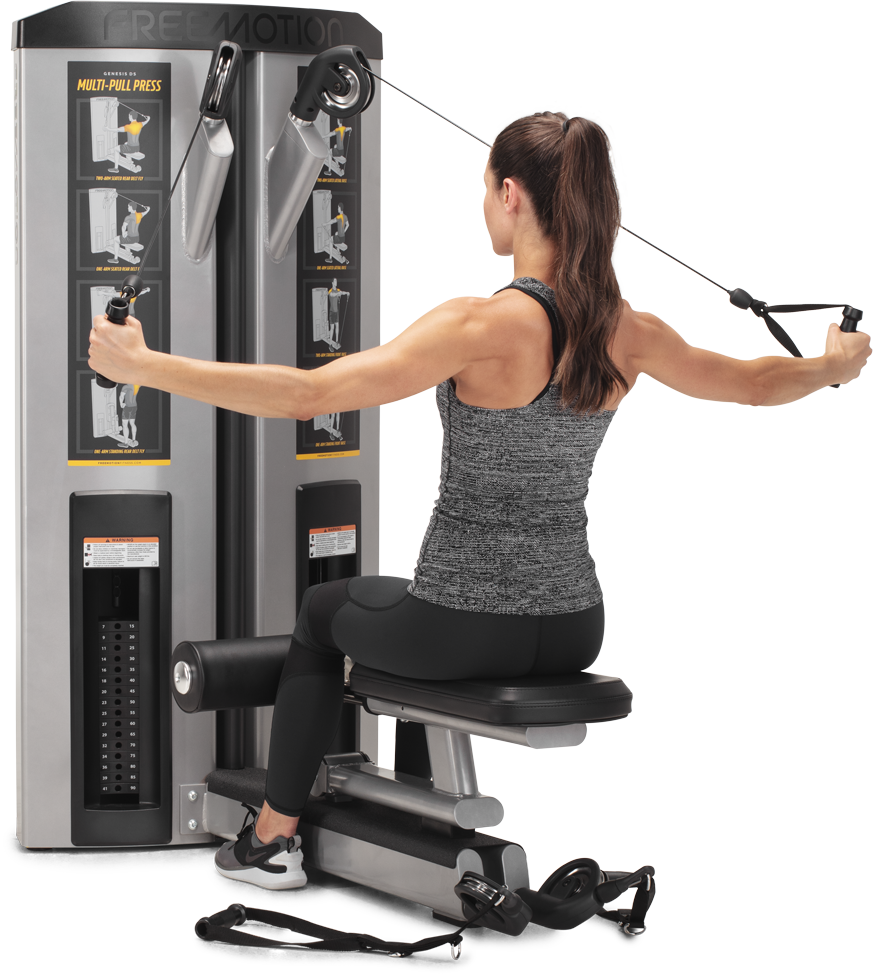

HIGH/LOW PULLEY EXERCISE OPTIONS
The versatility in exercise options are only limited by imagination. High and low pulley options allow users to train virtually any muscle group.
ISOLATION TO INTEGRATION

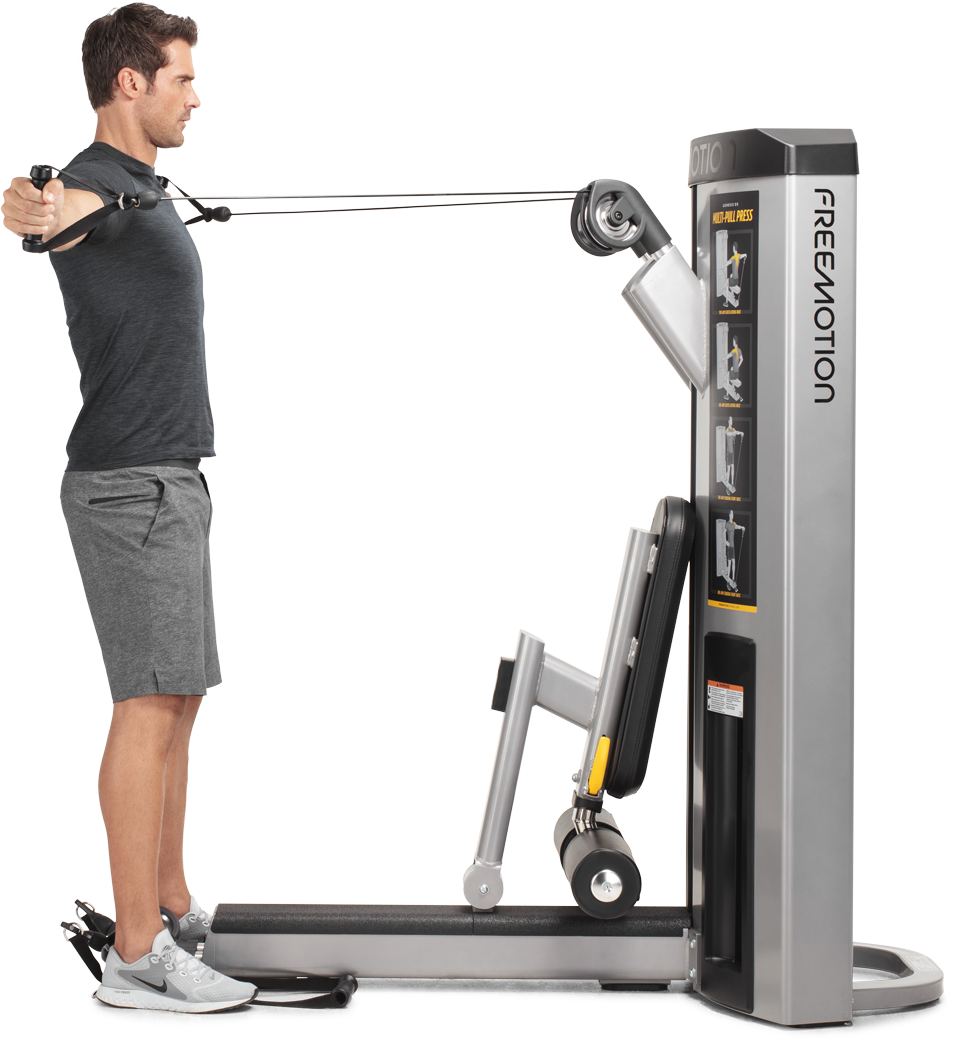

The machine features a seat and adjustable thigh pads to isolate the lower body. Users can simply fold the seat away to work out unsupported and integrate more muscle groups.
FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
