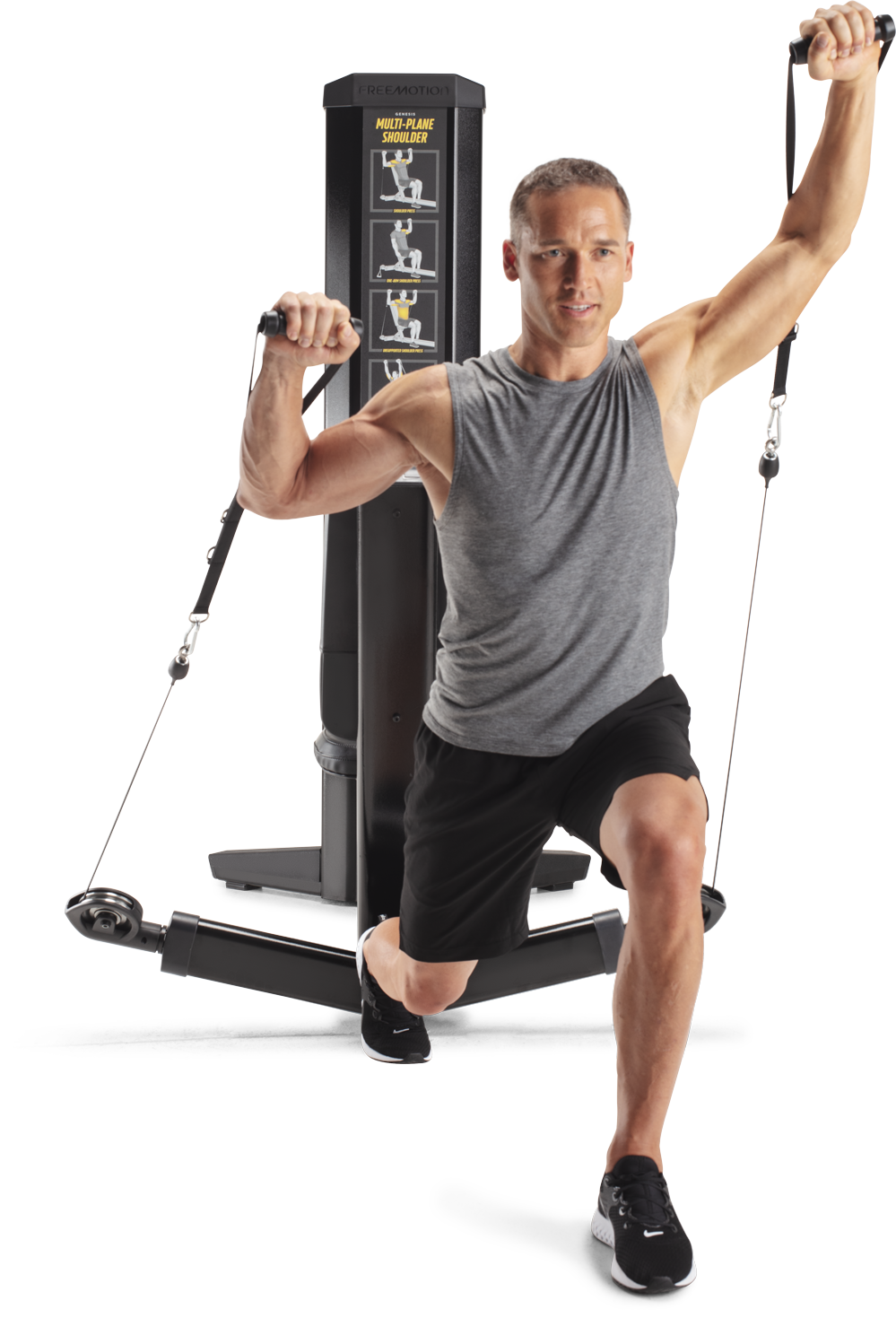

MULTI-PLANE SHOULDER
G601
The ability to push things overhead is an essential function in life that requires more than isolated shoulder strength. It also requires core strength and stability to protect the spine. The GENESIS Multi-Plane Shoulder helps build strength through the torso and joint stabilizers with its cable-based design. The lack of required adjustments and the extensive cable travel lets the user move from supported to standing to adding rotation and beyond, continuously adding variety and challenge to their program.
additional features
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

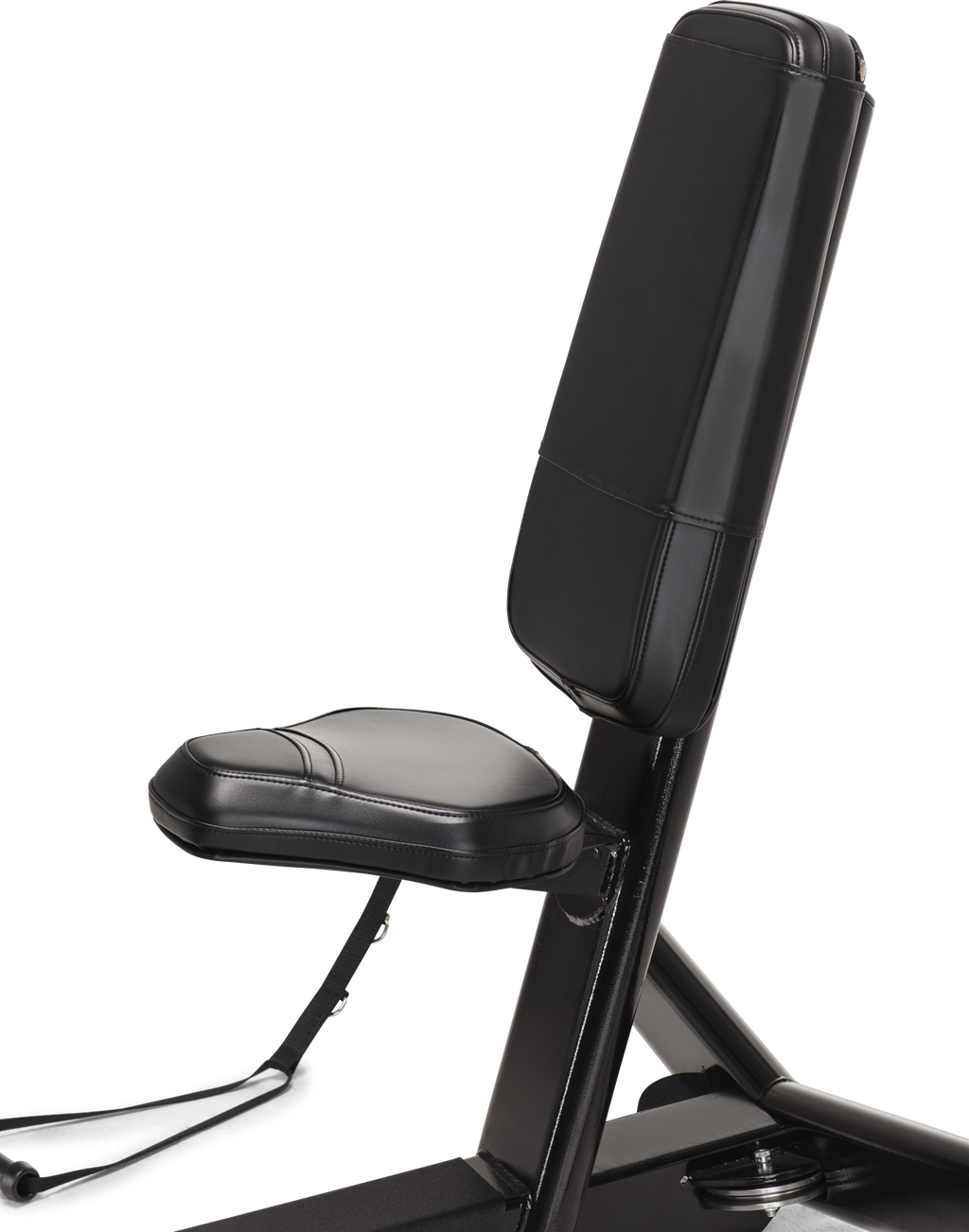

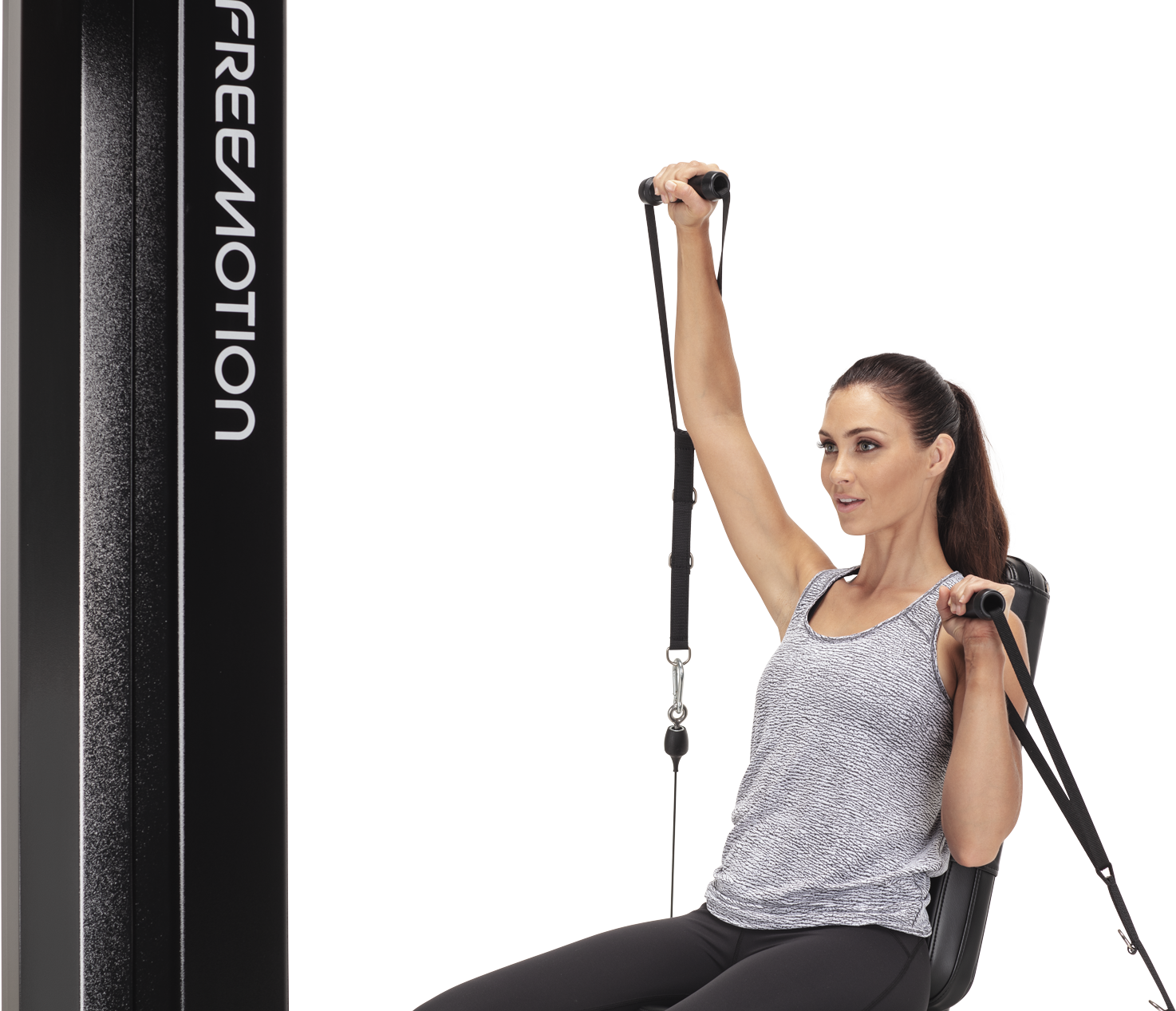

Padded, Contoured Seat
For beginning users or those looking to isolate the lower body, the seat features contoured padding for a comfortable fit.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
N/A
Resistance
1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg
Seat
Vinyl, 4.5 in / 11.4 cm thick foam
Pulleys
Swivel pulleys
Cable Travel
42 in / 106.6 cm
Rubber Feet
Molded floor protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
Wheelchair Accessible
Product Specifications
Weight Stack
150 lb / 68 kg
Drop Down Weight
N/A
Weight Stack Configuration
5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg
Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color
Custom colors available upon request
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Product Dimensions & Weight

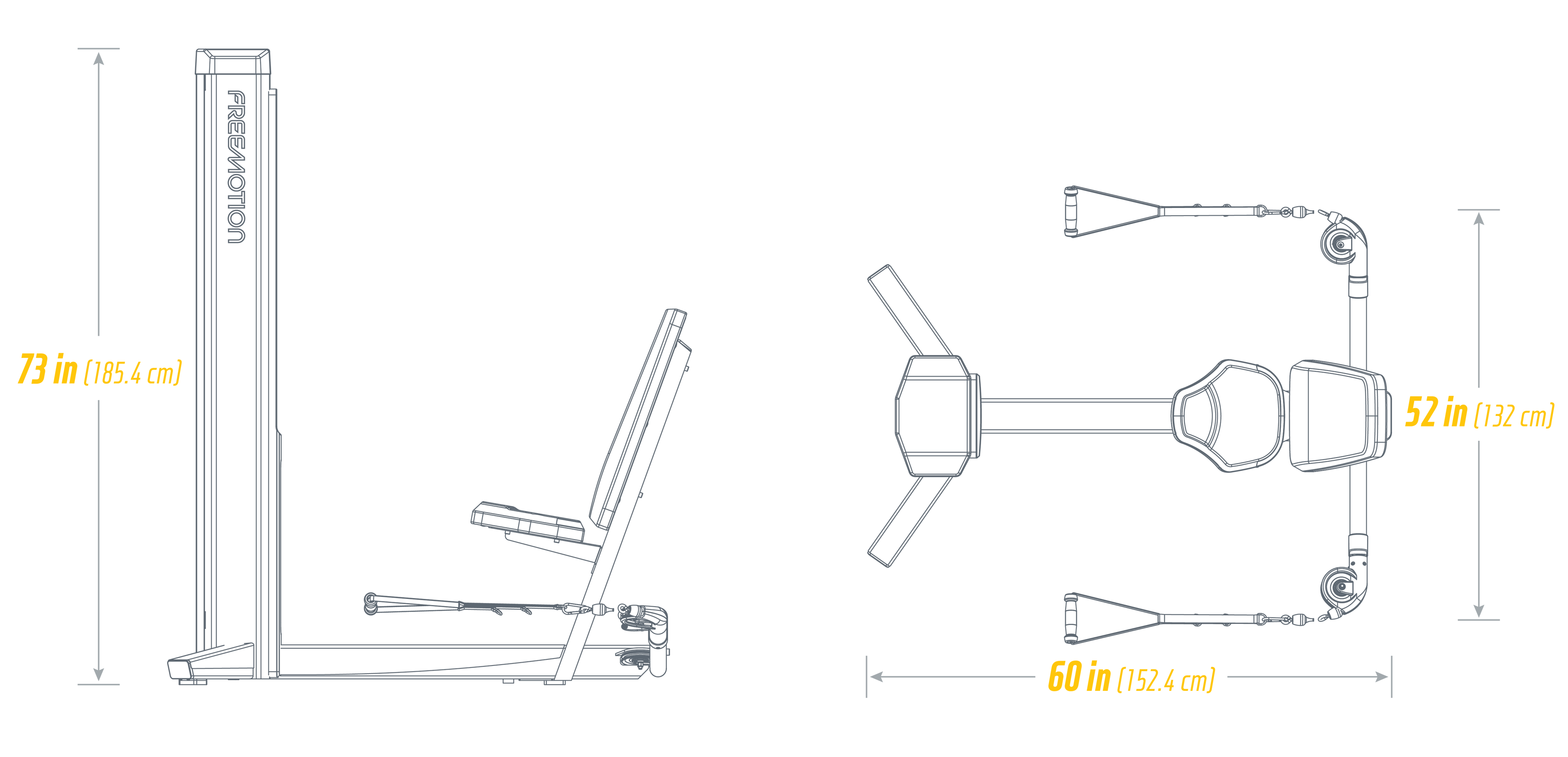

Dimensions L x W x H
60 x 52 x 73 in / 152.4 x 132 x 185.4 cm
Footprint
60 x 52 in / 152.4 x 132 cm
Weight
435 lb / 197.3 kg
Shipping Dimensions
63 x 50 x 73 in / 160 x 127 x 185.4 cm
Shipping Weight
431 lb / 195.4 kg
Certifications
EN957, CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
FREEDOM TO MOVE

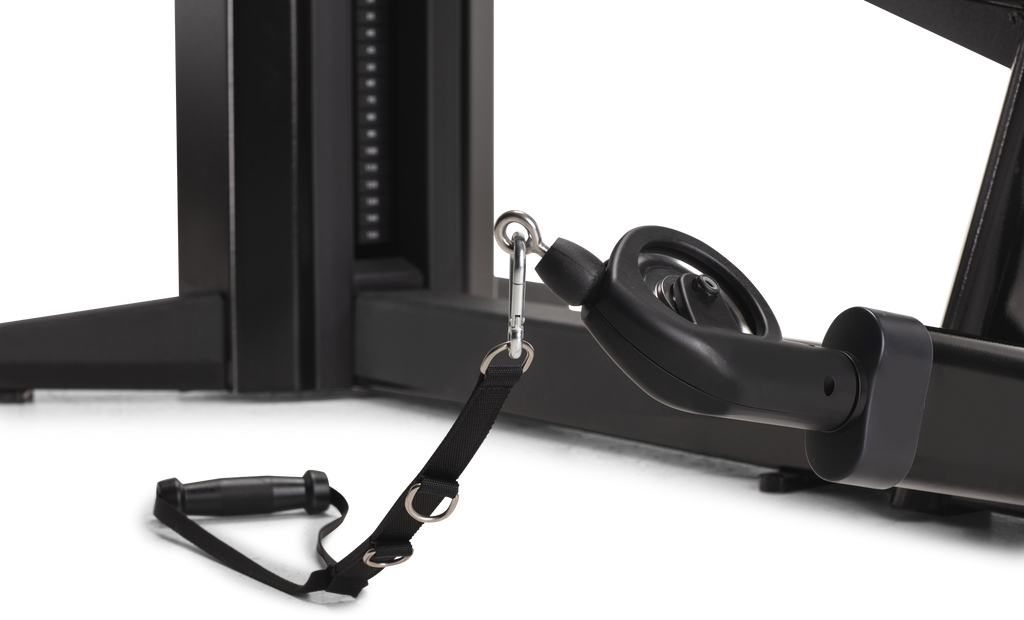

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY

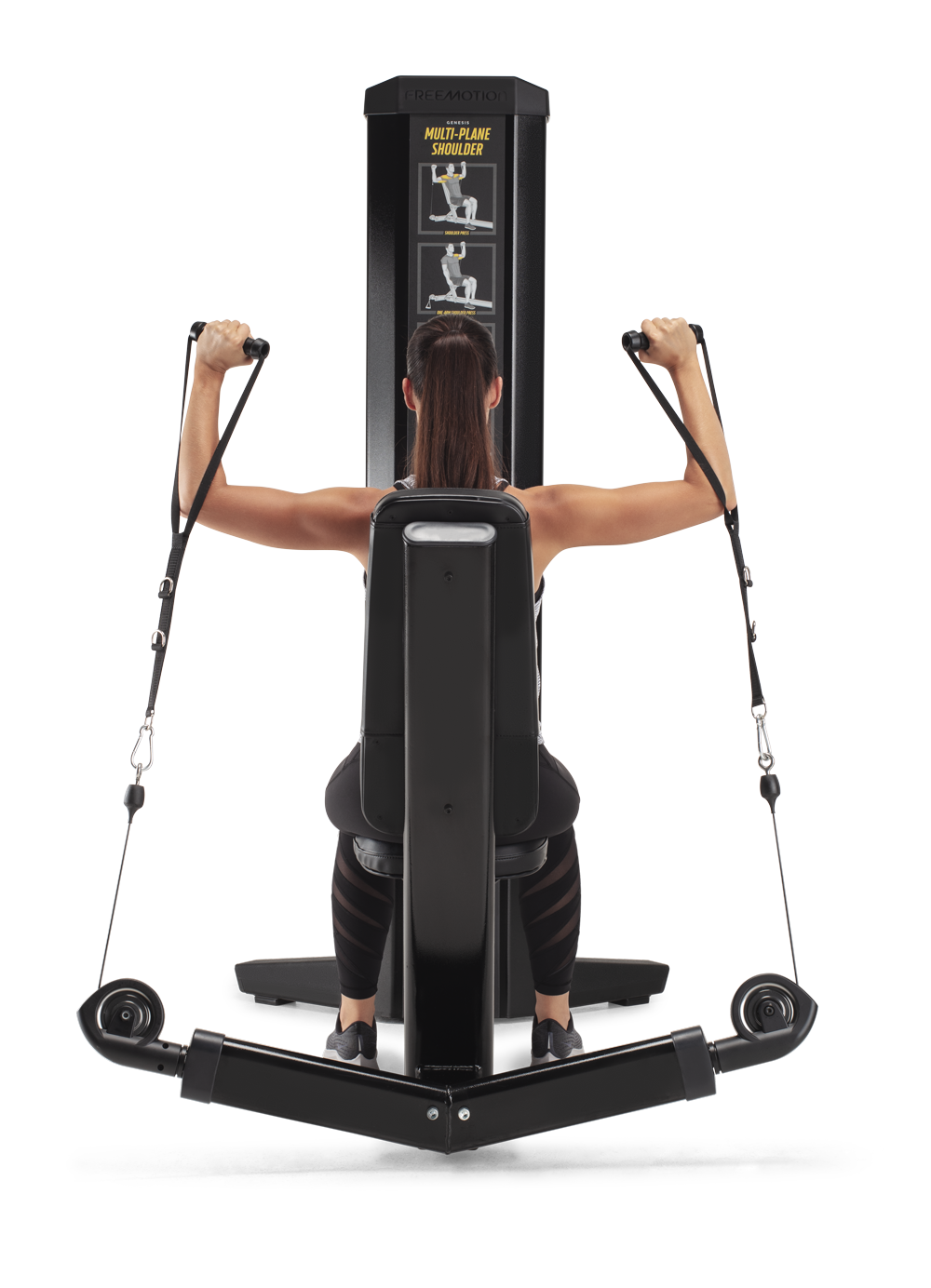

Handles move independently of each other for single and alternating exercises.

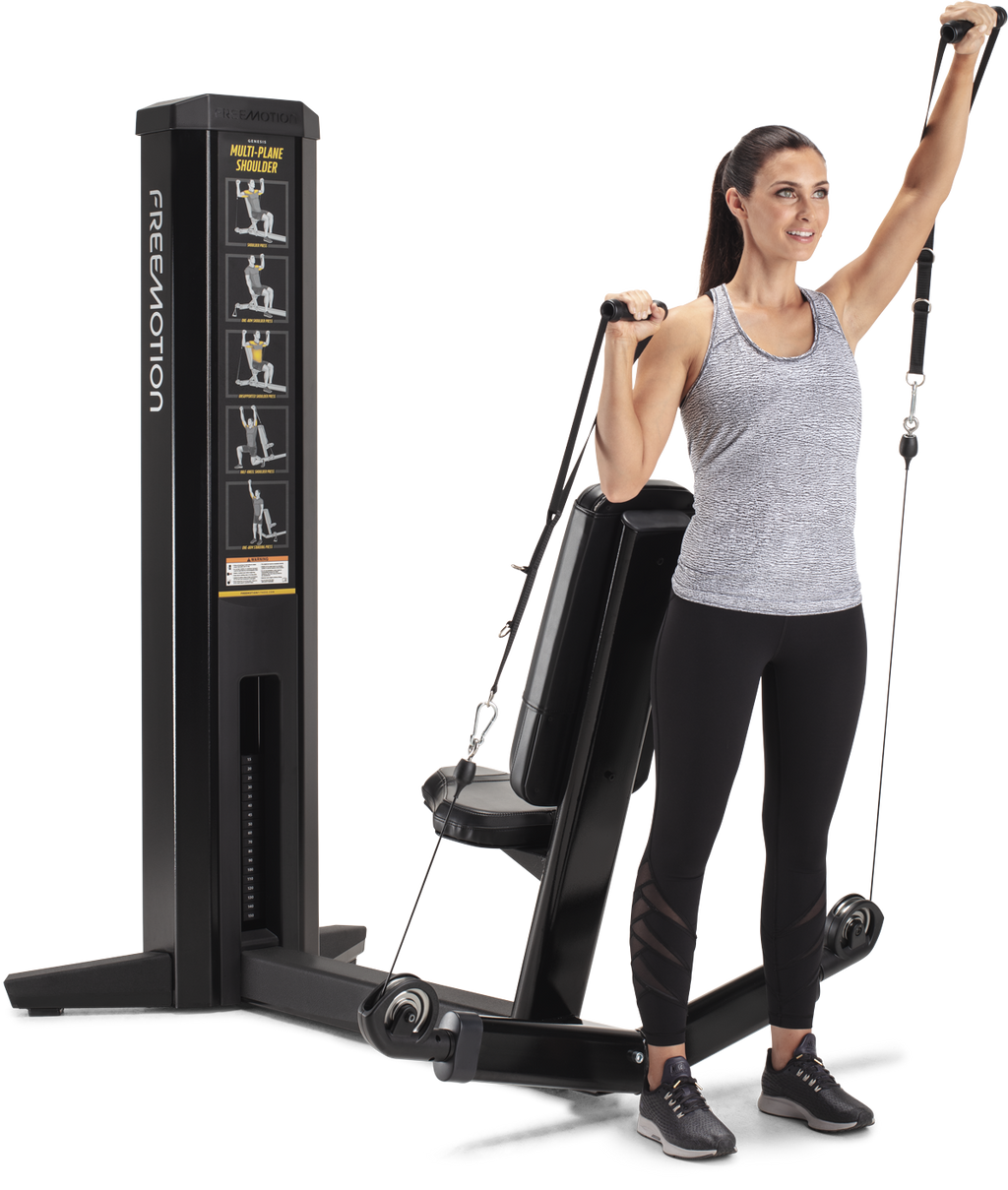

WALK UP AND WORK OUT
With no required adjustments, users can simply walk up, grab the handles and start moving.
