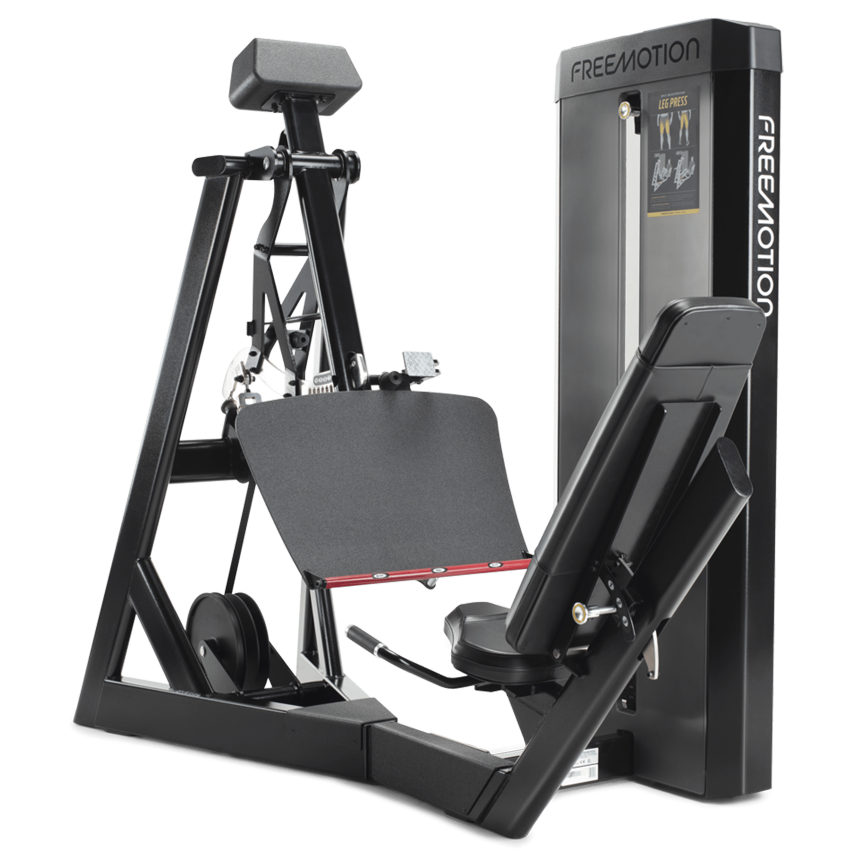

LEG PRESS
ES804
The EPIC Selectorized Leg Press's platform assembly offers a unique, arc-shaped movement pattern. It is also counterweighted for easy positioning and fluid motion. Platform release pedal disengages the
resistance for both simple adjustments and exit from the machine. Users can adjust the back pad for comfortable fit and support, even under heavy loads.
additional features

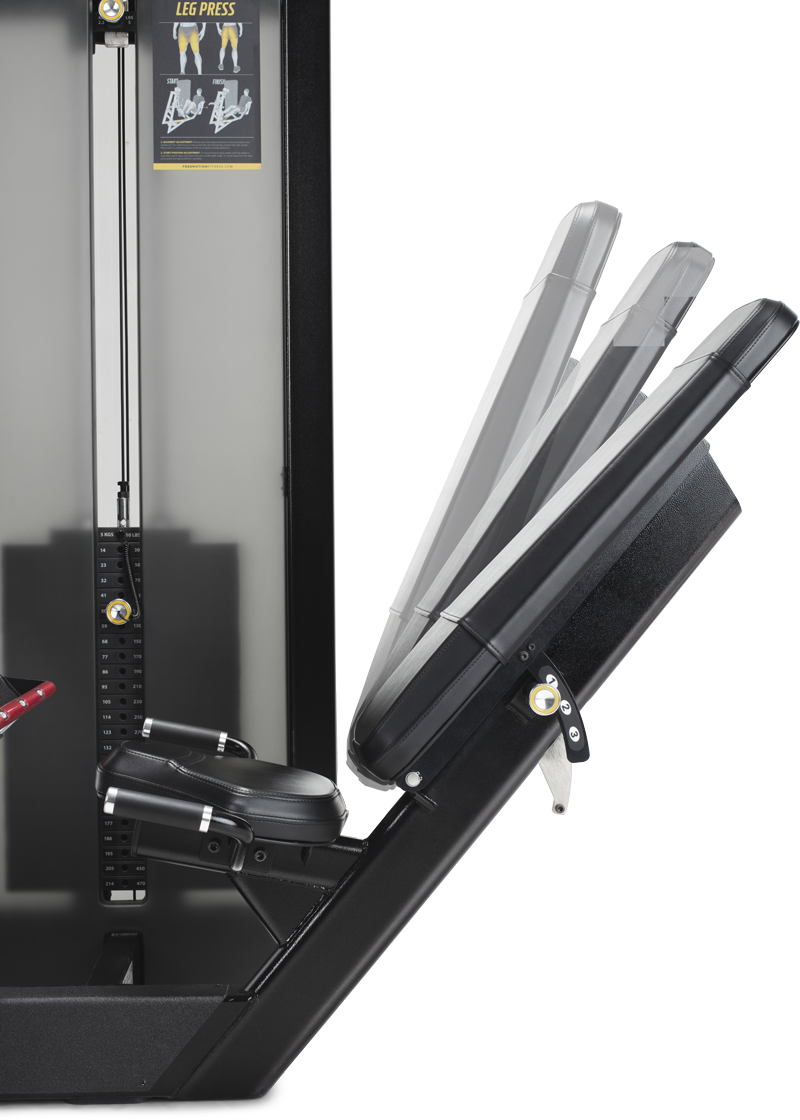

Adjustable, Contoured Back Pad
Back pad reclines in multiple positions to fit users of varying heights and fitness abilities. Padded for supported comfort under heavy loads.
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
475 lb / 215.4 kg
Resistance
475 lb / 215.4 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
475 lb / 215.4 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-470 x 20 lb / 9 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight
Dimensions L x W x H
90.6 x 44.1 x 72.8 in / 230.1 x 112 x 184.9 cm
Footprint
90.6 x 44.1 in / 230.1 x 112 cm
Maximum workout area
90.6 x 44.1 in / 230.1 x 112 cm
Weight
1,146.4 lb / 520 kg
Shipping Dimensions
Box 1: 88.1 x 35 x 82.6 in / 233.7 x 88.9 x 209 cm
Box 2: 41.7 x 13 x 3.9 in / 105.9 x 33 x 9.9 cm
Shipping Weight
Box 1: 1252.2 lb / 567.8 kg
Box 2: 17.6 lb / 7.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

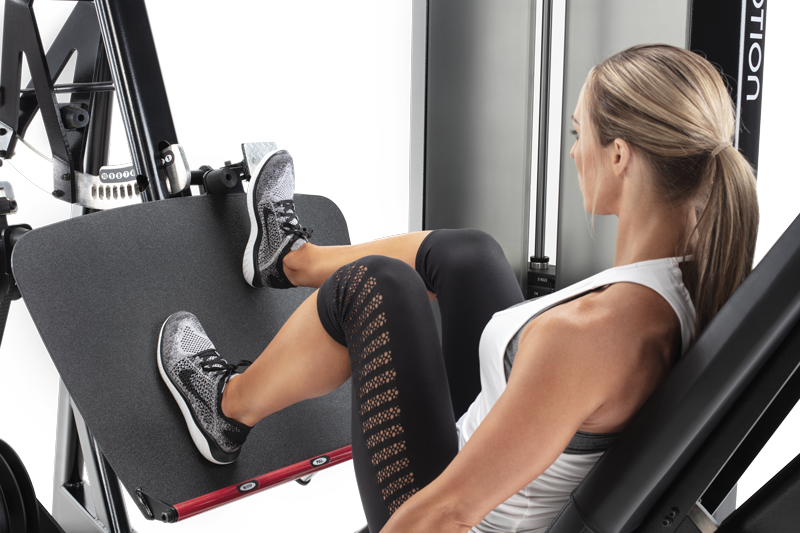

SET THE RANGE
Platform assembly adjusts via a pop-pin or can be disengaged by pressing the pedal to set the start of the range of motion.

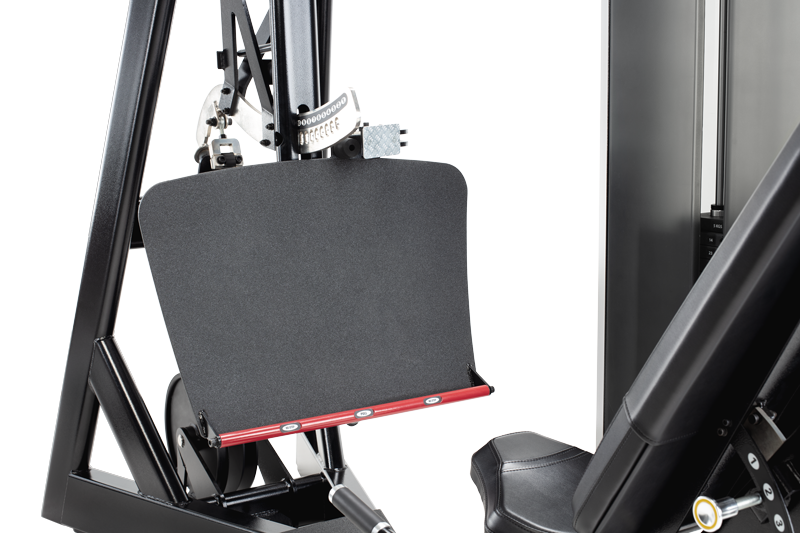

SURE FOOTING
Textured platform helps ensure secure foot placement even under heavy loads.
LOW PROFILE WEIGHT STACK
Approachable, compact design also features accessory trays so users can keep their essentials within reach.
