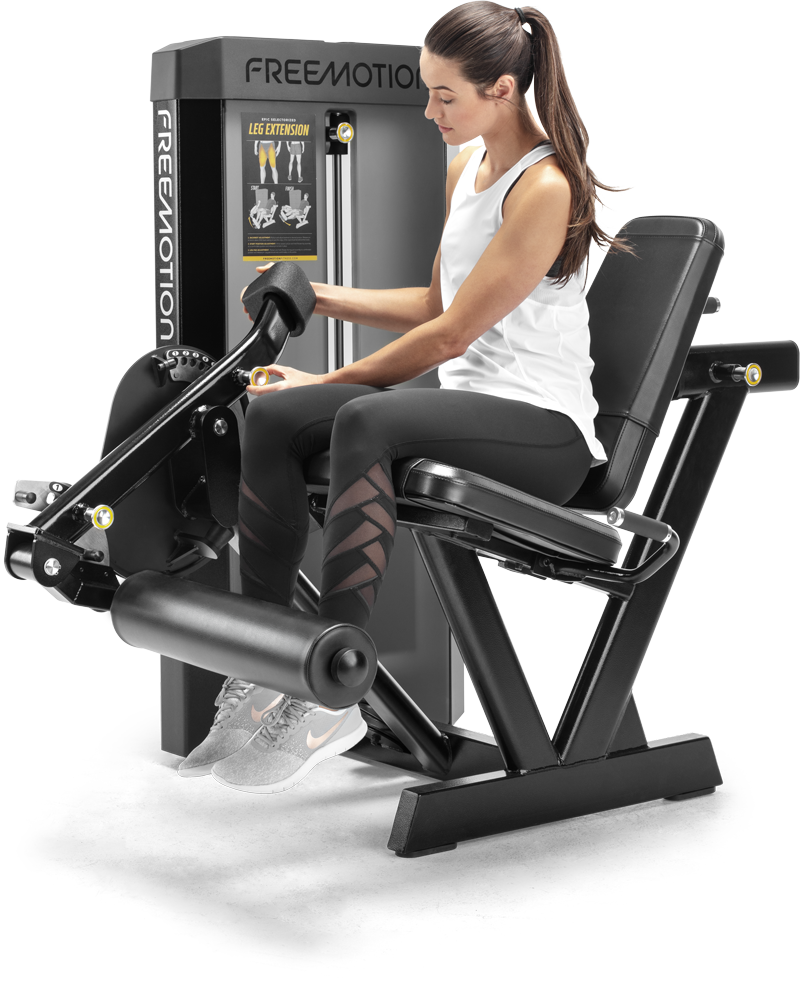

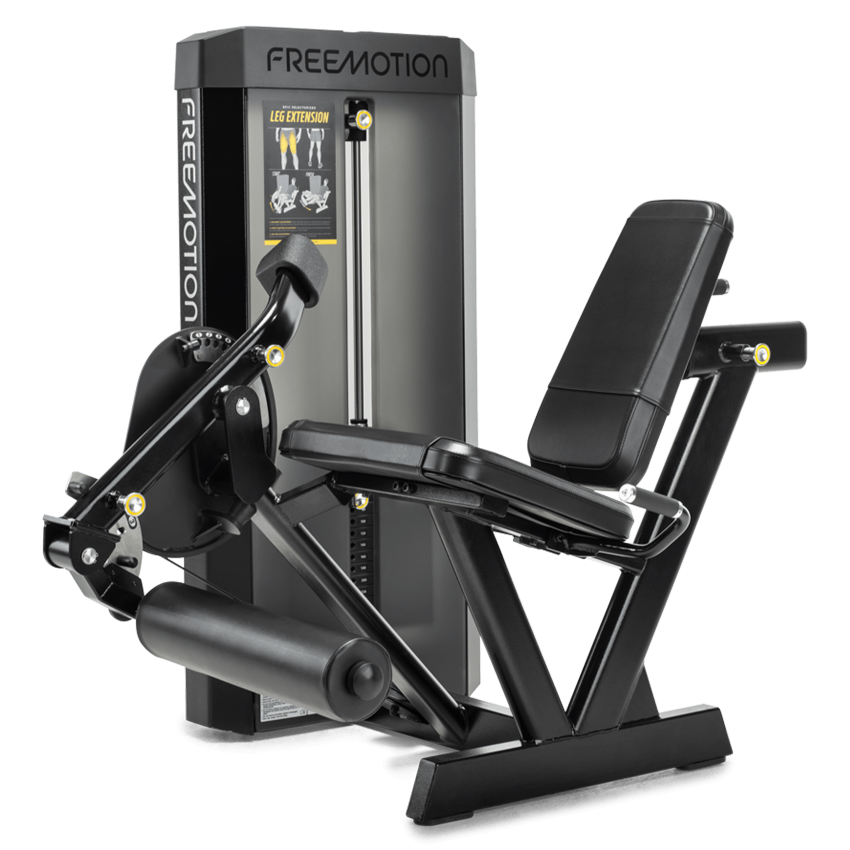

LEG EXTENSION
ES801
Whether your members are looking to isolate the quads to build muscle mass or rehabbing an injury, the EPIC Selectorized Leg Extension's range of motion can be customized. The padded backpad adjusts horizontally to fit a variety of users. Leg assembly has a rolling shin pad for comfort through the entire range of motion. It's counterweight make for easy adjustments.
additional features
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy-duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Multiple Start Positions, Adjustable Back Pad and Leg Assembly
Resistance
285 lb / 129.2 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
285 lb / 129.2 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-70 x 10 lb / 4.5 kg
80-280 x 20 lb / 9 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight
Dimensions L x W x H
51.3 x 54 x 57.8 in / 130.3 x 137.1 x 146.8 cm
Footprint
51.3 x 54 in / 130.3 x 137.1 cm
Maximum workout area
51.3 x 54 in / 130.3 x 137.1 cm
Weight
573.2 lb / 260 kg
Shipping Dimensions
Box 1: 74.4 x 30.3 x 42.1 in / 188.9 x 76.9 x 106.9 cm
Box 2: 28.3 x 25.2 x 5.9 in / 71.8 x 64 x 14.9 cm
Shipping Weight
Box 1: 712.1 lb / 322.9 kg
Box 2: 25.3 lb / 11.4 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
SET THE RANGE

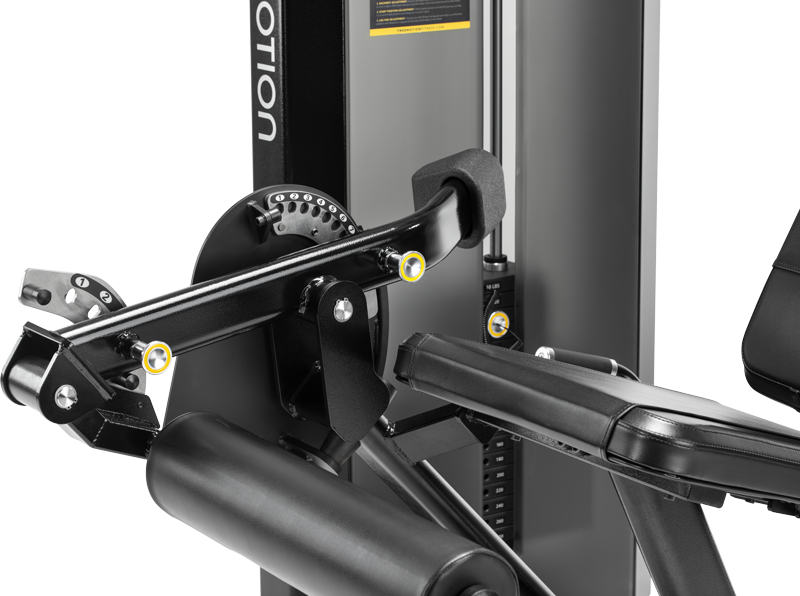

Leg assembly features two adjustments to tailor the range of motion for the user and is counterweighted for easy positioning.
COMFORTABLE BY DESIGN

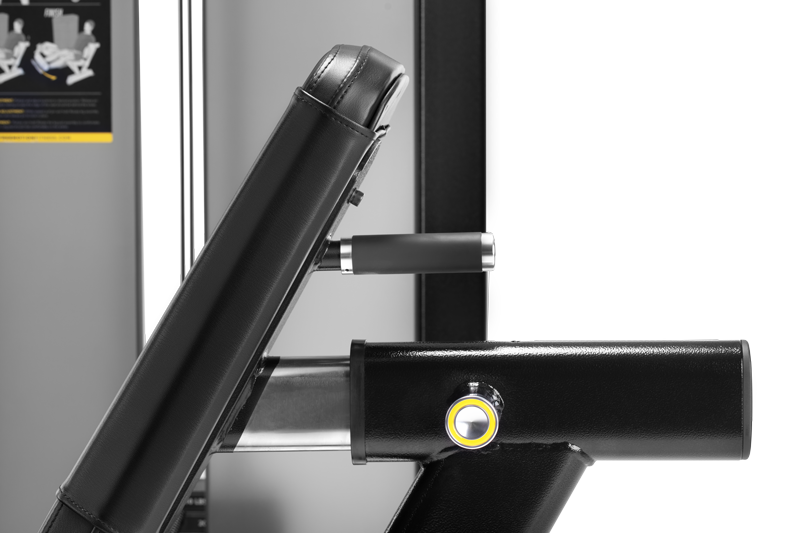

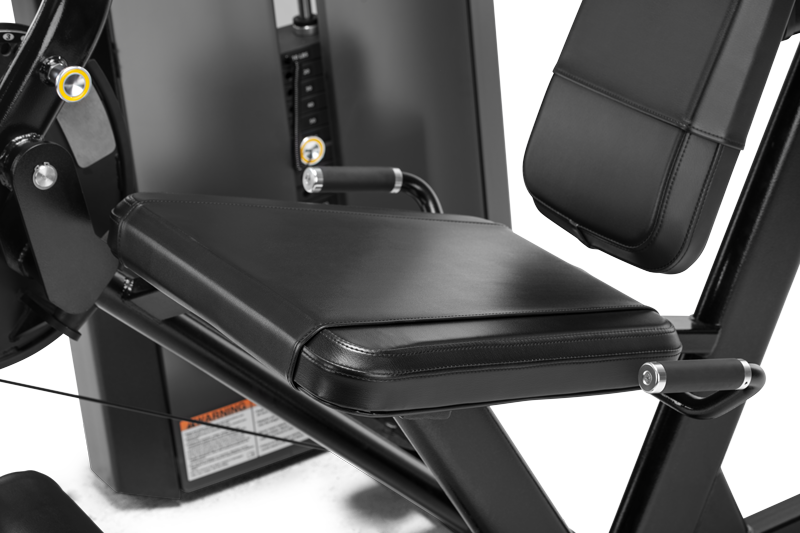

The shin pads roll for comfort throughout the range of motion. Back pad is contoured and adjustable for precise body positioning.
LOW PROFILE WEIGHT STACK
Approachable, compact design also features accessory trays so users can keep their essentials within reach.
