LAT
G620

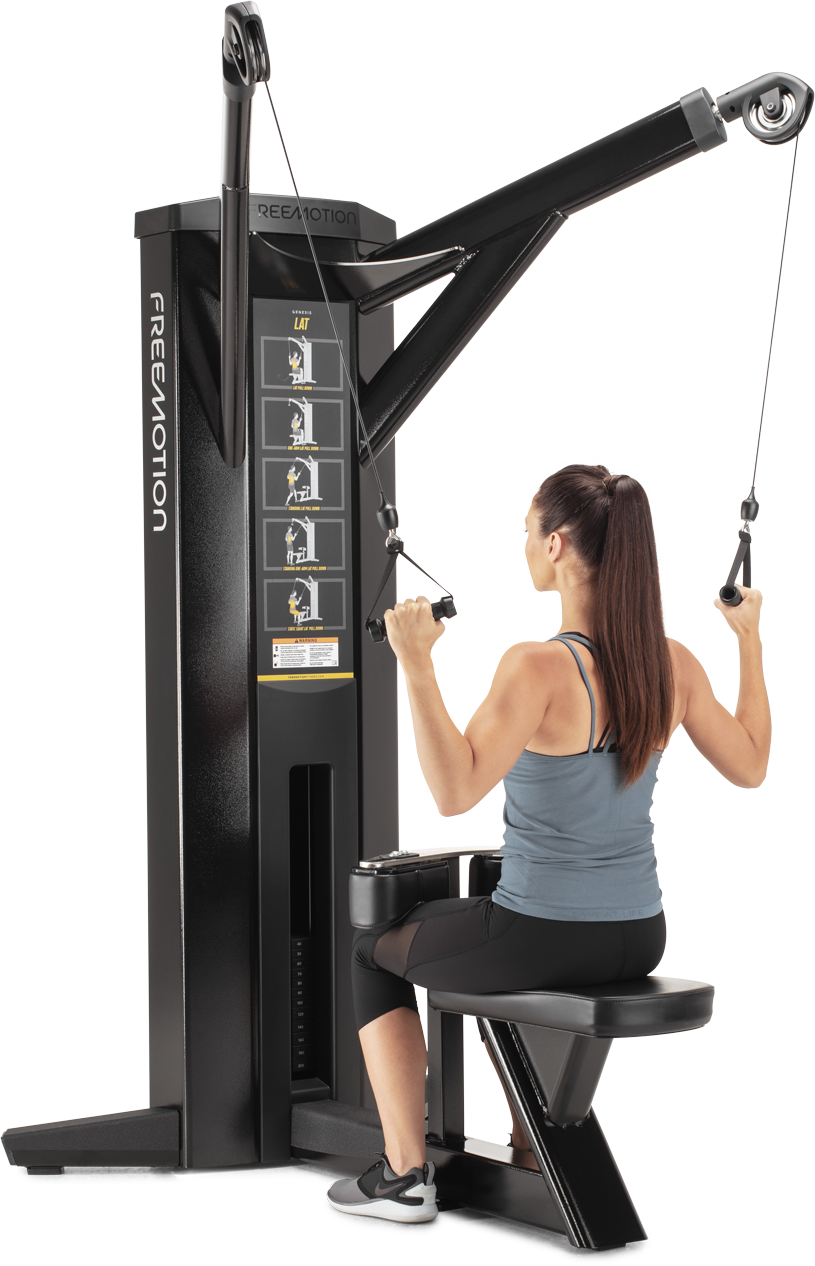

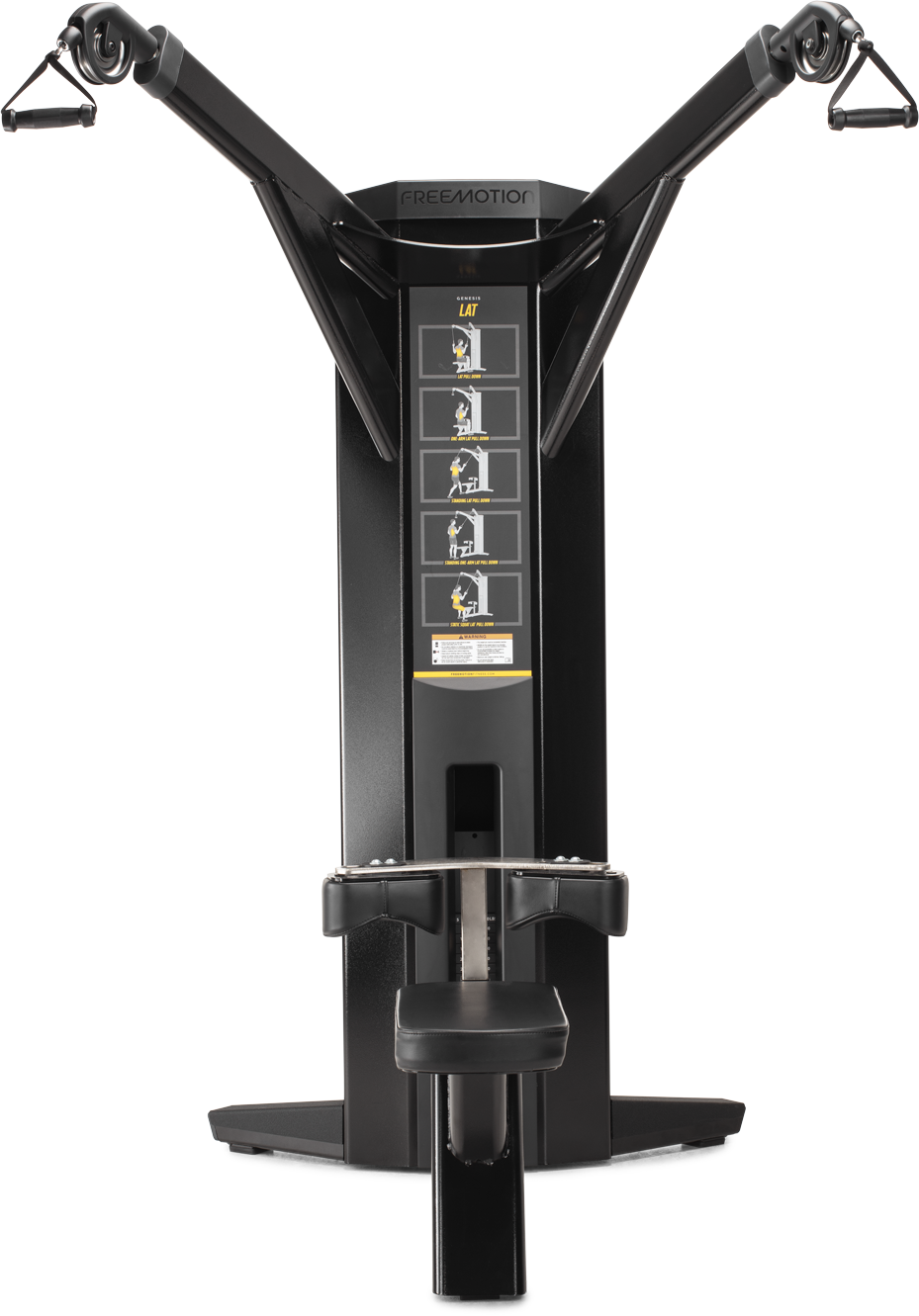

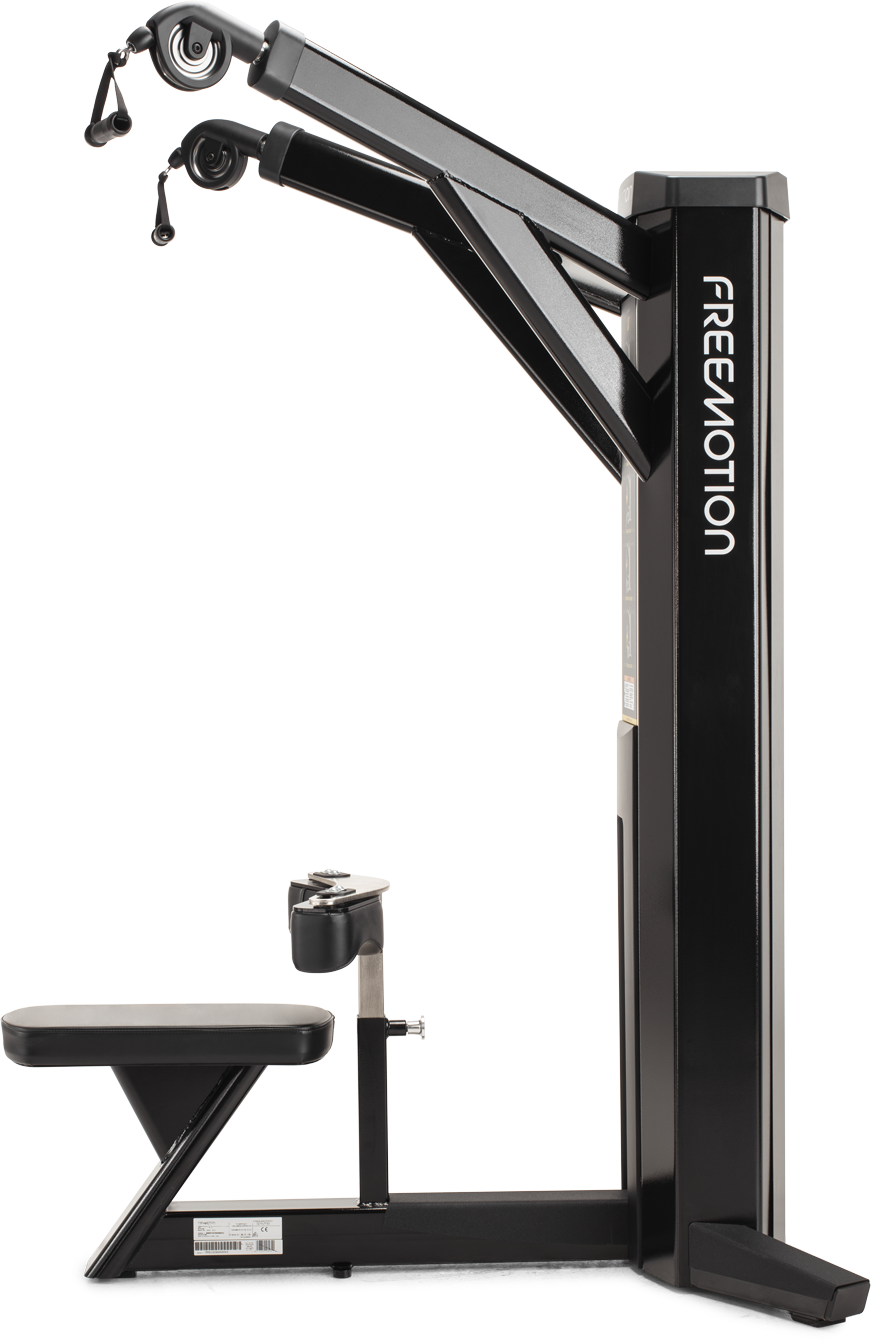

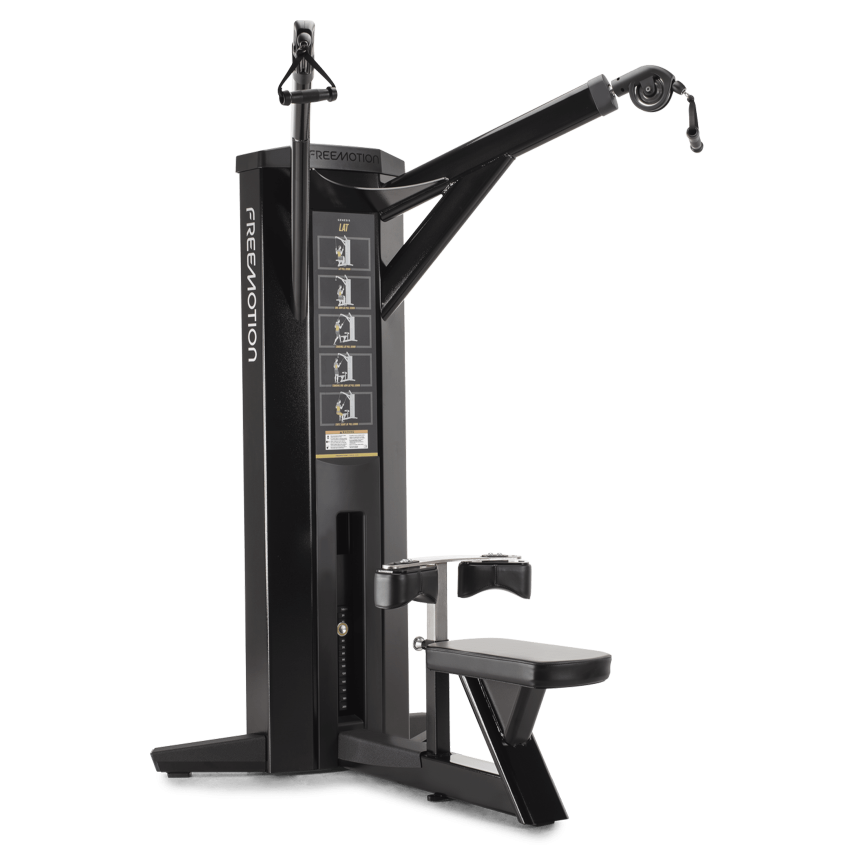

To optimize calorie burn, it's important to build lean mass in the large muscle groups like the lats. The GENESIS™ Lat features an adjustable thigh pad that is contoured and swivels for a comfortable fit to isolate the lower body. The signature swivel pulleys with extensive cable travel give users the range of motion to perform seated, standing and dynamic pulldown movements.
additional features

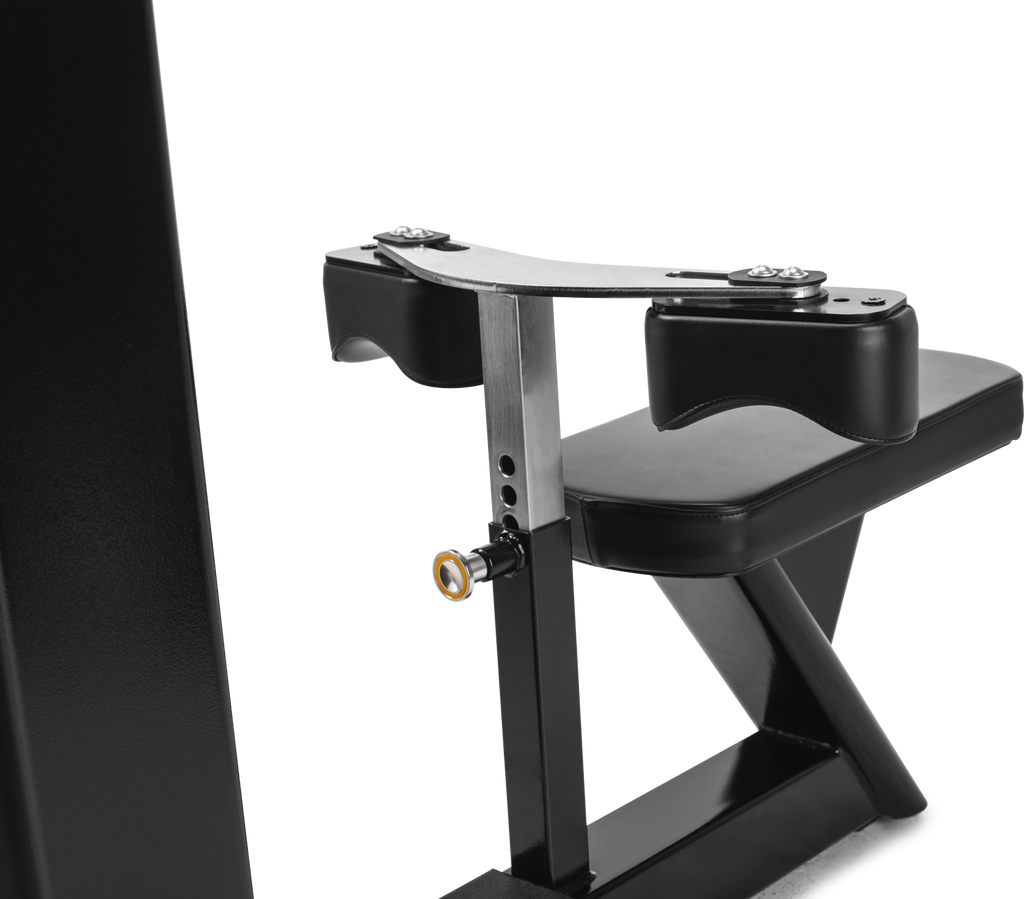

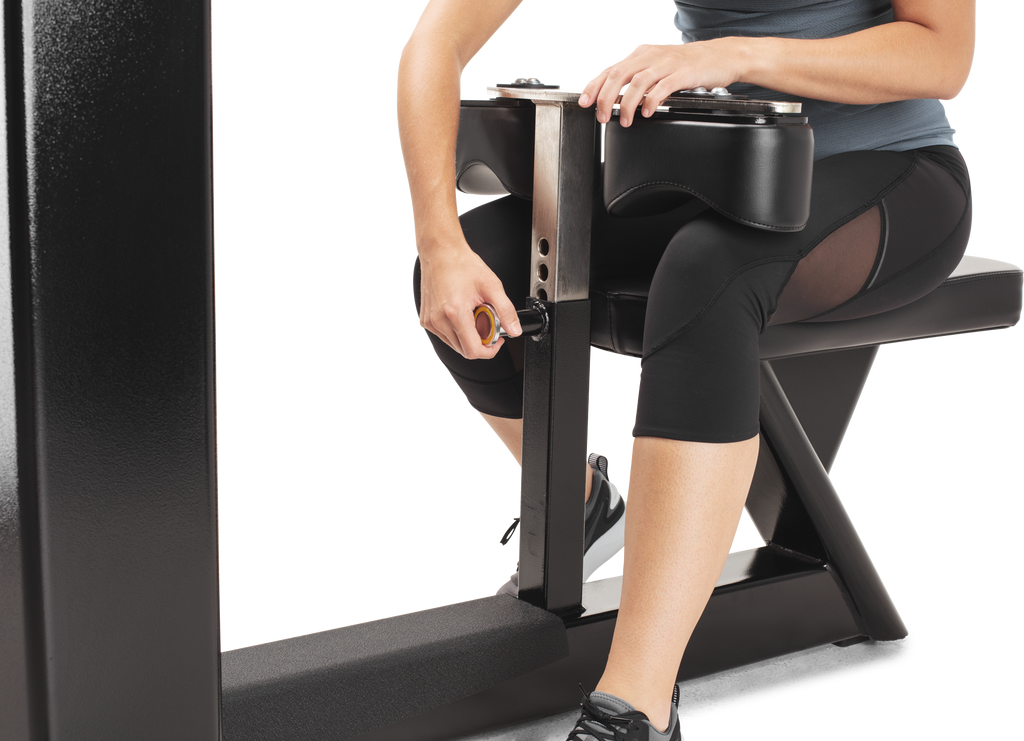

Padded Seat and Thigh Pads
Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Adjustable thigh pads
Resistance
1 arm: 100 lb / 45.3 kg
2 arms: 200 lb / 90.7 kg
Seat
1.5 in thick foam / Molded vinyl
Pulleys
Swivel pulleys
Cable Travel
85 in / 215.9 cm
Rubber Feet
Molded floor protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
200 lb / 90 kg
Drop Down Weight
N/A
Weight Stack Configuration
5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
60 – 200 x 10 lb / 27.2 – 90.7 x 4.5 kg
Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color
Custom colors available upon request
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request

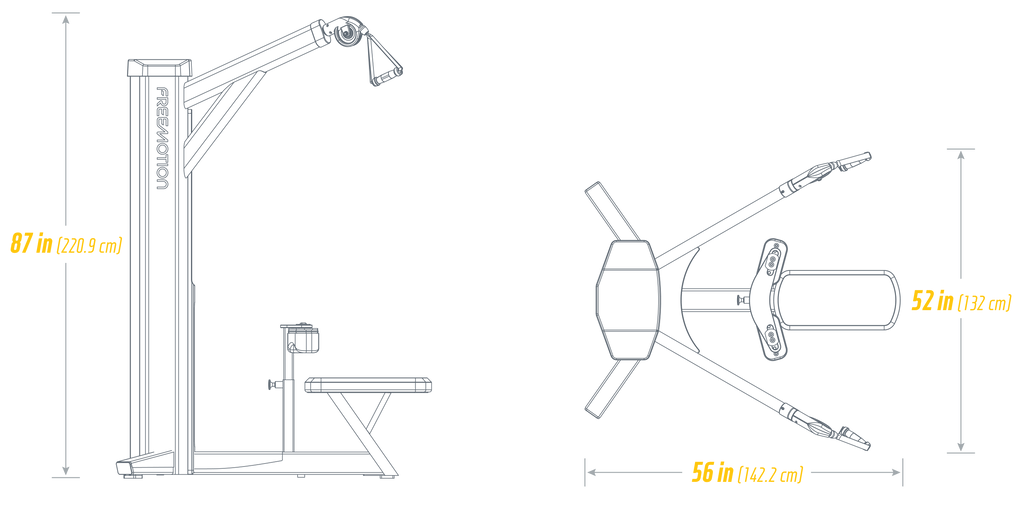

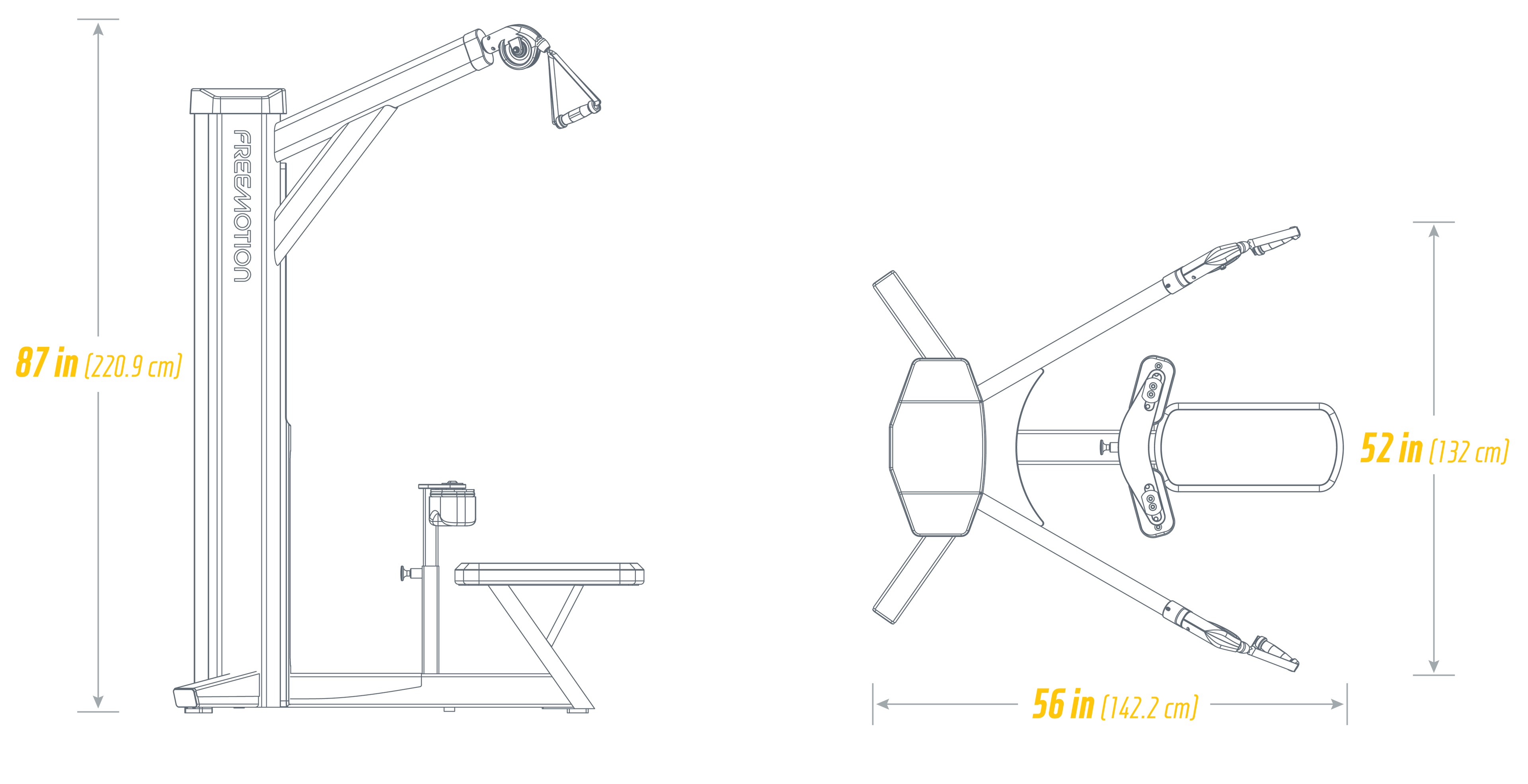

Product Dimensions & Weight
Dimensions L x W x H
56 x 52 x 87 in / 142.2 x 132 x 220.9 cm
Footprint
56 x 52 in / 142.2 x 132 cm
Weight
648 lb / 293.2 kg
Shipping Dimensions
65 x 56 x 85 in / 165.1 x 142.2 x 215.9 cm
Shipping Weight
485 lb / 219.9 kg
Certifications
EN957, CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

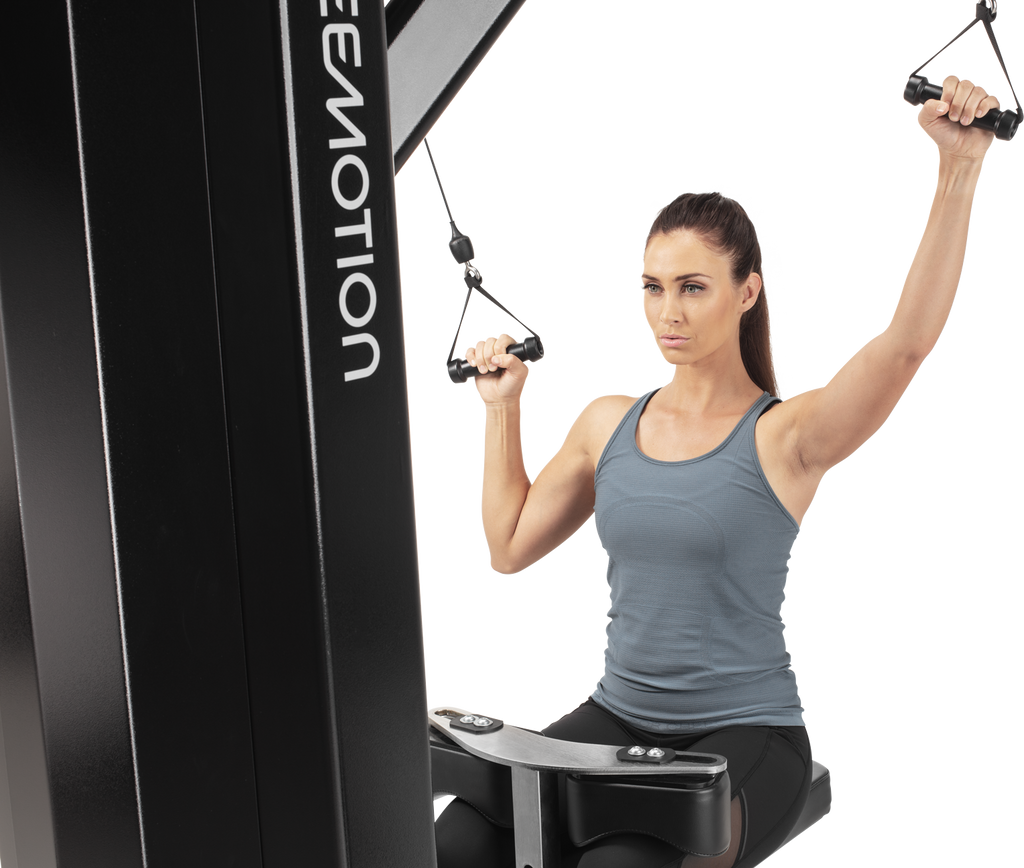

ISOLATION TO INTEGRATION

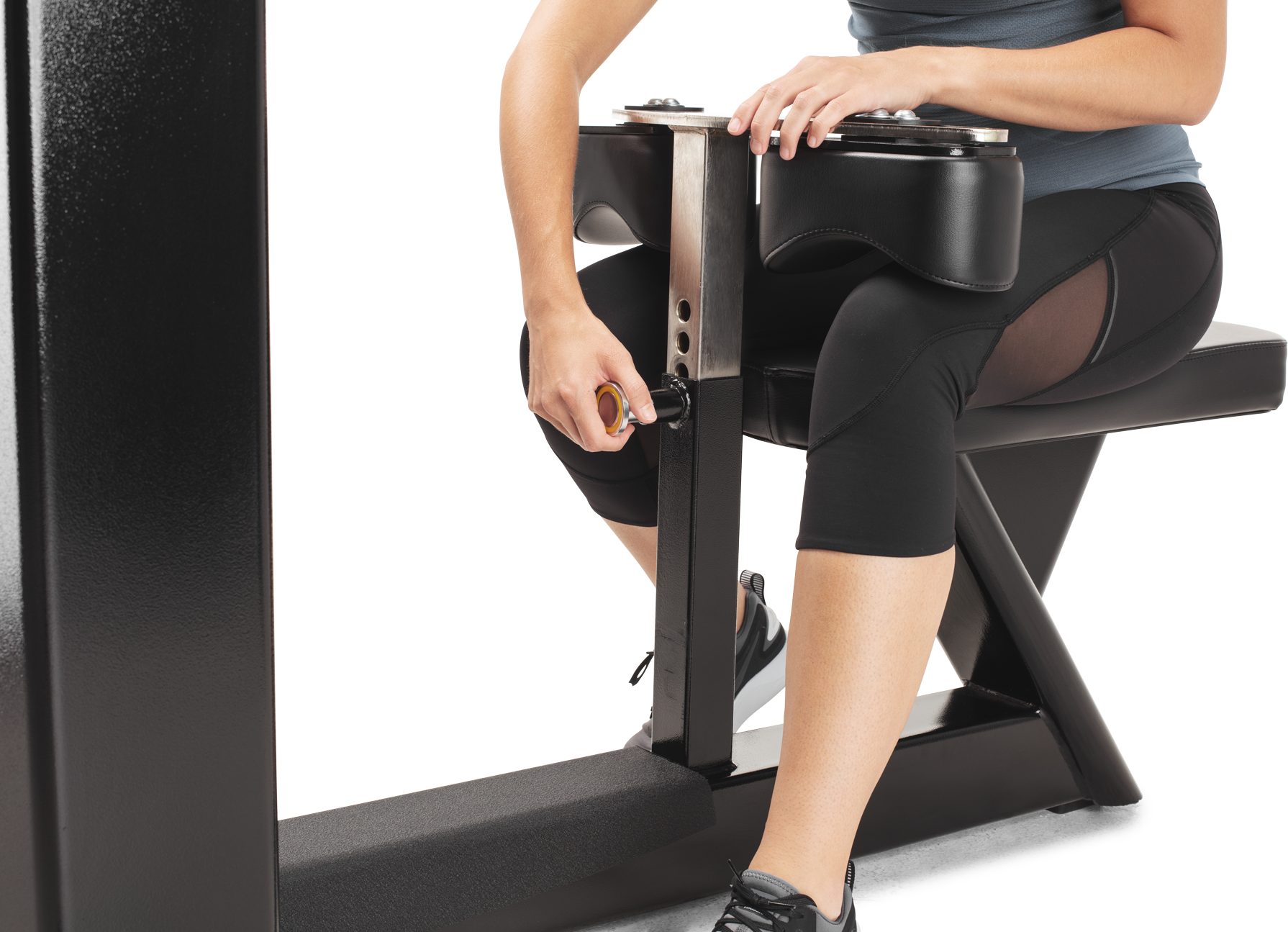

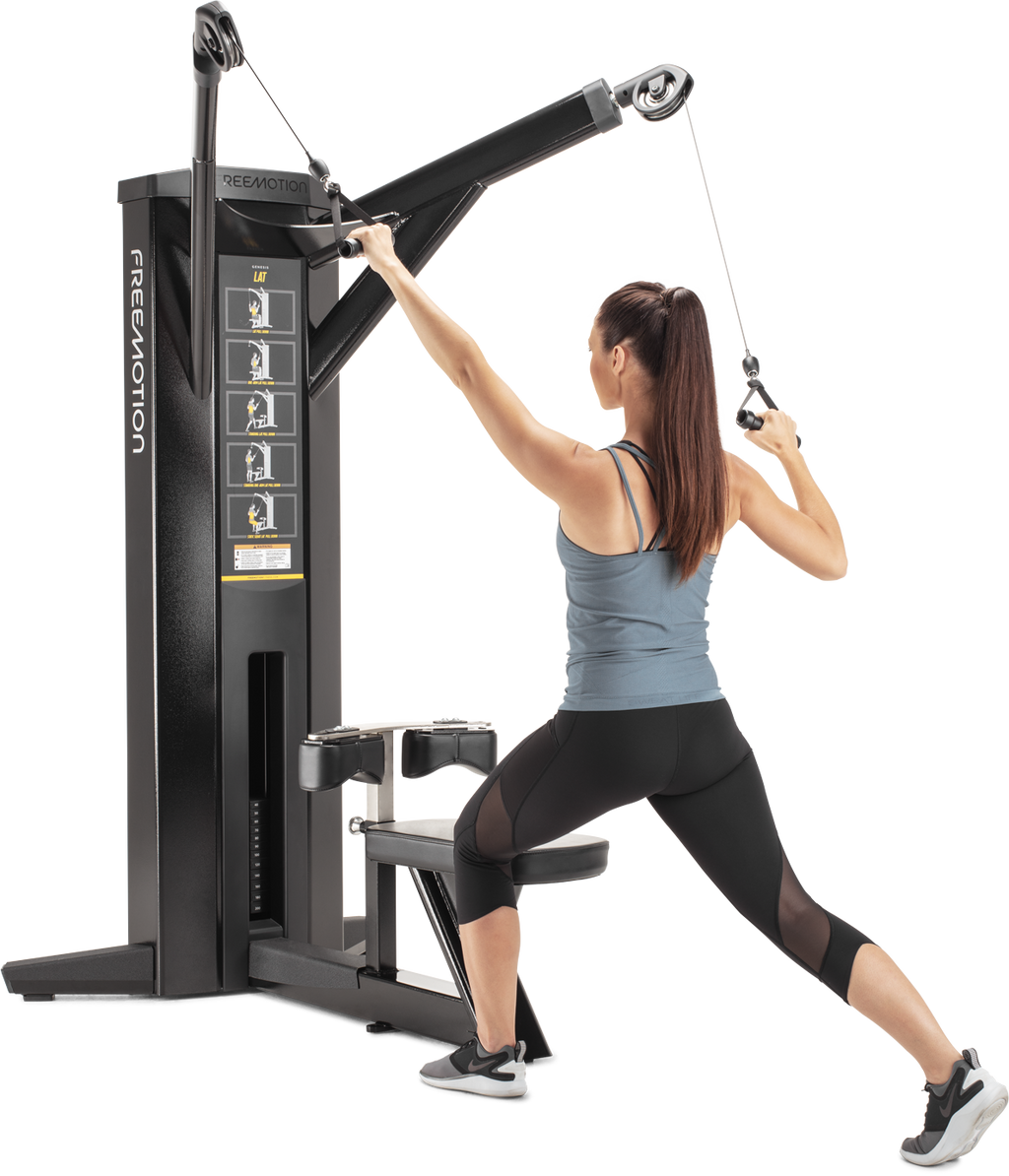

The seat features adjustable thigh pads to isolate the lower body. Users can simply stand to work out unsupported and integrate more muscle groups.
FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY
Handles move independently for single and alternating arm exercises.
