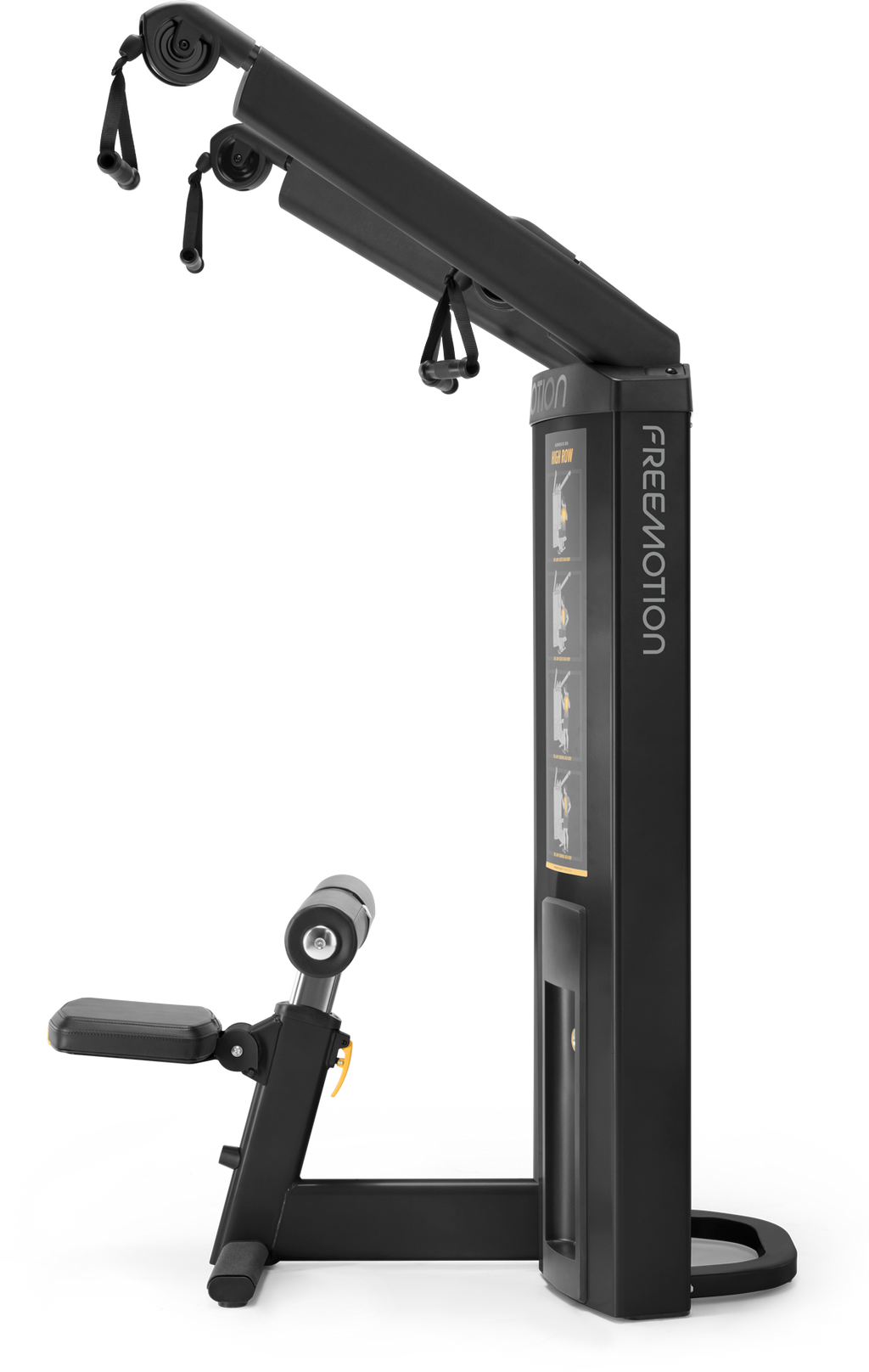

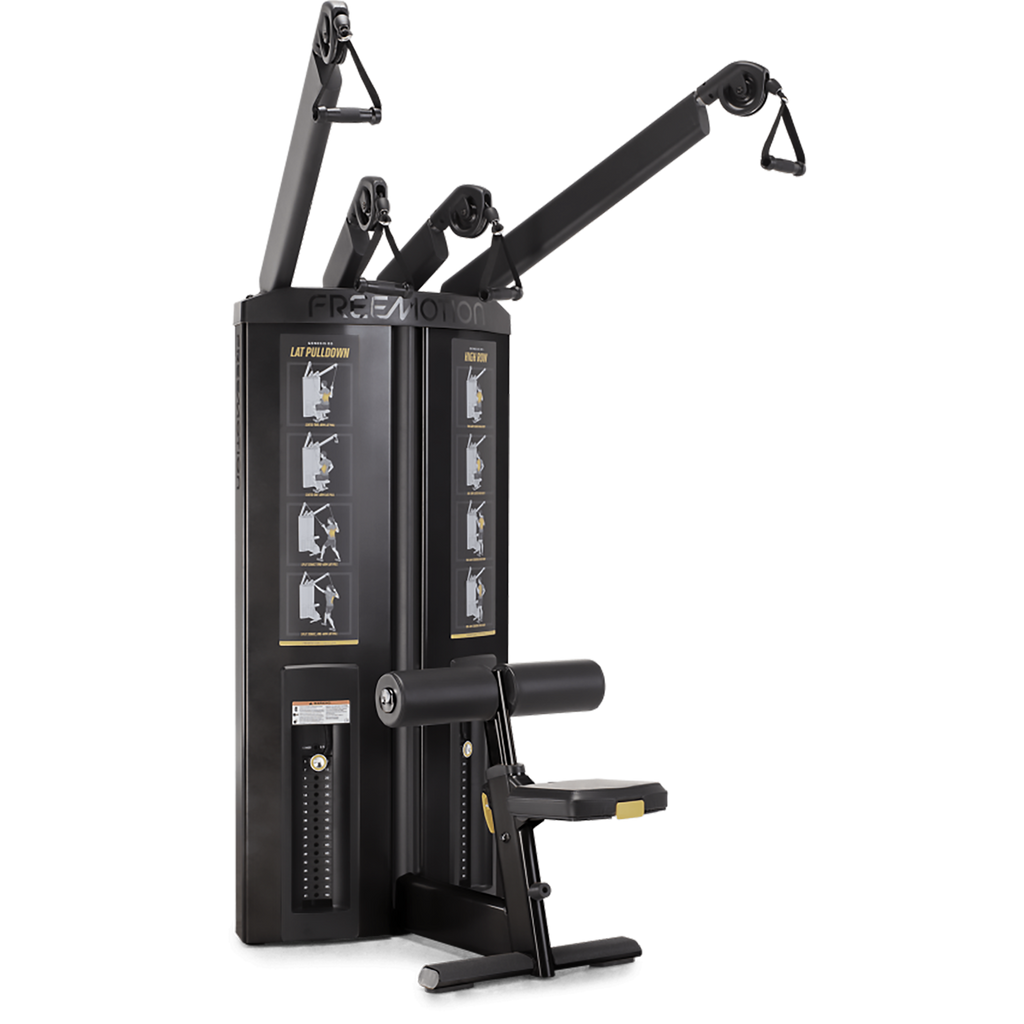

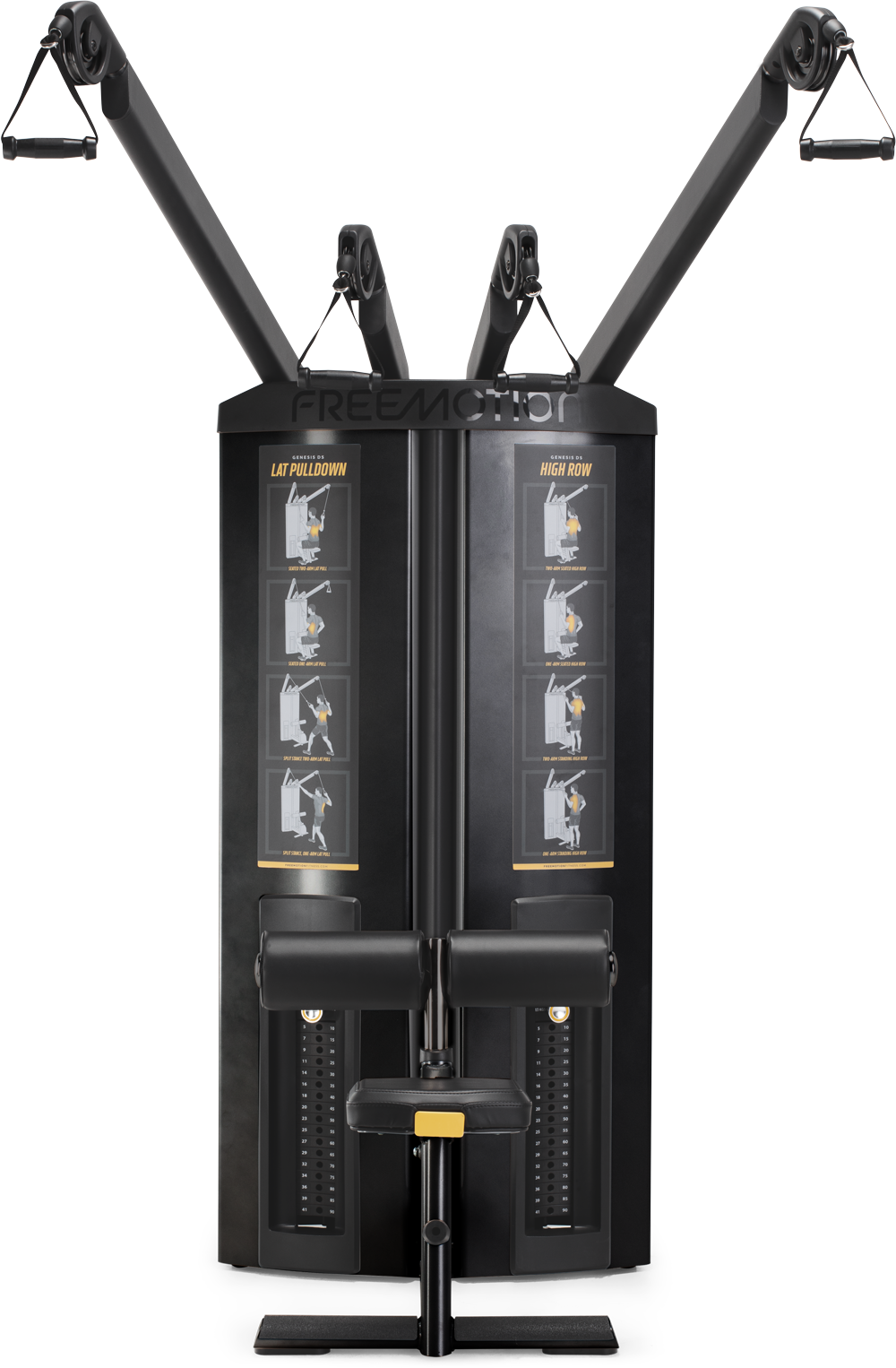

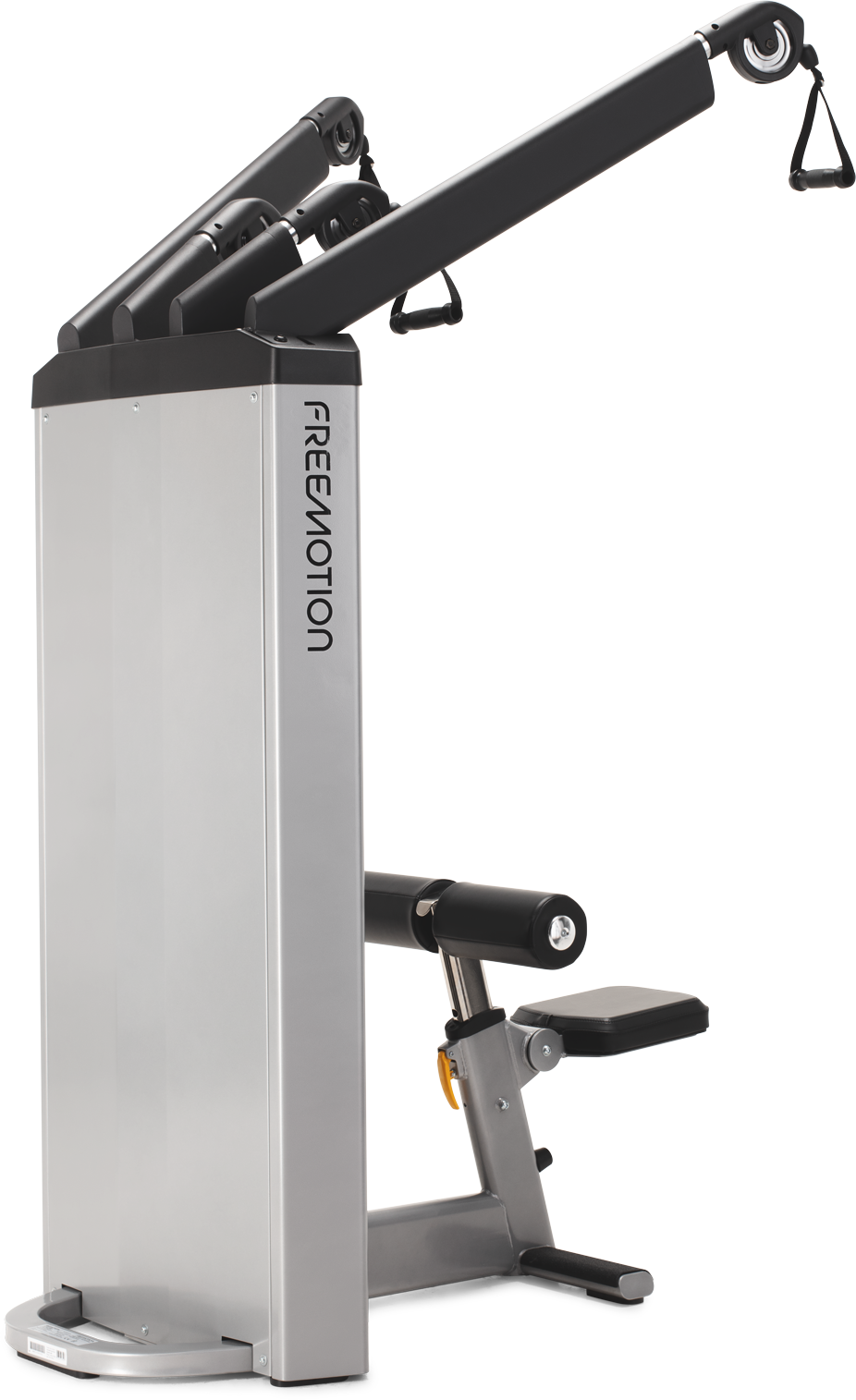

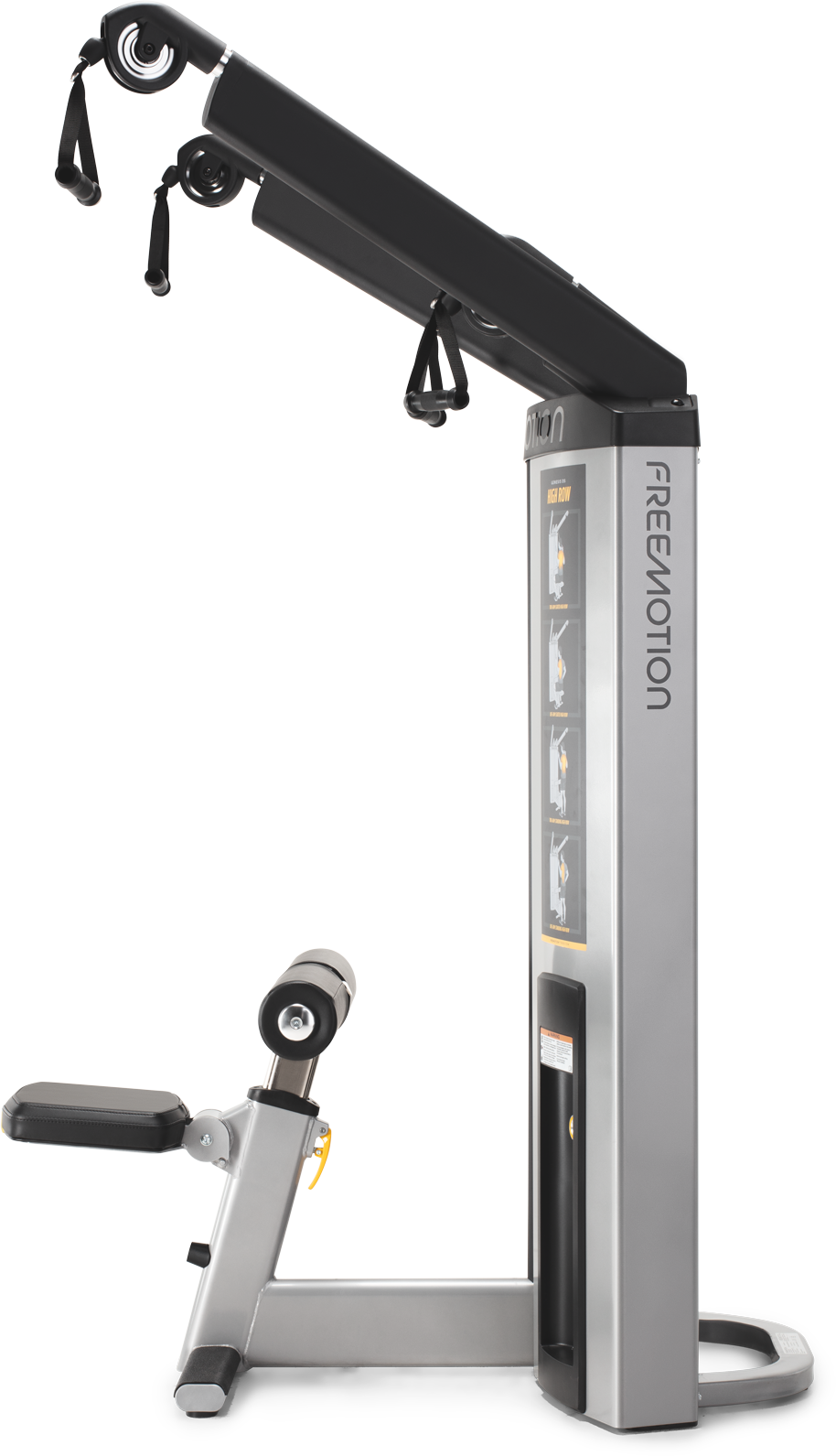

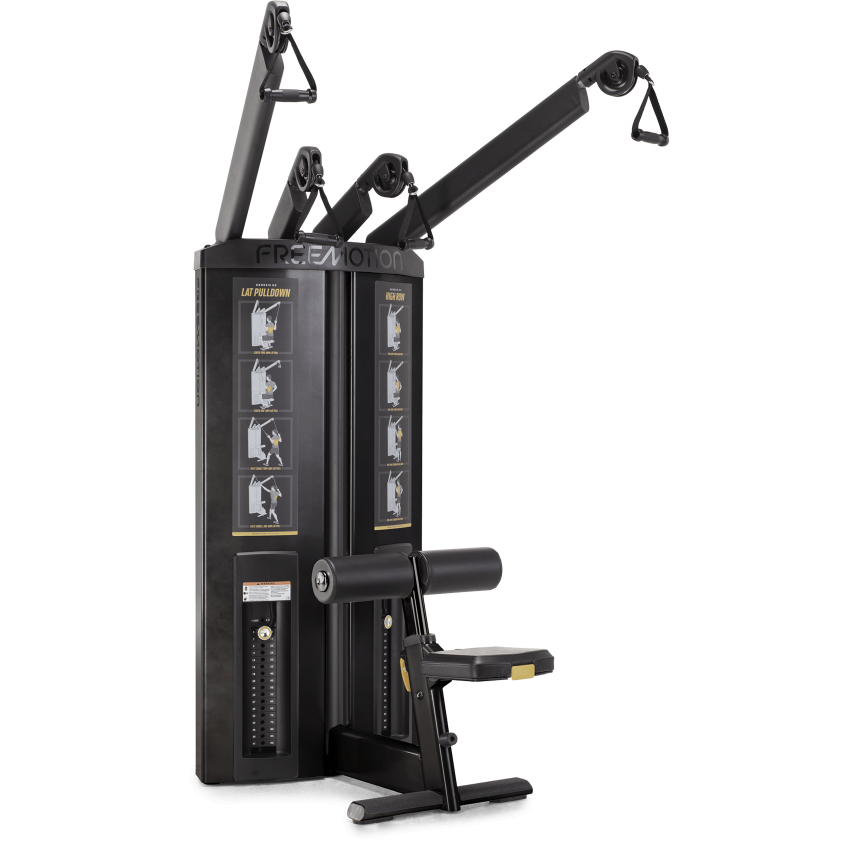

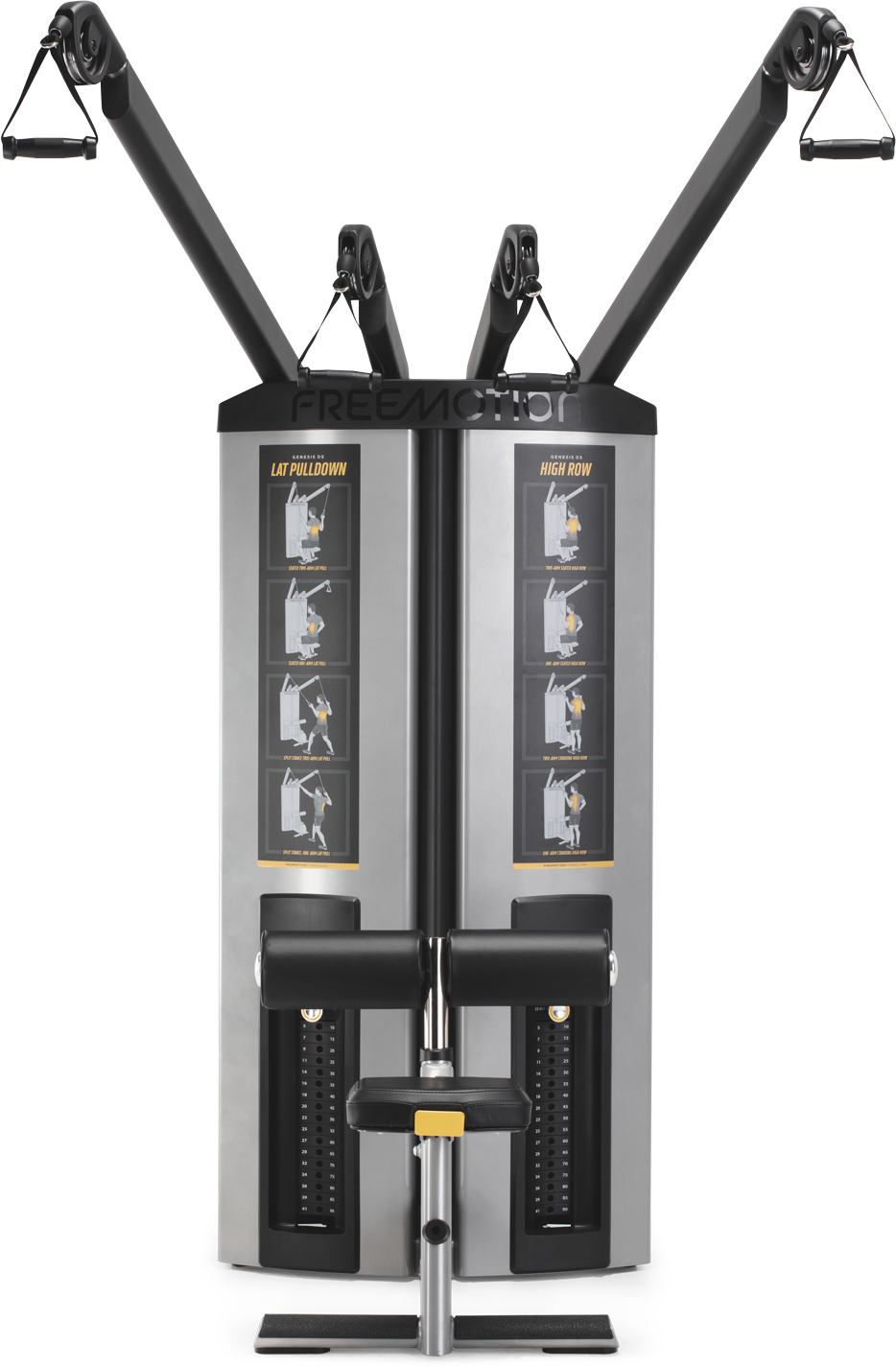

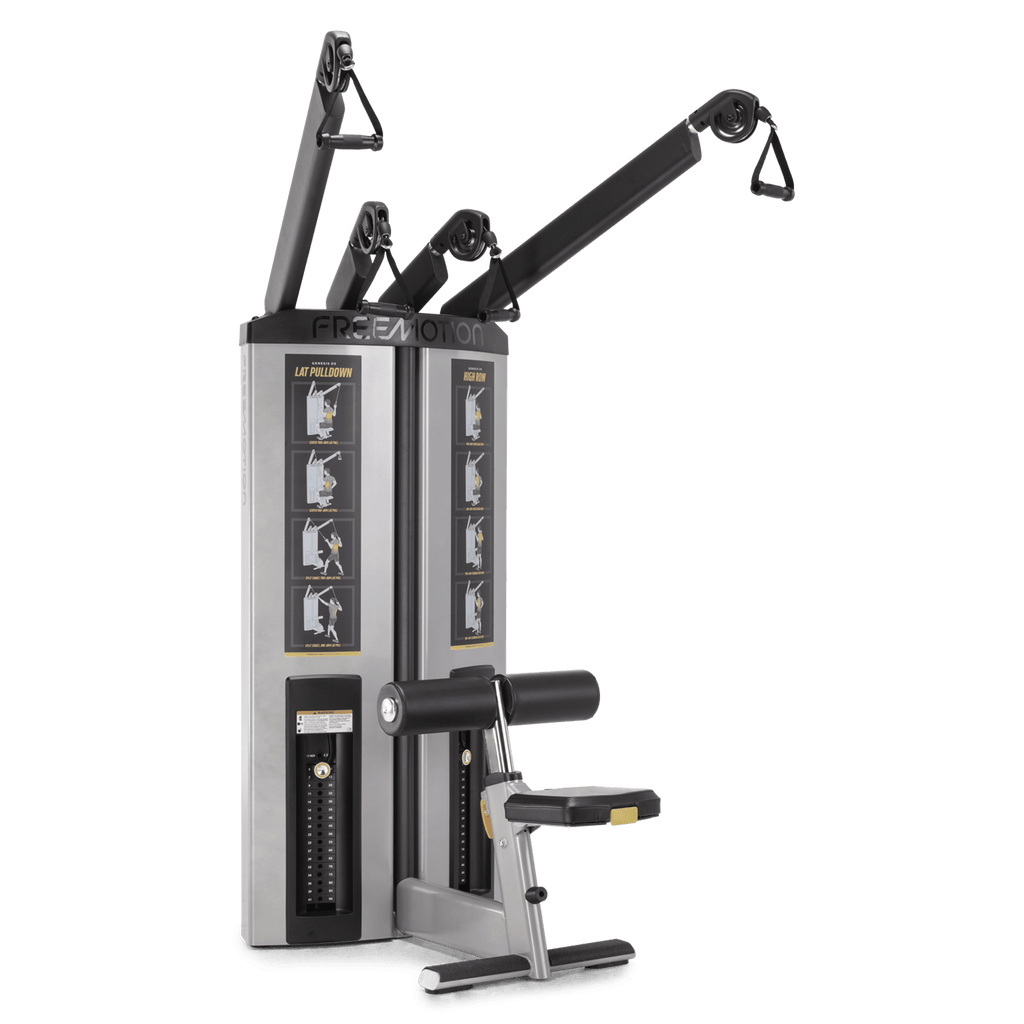

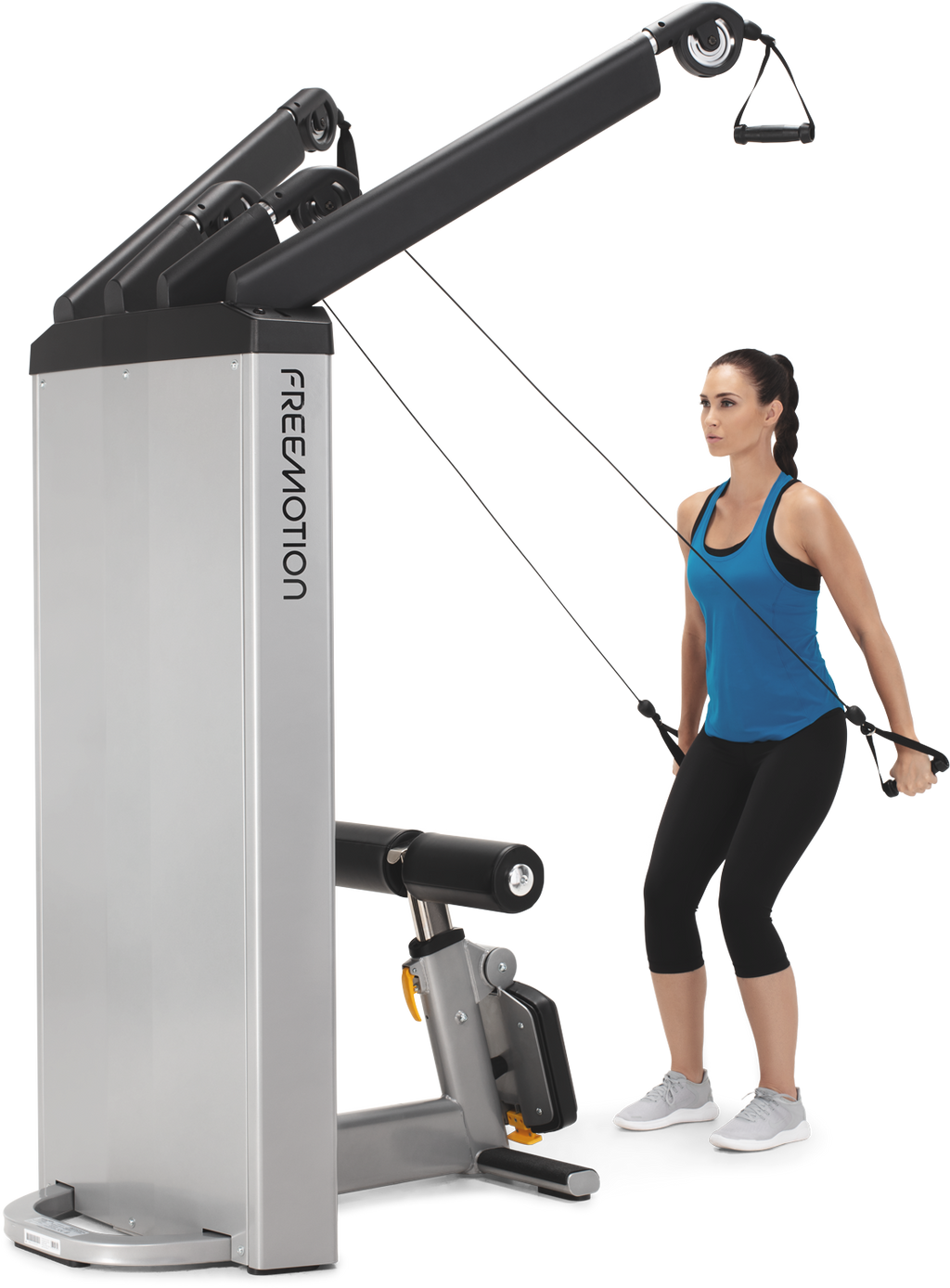

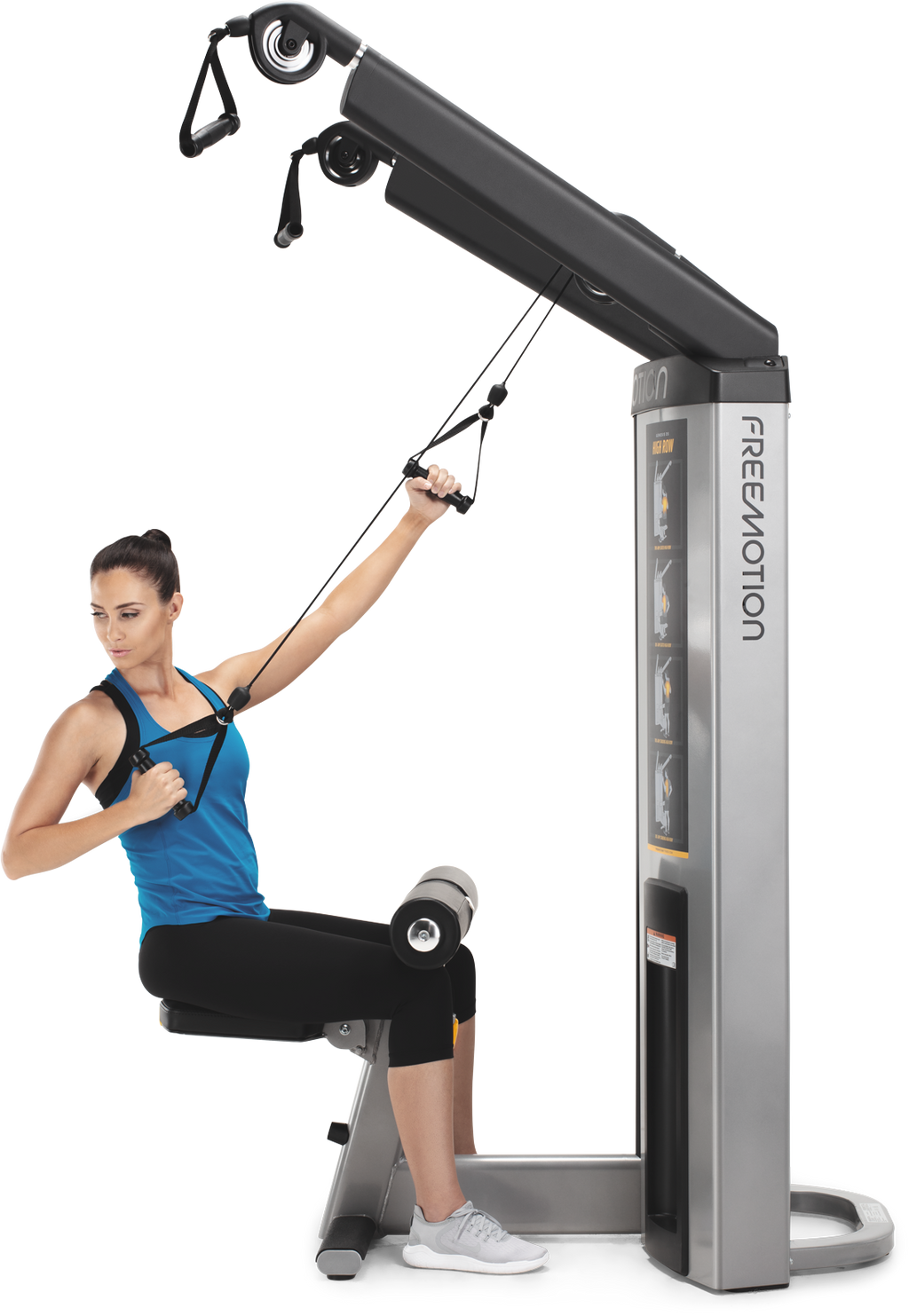

LAT PULLDOWN / HIGH ROW
GD502

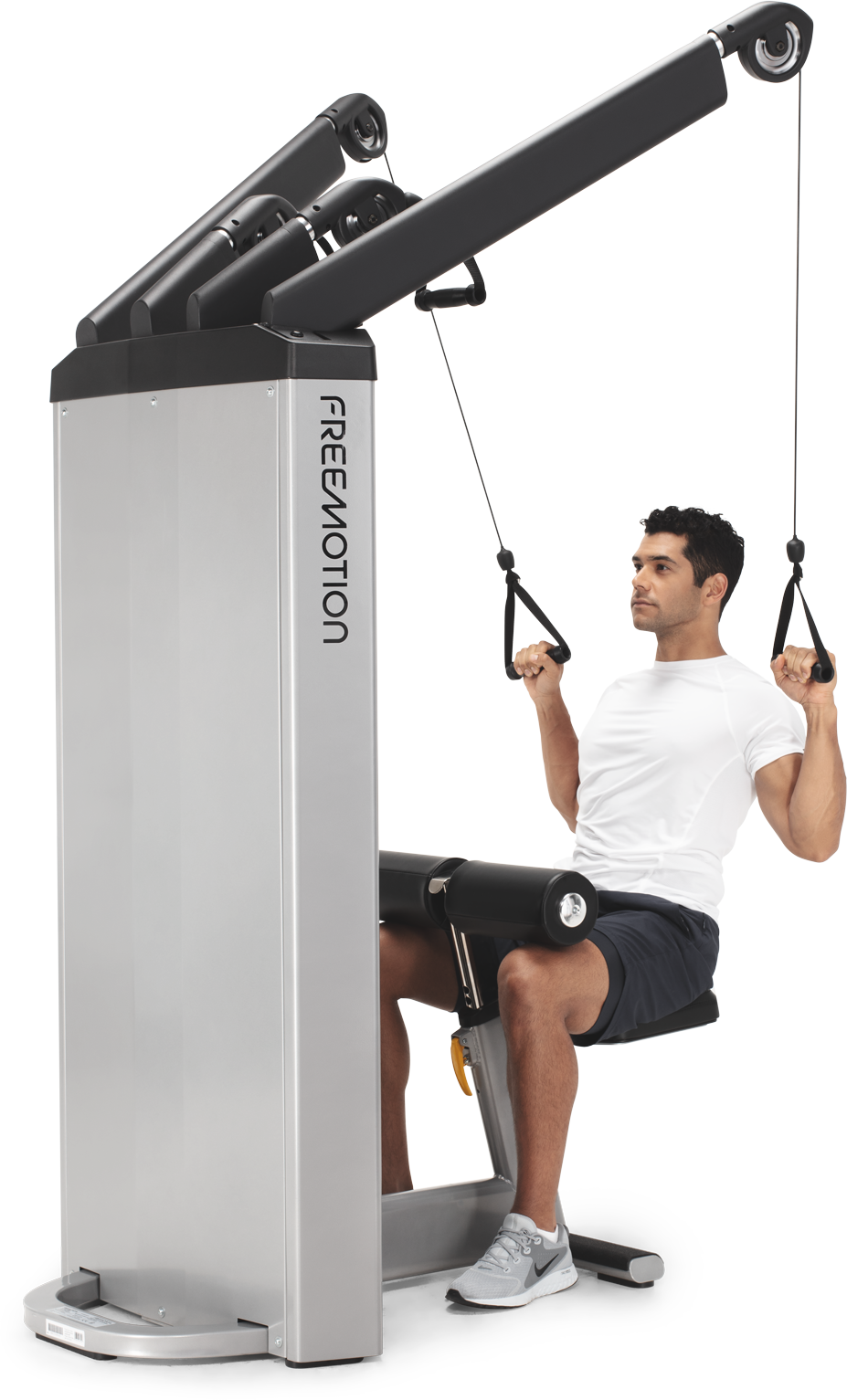

The GENESIS DS™ Lat Pulldown/High Row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. The adjustable thigh pads roll for comfort and moves vertically to secure the lower body to focus on the back. Padded seat pivots out of the way to quickly transition to standing exercises. With the seat folded, the machine becomes wheelchair accessible.
additional features

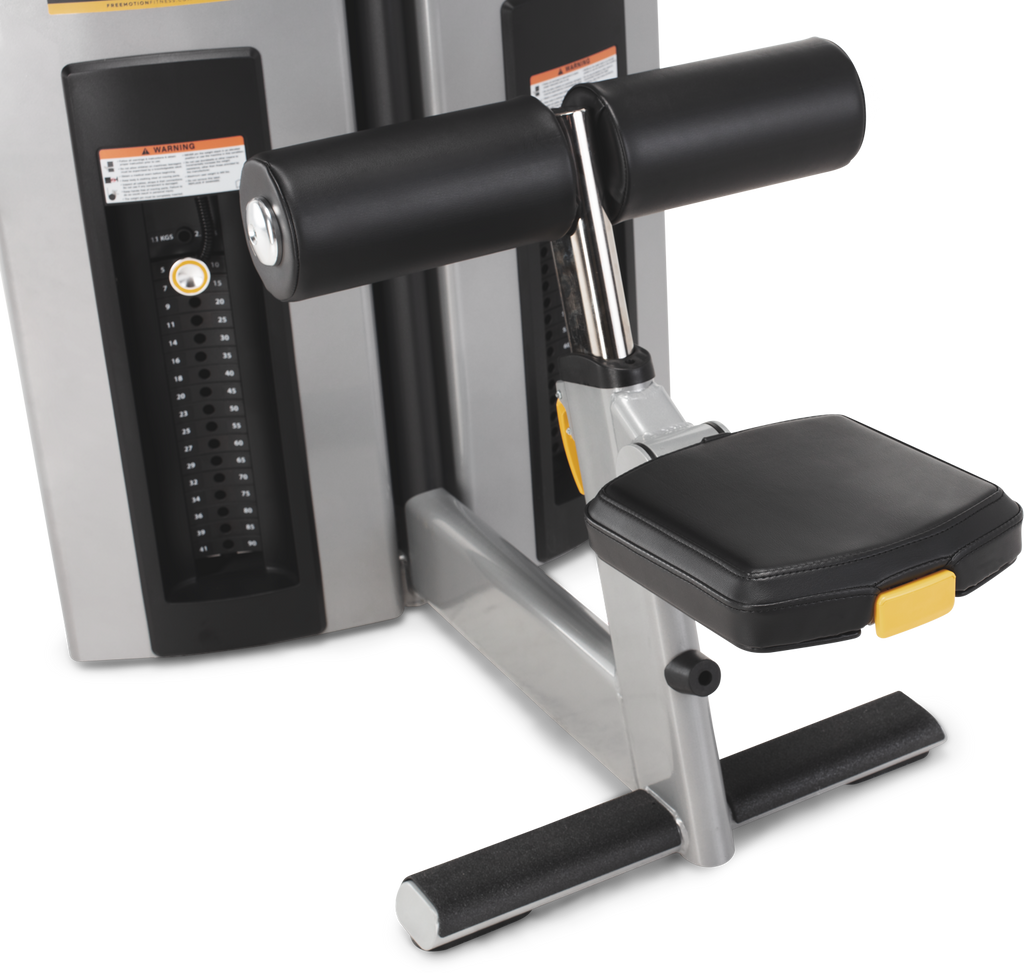

Padded Seat and Thigh Pads
Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Enclosed Weight Stacks
The weight stacks are enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Pivot seat pad for standing lat and row movements
Resistance
1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg
Seat
Vinyl with 2 in / 5 cm thick foam
Pulleys
Aluminum swivel pulleys
Cable Travel in (cm)
72 in (182.8 cm) per arm
Rubber Feet
Soft PVC
Maximum User Weight
400 lb / 181.4 kg
ADA Compliant
Wheelchair Accessible
Product Specifications
Weight Stack
QTY 2 – 180 lb / 81.6 kg weight stacks
Drop Down Weight
N/A
Weight Stack Configuration
2 – 10 lb top plates, 34 – 10 lb plates
2 – 4.5 kg top plates, 34 – 4.5 kg plates
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Product Dimensions & Weight
Dimensions L x W x H
54 x 48 x 84 in / 137.1 x 121.9 x 213.3 cm
Footprint
54 x 48 in / 137.1 x 121.9 cm
Weight
709.8 lb / 322 kg
Shipping Dimensions
Box 1: 74.8 x 38.9 x 47.5 in / 198.9 x 99 x 120.7 cm
Box 2: 38.9 x 11.8 x 5.1 in / 99 x 29.9 x 13 cm
Shipping Weight
830 lb / 376.6 kg
Certifications
EN957,CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

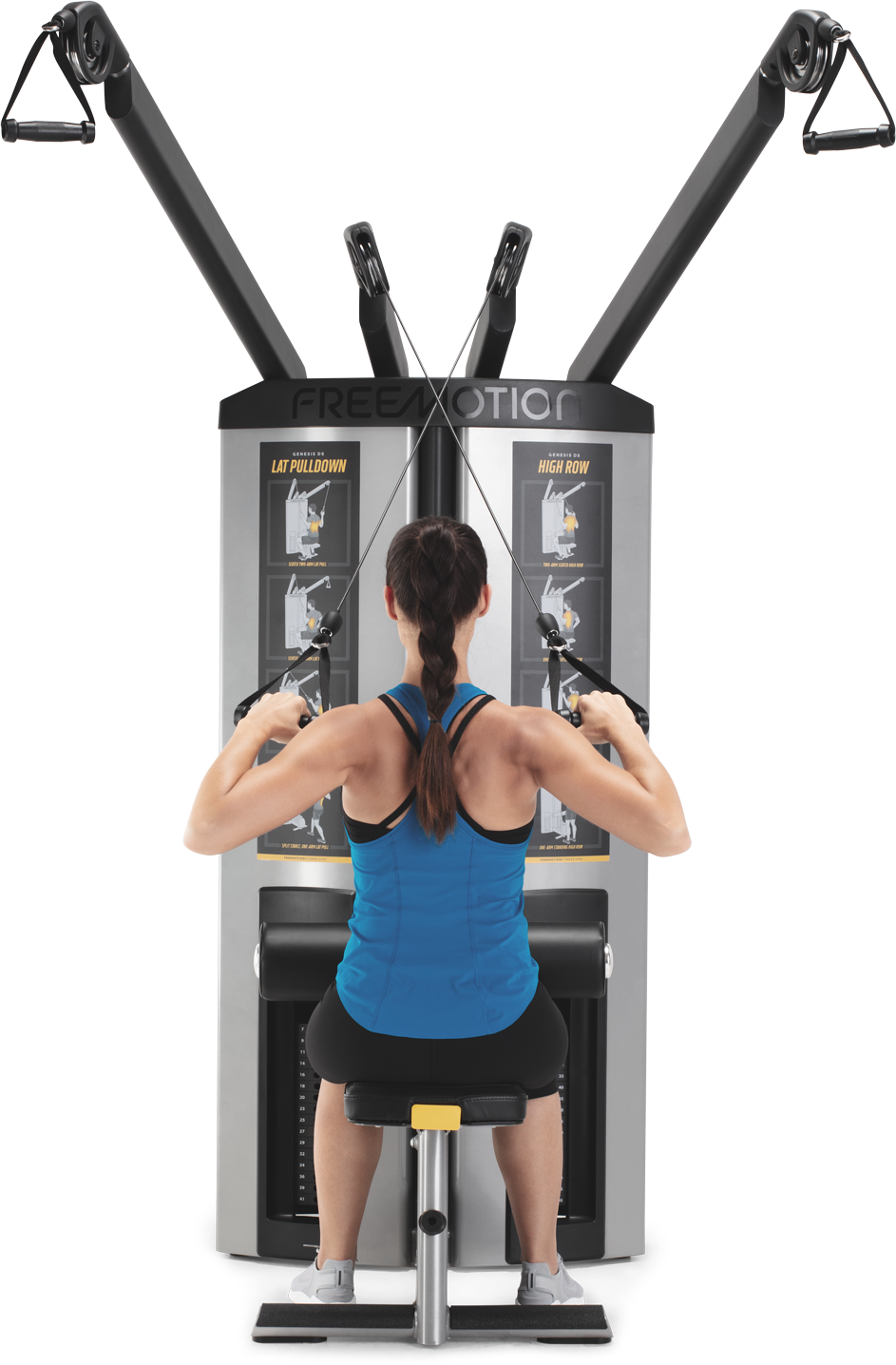

DUAL STATIONS
Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.
ISOLATION TO INTEGRATION

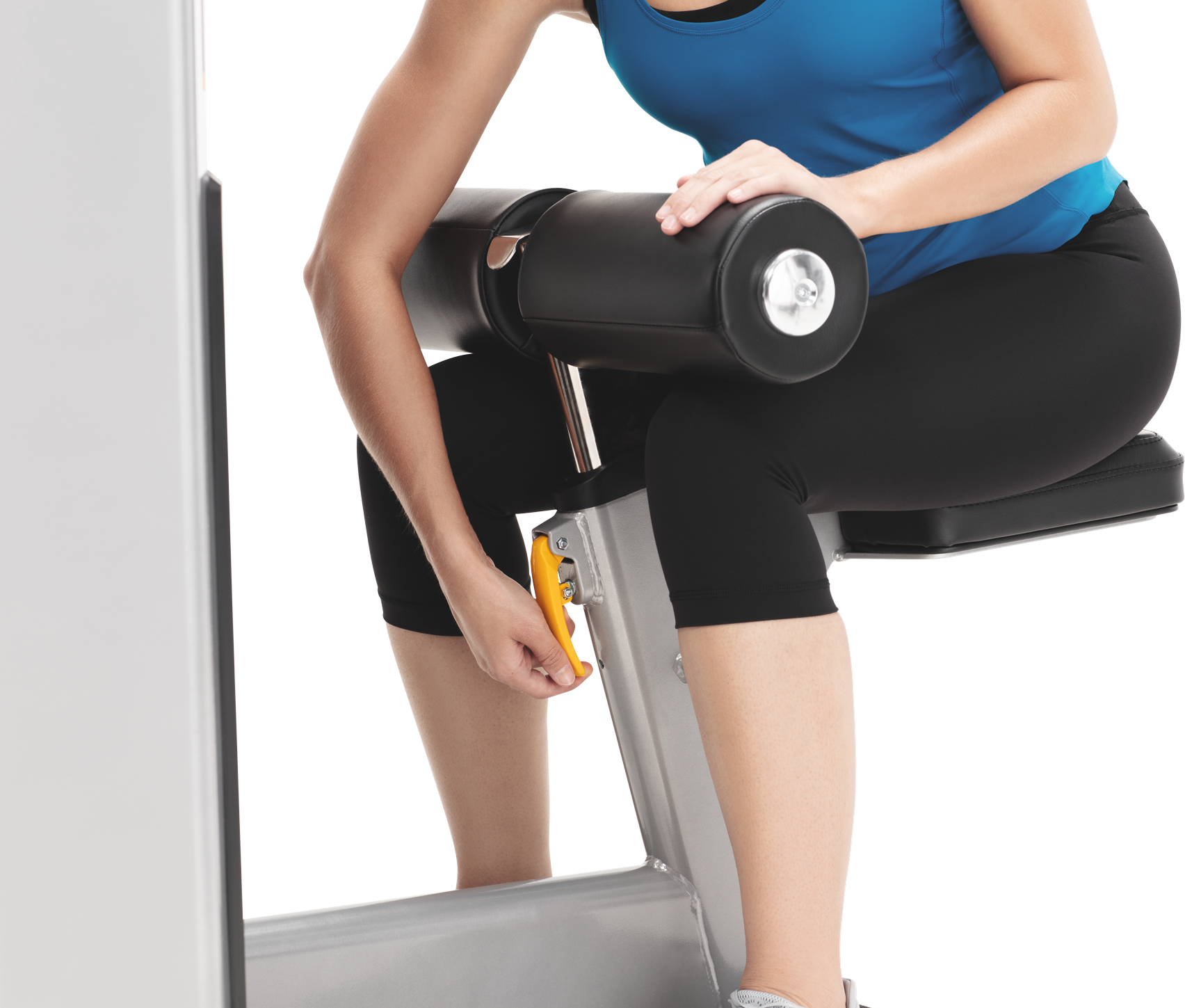

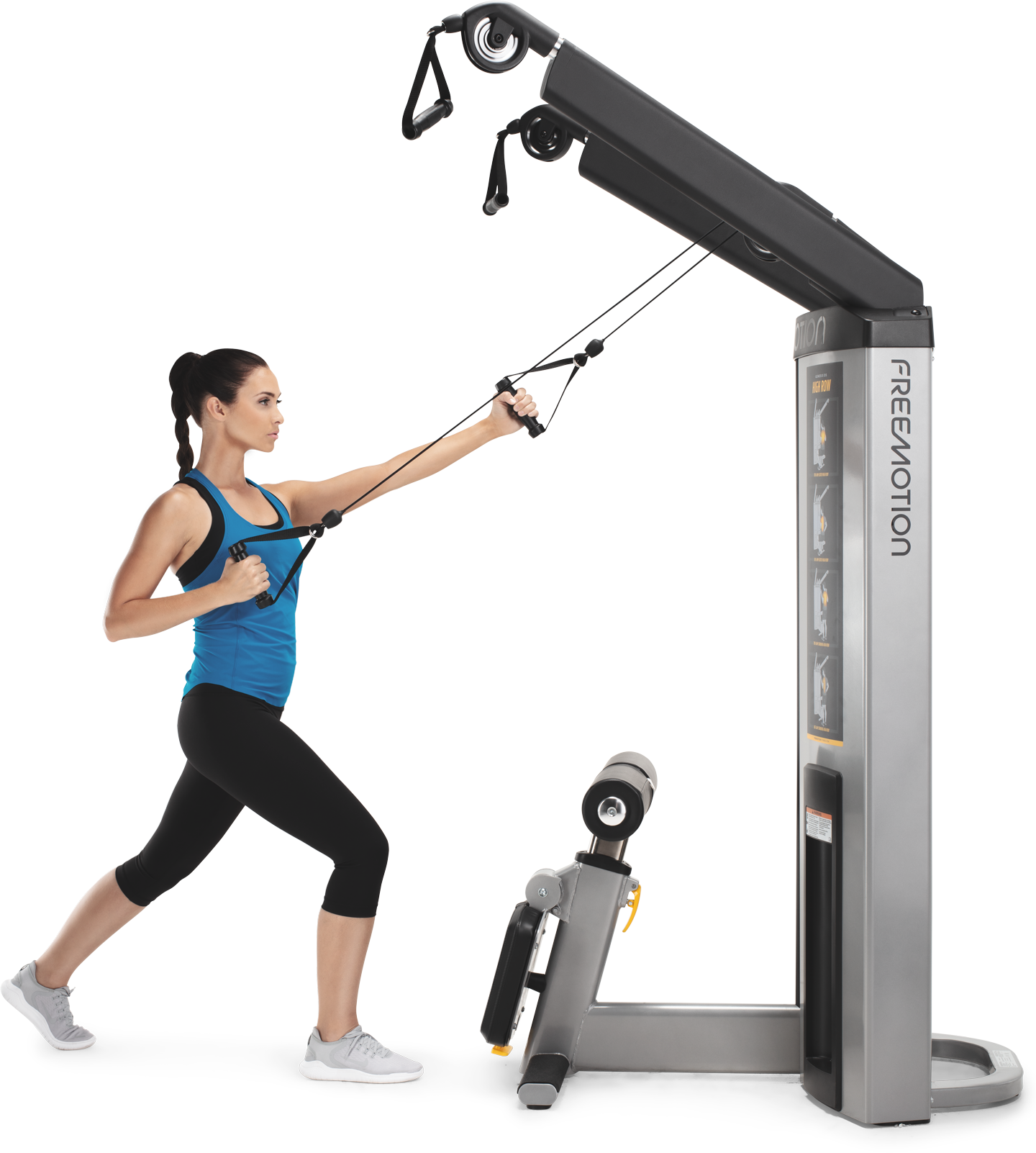

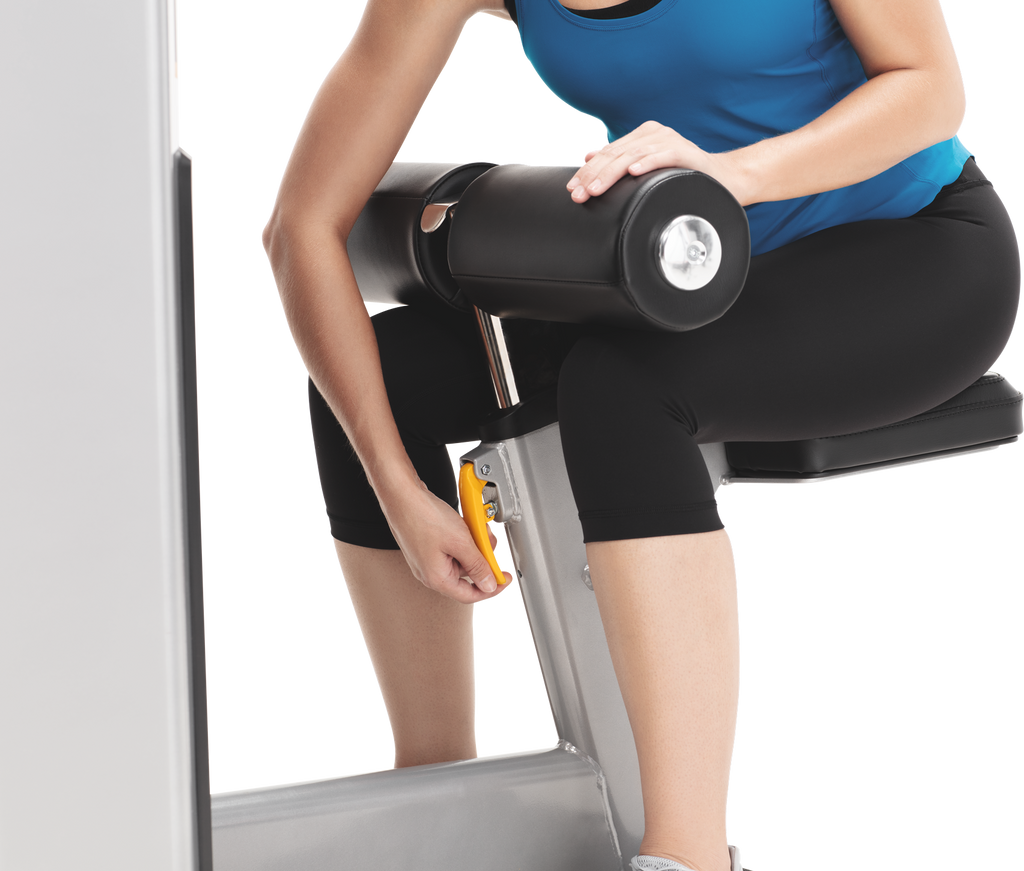

The seat features adjustable thigh pads to isolate the lower body. Users can simply fold the seat away to work out unsupported and integrate more muscle groups.

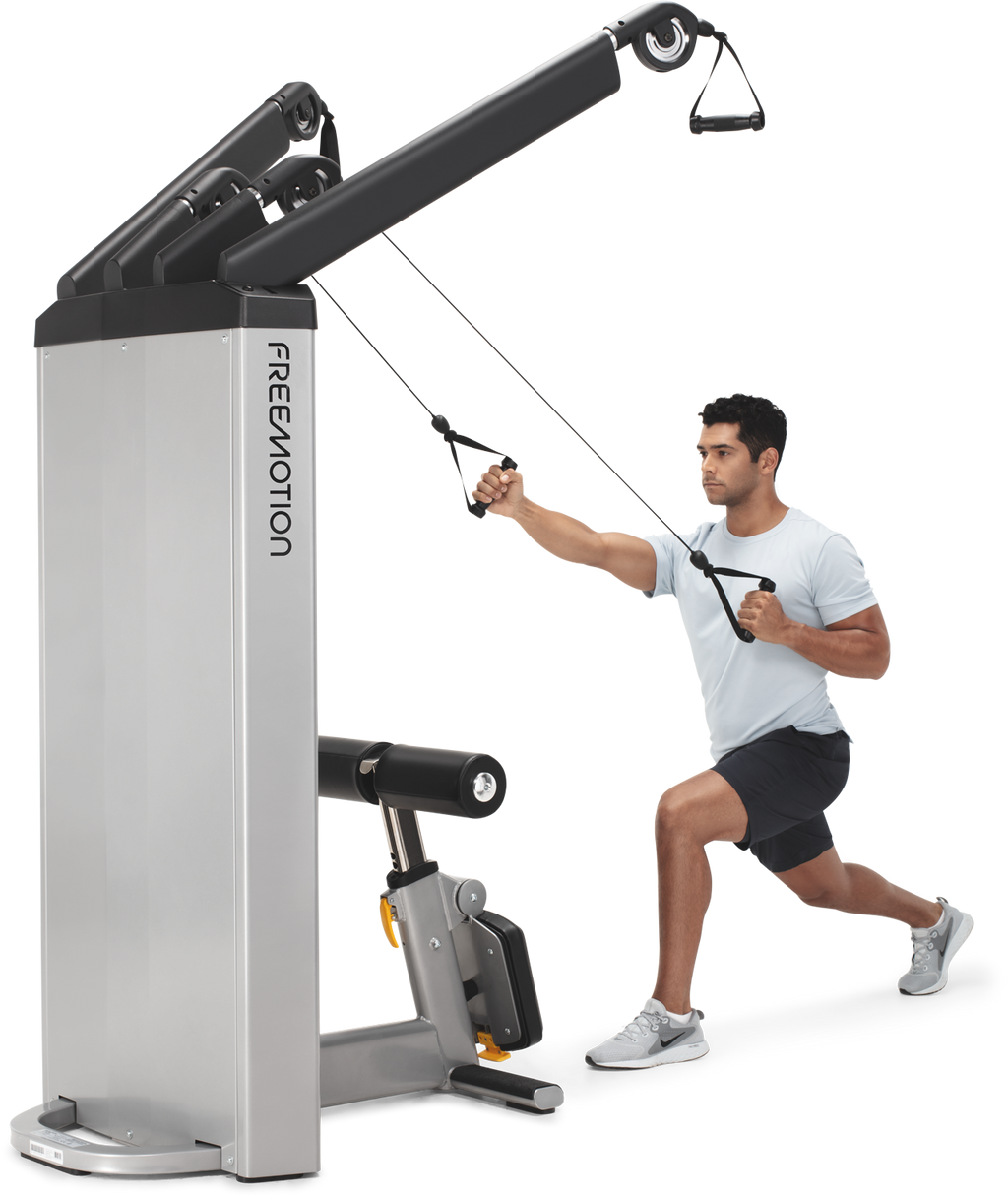

FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY

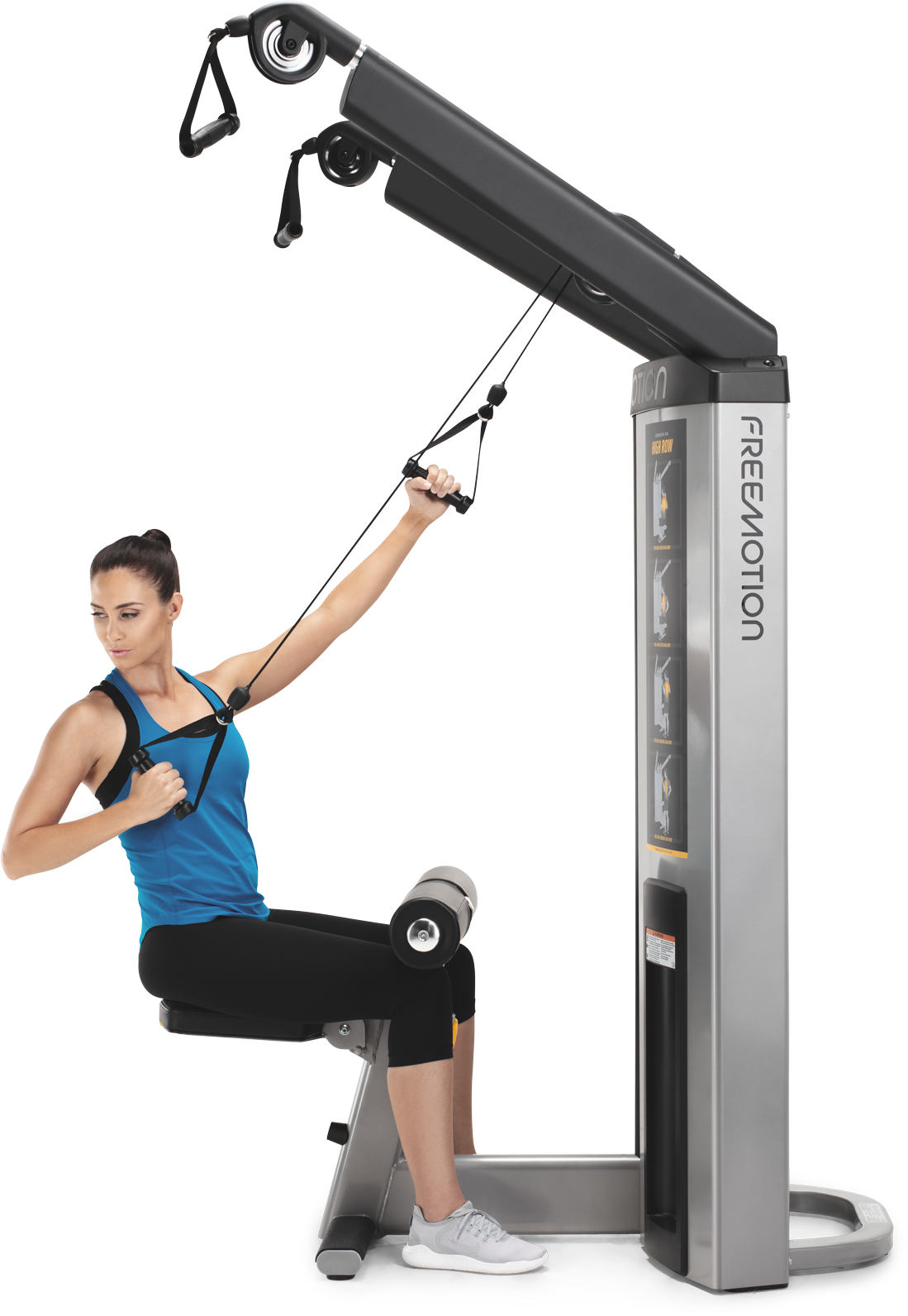

Handles move independently for single and alternating arm exercises.
