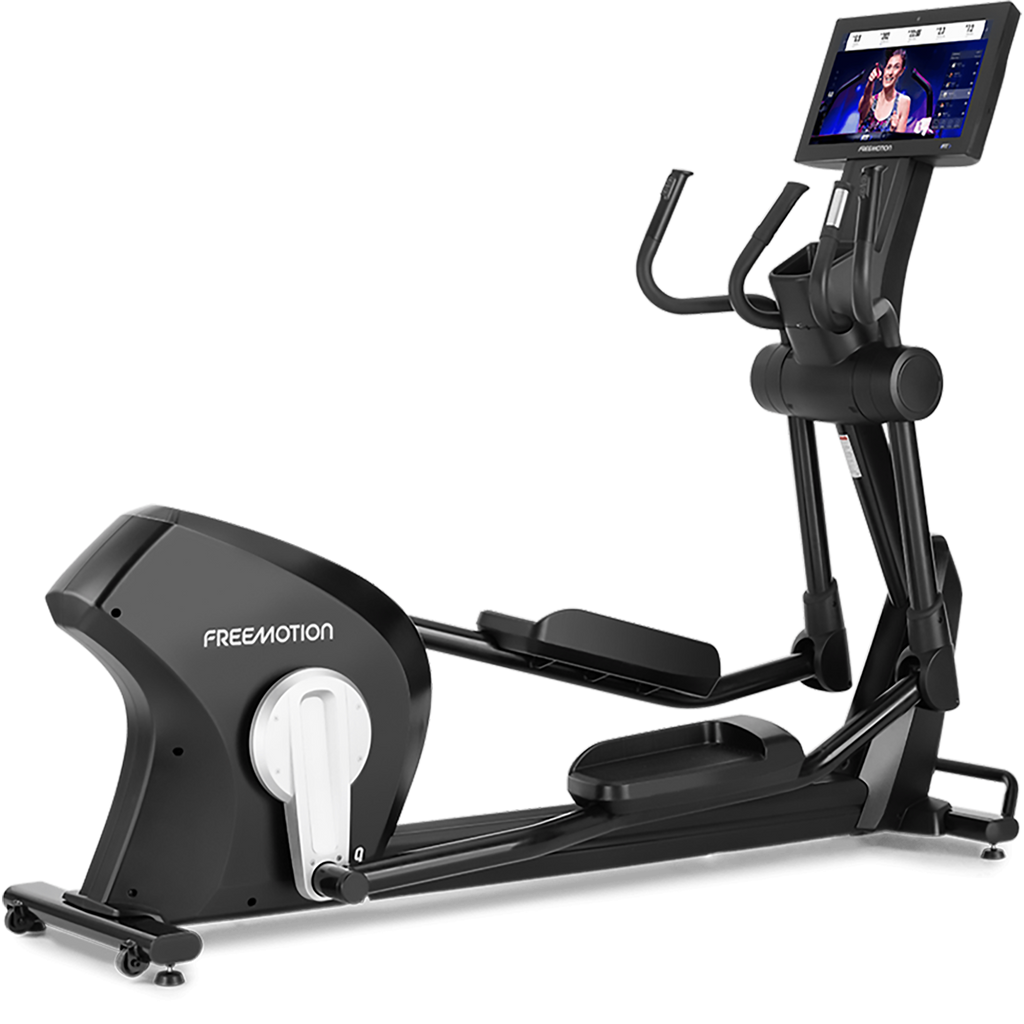

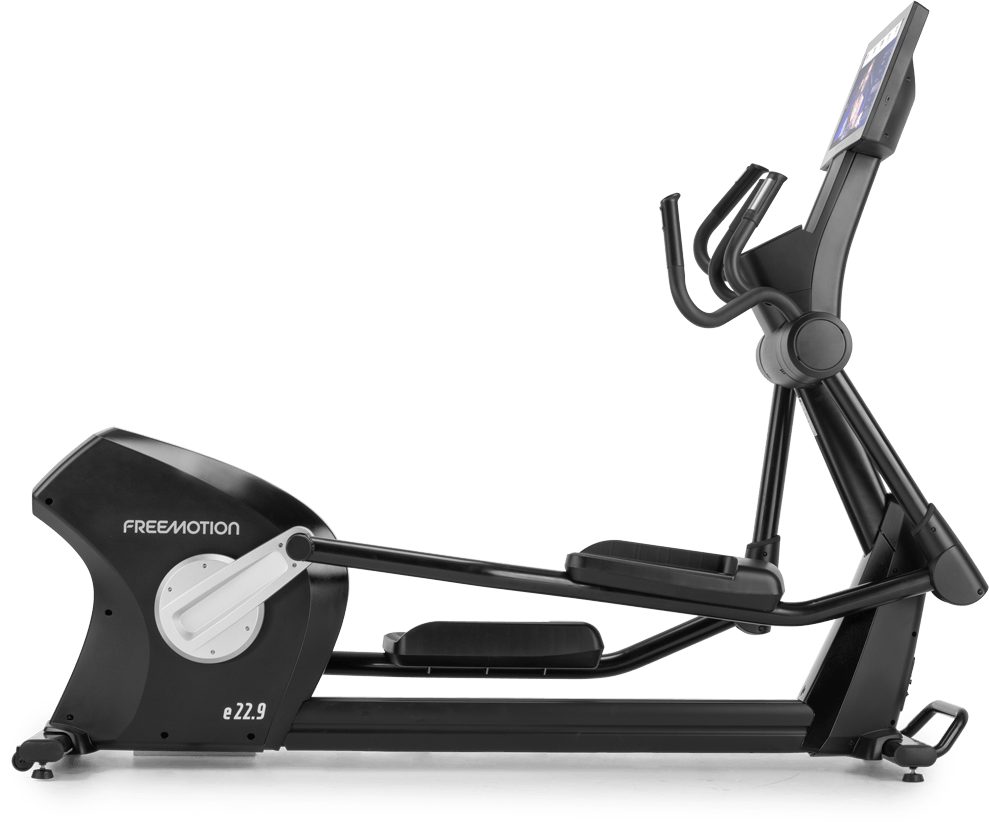

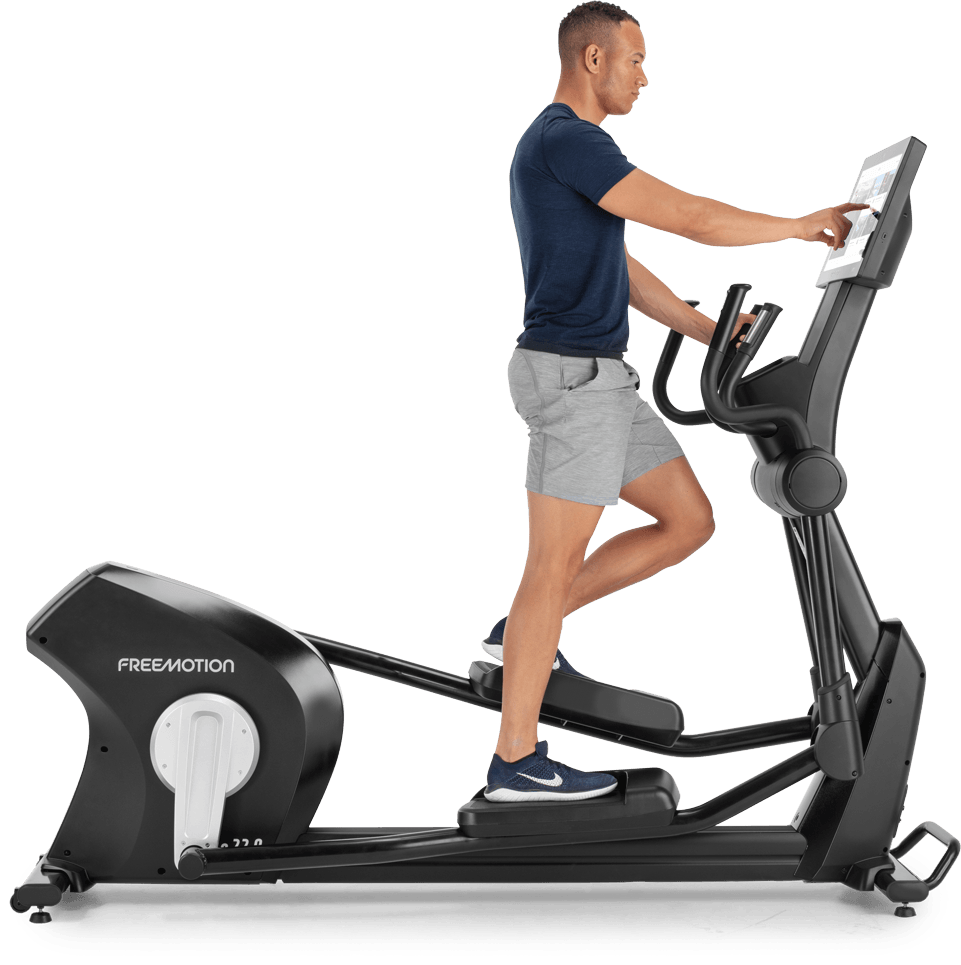

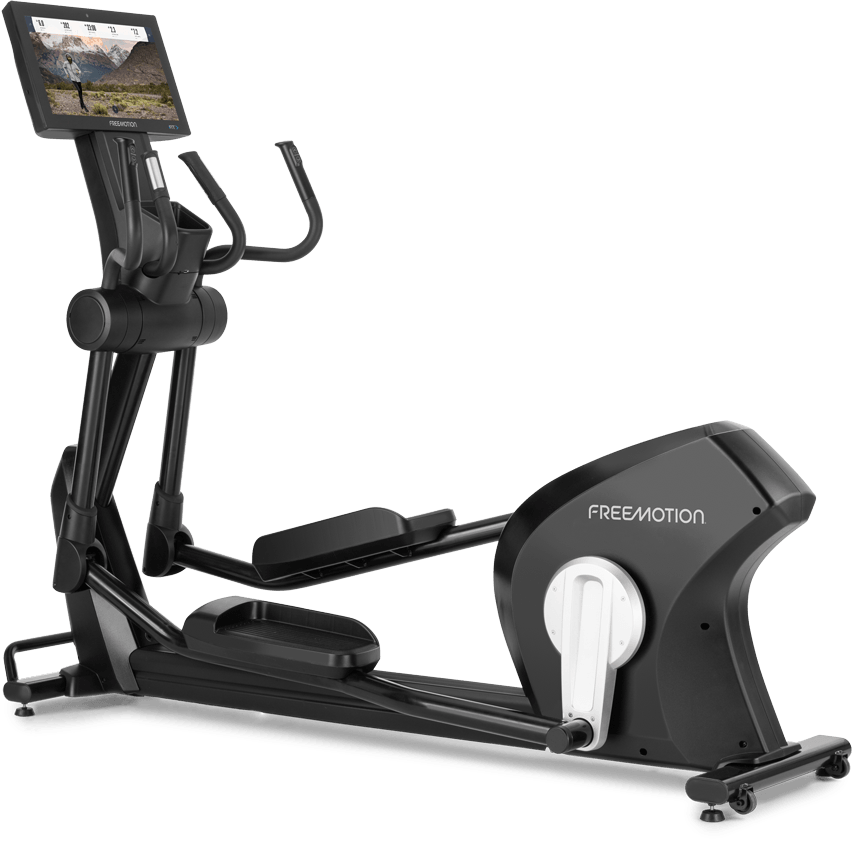

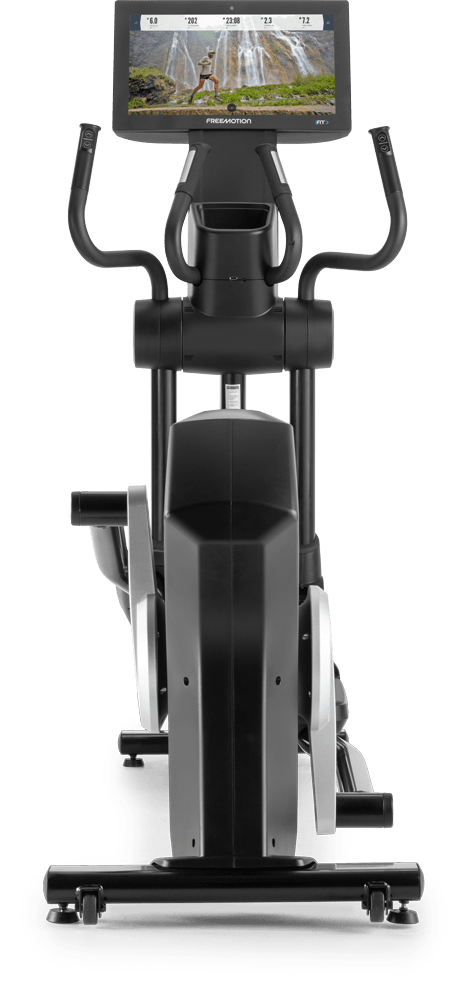

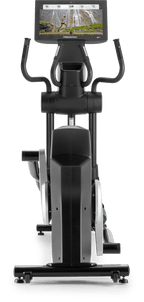

e22.9 Elliptical
FMEL84420
Deliver an engaging, total-body workout to your members with this ergonomically-enhanced, low-impact cardio solution. Burn more calories and get fit faster with less joint strain and improved balance and
mobility.
additional features
Low Impact, Total-Body Training
Give yourself a total-body exercise with the smooth-flowing motions of this redesigned cardio machine. Cross train your way to your fitness goals while treating your body to a low-impact, joint-friendly workout.
Accessible and Engaging Solution
Participate in the high-intensity studio classes you’ve been wanting to attend but
may not have felt comfortable joining because the equipment accessibility. With a 9.5 in / 24.1 cm step-up-height and ergonomically engineered 20 in / 50.8 cm stride, you have the equipment to thrive.

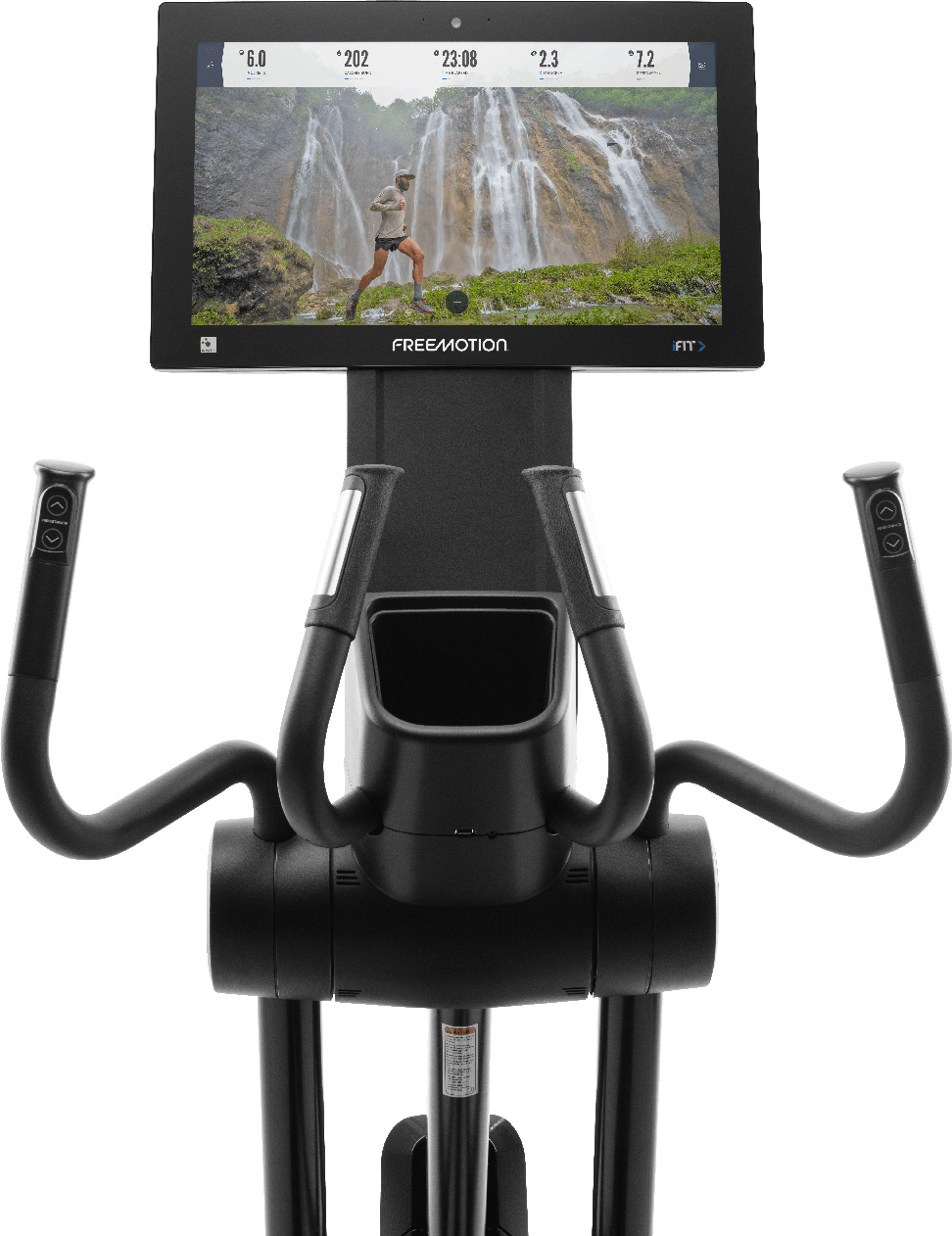

High-definition Display
Immerse yourself in visually stunning imagery while working out in exotic
locations around the globe, or watch a favorite TV program on this high-definition 22in / 55cm capacitive touchscreen.
On-the-fly Adjustments
Override or adapt the programming to meet your needs by quickly adjusting the resistance with controls conveniently placed directly on the handlebars.
Know Your Zone
Get real-time data during your workout with built-in EKG grips, so you know when you’re in the ideal heart-healthy zone. Also compatible with ANT+ and Polar®.
Audio-enhanced Experience
Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.
Advanced Workout Metrics
Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.
Power Up
Charge your devices during your workout with a convenient USB port.
Specifications
Console Features
Display Type
22 in / 55 cm HD Capacitive Touchscreen
Resolution
1080p ISP LCD Screen
Controls
Touchscreen, On-handle Digital Controls
Workout Metrics
Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT
Preset Programs
Limitless iFIT Training Options
Google Maps
Enabled
Console Language(s)
English
Featured Languages
EN, also DE, ES, FR, IT, PT, RU, ZH
Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)
Maximum Pause Time
60 Seconds
Additional Options
Quick-start Manual Mode
Entertainment
TV Tuner
US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
Closed Captioning
CC1-4, TEXT 1-4
Optional Upgrades
N/A
Connectivity
Recommended Internet Connection
Dedicated Ethernet – Cat 6
Ethernet Requirements
Cat 6 Preferred (Cat 5e or higher required)
WiFi Connection
2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
Video Connections
Coax, HDMI Input
Audio Connections
3.5 mm audio out, Bluetooth
Product Features
Drive System
Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive
Crank & Axle
2 PC, 20 in / 50.8 cm Stroke
Drive Belt
Quiet Belt Drive System
Pedals
Non-Skid Traction Control Pedals
Gear Ratio
8.85:1
Resistance System
400 Watt EMS Brake Resistance System
Heart Rate Monitoring
Dual EKG Pulse Sensors, ANT+ and Polar Compatible
Workout Fan
N/A
Accessory Charging
USB Charging Port
Accessory Holder(s)
Water Bottle Holder, Secure Phone Holder
Grips
Soft touch upper body grips
Positioning
Large Adjustable Leveling Feet
Transport Wheels
3.3 in / 8.38 cm plastic wheels
Color Options
N/A (Flat Black is standard color)
Unit Options
N/A
Power Options
110-120 VAC, 2 Amp
220-240 VAC, 1 Amp
Product Specifications
Maximum User Weight
400 lb / 181 kg
Step-up Height
9.5 in / 24.1 cm
Stride Length
20 in / 50.8 cm stride length
Resistance Levels
1-24 Levels of Resistance
Dimensions & Weight

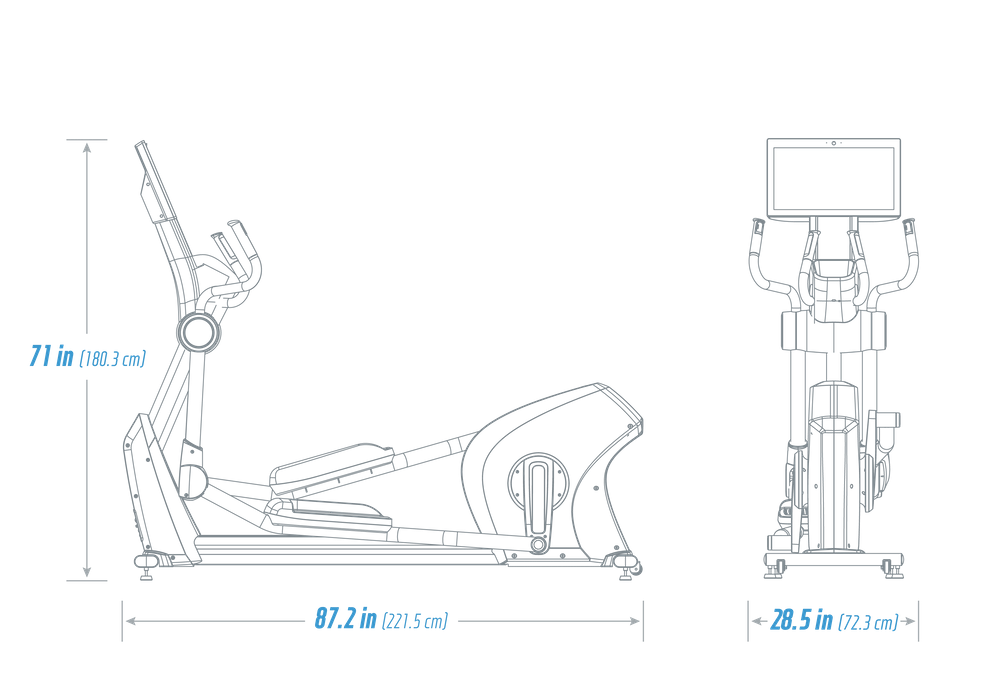

Product Dimensions L x W x H
87.2 x 28.5 x 71 in / 221.5 x 72.3 x 180.3 cm
Product Weight
279.4 lbs / 126.7 kg
Shipping Dimensions
91.3 x 26.2 x 33.1 in / 232 x 66.5 x 84 cm
Shipping Weight
309.4 lbs / 140.3 kg
Power Requirements
U.S. & Canada
Input 110~240V, Output 15V 3A
International
Input 110~240V, Output 15V 3A
Certifications
cTUVus, FCC/IC, BQB
High-Usage Warranty (US & Canada)
Frame
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
High-Usage Warranty (International)
Frame
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
Low-usage Warranty (US & Canada)
Frame
7 Years
Parts
3 Years
Console
3 Years
Labor
3 Years
Cosmetic & Wear Items
6 Months
Low-Usage Warranty (International)
Frame
7 Years
Parts
3 Years
Console
3 Years
Labor
1 Year
Cosmetic & Wear Items
6 Month
