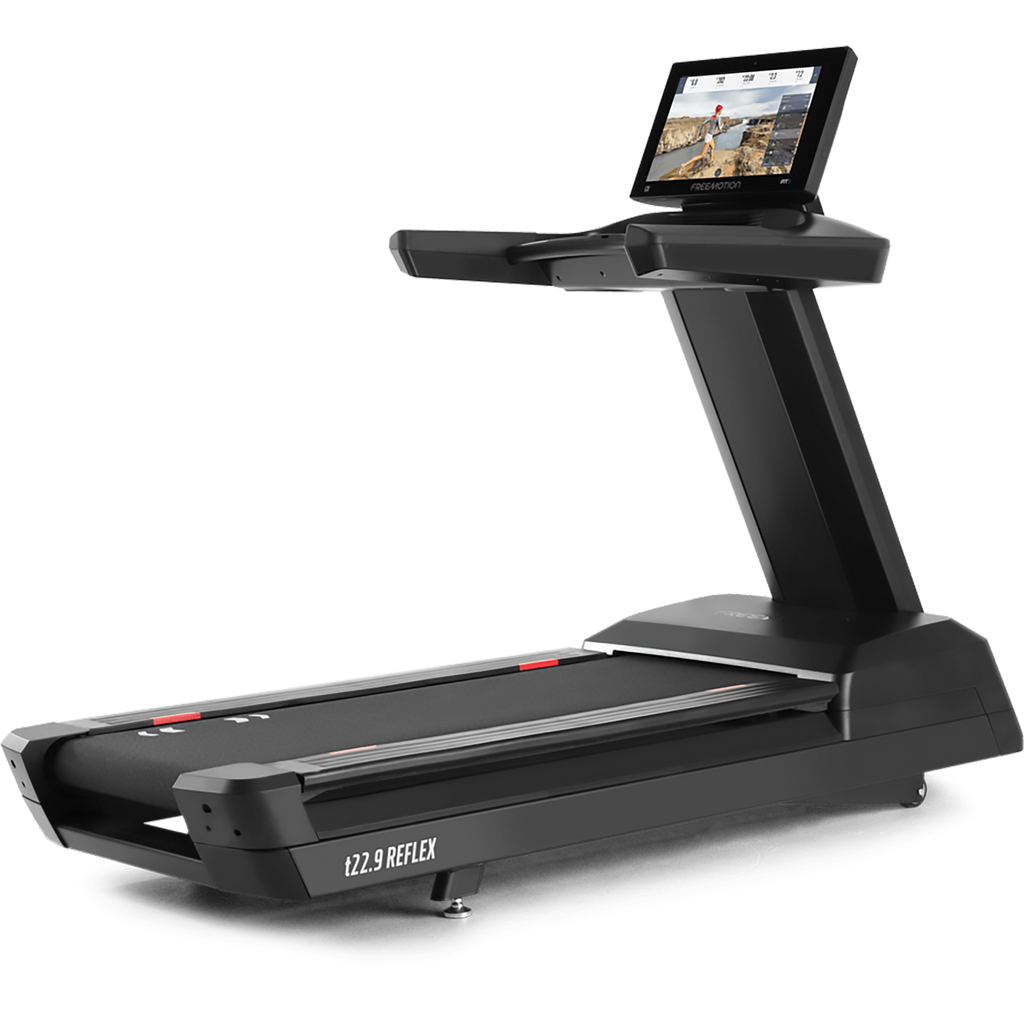

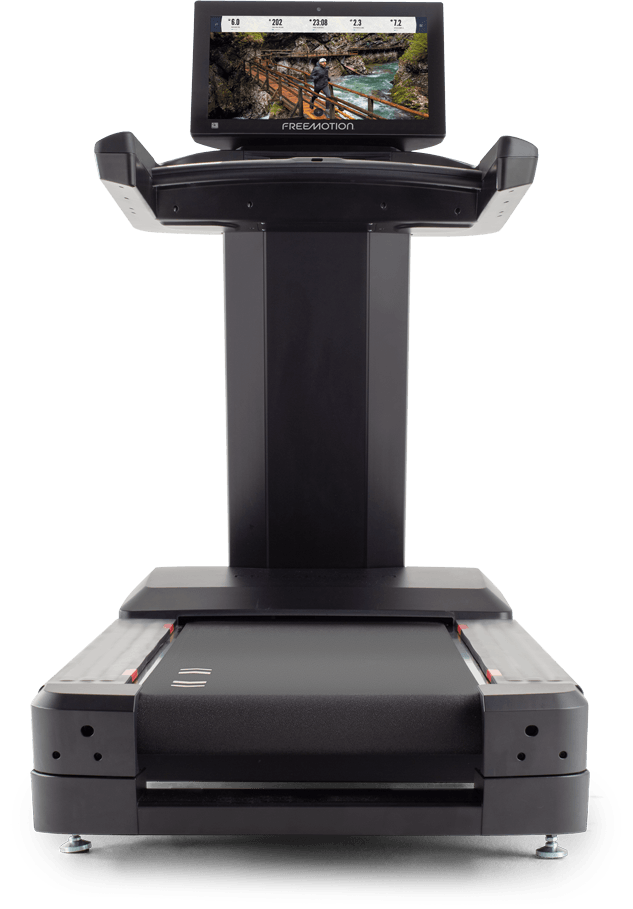

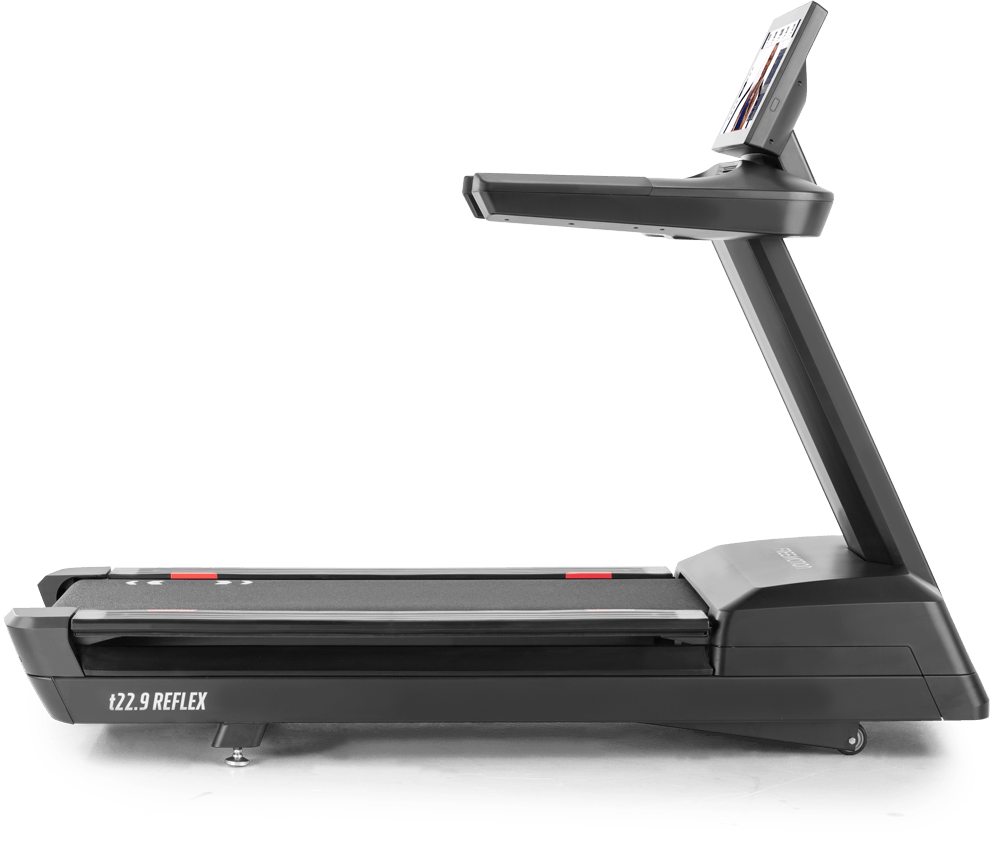

t22.9 REFLEX™ TREADMILL
FMTL70920
Your members’ favorite REFLEX™ Treadmill just got upgraded! With many new features to enhance their experience, including a 22 in / 55 cm HD capacitive touchscreen enabled with iFIT, easier to access 1-STEP™
Controls for quick speed and incline changes, and a speed that goes up to 15 mph / 24 km/h. This treadmill still comes with its proprietary cushioning deck that reduces impact, allowing for a longer, stronger run.
additional features

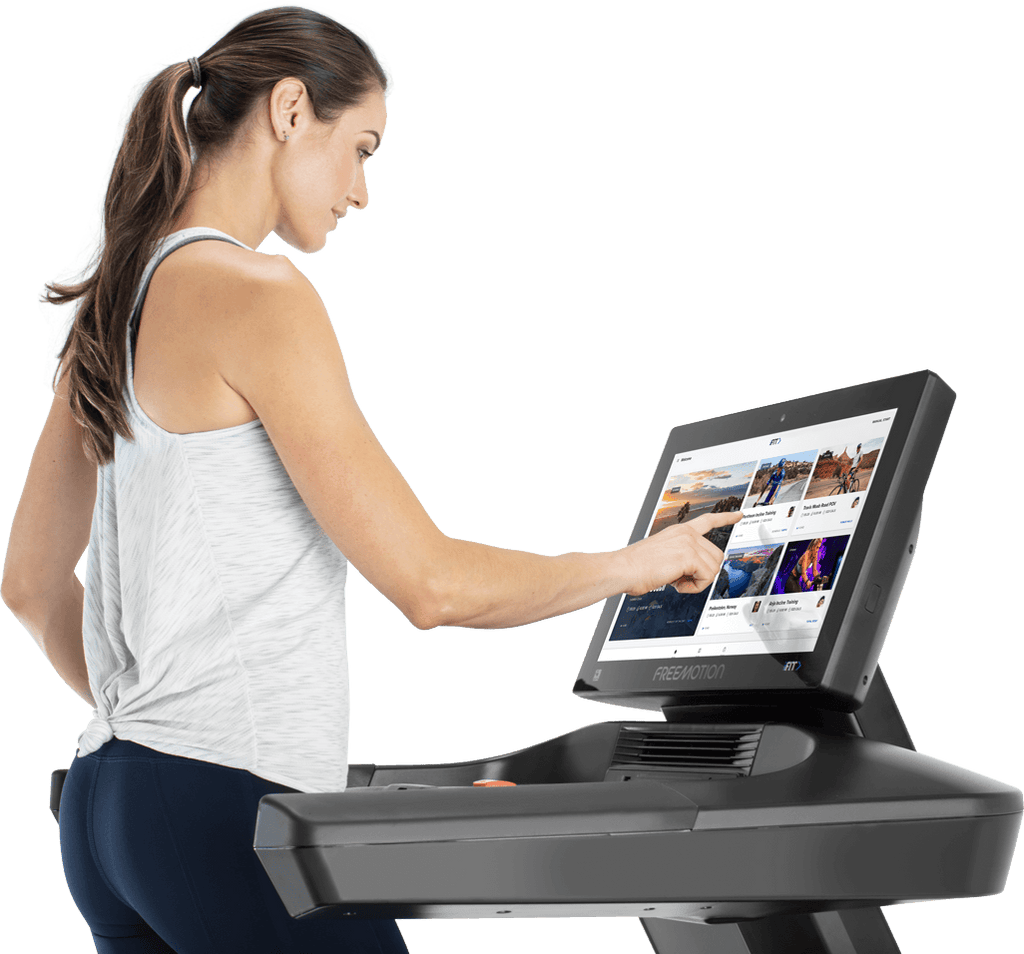

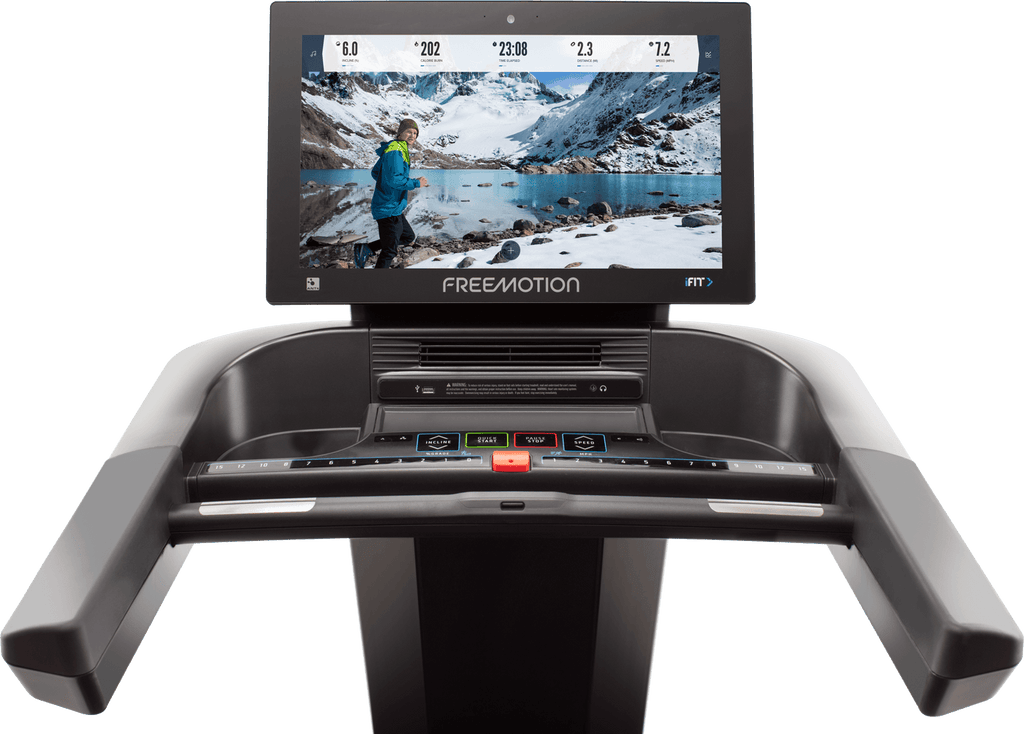

High-definition Display
Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22 in / 55 cm capacitive touchscreen.
HIIT-friendly Cardio
Great for HIIT sessions or anyone who doesn’t want to continually tap the speed+ button, quickly adjust your speed or incline with the convenient 1-STEP™ Controls. If you’re looking for a more precise speed or incline, hit two back-to-back. For example, pressing ‘2’ and ‘5’ will adjust the speed to 2.5 mph / km/h.
Shift Gears Quickly
Quickly achieve your desired speed by pressing two 1-STEP™ Controls back-to-back – for example, pressing ‘2’ and ‘5’ will adjust the speed to 2.5 mph / km/h – allowing you to quickly reach your ideal speed.
A Cool Workout
Stay cool throughout the workout with a conveniently-located 3-speed fan, or select the AutoBreeze™ function to enjoy a variable flow that responds to your pace.
Advanced Workout Metrics
Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.
Know your Zone
Get real-time data during your workout with built-in EKG grips, so you know when you’re in the ideal heart-healthy zone. Also compatible with ANT+ and Polar®.
Audio-enhanced Experience
Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.
Power Up
Charge your devices during your workout with a convenient USB port.
Specifications
Console Features
Display Type
22 in / 55 cm High-Definition Capacitive Touchscreen
Resolution
1080p ISP LCD Screen
Controls
1-STEP™ Incline Controls, 1-STEP™ Speed Controls, Precision Quick Speed Controls
Workout Metrics
Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time
Remaining, Time Of Day
Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT
Preset Programs
Limitless iFIT Training Options
Google Maps
Enabled
Console Language(s)
English
Featured Languages
EN, also DE, ES, FR, IT, PT, RU, ZH
Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)
Maximum Pause Time
60 Seconds
Additional Options
Quick-Start Manual Mode
Entertainment
TV Tuner
US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
Closed Captioning
CC1-4, TEXT 1-4
Optional Upgrades
N/A
Connectivity
Recommended Internet Connection
Dedicated Ethernet – Cat 6
Ethernet Requirements
Cat 6 Preferred (Cat 5e or higher required)
WiFi Connection
2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
Video Connections
Coax, HDMI Input
Audio Connections
3.5 mm Audio Out, Bluetooth
Product Features
Drive Motor
AC 5.0 CHP Commercial Drive Motor
Deck
2-Sided REFLEX™ Deck with Durable Bumper with Progressive Support
Belt
21.5 x 60 in / 54.6 x 152 cm Double Layered Quiet Belt
Rollers
3.5 in / 8.89 cm Spin Balanced Rollers
Platform
N/A
Elevation System
0% to +15% incline
Heart Rate Monitoring
Dual EKG Pulse Sensors, ANT+ and Polar Compatible
Emergency Stop
Safety Key and Clip
Workout Fan
Adjustable CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™
Accessory Charging
USB Charging Port
Accessory Holder(s)
Dual Water Bottle Holders, Secure Phone Holder, all with Removable Inserts
Positioning
Large Adjustable Leveling Feet
Transport Wheels
Front-Mounted Transport Wheels
Color Options
Flat Black (Custom colors available upon request)
Unit Options
Imperial or Metric
Power Options
110-120 VAC, 20 Amp, Dedicated Circuit
220-240 VAC, 15 Amp, Dedicated Circuit
Product Specifications
Maximum User Weight
400 lb / 181 kg
Step-up Height
12 in / 30.5 cm
Running Surface
21.5 in x 60 in / 54.6 x 152 cm
Speed Range
0-15 mph / 0-24 km/h
Dimensions & Weight

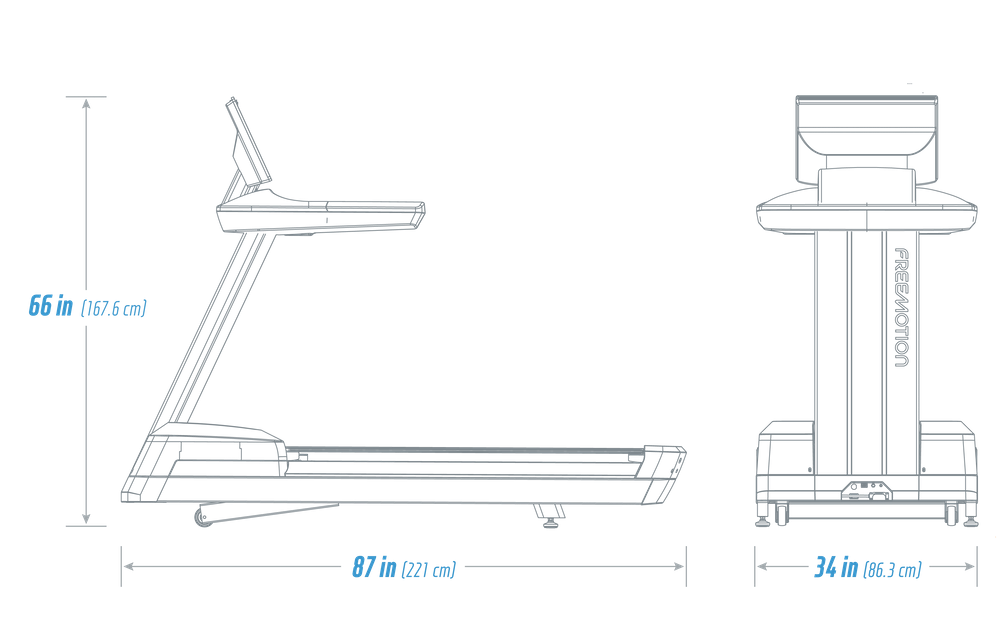

Product Dimensions L x W x H
87 x 34 x 66 in / 221 x 86.3 x 167.6 cm
Product Weight
619 lb / 280.8 kg
Shipping Dimensions L x W x H
89 x 41 x 30 in / 226 x 104.1 x 76.2 cm
Shipping Weight
649 lbs / 294.4 kg
Power Requirements
U.S. & Canada
110-120 VAC, 20 Amp, Dedicated Circuit
International
220-240 VAC, 15 Amp, Dedicated Circuit
Certifications
cTUVus, FCC/IC, BQB
High-Usage Warranty (US & Canada)
Frame
7 Years
Drive Motor
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
High-Usage Warranty (International)
Frame
7 Years
Drive Motor
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
Low-usage Warranty (US & Canada)
Frame
7 Years
Drive Motor
7 Years
Parts
3 Years
Console
3 Years
Labor
3 Years
Cosmetic & Wear Items
6 Months
Low-Usage Warranty (International)
Frame
7 Years
Drive Motor
7 Years
Parts
3 Years
Console
3 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
