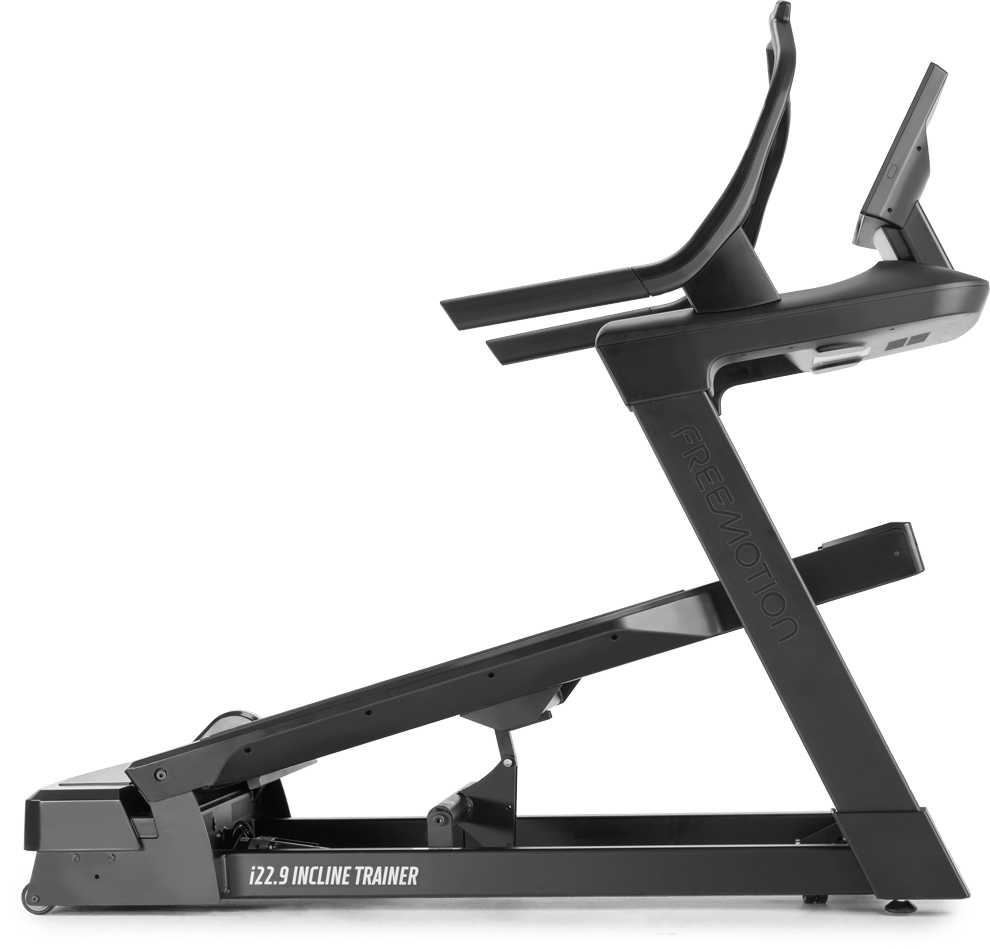

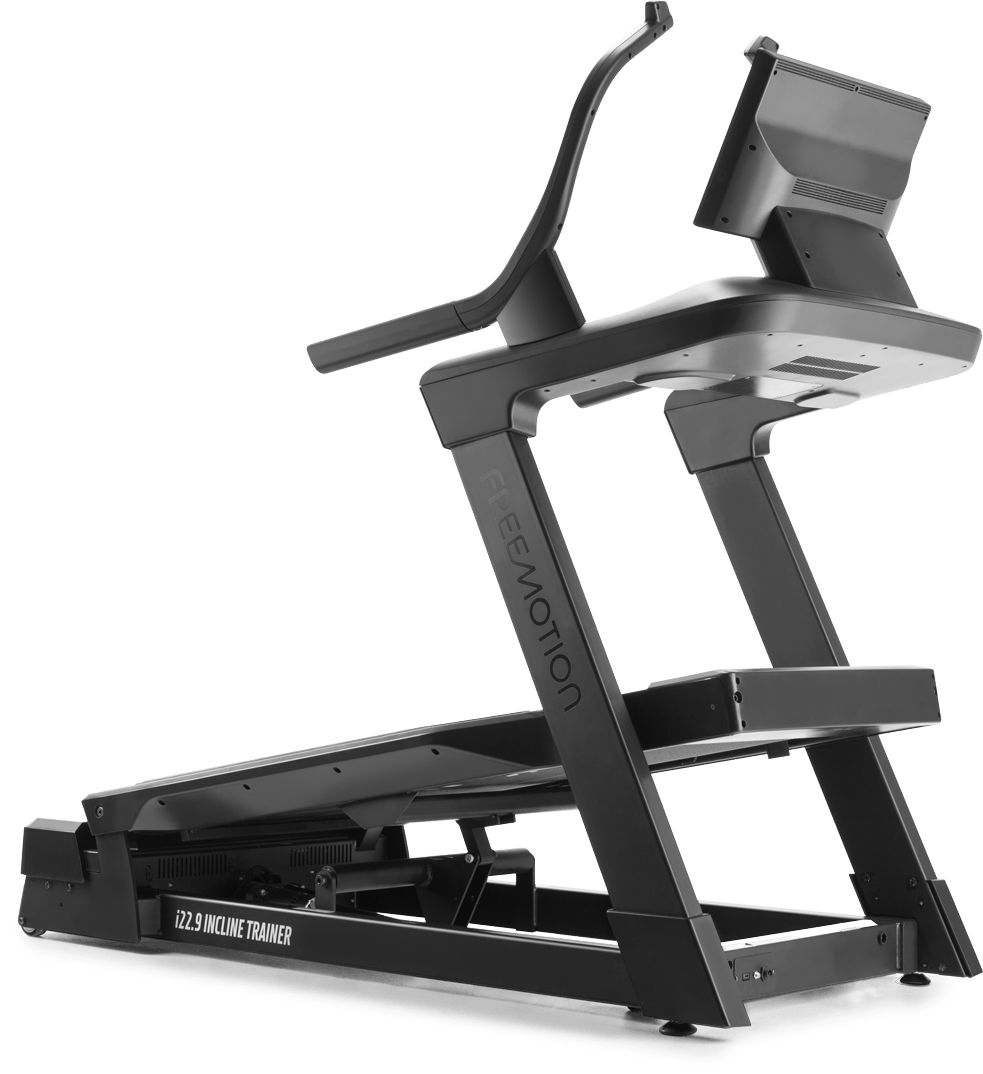

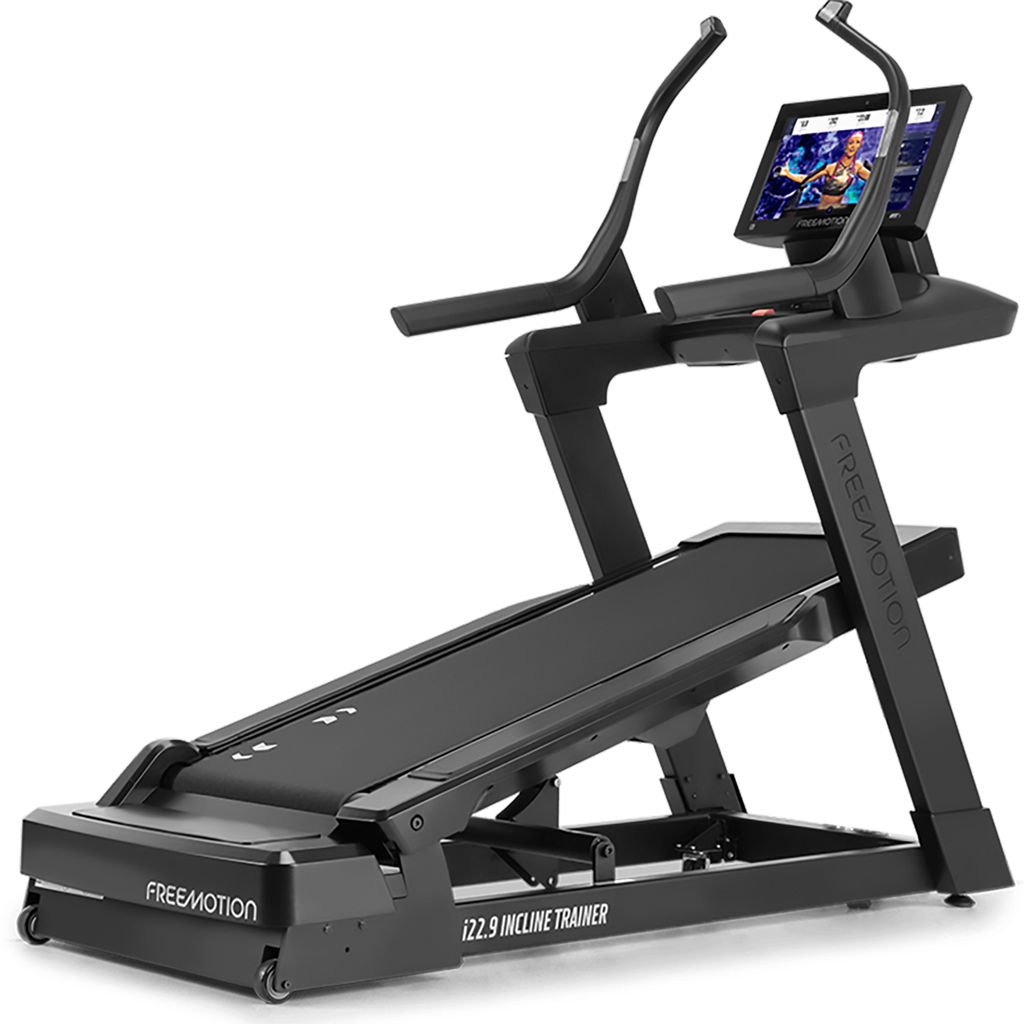

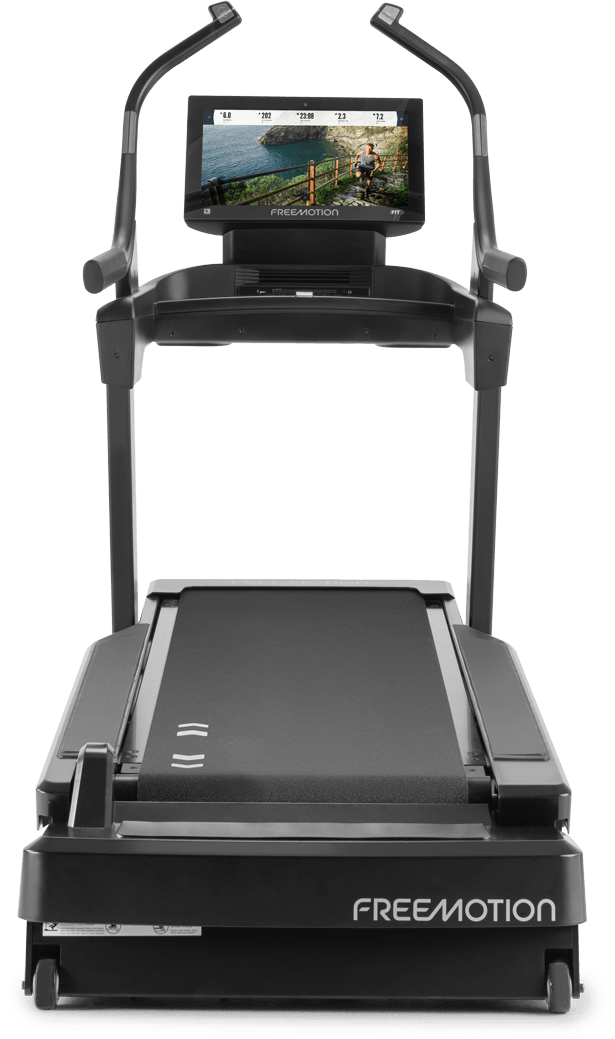

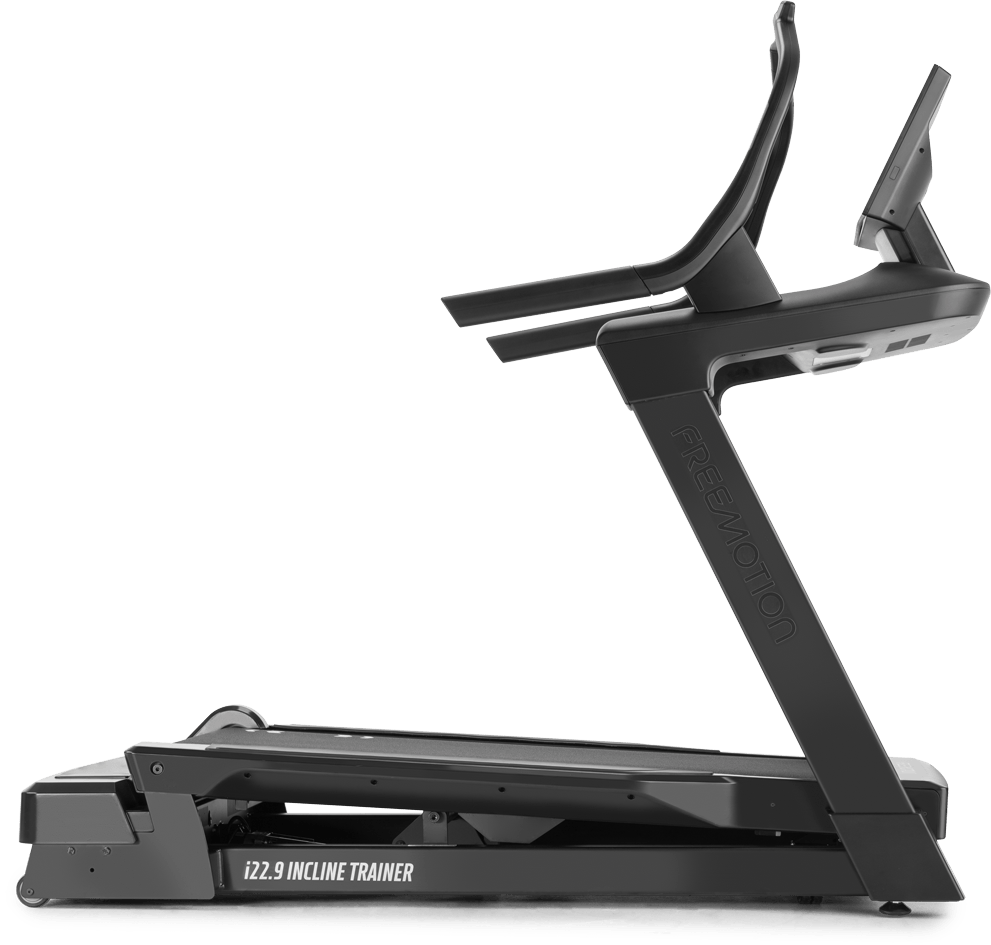

i22.9 INCLINE TRAINER
FMTK74819
The iFIT-powered i22.9 Incline Trainer places your members’ fitness experience at the center of its design. With a near-limitless library of coach-led training options and live-streaming classes displayed on an impressive 22 in / 55 cm HD touchscreen, the Incline Trainer provides a motivating, interactive, and engaging workout experience that gives participants the ability to build muscle and burn calories faster, with
less perceived exertion.
Additional Features
Heart Rate Monitoring
Get real-time data during the workout with built-in EKG grips. Results let members know when they’re in the ideal heart-healthy zone. Also compatible with Ant+ and Polar®.
Stay Connected
Connect Bluetooth or 3.5 mm headphones to receive education and motivation from iFIT trainers while charging phones with the convenient USB port.
Industrial Grade Motor
The sturdy lift motor delivers 1,500 lb / 680 kg of lift force for reliable deck movement and stabilization.
Tapered Roller Belt Drive Guide System
The machine’s narrowed drive dramatically extends the life of the walking deck.
Removable Cup Holders
Made from flexible Santoprene™ (a mix of plastic and rubber), we designed the cup holders to be extra durable and more easily removed for convenient cleaning.
Retractable Swivel Casters
These convenient rollers make it easier for you to move the Incline Trainer around the facility and into position.
Don’t Sweat It…Too Much!
Stay cool throughout the workout with a conveniently-located 3-Speed Fan, or select the AutoBreeze™ feature to enjoy a variable flow that responds to the running pace.
Specifications

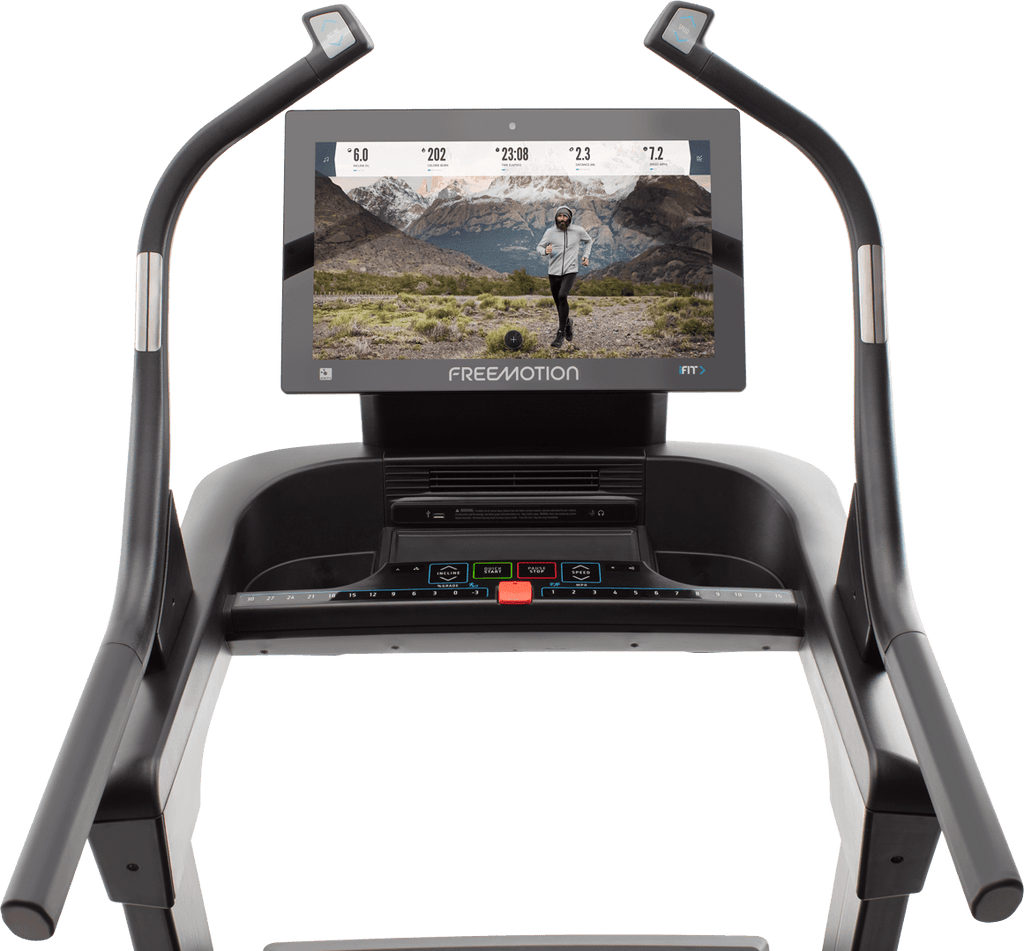

Console Features
Display Type
22 in / 55 cm High-Definition Capacitive Touchscreen
Resolution
1080p ISP LCD Screen
Controls
Touchscreen, On-Handle, 1-STEP™ Touch Controls, Precision Quick Speed Controls
Workout Metrics
Speed, Incline, Distance, Vertical Meters, Calories,Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time Of Day
Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT
Preset Programs
Limitless iFIT Training Options
Google Maps
Enabled
Console Language(s)
English
Manual / Decal Languages
M1: EN, FCA
M2: EN
K1: EN, ES, FCA
K2: EN, DE, ES, FR, IT, PT, NL, CH
Content Languages
EN, CH, NL, FR, DE, IT, NW, RU, SP, PT
Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)
Maximum Pause Time
60 Seconds
Additional Options
Quick-start Manual Mode
Entertainment
TV Tuner
US & Canada: NTSC/ATSC, QAM, Pro:Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
Closed Captioning
CC1-4, TEXT 1-4
Optional Upgrades
N/A
Connectivity
Recommended Internet Connection
Dedicated Ethernet – Cat 6
Ethernet Requirements
Cat 6 Preferred (Cat 5e or higher required)
WiFi Connection
2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
Video Connections
Coax, HDMI Input
Audio Connections
3.5 mm Audio Out, Bluetooth
Product Features
Drive Motor
Rear-mounted AC 5.0 CHP Commercial Drive Motor
Deck
1 in / 2.5 cm Double-sided, Cushioned Deck
Belt
21.5 x 60 in / 54.6 x 152 cm Double Layered Quiet Belt
Rollers
3.5 in Spin Balanced Rollers with Tapered Belt Guide
Platform
Spacious Rear Platform
Elevation System
-3% decline to +30% incline
Heart Rate Monitoring
Dual EKG Pulse Sensors, ANT+, and Polar Compatible
Emergency Stop
Safety Key and Clip
Workout Fan
Adjustable CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™
Accessory Charging
USB charging port
Accessory Holder(s)
Dual Water Bottle Holders, Secure Phone Holder, all with Removable Inserts
Grips
Soft touch upper body grips
Positioning
Large adjustable leveling feet
Transport Wheels
Rear-mounted Transport Wheels and Front-mounted Retractable Swivel Casters
Color Options
Flat Black (Custom colors available upon request)
Unit Options
Imperial or metric
Power Options
N/A
Product Specifications
Maximum User Weight
400 lb / 181 kg
Step-up Height
15.5 in / 39.4 cm
Running Surface
21.5 x 60 in / 54.6 x 152 cm
Speed Range
0-15 mph / 0-24 km/h
Dimensions & Weight

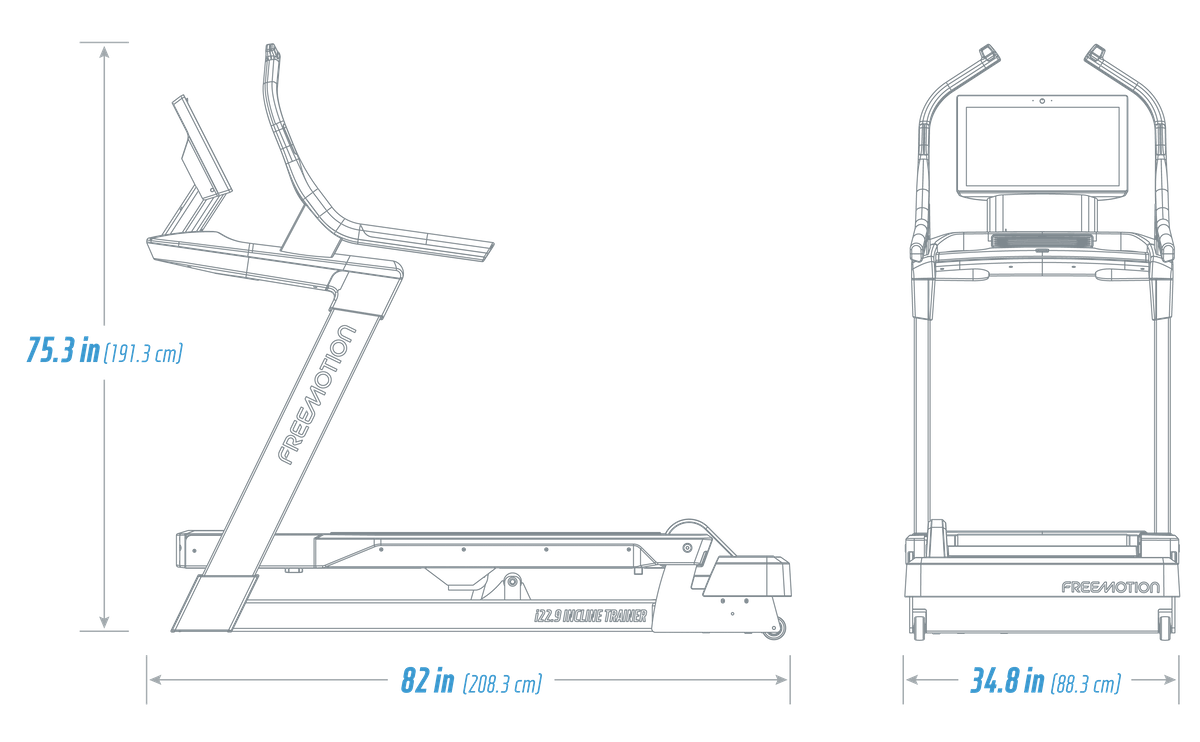

Product Dimensions L x W x H
82 x 34.8 x 75.3 in / 208.3 x 88.3 x 191.3 cm
Product Weight
750 lbs / 340.2 kg
Shipping Dimensions L x W x H
85 x 43 x 33.7 in / 215.9 x 109.2 x 85.5 cm
Shipping Weight
780 lbs / 353.8 kg
Power Requirements
U.S. & Canada
110-120 VAC, 20 Amp, Dedicated Circuit
International
220-240 VAC, 15 Amp, Dedicated Circuit
Certifications
cTUVus, FCC/IC, BQB
High-Usage Warranty (US & Canada)
Frame
7 Years
Drive Motor
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
High-Usage Warranty (International)
Frame
7 Years
Drive Motor
7 Years
Parts
2 Years
Console
2 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
Low-usage Warranty (US & Canada)
Frame
7 Years
Drive Motor
7 Years
Parts
3 Years
Console
3 Years
Labor
3 Years
Cosmetic & Wear Items
6 Months
Low-Usage Warranty (International)
Frame
7 Years
Drive Motor
7 Years
Parts
3 Years
Console
3 Years
Labor
1 Year
Cosmetic & Wear Items
6 Months
WORLD-RENOWNED FITNESS COACHES
We’ve hand-selected 200+ Olympic champions, celebrities, physical therapists, marathoners, and location guides to be your iFIT coaches.
With unique training styles and personalities that motivate and inspire, you’ll quickly find your new favorite trainer.
GLOBAL WORKOUTS
Explore the world without leaving the room with thousands of inspiring training videos beautifully filmed in stunning locations around the globe, including 60+ countries and all 7 continents. Your machine’s resistance will even adjust to match the terrain and instructions of your coach.
HIGH-ENERGY STUDIO CLASSES
Experience the hype of a high-intensity studio class alongside other participants and taught by fitness instructors that motivate and inspire you to finish strong. Let your coach guide you through the workout and
virtually control your machine.
