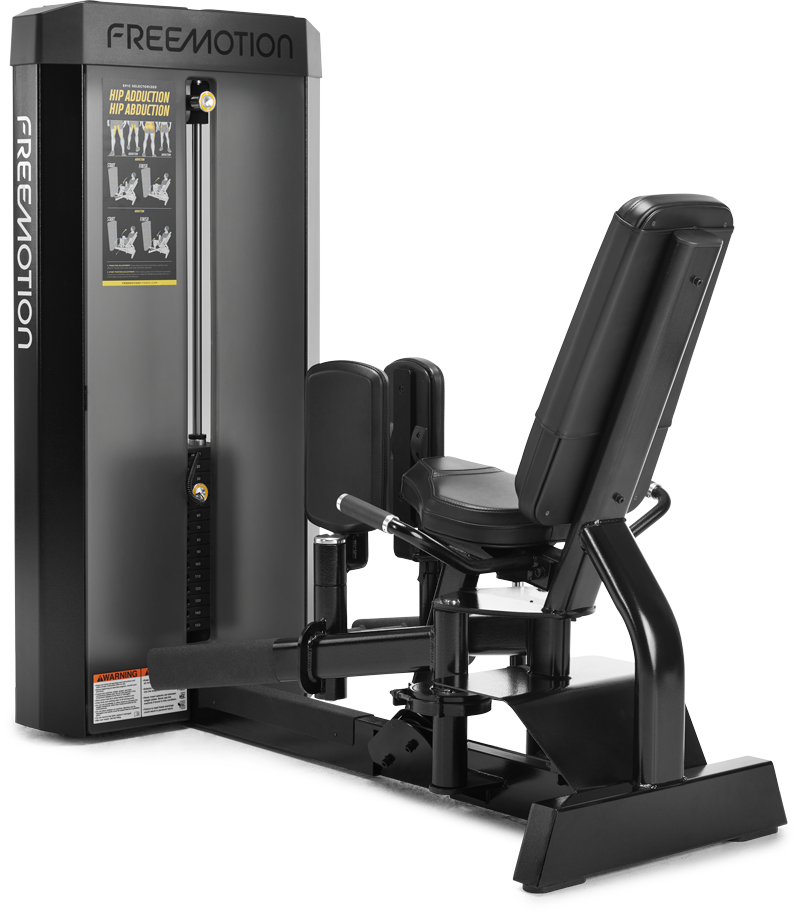

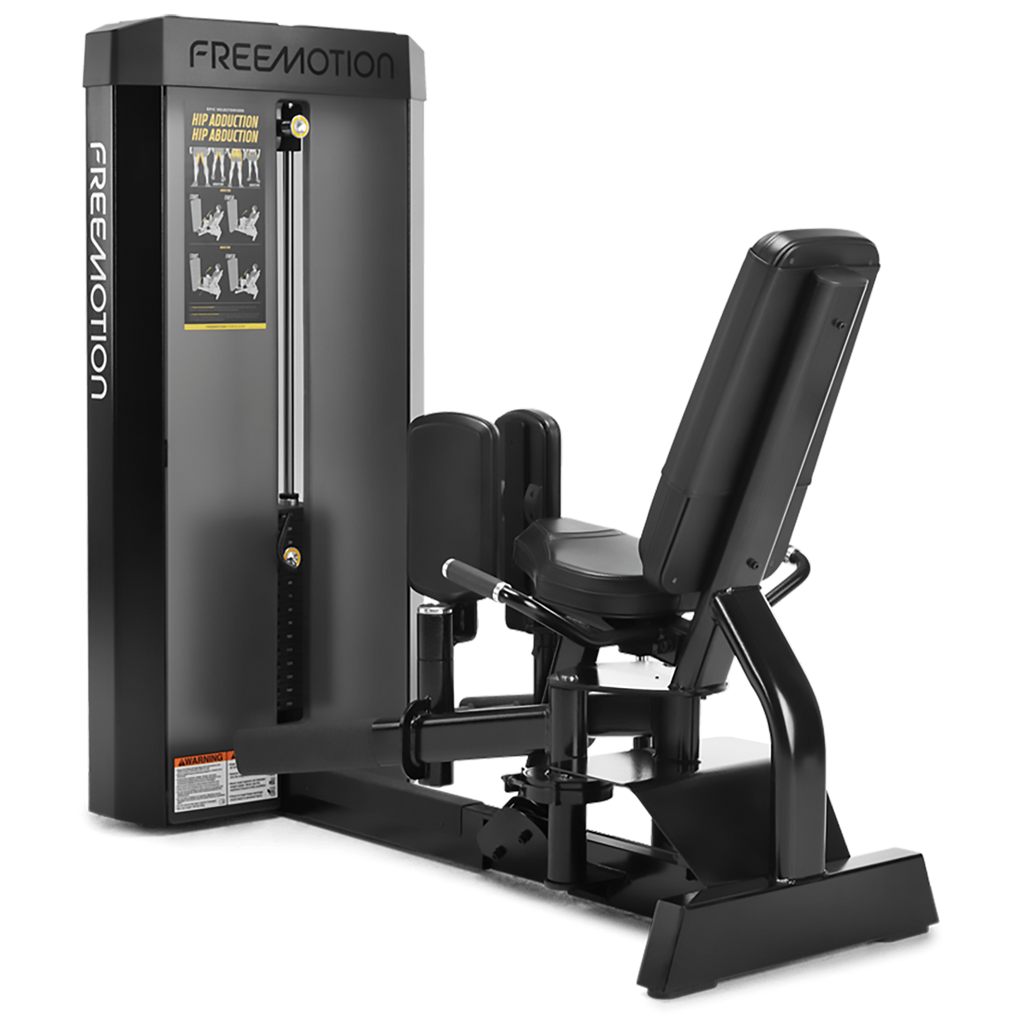

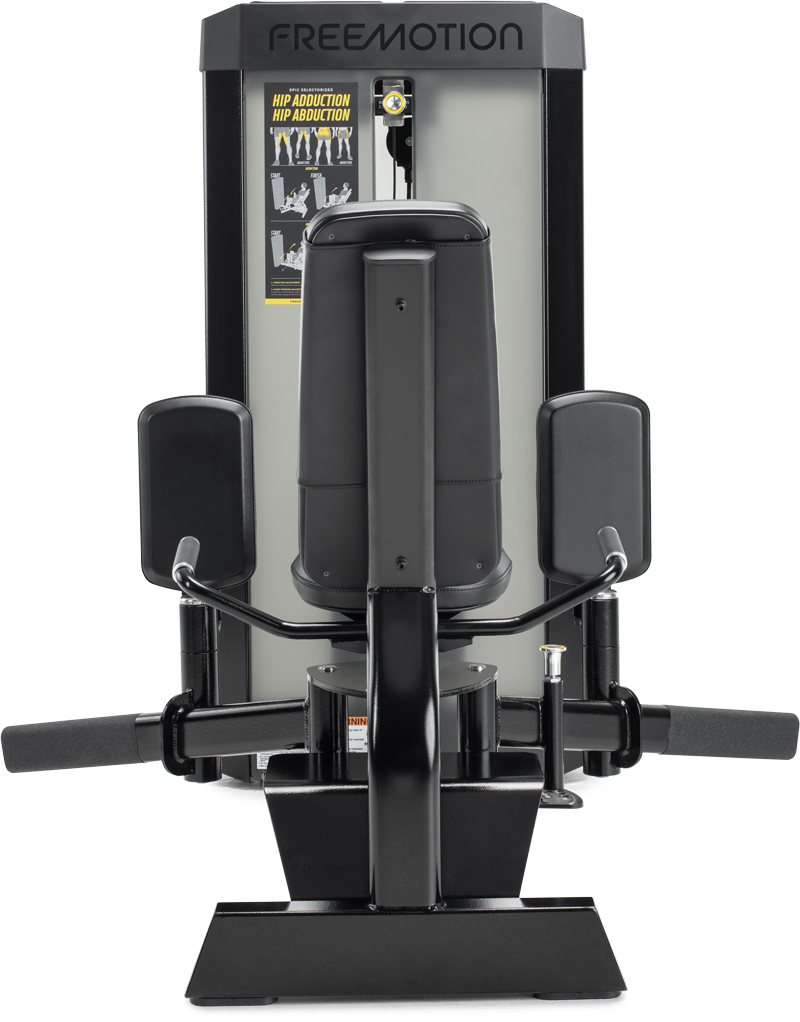

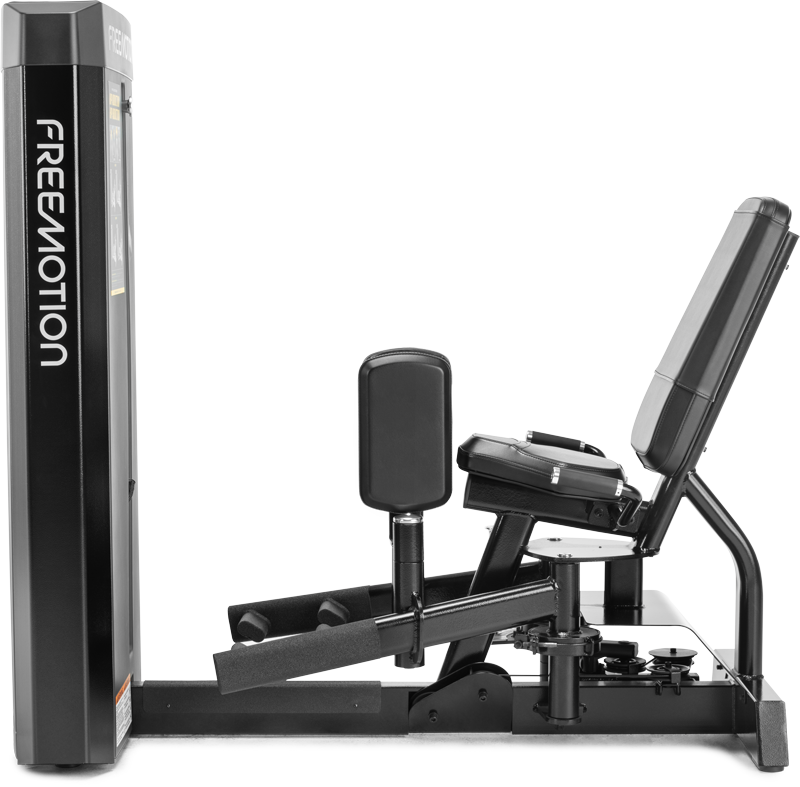

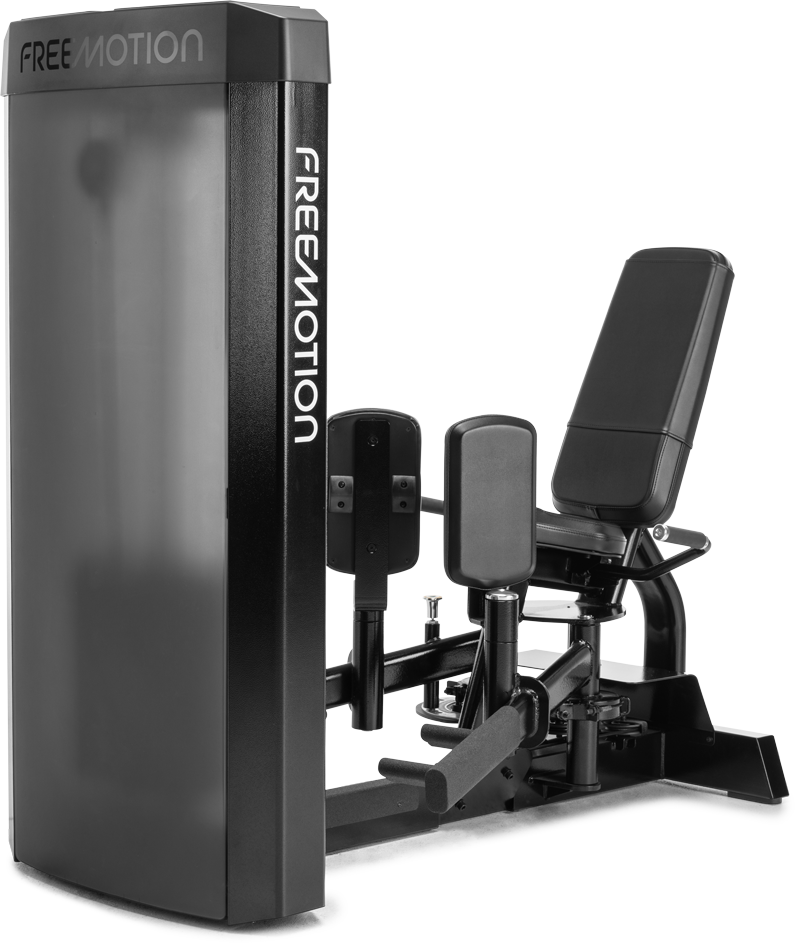

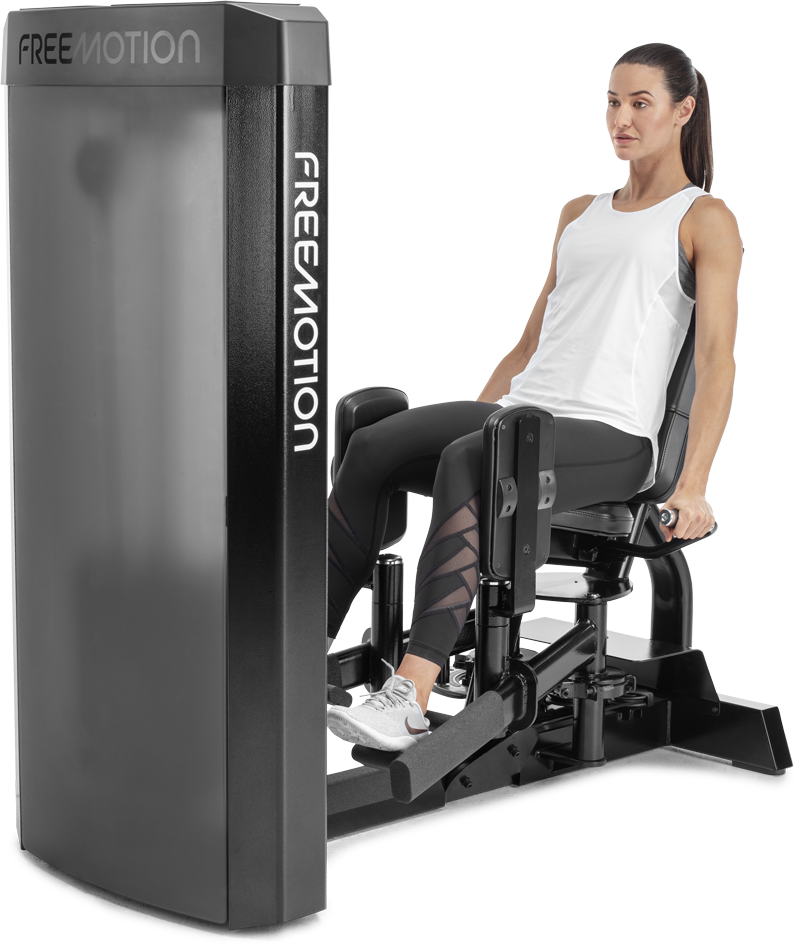

HIP ADDUCTION / ABDUCTION
ES809
Moving from one exercise to the next on the EPIC Selectorized Hip Adduction/Abduction is a breeze. Leg pads swivel and the start position changes with a simple pop pin. With the weight stack positioned in front of the seat, users can easily change the resistance when switching between exercises.
additional features
Swiveling Leg Pads
Padded for comfort even under heavy loads, the leg pads swivel to perform hip adduction and abduction exercises.

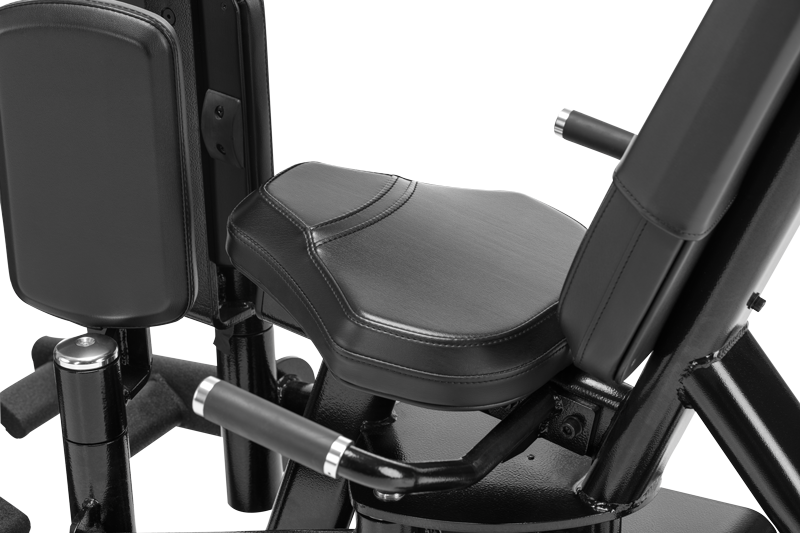

Comfortable Support
Both the seat bottom and back pad are contoured to provide comfortable support.
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Swiveling Leg Pads with Adjustable Start Position
Resistance
155 lb / 70.3 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
155 lb / 70.3 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-150 x 10 lb / 4.5 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight

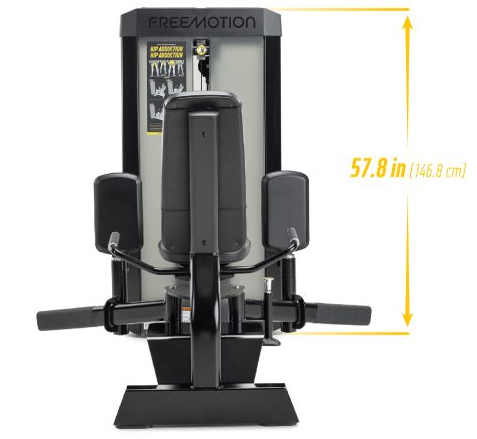

Dimensions L x W x H
62.5 x 28.5 x 58 in / 158.7 x 72.3 x 147.3 cm
Footprint
62.5 x 28.5 in / 158.7 x 72.3 cm
Maximum workout area
62.5 x 28.5 in / 158.7 x 72.3 cm
Weight
573 lb / 218.7 kg
Shipping Dimensions
Box 1: 68.9 x 32.2 x 45.6 in / 175 x 81.7 x 115.8 cm
Box 2: 26 x 14.1 x 6.3 in / 66 x 35.8 x 16 cm
Shipping Weight
Box 1: 295.2 lb / 133.9 kg
Box 2: 22 lb / 9.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cables/Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
DUAL STATIONS
Training two muscle groups on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.
SET THE RANGE

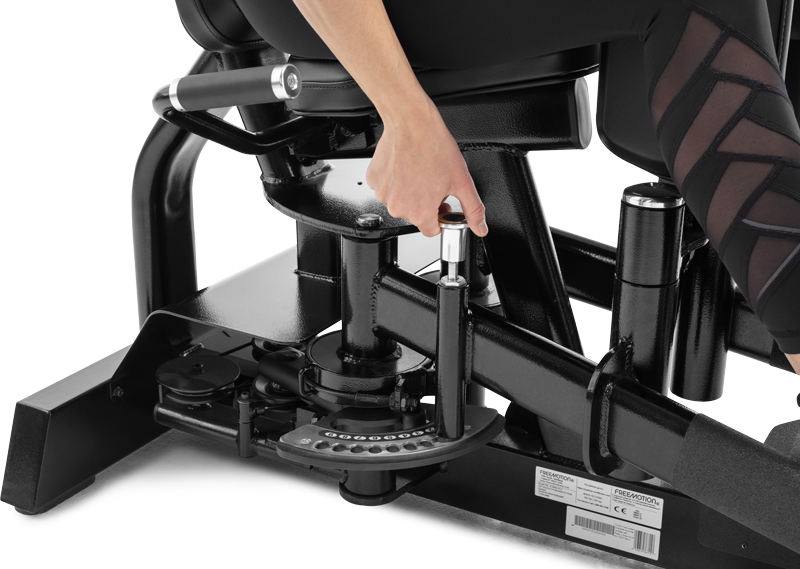

Whether performing an adduction or abduction, users can set the start positions to set the range of motion.
SURE FOOTING

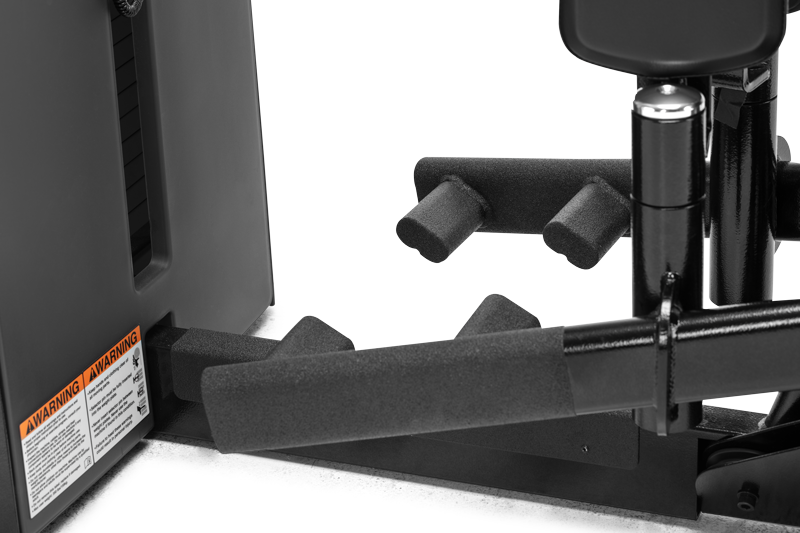

Textured pegs help ensure secure foot placement even under heavy loads.
