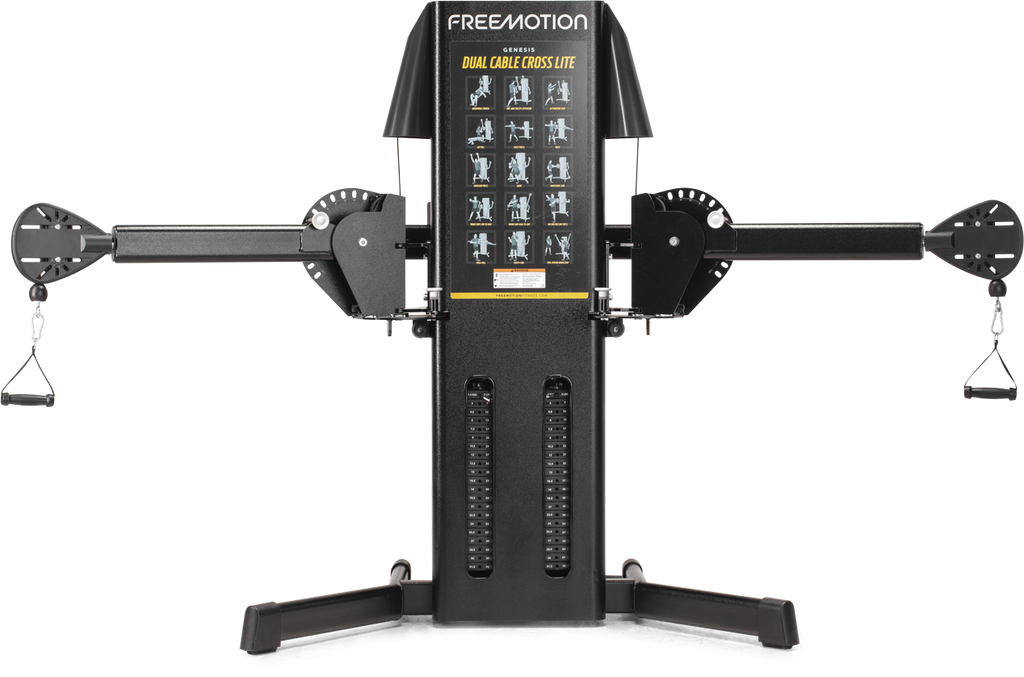

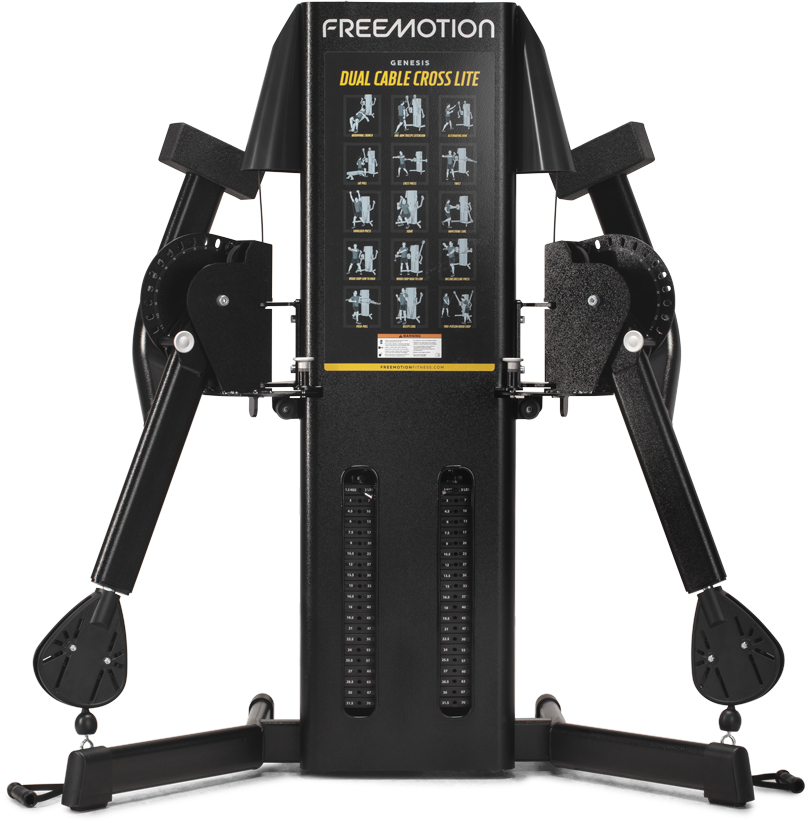

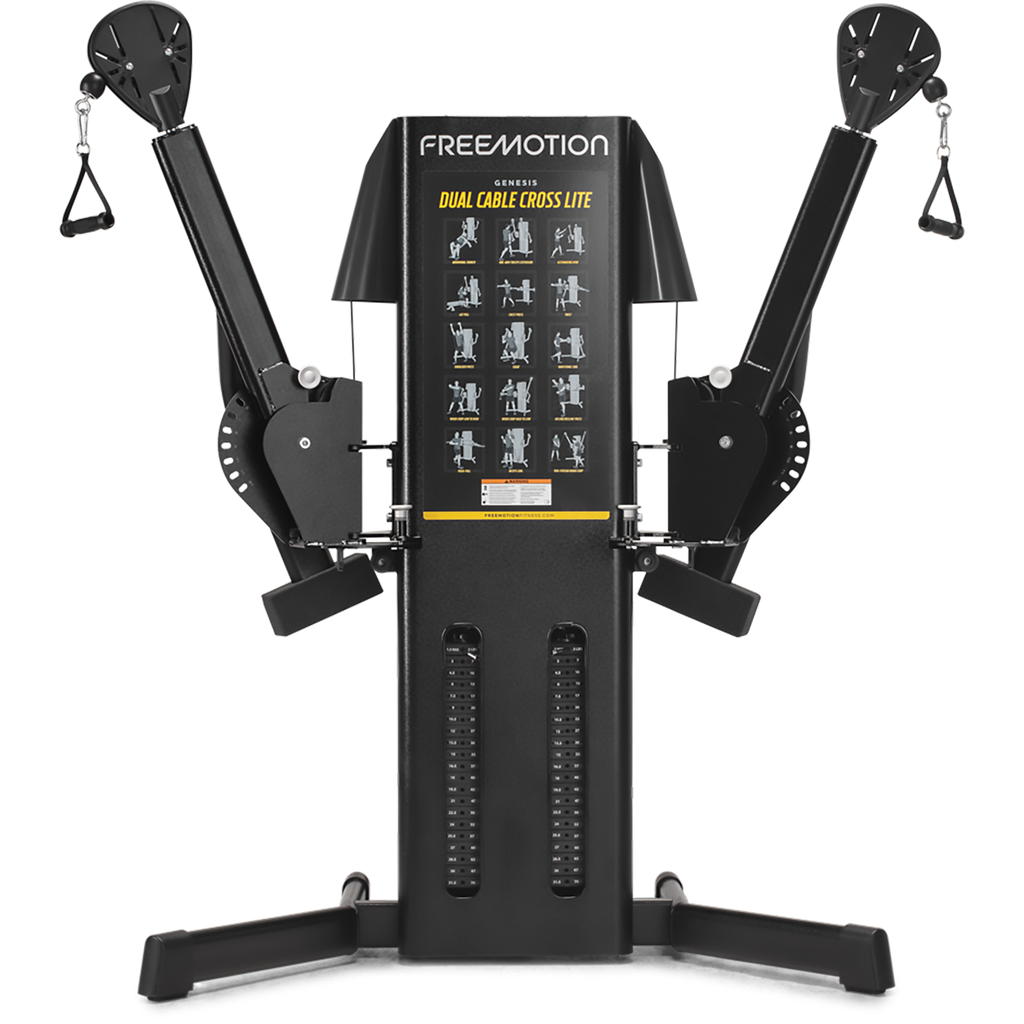

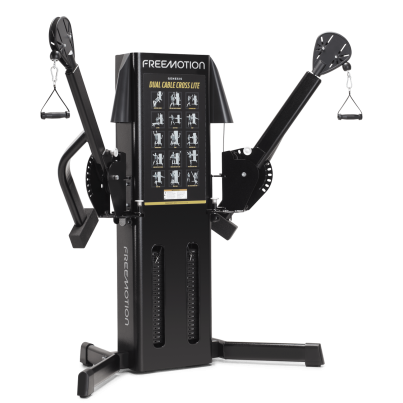

DUAL CABLE CROSS LITE
G424
While the Dual Cable Cross Lite is smaller, it doesn’t sacrifice any of the quality construction or durability known in the GENESIS line. Built with heavy duty steel with an electrostatic powder-coated finish, this
unit can live up to the rigors of any weight room. Precise adjustments, swivel pulleys and extensive cable travel let users perform virtually and movement pattern experienced in life or sport.
additional features
Walk Up and Work Out
With no required adjustments, users can simply walk up, grab the handles and start moving.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Enclosed Weight Stacks
The weight stacks are enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Vertical and horizontal arm rotation adjustments
Resistance
3:1 cable ratio with 3.33 lbs (1.4 kg) of effective resistance per plate.
Seat
N/A
Pulleys
Dual swivel pulleys
Rubber Feet
Molded floor protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
Wheelchair Accessible
Product Specifications
Weight Stack
Dual Weight Stacks
Stack 1: 210 lb / 95.2 kg
Stack 2: 210 lb / 95.2 kg
Drop Down Weight
N/A
Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color
Custom colors available upon request
Plastic Color
Ebony
Standard Upholstery Color
N/A
Optional Upholstery Color
N/A
Product Dimensions & Weight

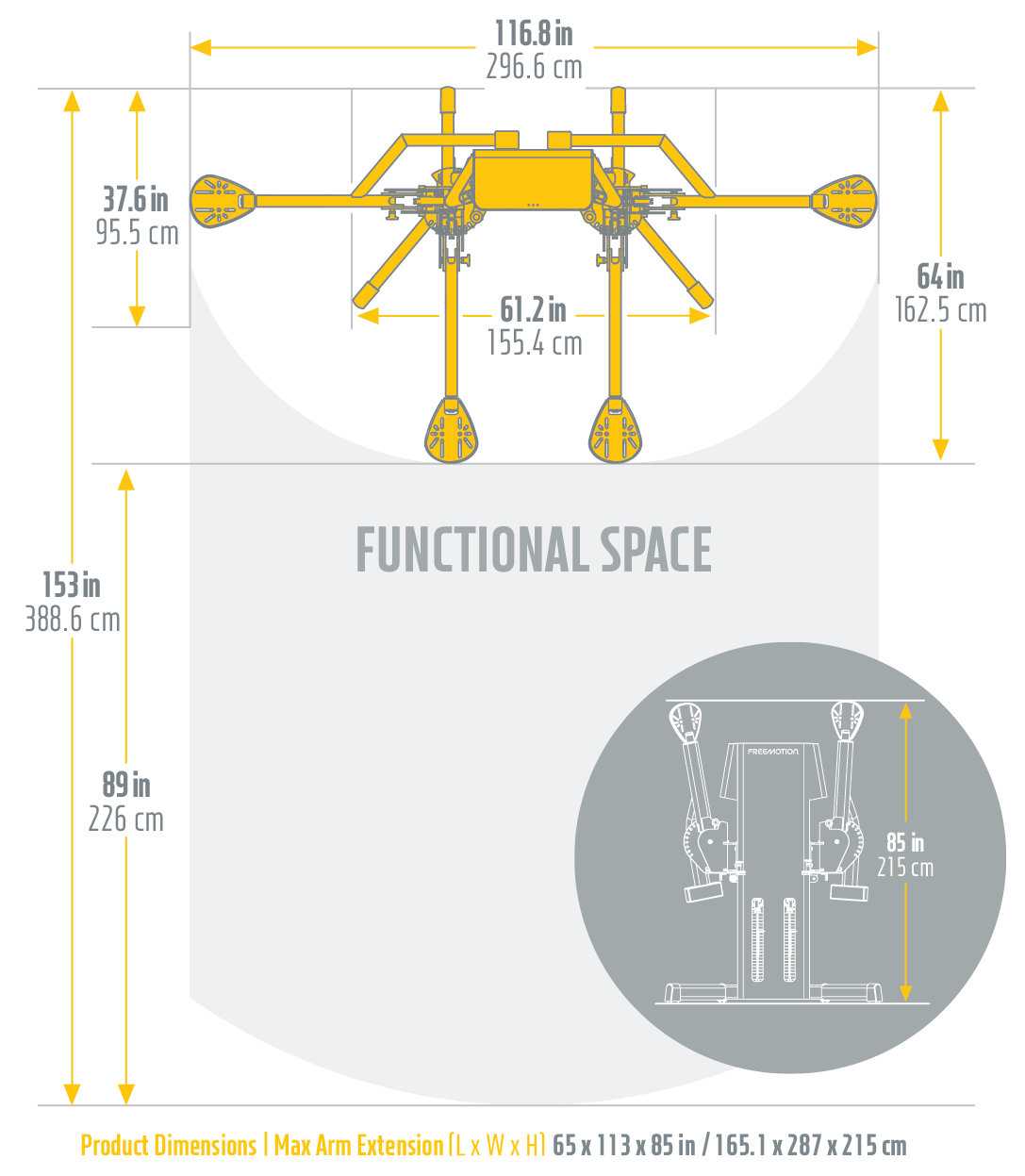

Dimensions L x W x H
65 x 113 x 85 in / 165.1 x 287 x 215 cm
Footprint
65 x 113 in / 165.1 x 287 cm
Weight
997 lb / 452 kg
Shipping Dimensions
76.2 x 34.7 x 34.8 in / 193.6 x 88.1 x 88.4 cm
Shipping Weight
997 lb / 452.2 kg
Certifications
EN957, CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

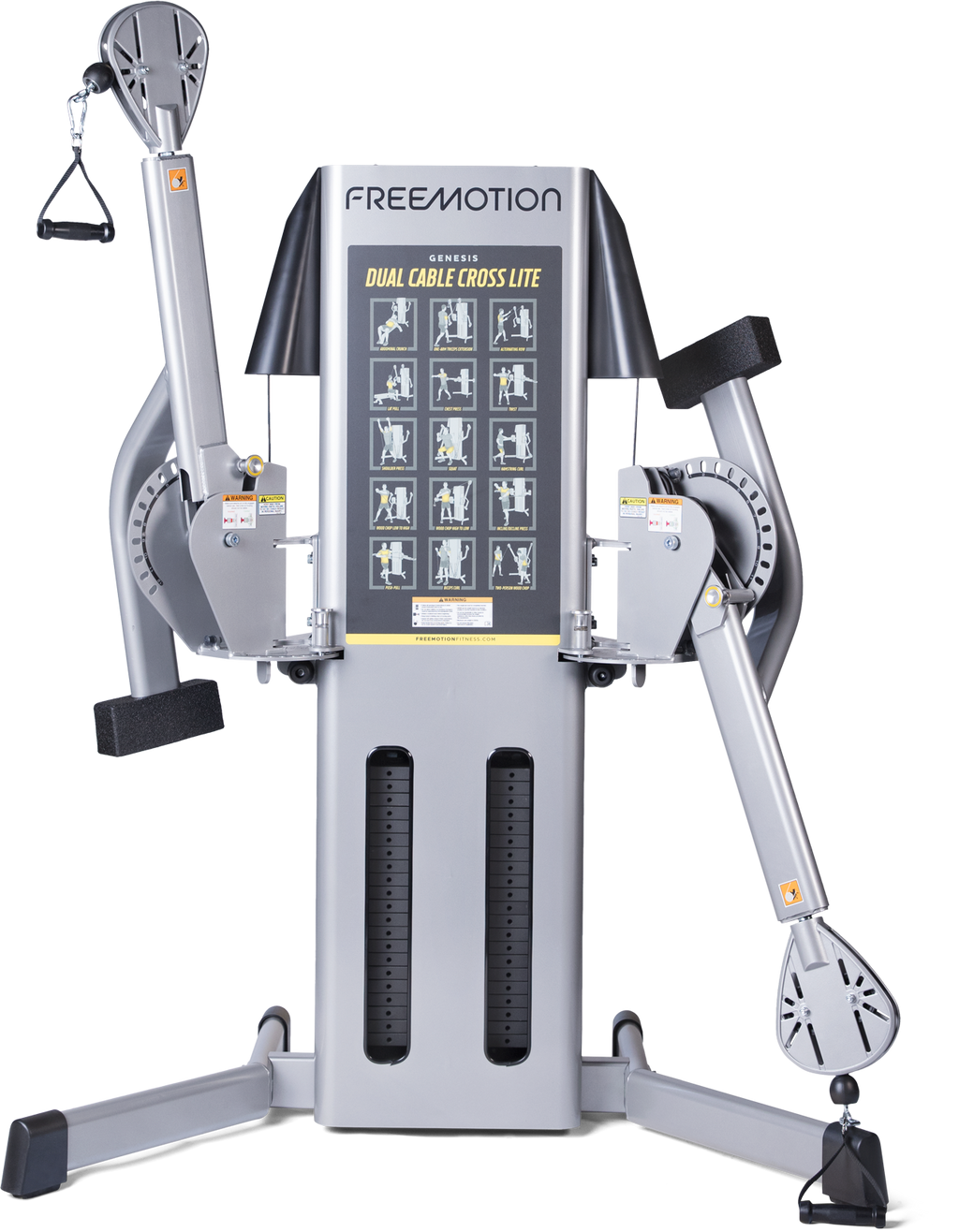

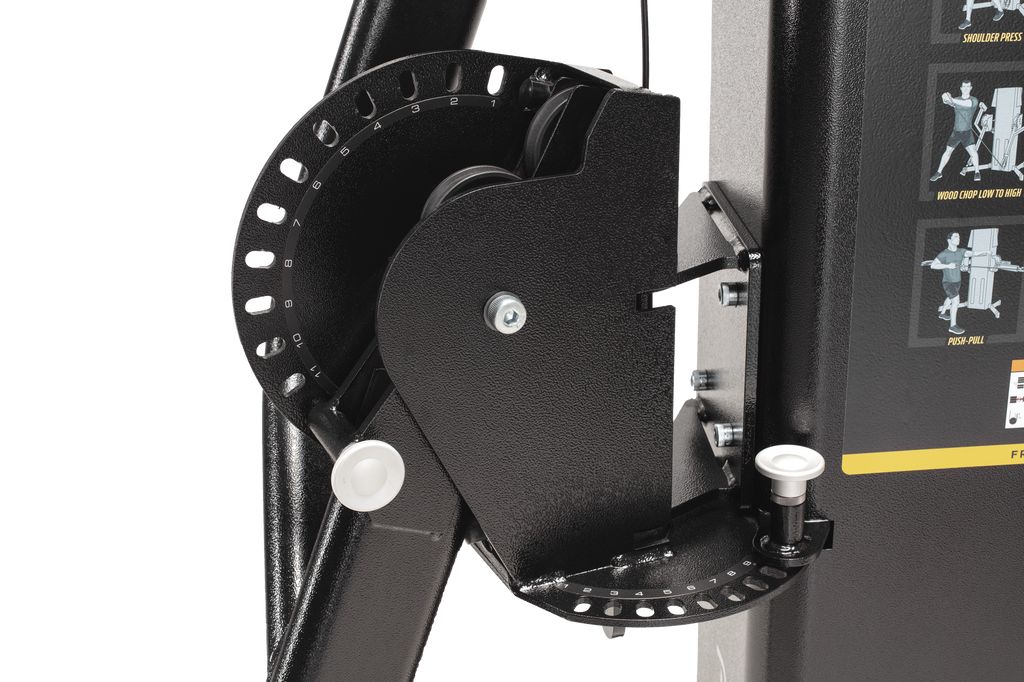

FINE-TUNE RANGE OF MOTION

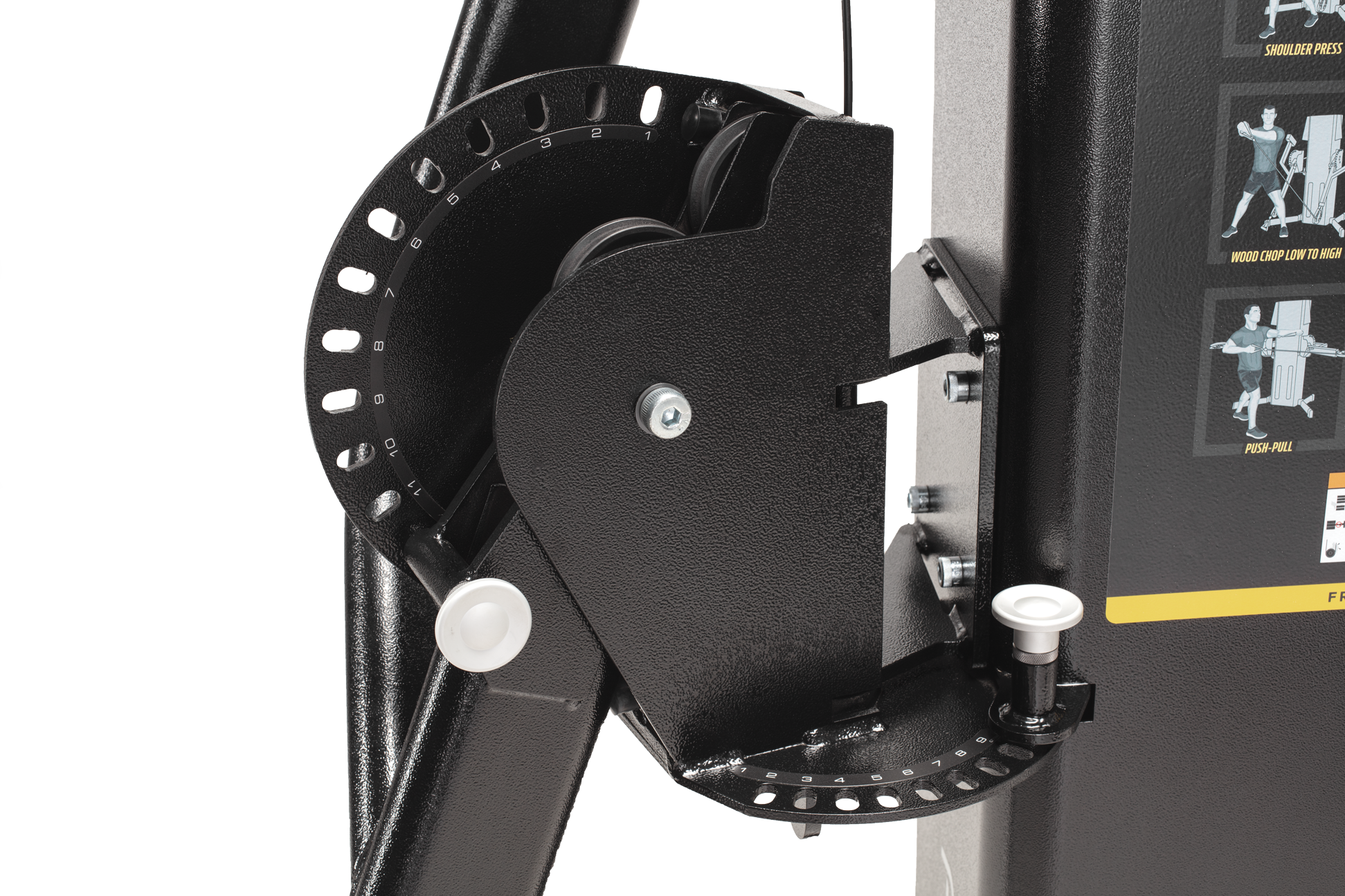

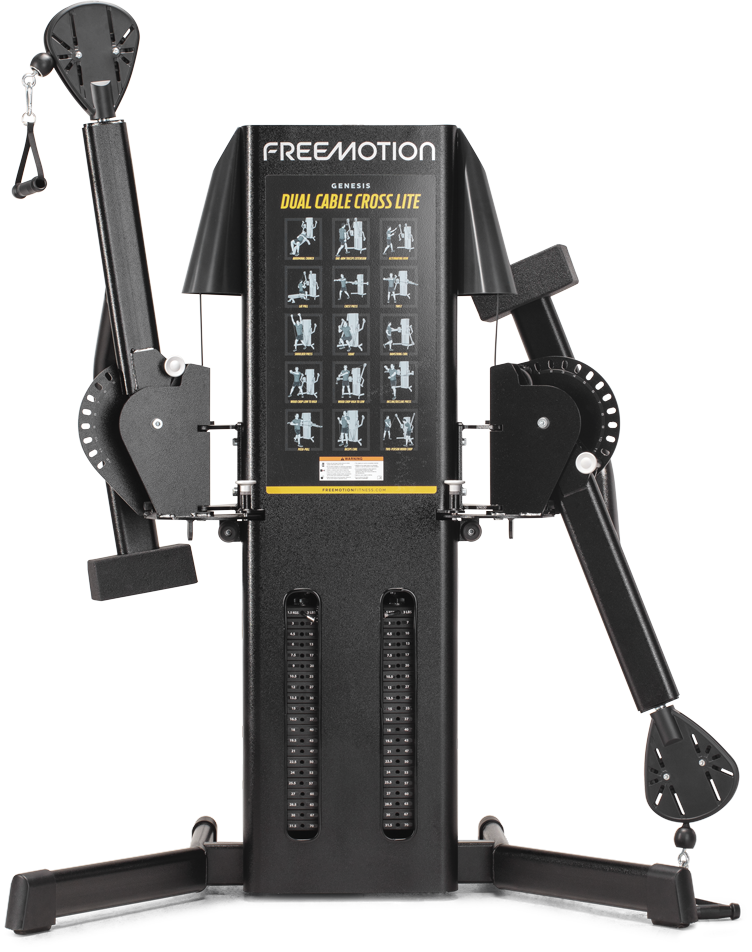

Arms adjust both vertically and horizontally. This ability to precisely position the handles allows users to mimic nearly any movement in life or sport.
FREEDOM TO MOVE

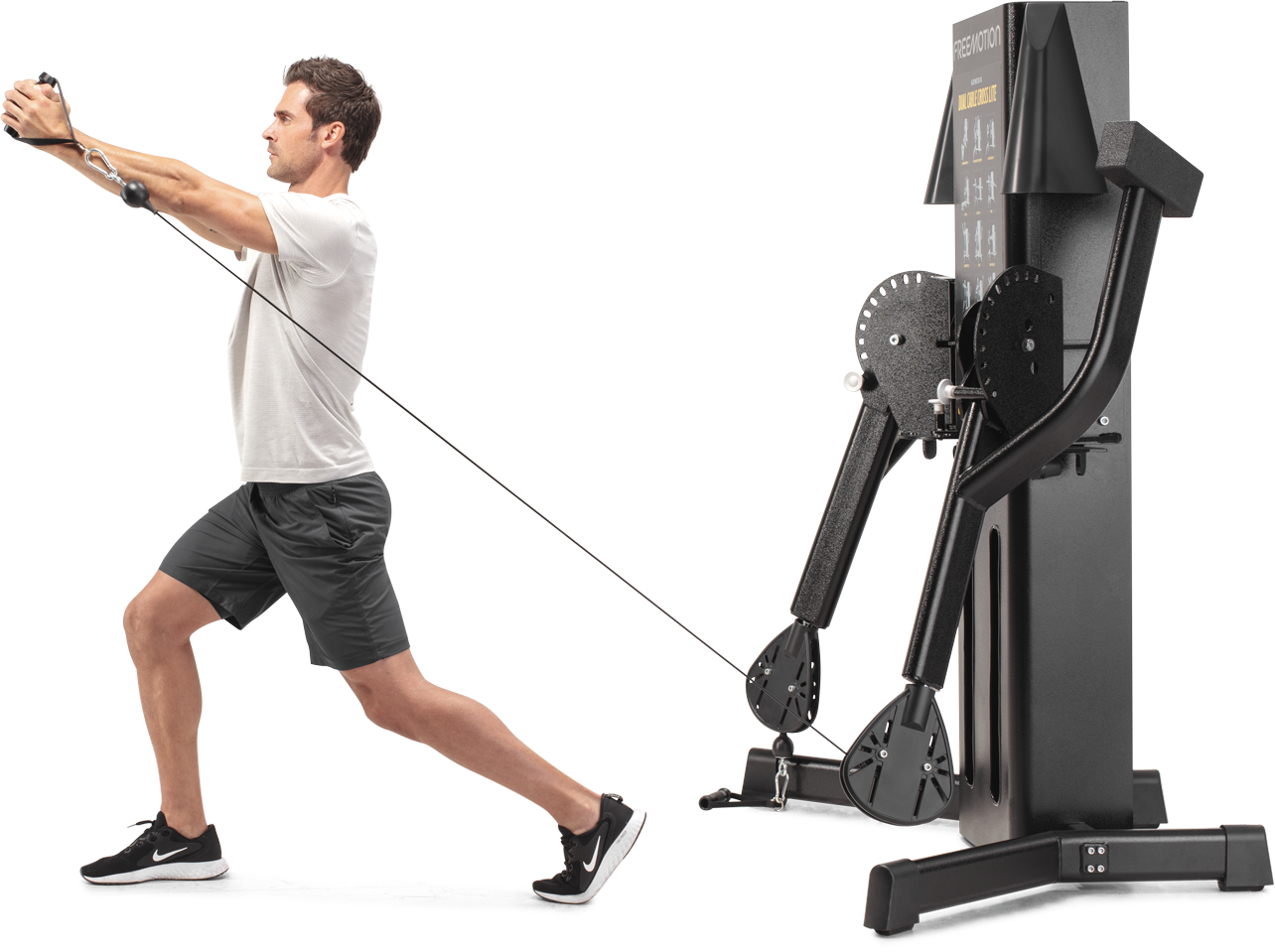

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY

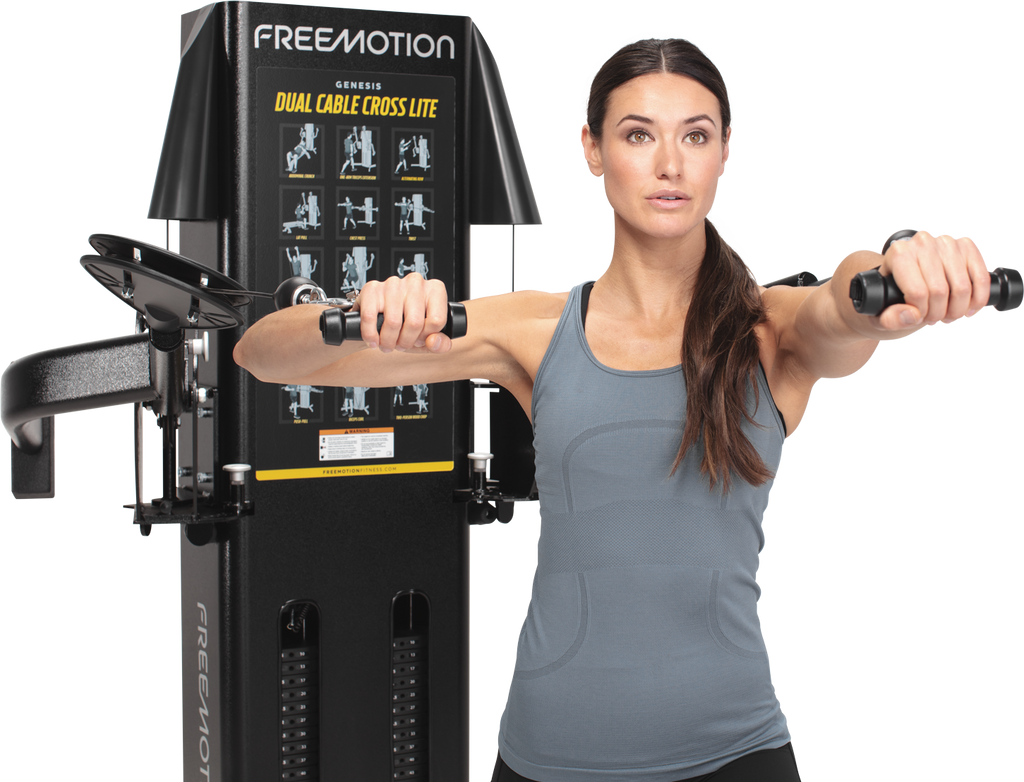

Handles move independently for single and alternating arm exercises.
SPECIFY THE INTENSITY
Whether rehabbing an injury or training opposing actions, each handles is tethered to its own weight stack to dial in the resistance.

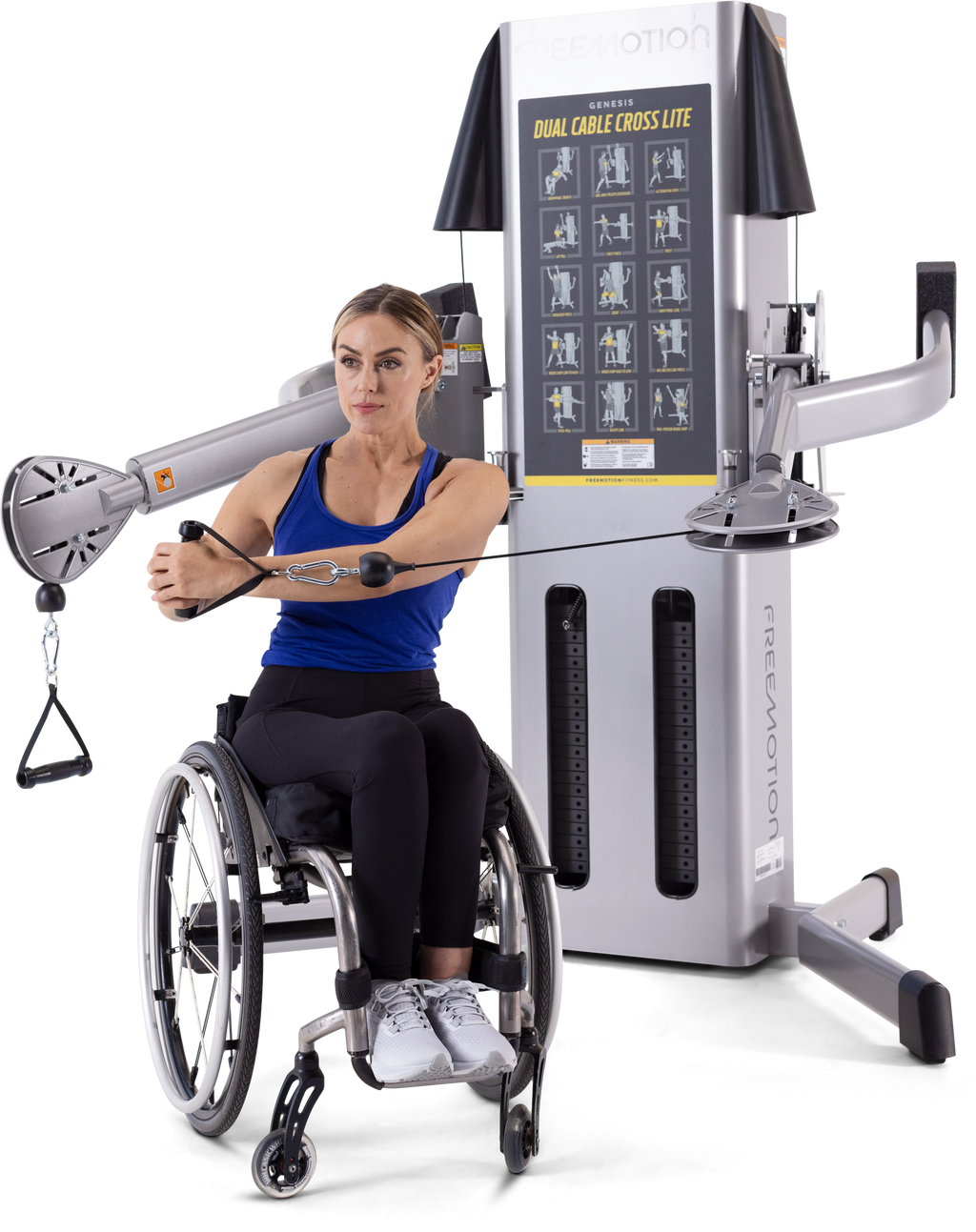

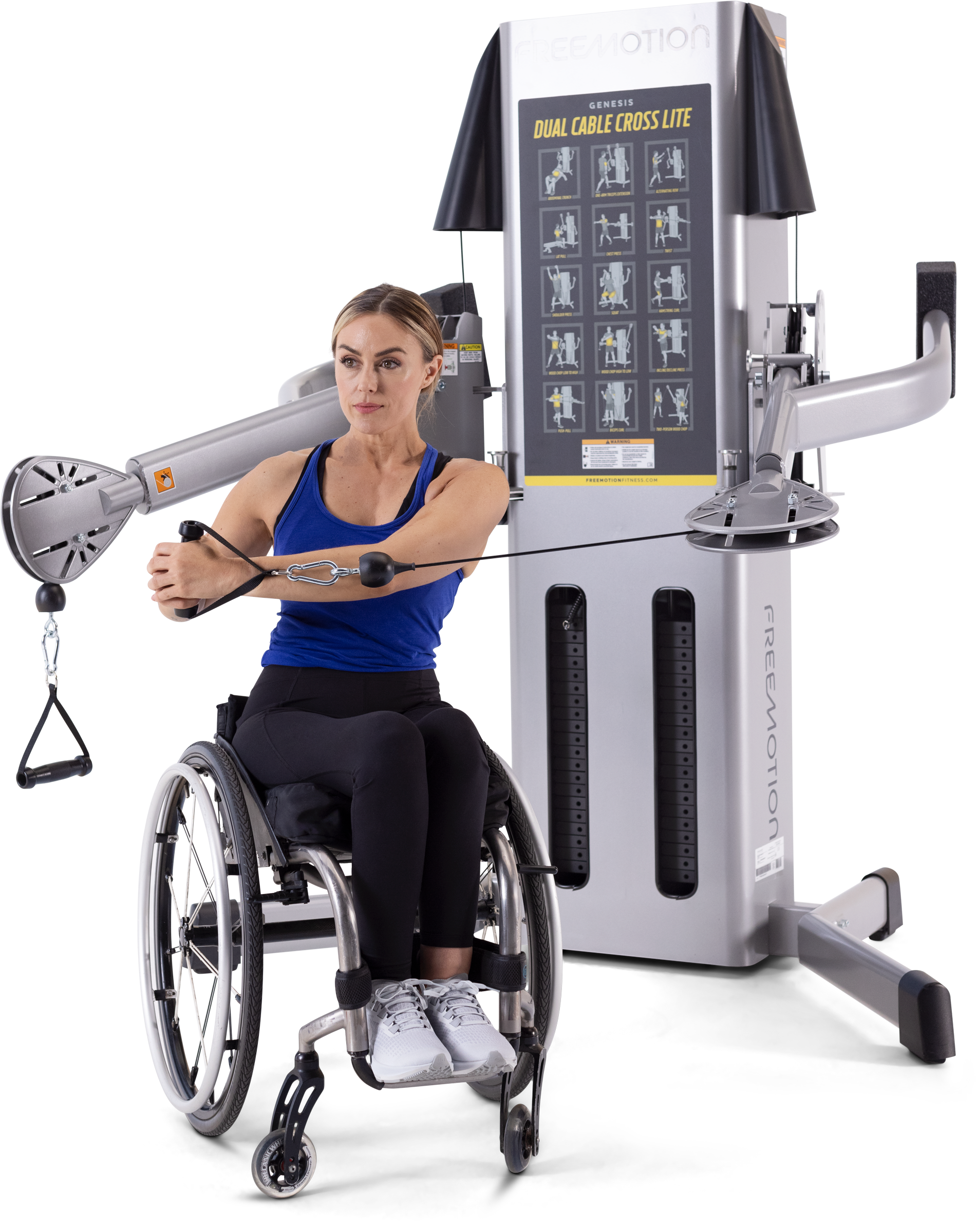

WHEELCHAIR ACCESSIBILITY
The open design makes it wheelchair accessible and welcoming to users of all abilities.
