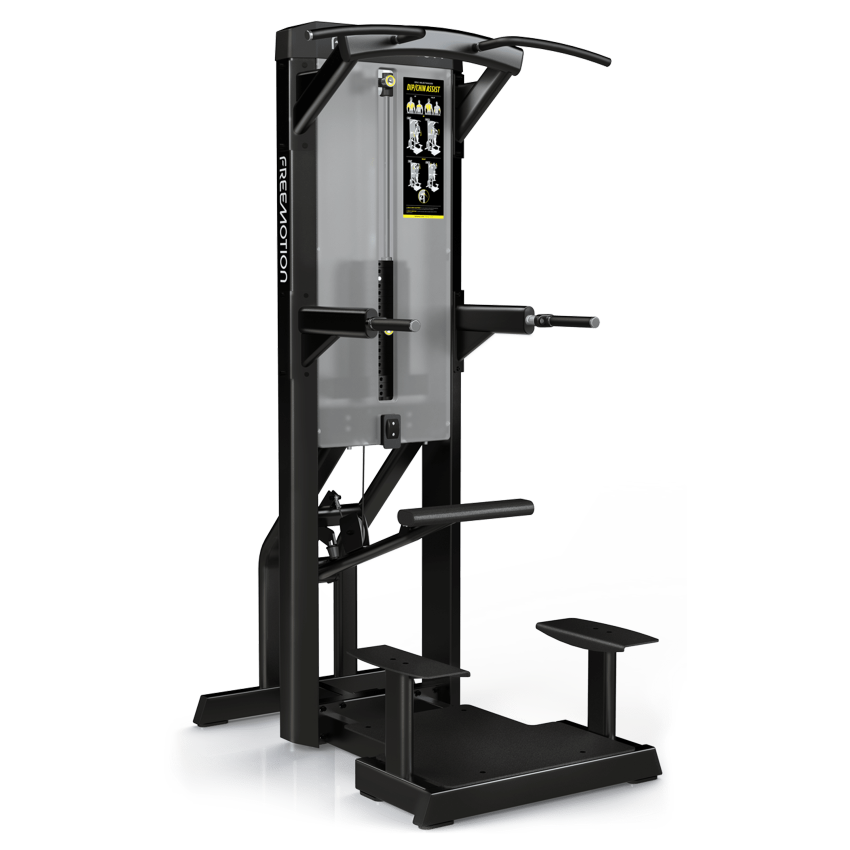

DIP-CHIN ASSIST
ES812
Designed to offer an effective workout regardless of fitness ability, the EPIC Selectorized Dip-Chin Assist give users the option of weight-assisted exercise. Curved upper handles allow for a natural grip whether wide, narrow, pronated or supinated. Textured foot platforms and weighted bar allow for secure foot placement.
additional features
Multi-grip Handles
Handles are designed to allow for a wide, narrow, pronated or supinated grip.
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Lower handles rotate in/out and footrest pivots for assisted or unassisted movement
Resistance
135 lbs / 62 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
225 lb / 102 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-170 x 10 lb / 4.5 kg
180-220 x 20 lb / 9 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
N/A
Optional Upholstery Color
N/A
Hand Grip Color
Black
Product Dimensions & Weight
Dimensions L x W x H
48.3 x 62.1 x 99.6 in / 122.6 x 157.7 x 252.9 cm
Footprint
48.3 x 62.1 in / 122.6 x 157.7 cm
Maximum workout area
48.3 x 62.1 in / 122.6 x 157.7 cm
Weight
749.5 lb / 340 kg
Shipping Dimensions
101 x 30.3 x 48 in / 256.5 x 76.9 x 121.9 cm
Shipping Weight
902.5 lb / 409.3 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
DUAL STATIONS
Training multiple muscle groups on the same machine saves valuable floor space. Users can target the chest, back and shoulders with assistance, or not.

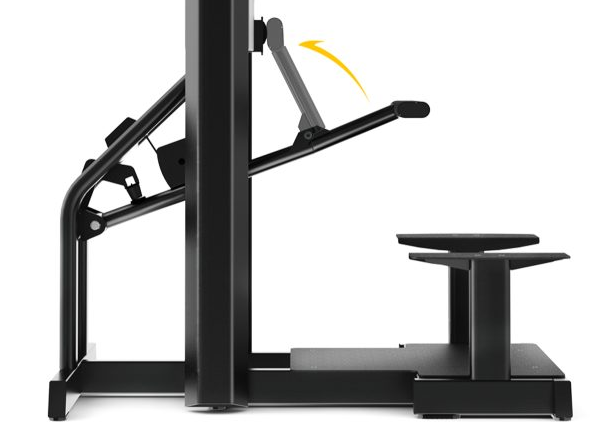

WEIGHT ASSIST BAR
The weight assist bar can pivot away for body weight exercise or is available for users who need a little help.

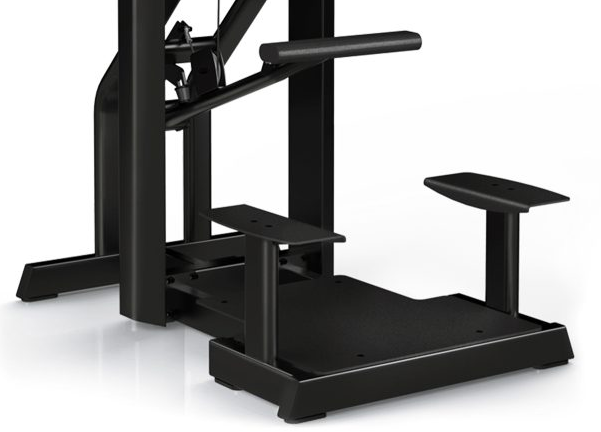

SURE FOOTING
Textured platforms and weight assist bar help ensure secure foot placement.
