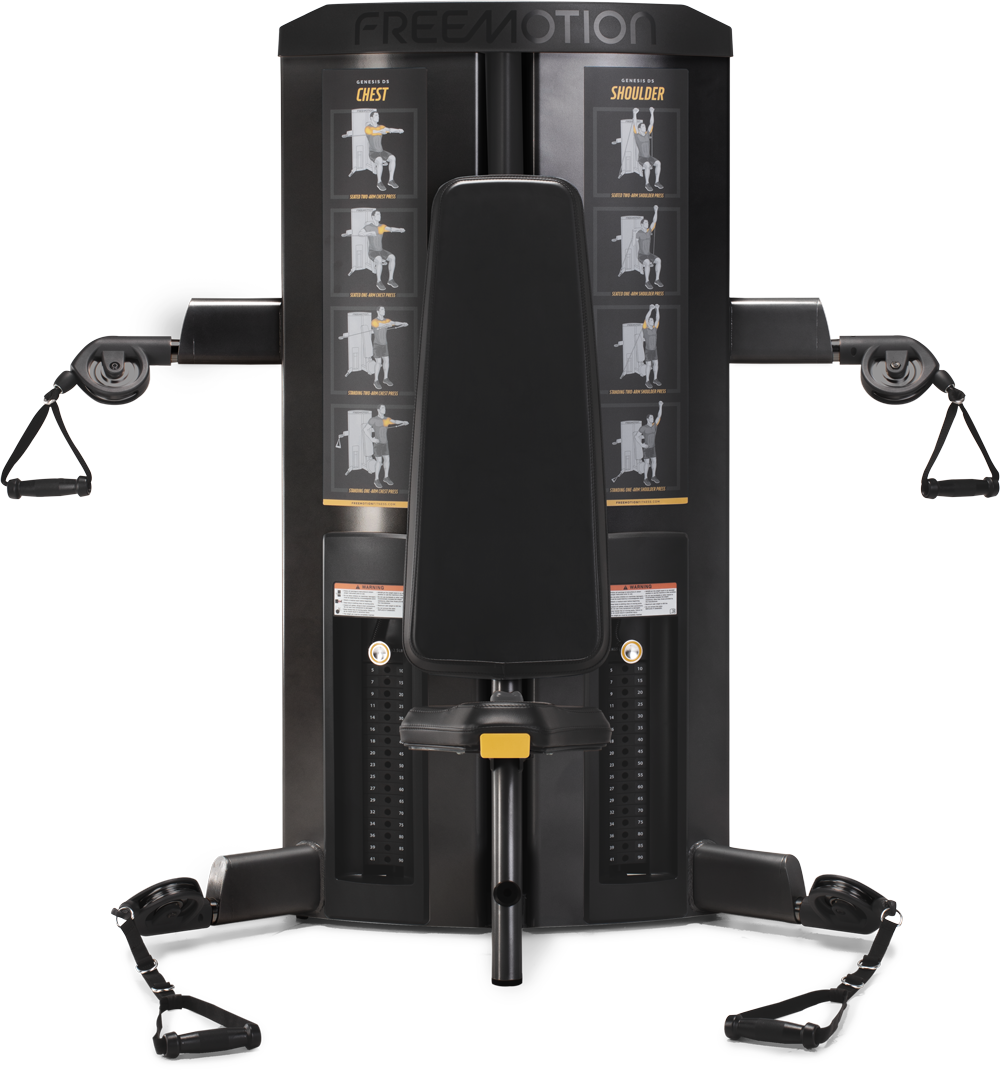

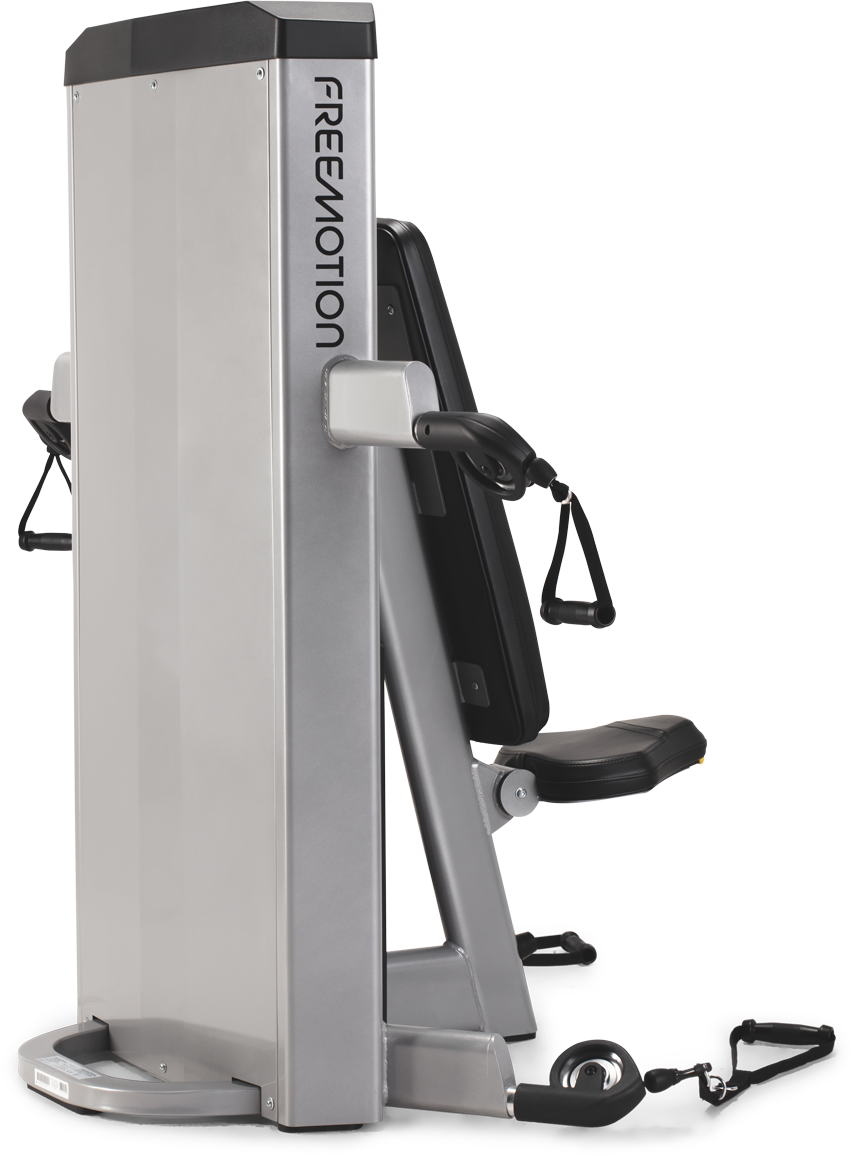

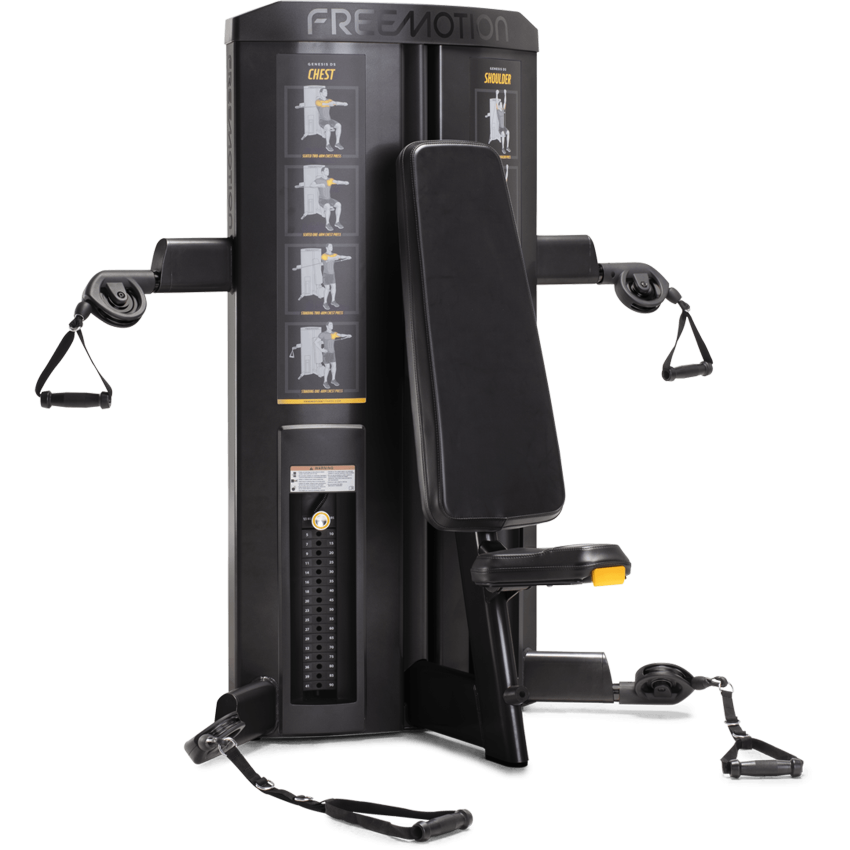

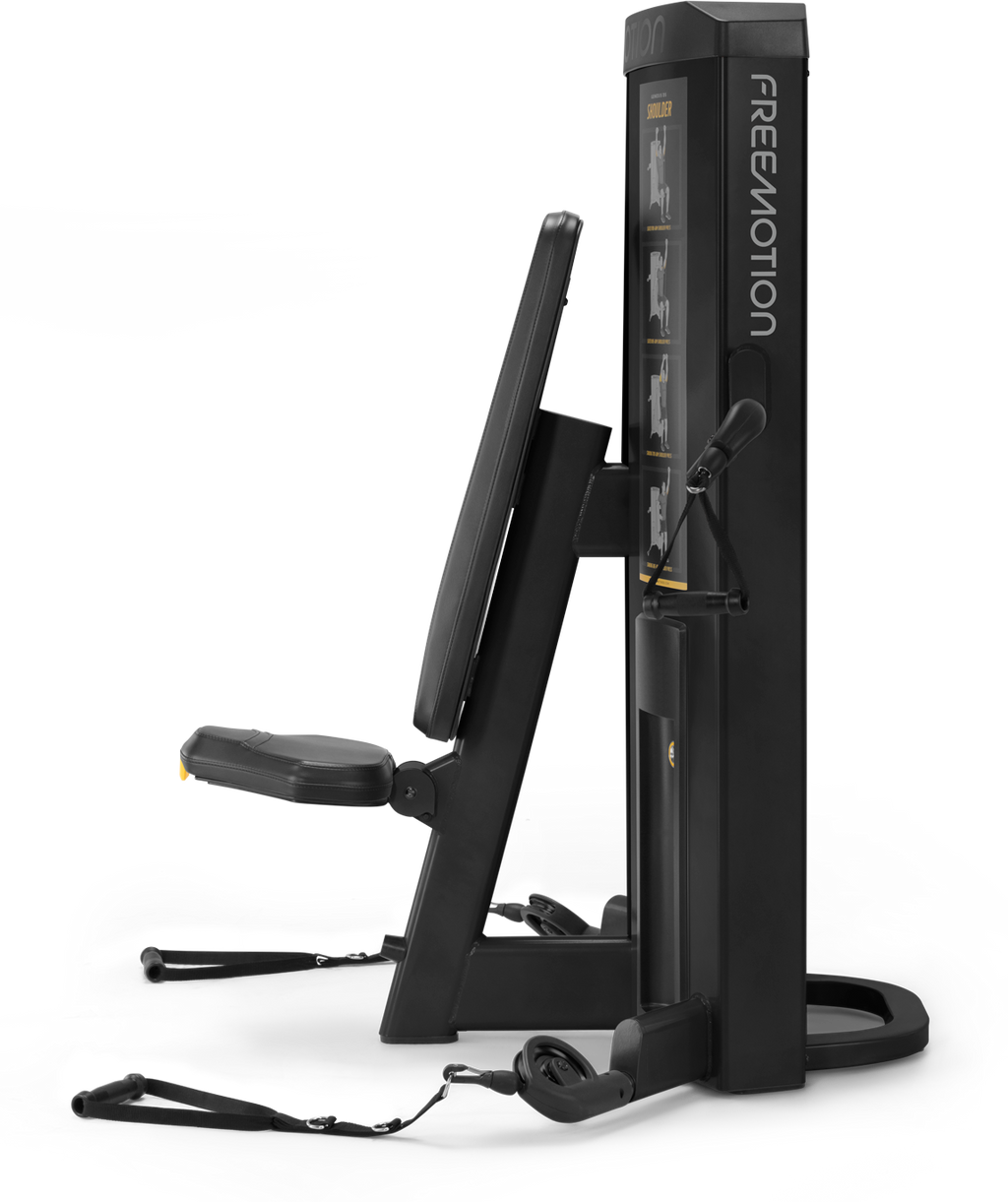

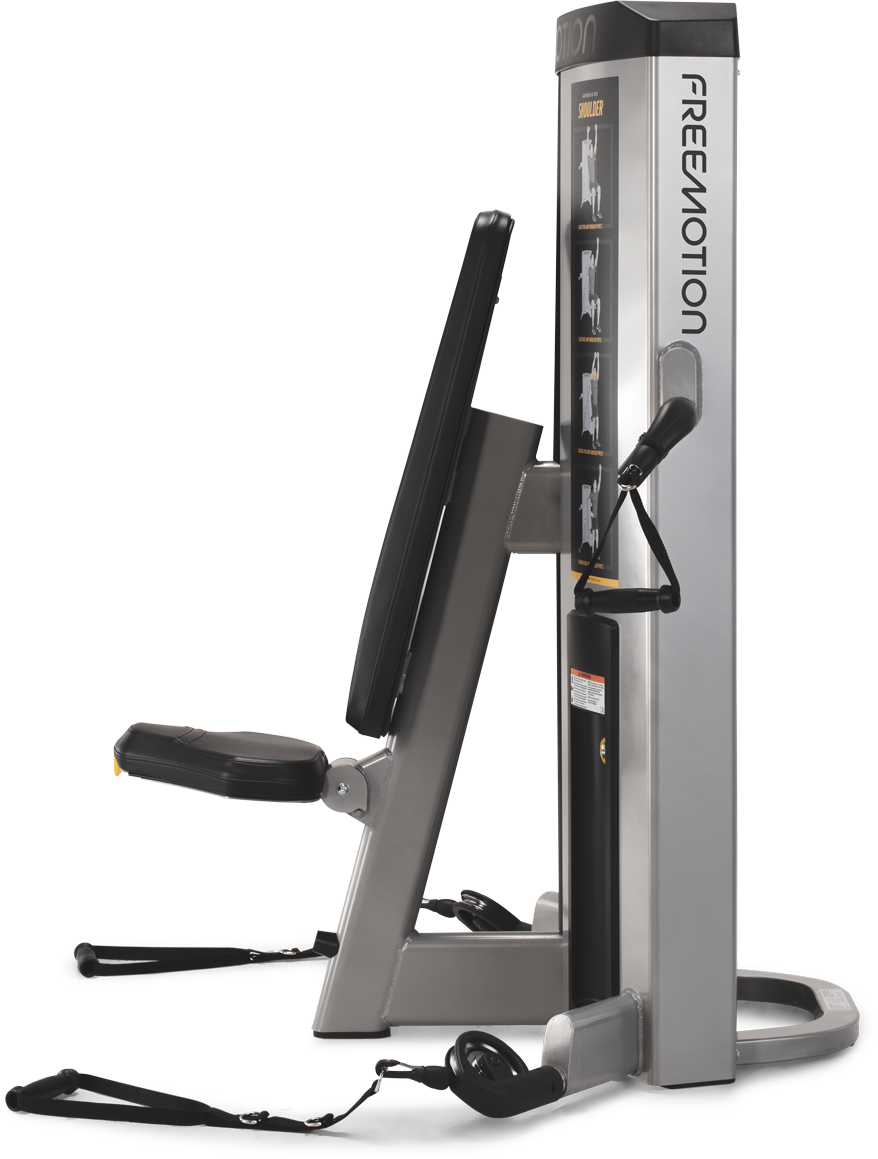

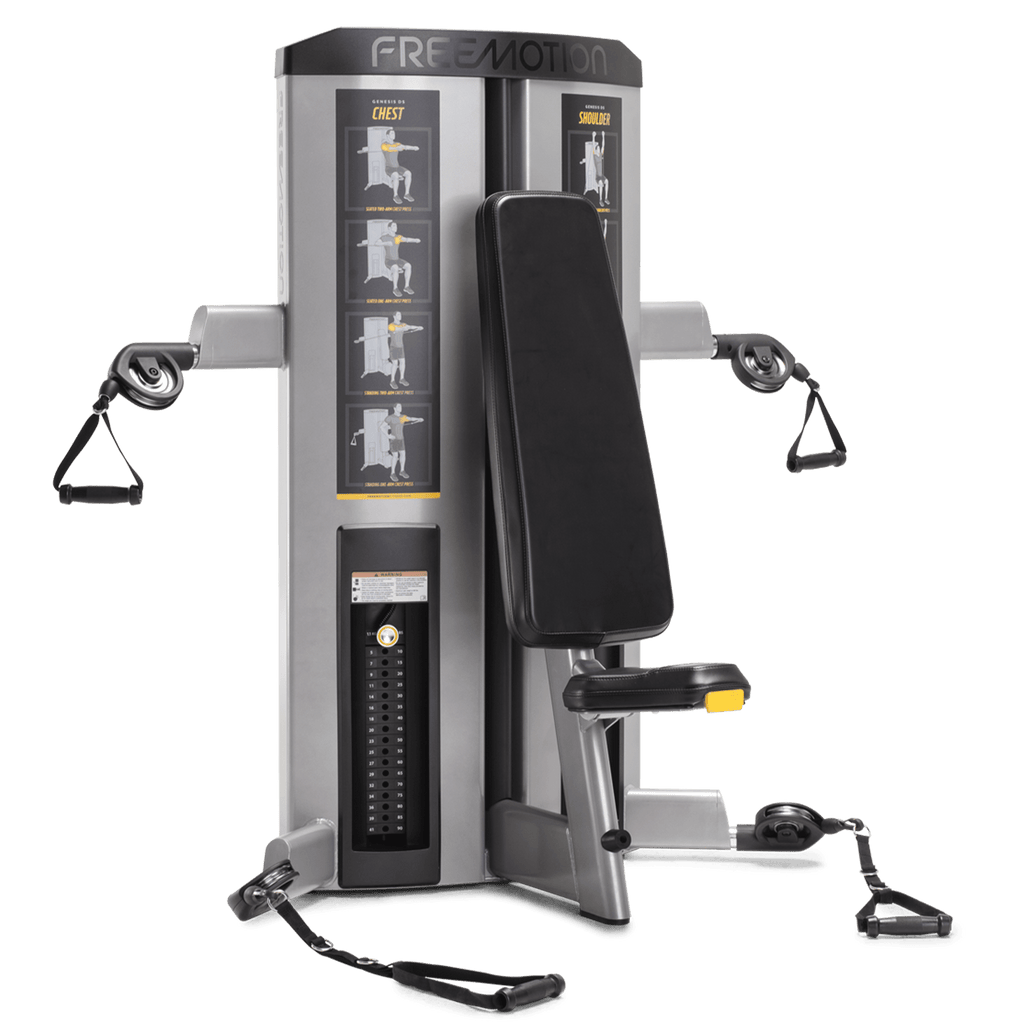

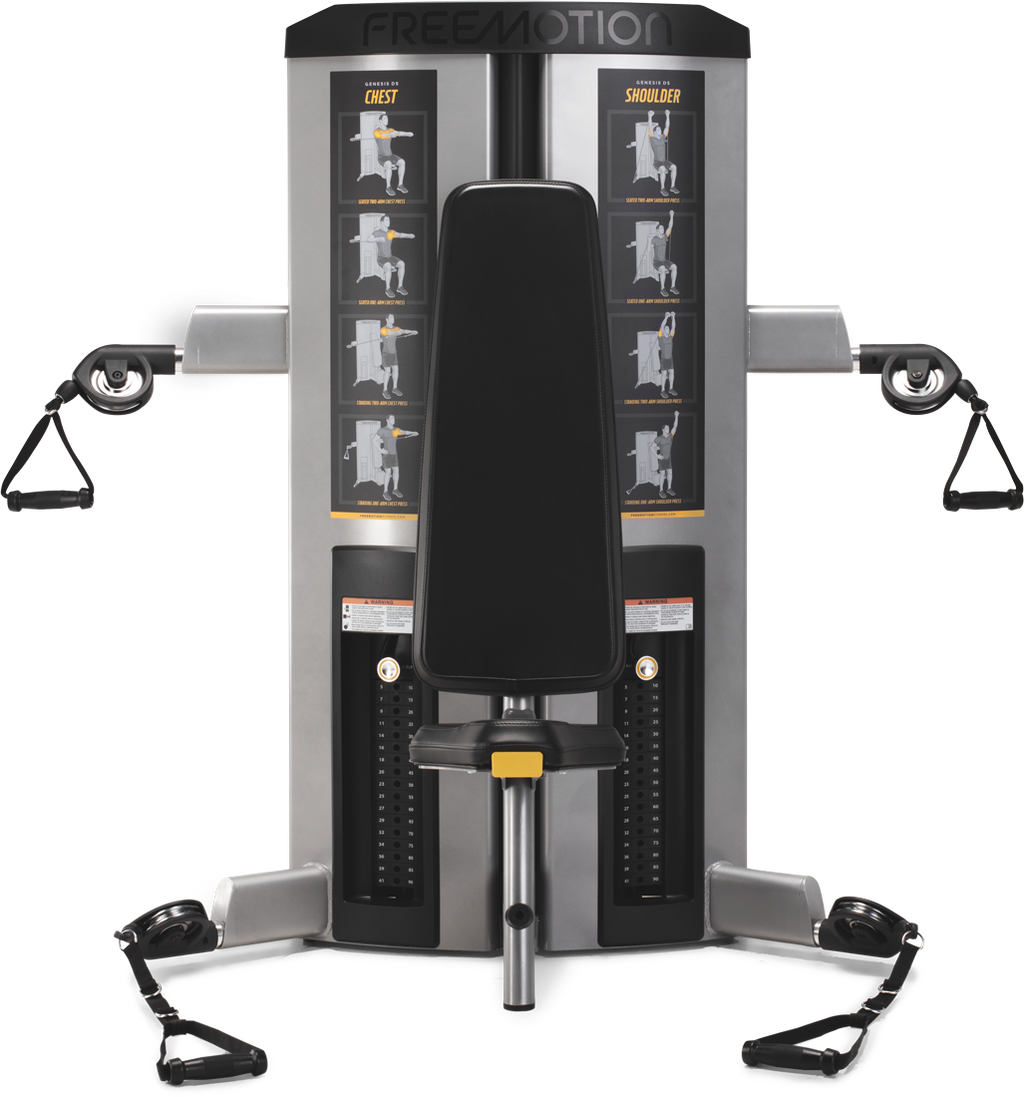

CHEST / SHOULDER
GD500
The GENESIS DS™ Chest/Shoulder optimizes a facility's floorspace by offering two exercise options in one machine. The Chest/Shoulder machine is built with an elegant design making transitioning to different
exercises a breeze. Dual weight stacks and handles that move independently allow for single and alternating arm exercises while the swiveling pulleys provide fluid cable travel.
additional features
Specify the Intensity
Whether rehabbing an injury or training opposing actions, each handle is
tethered to its own weight stack to dial in the resistance.
Enclosed Weight Stacks
The weight stacks are enclosed to limit access to moving parts for safety.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Padded, Contoured Seat
The seat features contoured padding for a comfortable fit.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Pivot seat pad for standing chest/shoulder movements
Resistance
1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg
Seat
Vinyl with 2 in / 5 cm thick foam
Pulleys
Aluminum swivel pulleys
Cable Travel
72 in / 182.8 cm per arm
Rubber Feet
Soft PVC
Maximum User Weight
400 lb / 181.4 kg
Americans with Disabilities Act (ADA)
Wheelchair Accessible
Product Specifications
Weight Stack
QTY 2 – 180 lb / 81.6 kg weight stacks
Drop Down Weight
N/A
Weight Stack Configuration
2 – 10 lb top plates, 34 – 10 lb plates
2 – 4.5 kg top plates, 34 – 4.5 kg plates
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Product Dimensions & Weight
Dimensions L x W x H
47 x 64 x 64 in / 119.3 x 162.5 x 162.5 cm
Weight
609.5 lb / 276.5 kg
Shipping Dimensions
Box 1: 51.9 x 36.2 x 75.6 in / 132 x 91.9 x 192.2 cm
Box 2: 48.8 x 14.9 x 3.9 in / 124 x 37.9 x 10 cm
Shipping Weight
734.3 lb / 337.2 kg
Certifications
EN957,CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

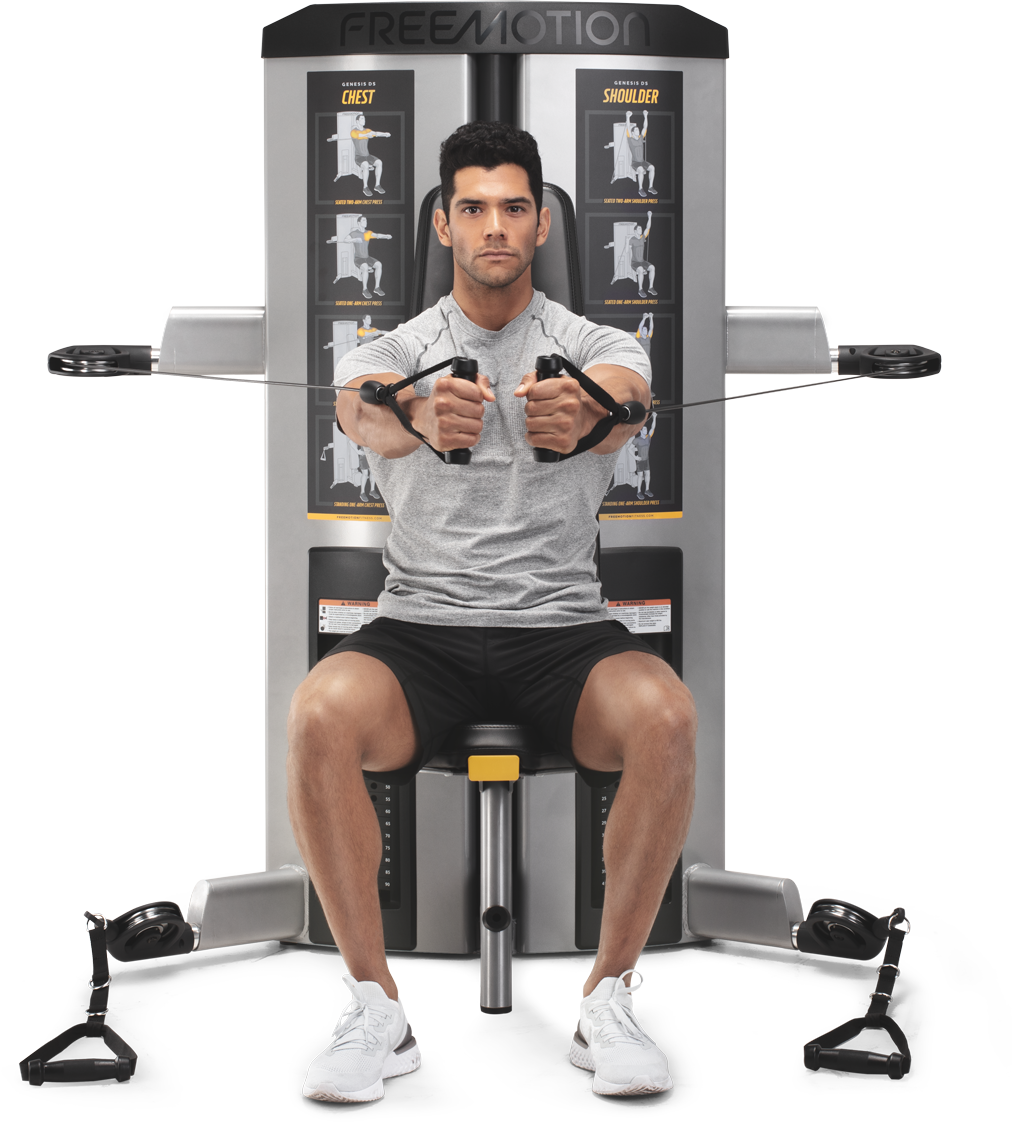

DUAL STATIONS
Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic
training.

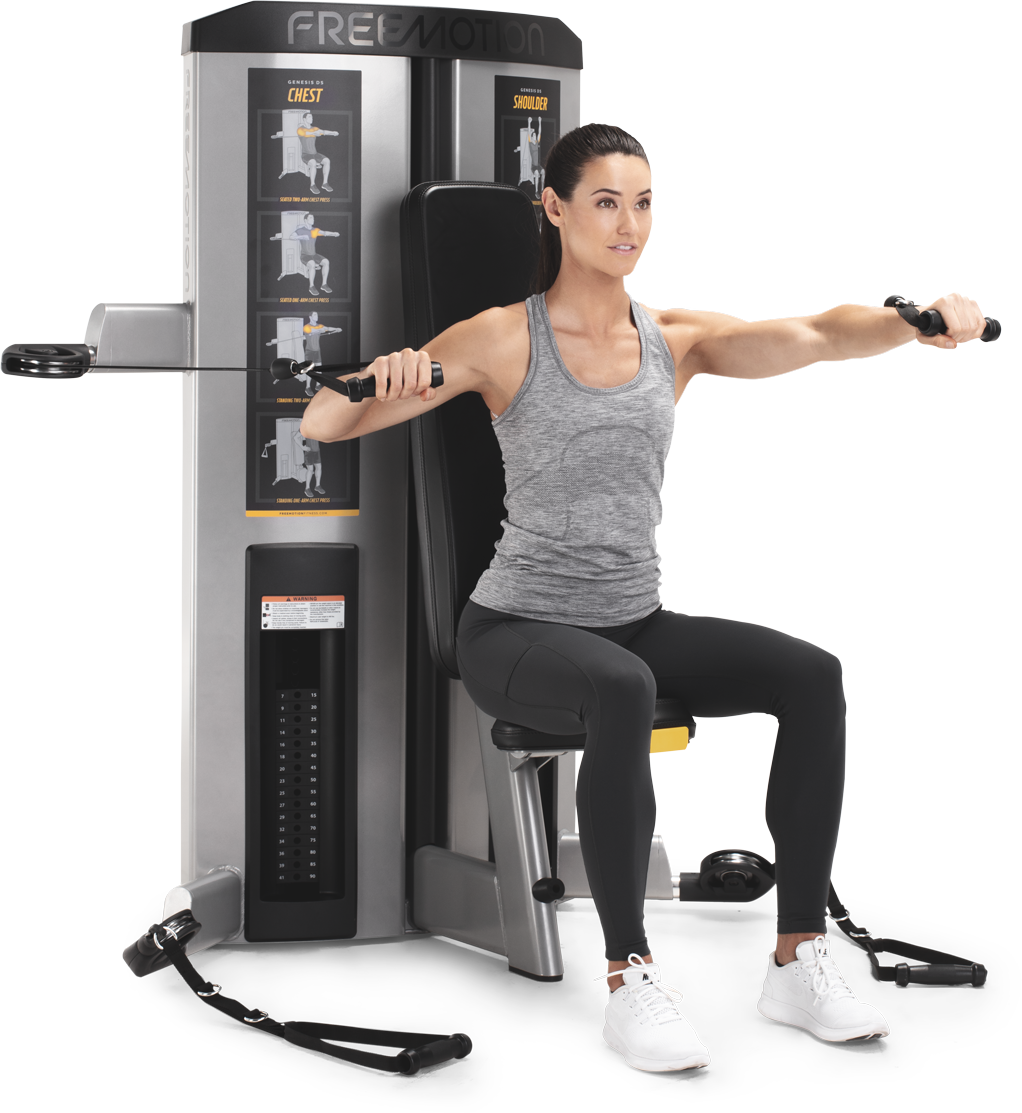

MOVEMENT VARIETY
Handles move independently for single and alternating arm exercises.

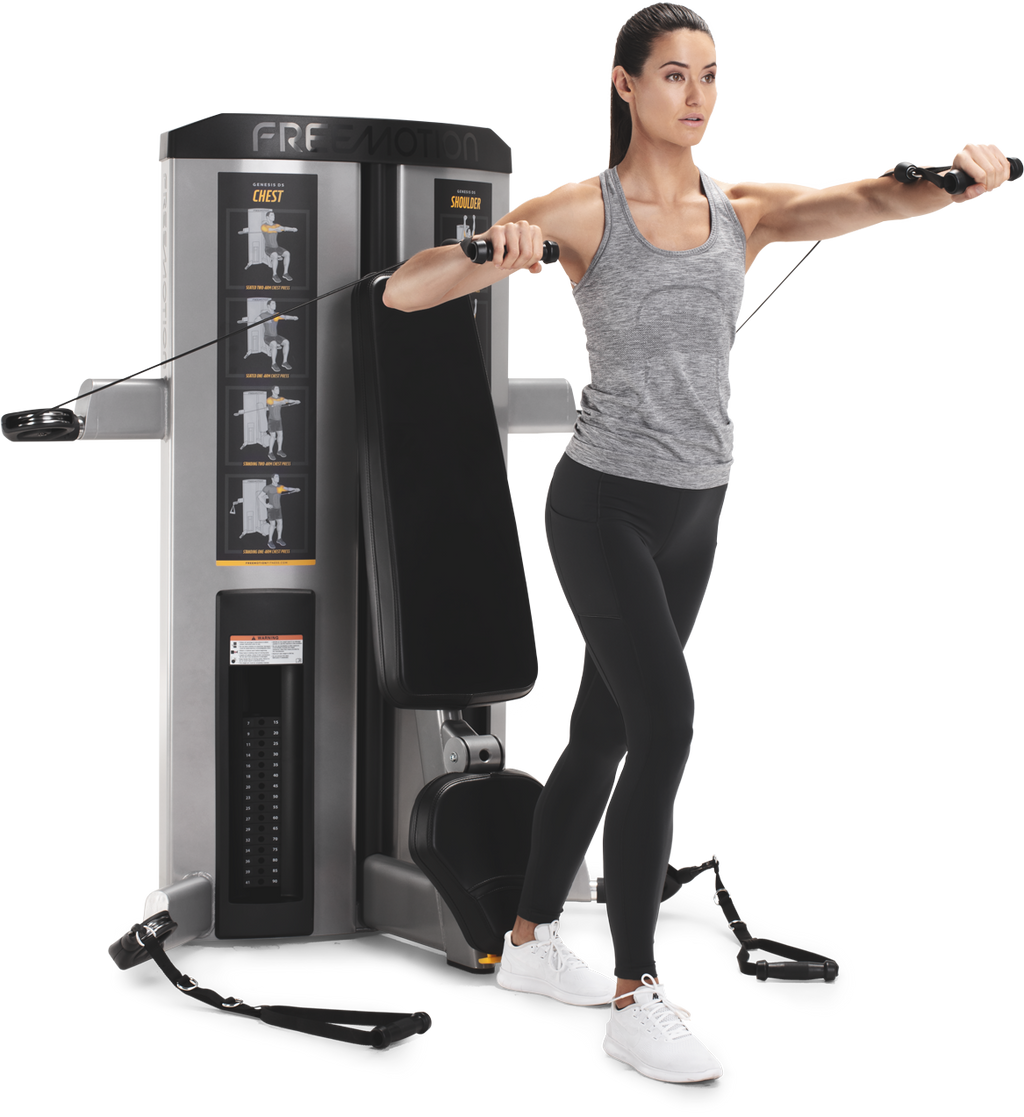

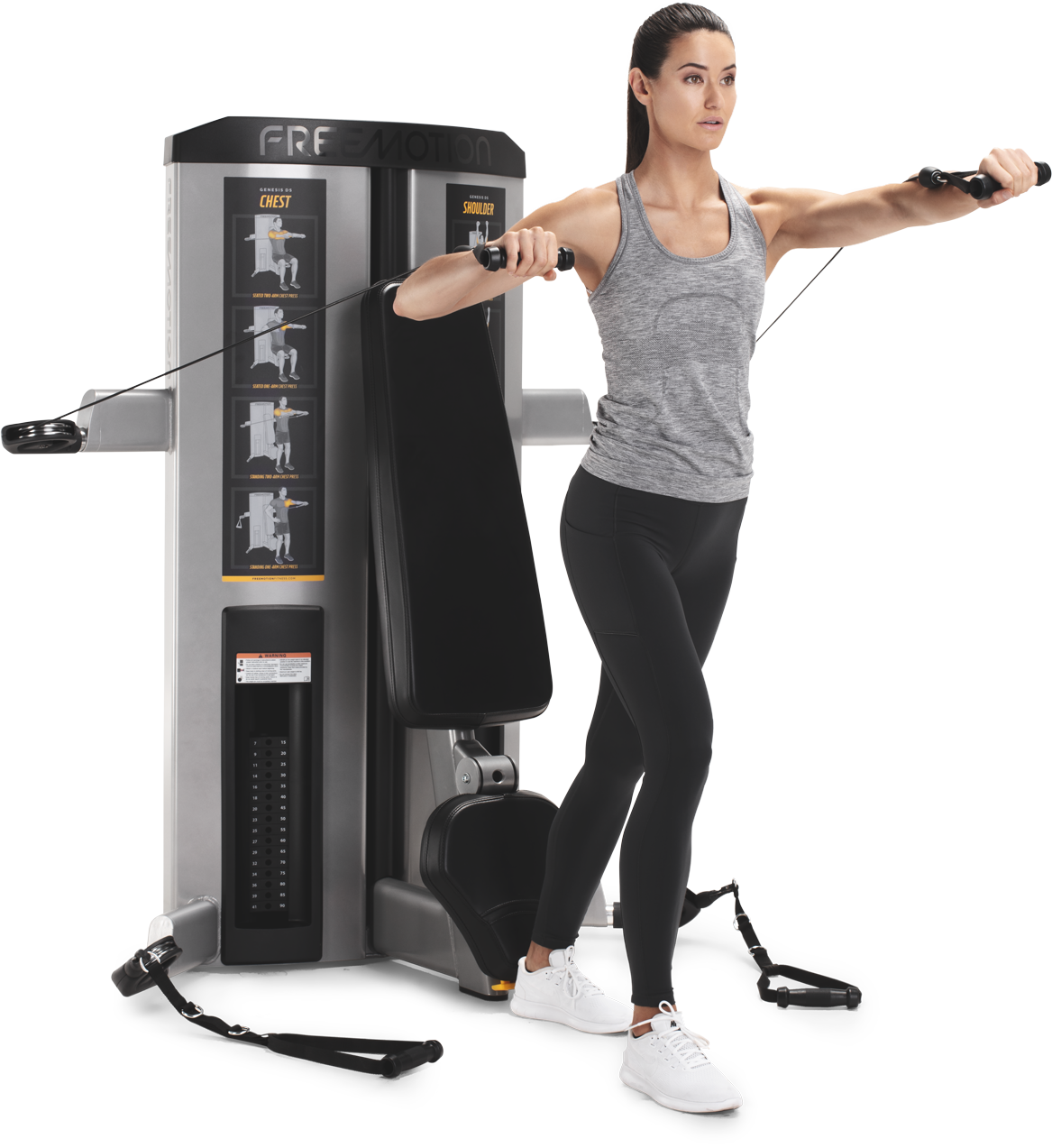

ISOLATION TO INTEGRATION
Users have the option to keep the seat engaged to isolate the lower body. Simply fold the seat away to integrate more muscle groups while standing.
