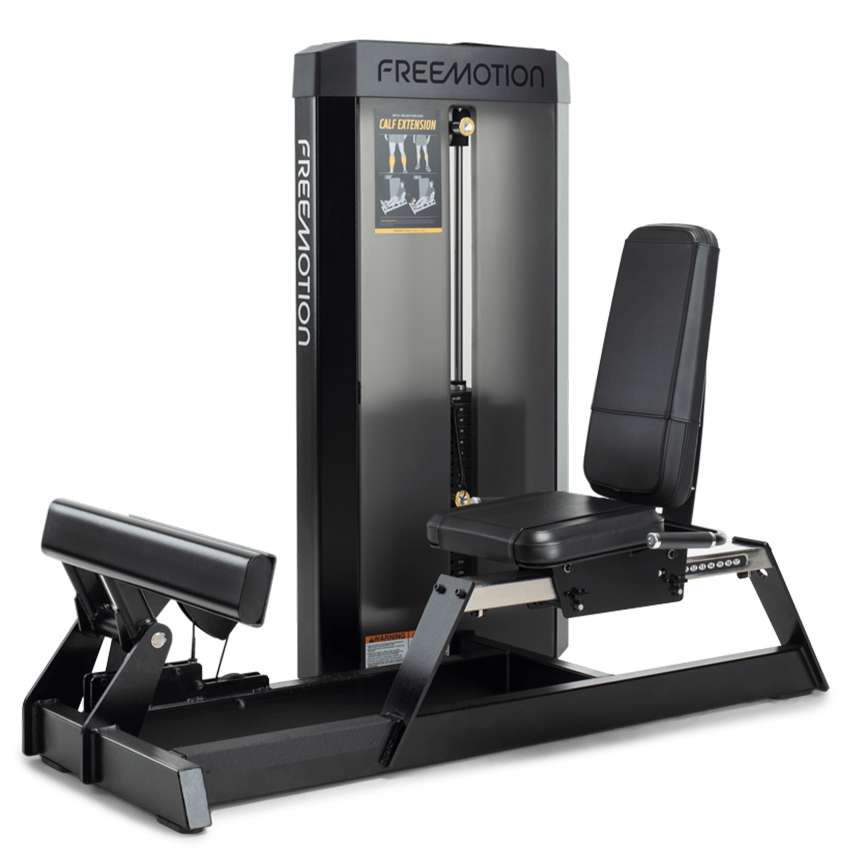

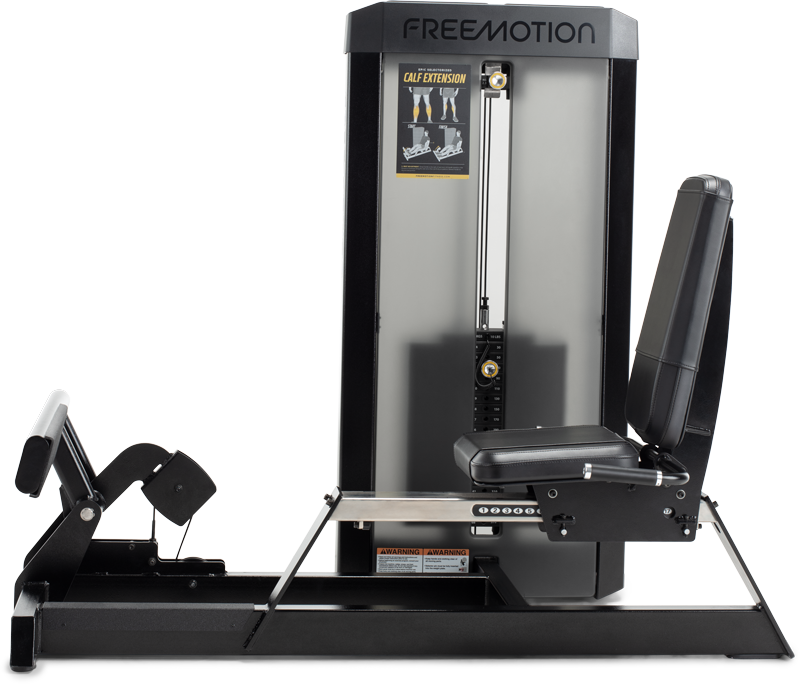

CALF EXTENSION
ES813

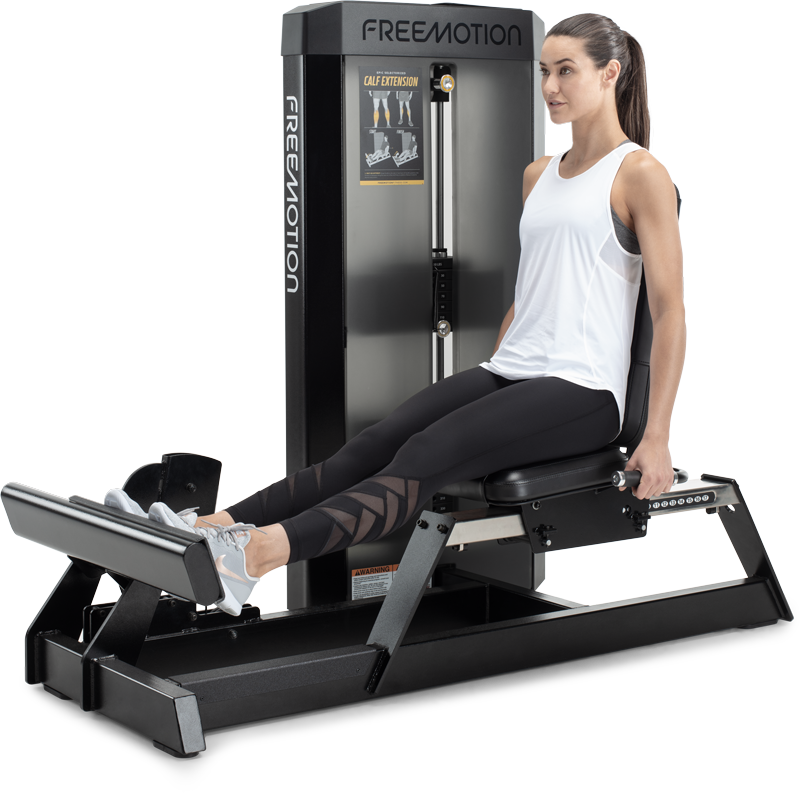

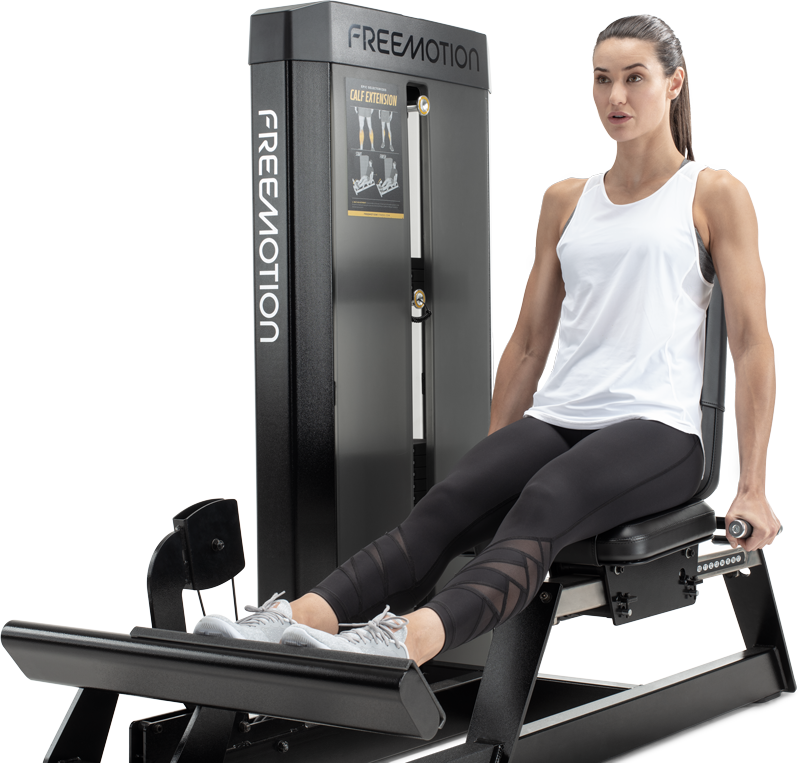

Comfortably isolate the effort on the calves with the support of the adjustable, comfort-padded seat. The EPIC Selectorized Calf Extension features a textured foot bar for sure-footed movement. Seat adjusts to fit users of varying heights.
additional features
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Multiple Seat Adjustments
Resistance
375 lb / 170 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
375 lb / 170 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plaste
20-190 x 10 lb / 4.5 kg
200-370 20 lb / 9 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Colo
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black

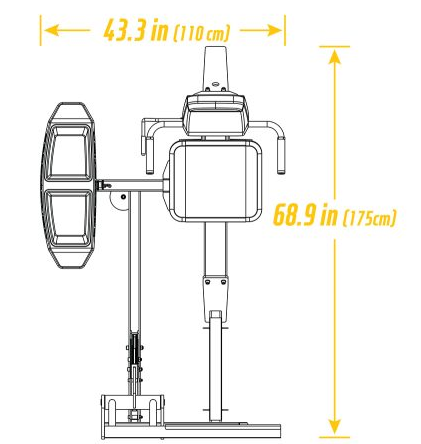

Product Dimensions & Weight
Dimensions L x W x H
68.9 x 43.3 x 57.8 in / 175 x 190.9 x 146.8 cm
Footprint
68.9 x 43.3 in / 175 x 190.9 cm
Maximum workout area
68.9 x 43.3 in / 175 x 190.9 cm
Weight
705.4 lb / 320 kg
Shipping Dimensions
Box 1: 74 x 37.4 x 44 in / 187.9 x 94.9 x 111.7 cm
Box 2: 42.5 x 15.3 x 3.5 in / 107.9 x 38.8 x 8.8 cm
Shipping Weight
Box 1: 820.1 lb / 371.9 kg
Box 2: 20 lb / 9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

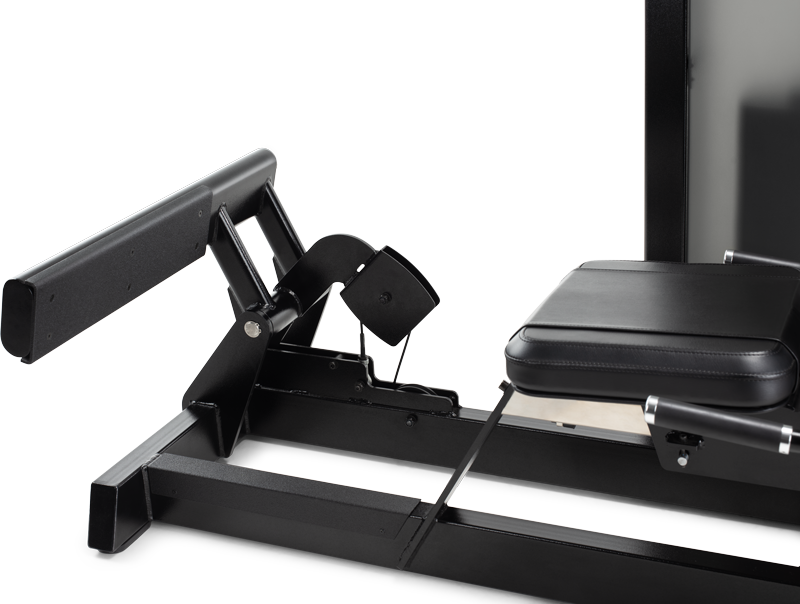

SURE FOOTING
Training multiple muscle groups on the same machine. Textured foot bar helps ensure secure foot placement even under heavy loads.

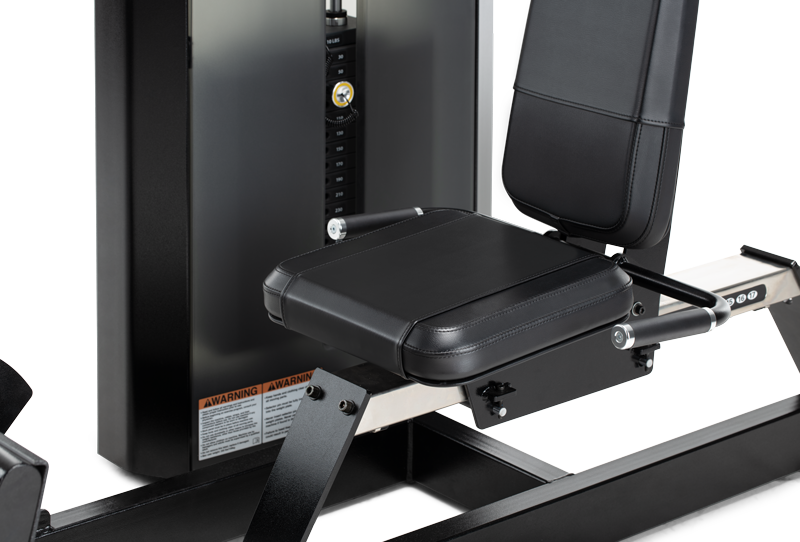

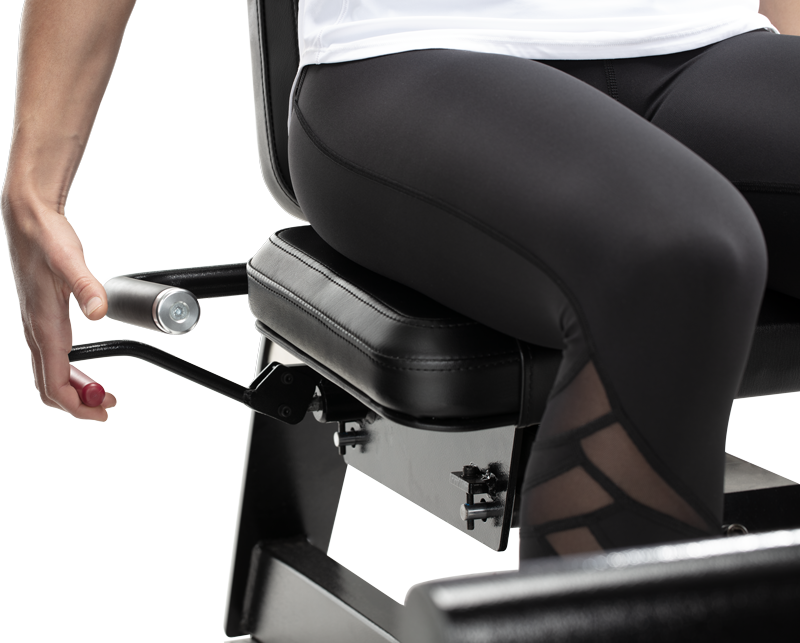

COMFORTABLE BY DESIGN
Seat assembly is contoured, padded, and adjusts for precise fit.
LOW PROFILE WEIGHT STACK
Approachable, compact design also features accessory trays so users can keep their essentials within reach.
