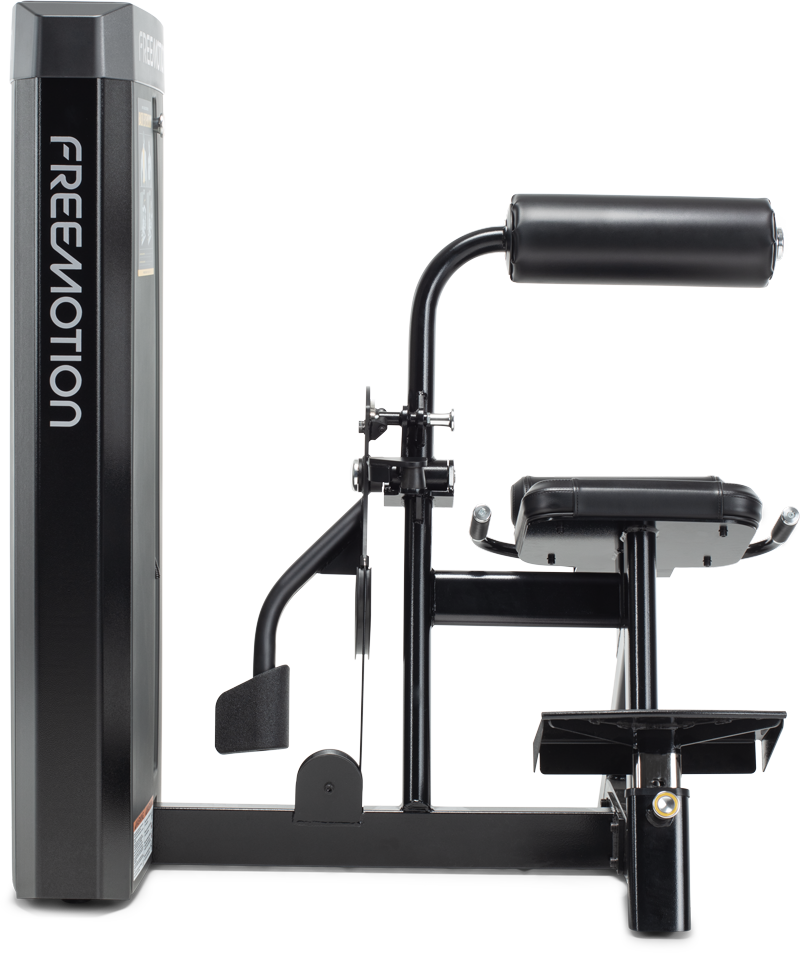

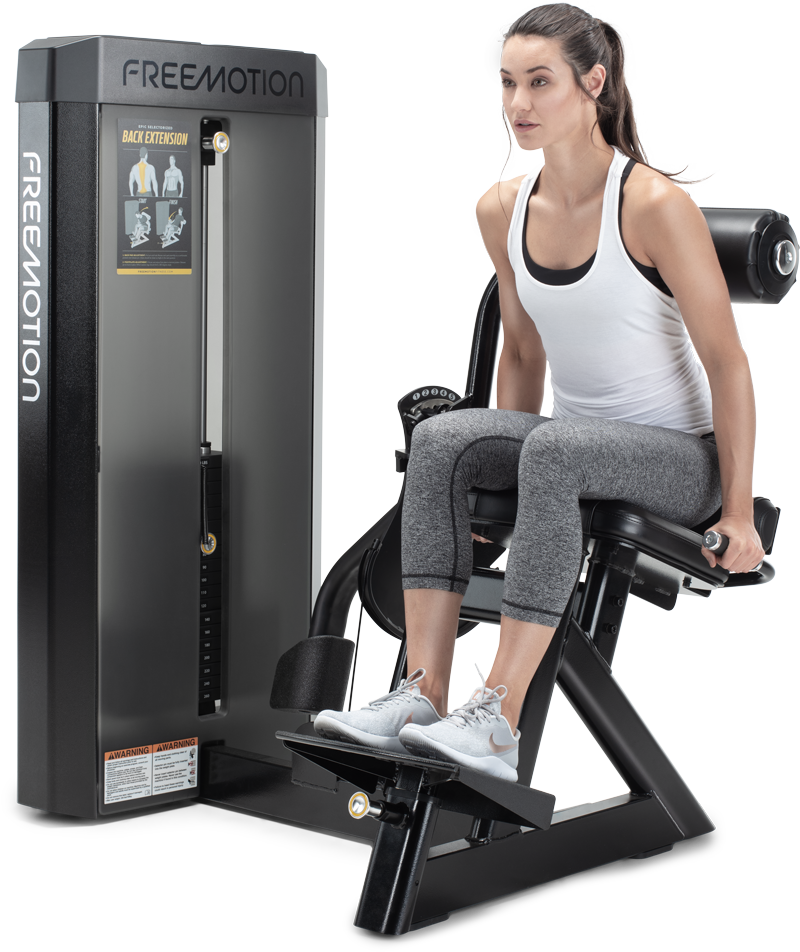

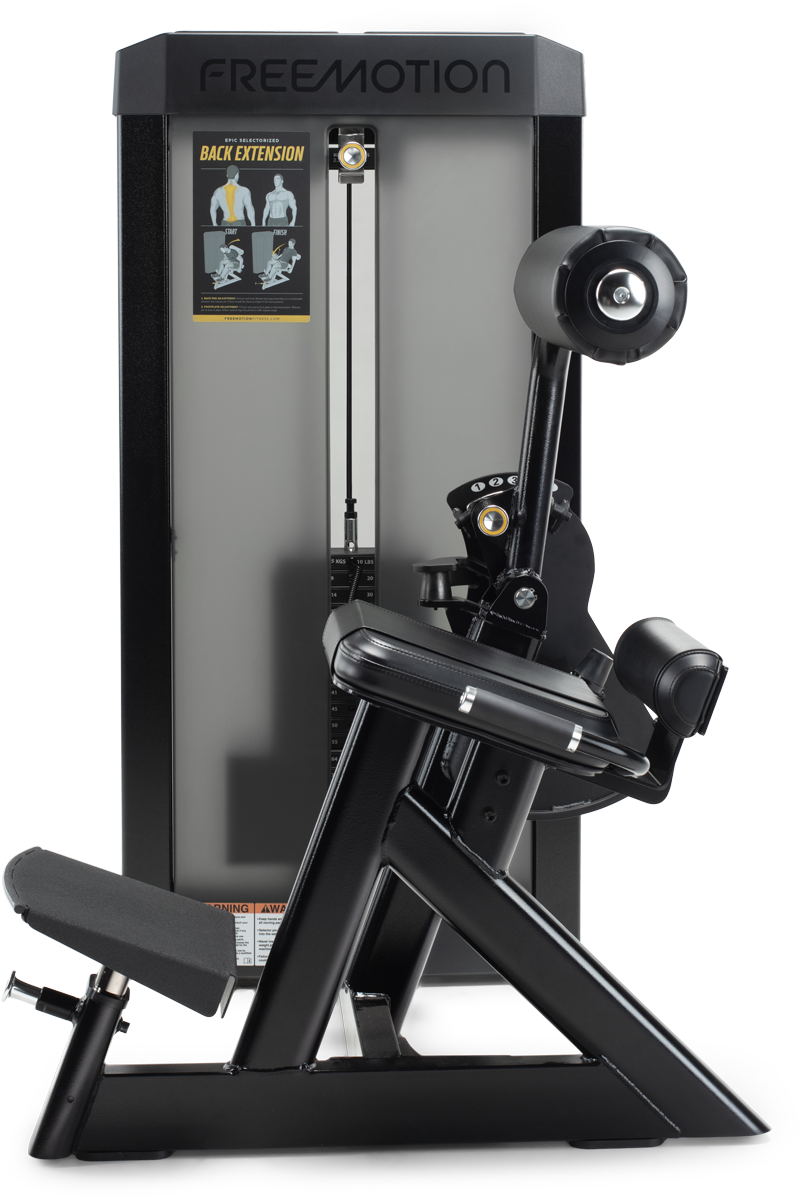

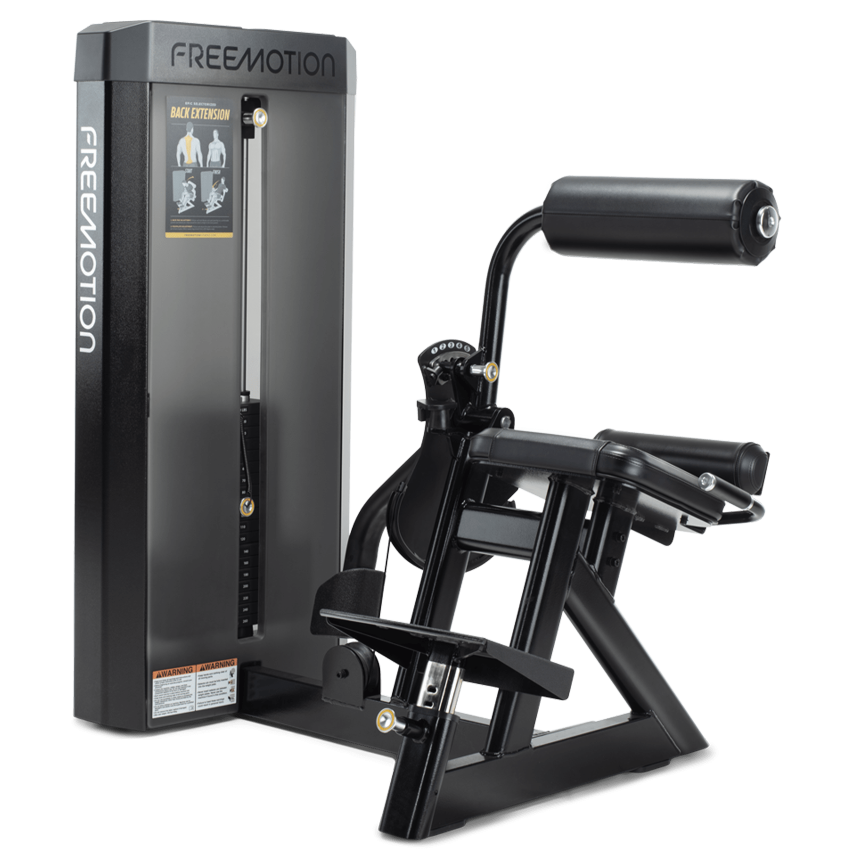

BACK EXTENSION
ES815
Strengthening the lower back is essential for engaging in life and sport. Users can build strength in the posterior chain with the EPIC
Selectorized Back Extension's lower body isolation and comfortable support. Adjustable platform allows for secure foot placement under heavy loads.
additional features
Convenient Accessory Storage
Users can keep their essentials close at hand with accessory trays at the top of the weight stack.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Adjustable Back Pad and Foot Plate Platform
Resistance
265 lb / 120 kg
Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
265 lb / 120 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-190 x 10 lb / 4.5 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight

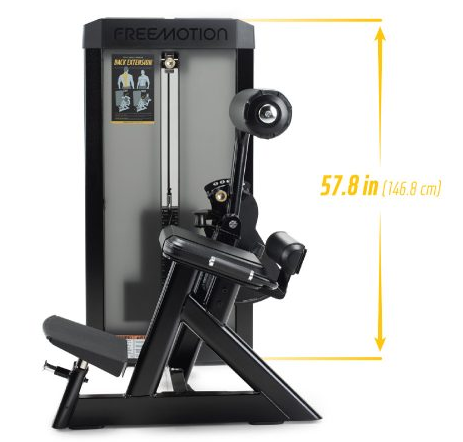

Dimensions L x W x H
53.4 x 66.4 x 57.8 in / 135.6 x 168.6 x 146.8 cm
Footprint
53.4 x 66.4 in / 135.6 x 168.6 cm
Maximum workout area
53.4 x 66.4 in / 135.6 x 168.6 cm
Weight
487.4 lb / 221.1 kg
Shipping Dimensions
Box 1: 75.9 x 27.1 x 40.9 in / 192.7 x 68.8 x 103.8 cm
Box 2: 31.1 x 22.4 x 7.4 in / 78.9 x 56.8 x 18.7 cm
Shipping Weight
Box 1: 617.2 lb / 279.9 kg
Box 2: 22 lb / 9.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

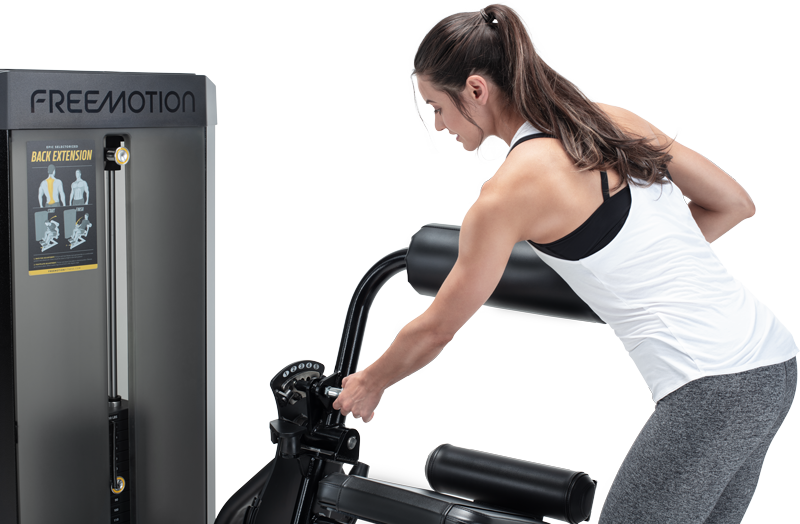

SET THE RANGE
Built to fit users of various sizes and abilities, the rolling back pad adjusts for their range of motion.
SURE FOOTING
Textured platform helps to secure foot placement when moving heavy loads.

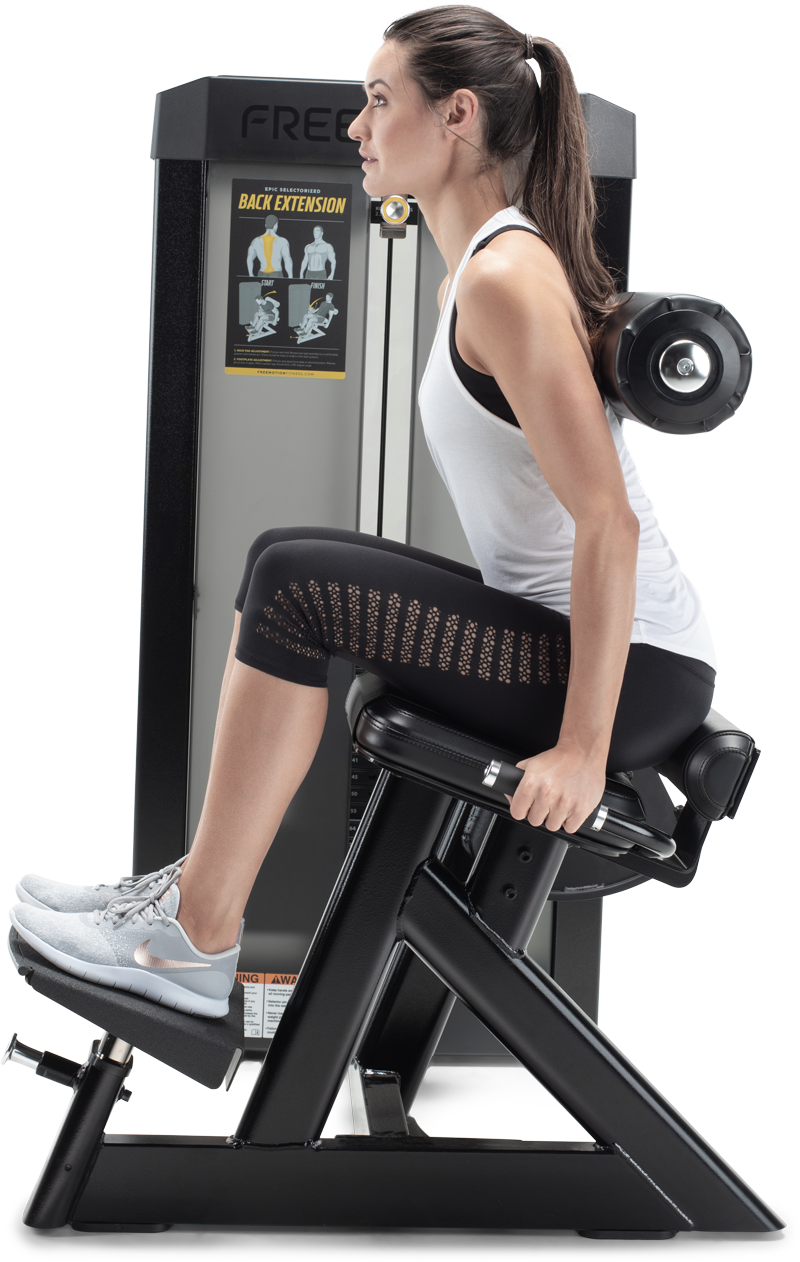

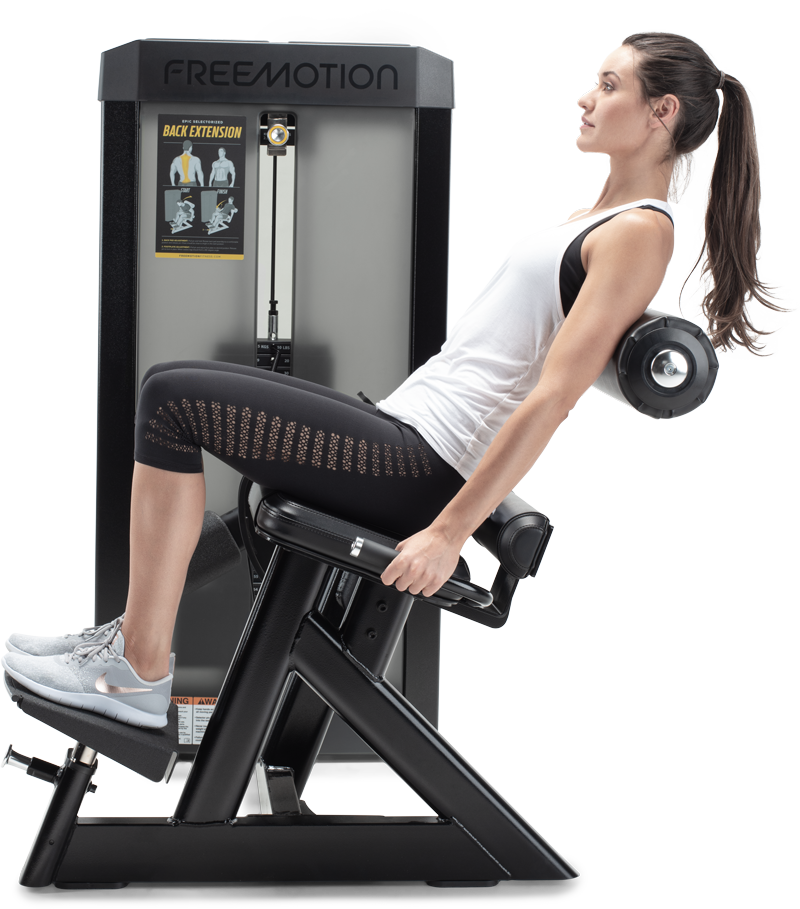

COMFORTABLE BY DESIGN
Rolling back pad moves with the user’s range of motion. Foot platform adjust for comfortable leverage.
LOW PROFILE WEIGHT STACK
Approachable, compact design also features accessory trays so users can keep their essentials within reach.
