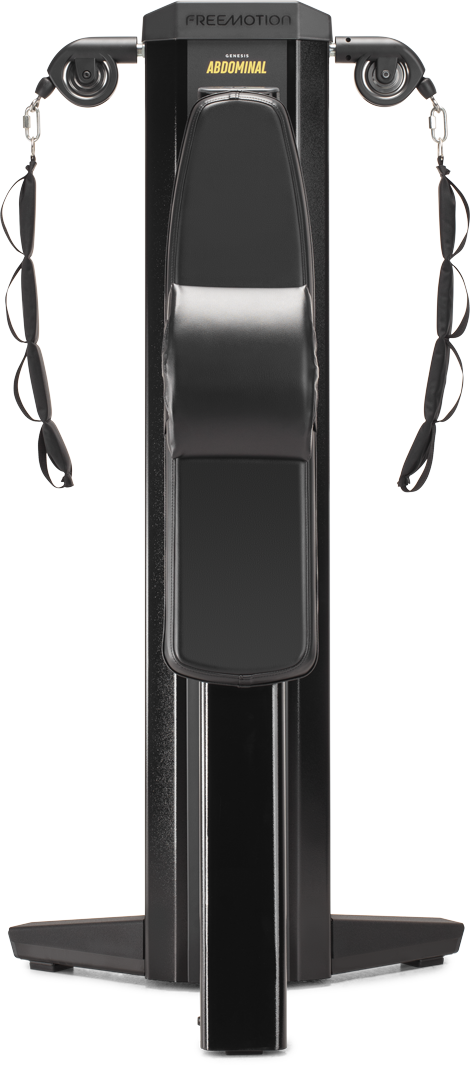

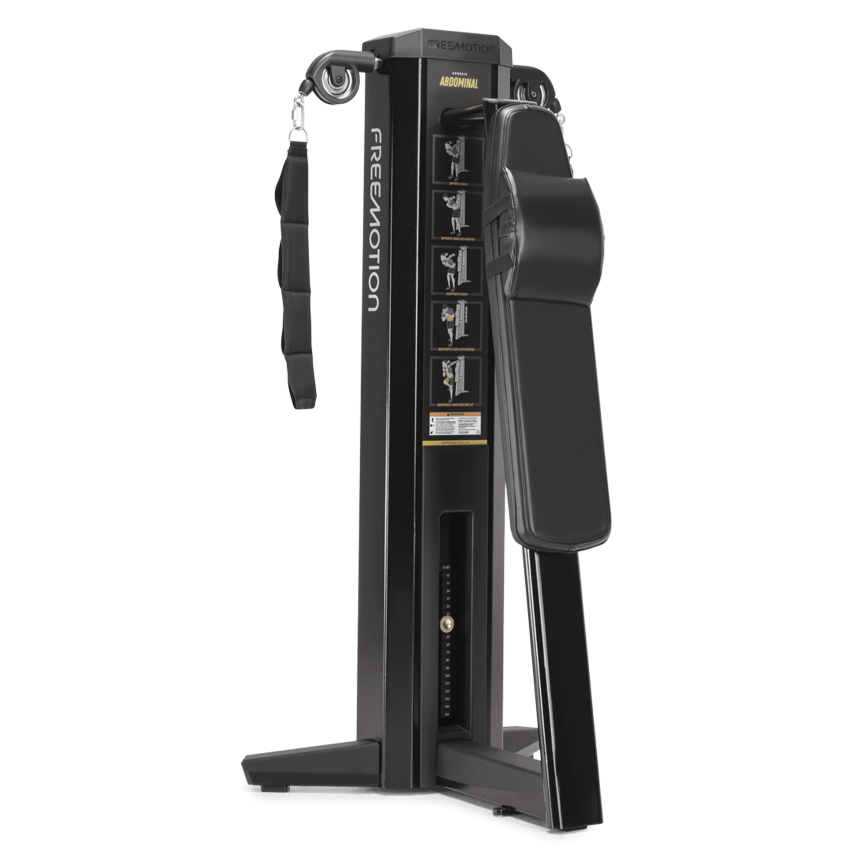

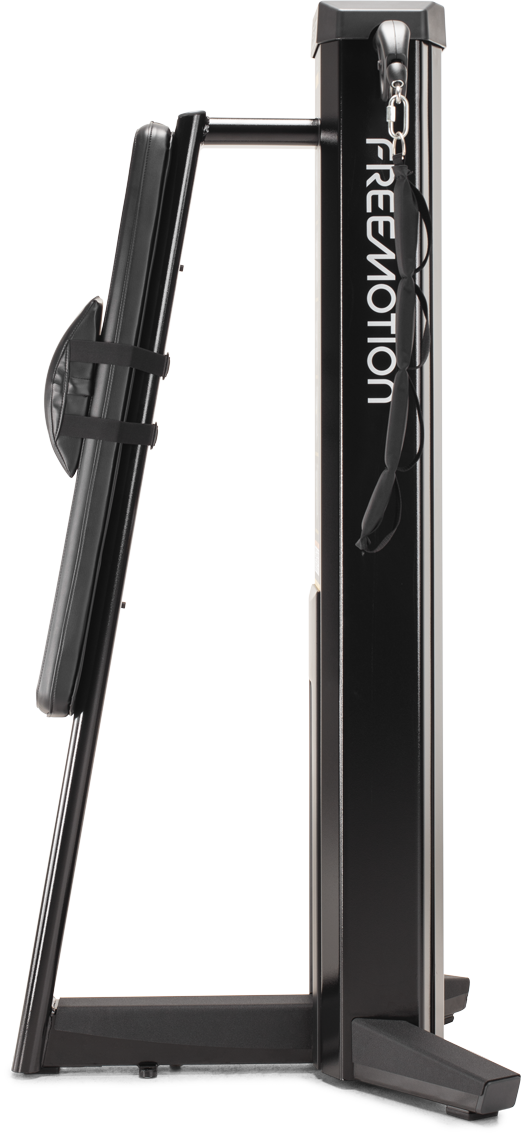

ABDOMINAL
G611

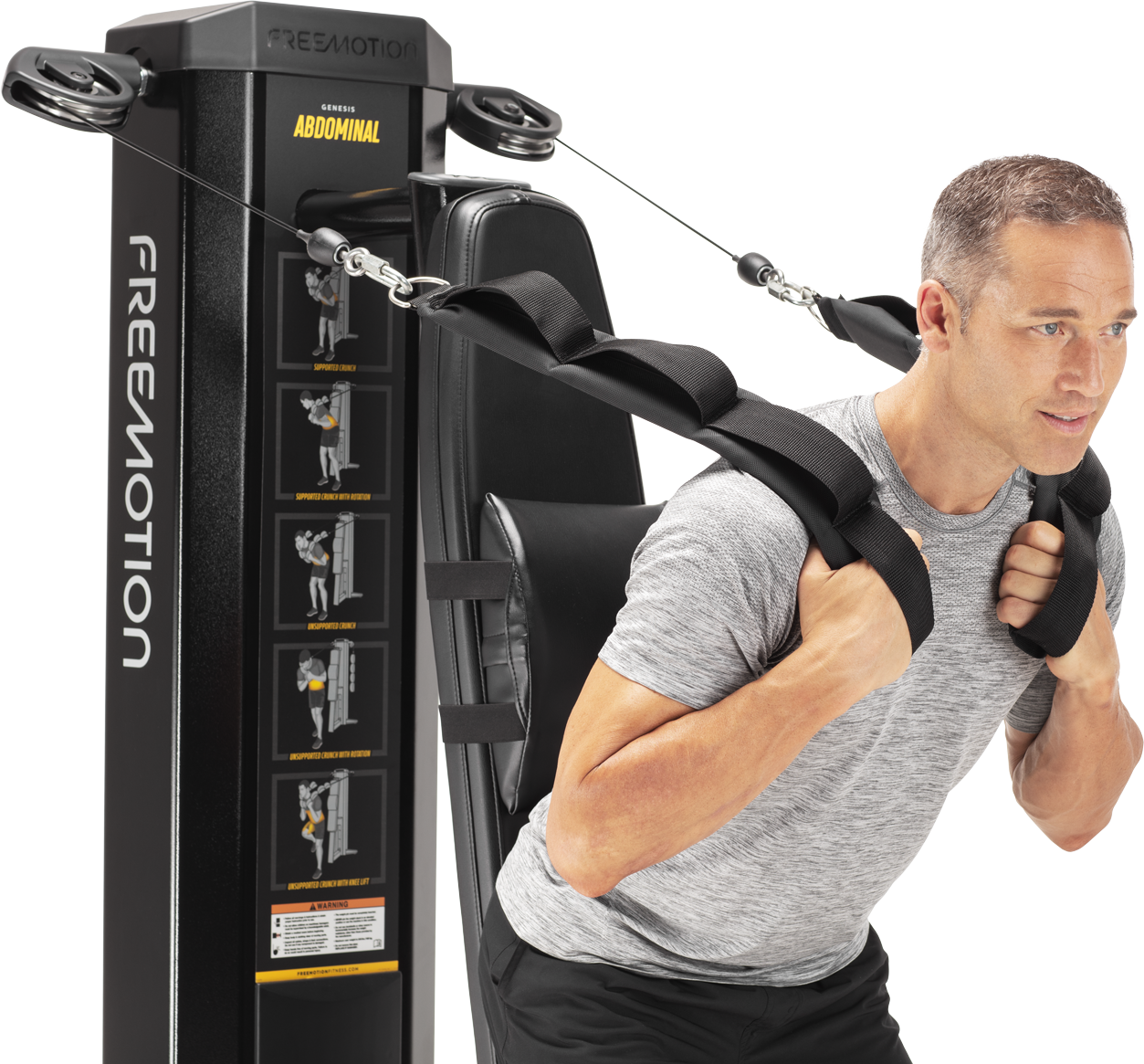

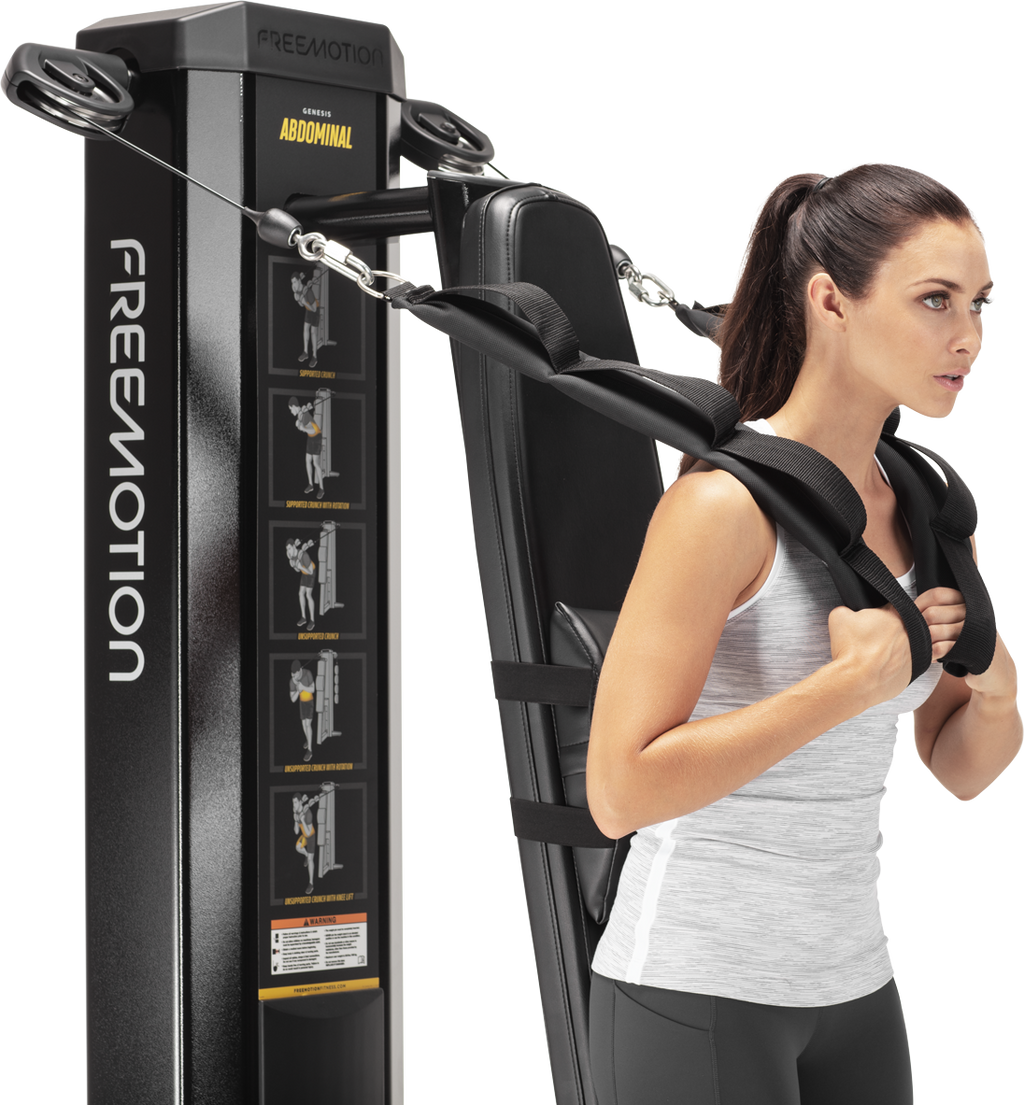

Swiveling pulleys and cable-based design gives users the freedom to move through their full range of motion. Arm straps move independently for unrestricted oblique and rotational movements and are padded for comfort under even heavy loads. The GENESIS™ Abdominal's simple, standing
design provides nearly unlimited options for multi-planar core work.
additional features
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Movement Variety
Handles move independently for single and alternating side exercises.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features

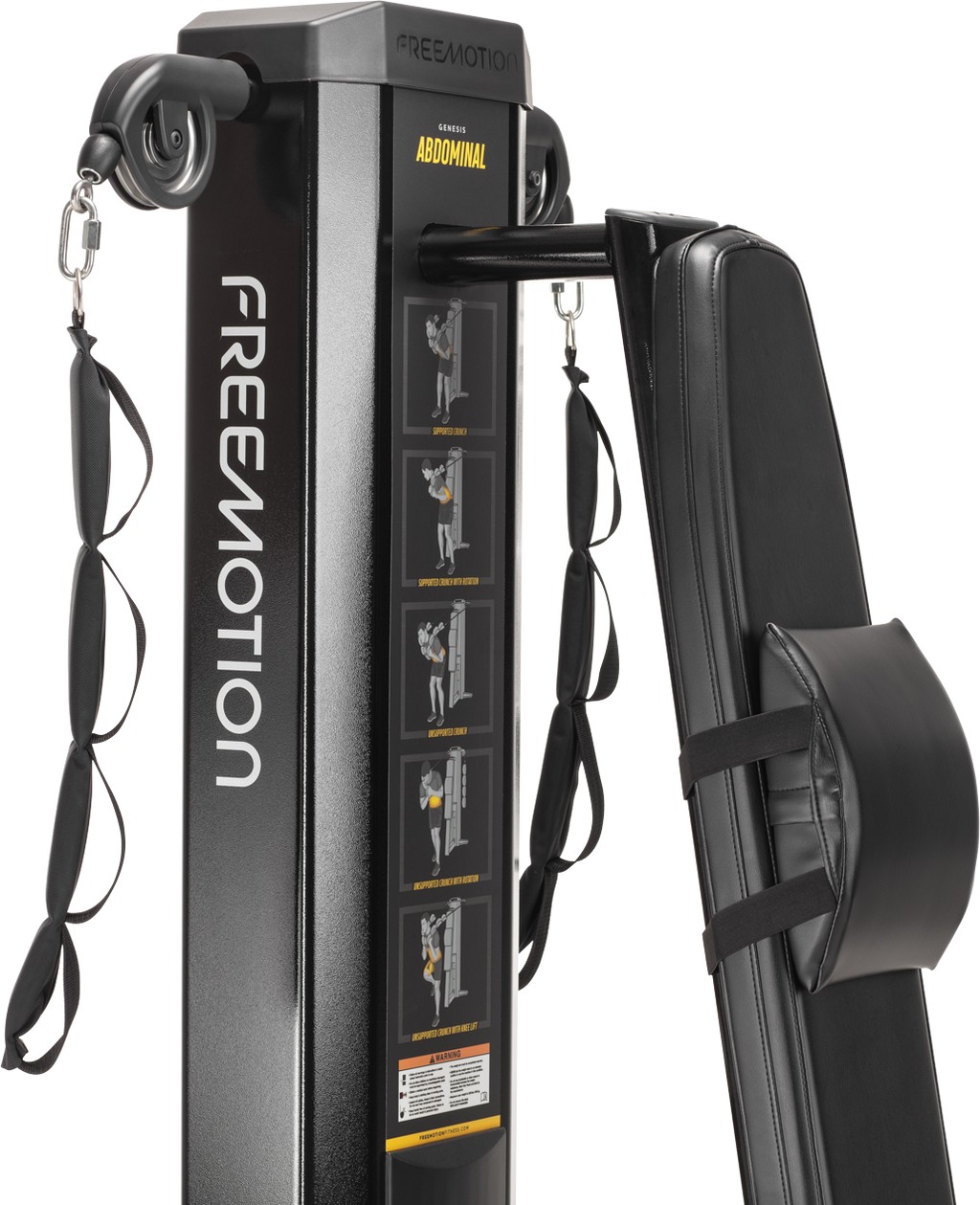

Instructional Placards
Yes
Adjustments
Lumbar Support
Resistance
1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg
Seat
1.5 in thick foam / Vinyl
Pulleys
Swivel pulleys
Cable Travel
2 arms: 42 in (106.6 cm)
Rubber Feet
Molded floor protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
Wheelchair Accessible
Product Specifications
Weight Stack
150 lb / 68 kg
Drop Down Weight
N/A
Weight Stack Configuration
5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg
Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color
Custom colors available upon request
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Product Dimensions & Weight

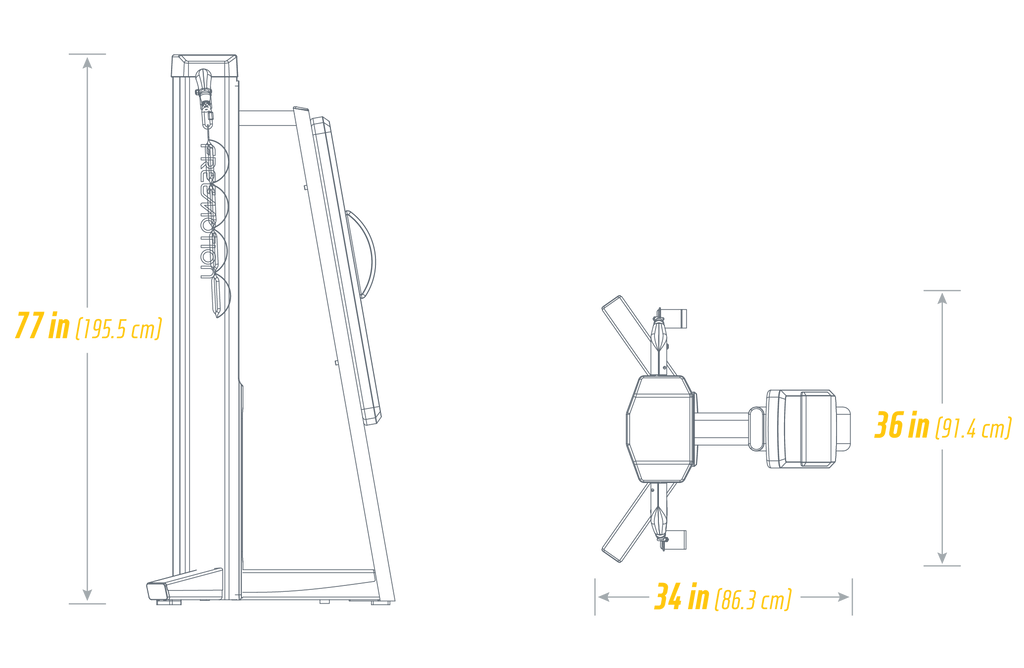

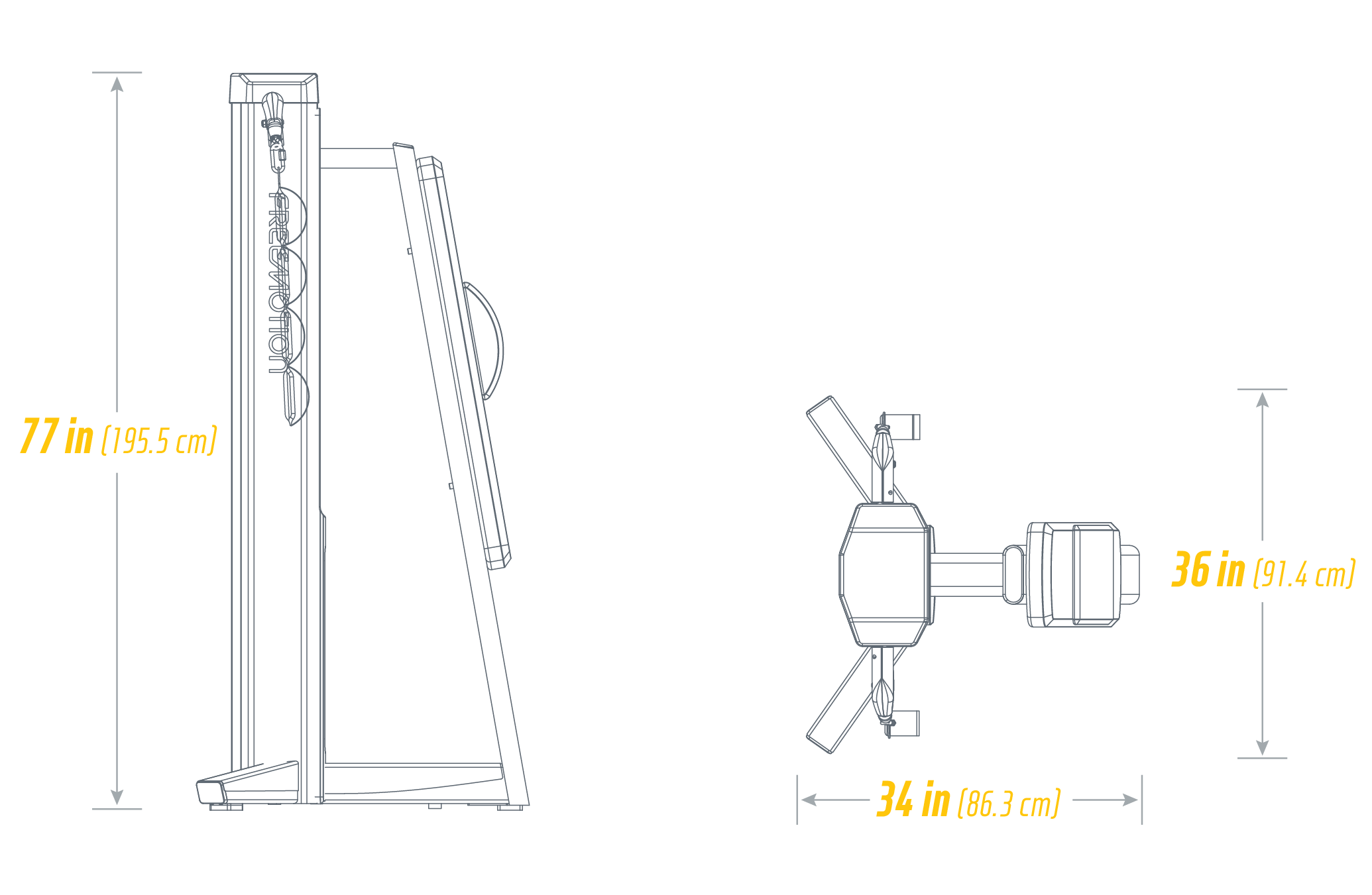

Dimensions L x W x H
34 x 36 x 77 in / 86.3 x 91.4 x 195.5 cm
Footprint
34 x 36 in / 86.3 x 91.4 cm
Weight
423 lb / 191.8 kg
Shipping Dimensions
36 x 34 x 75 in / 91.4 x 86.3 x 190.5 cm
Shipping Weight
431 lb / 195.4 kg
Certifications
EN957, CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
GO VERTICAL

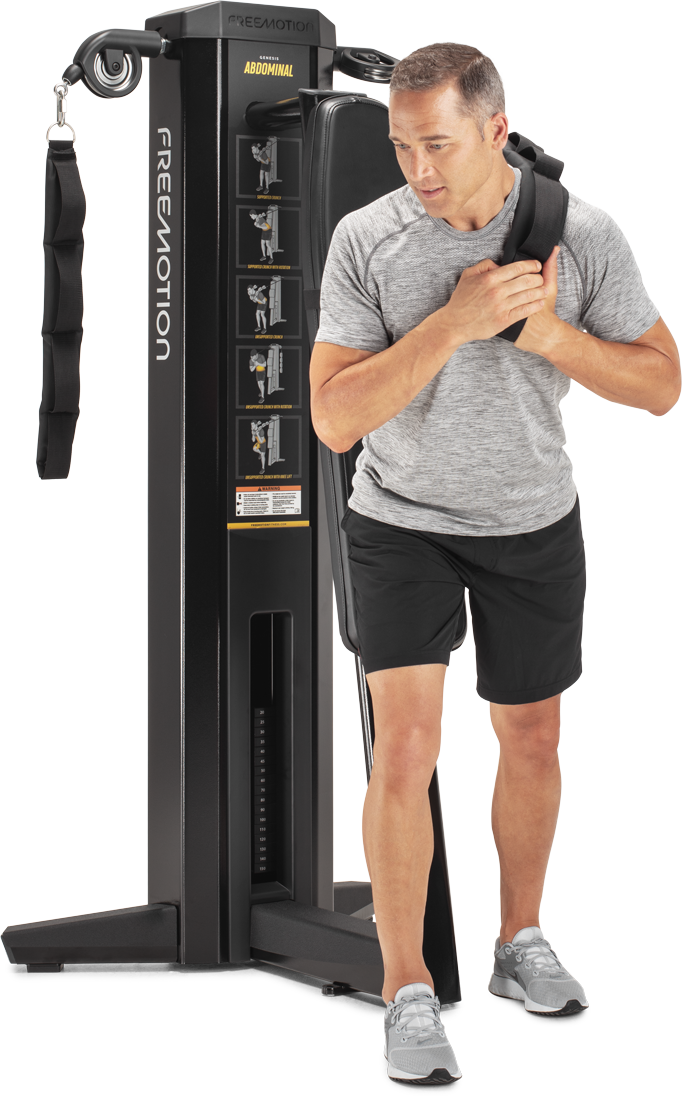

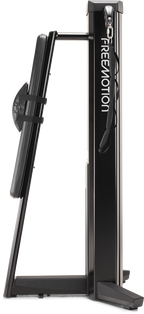

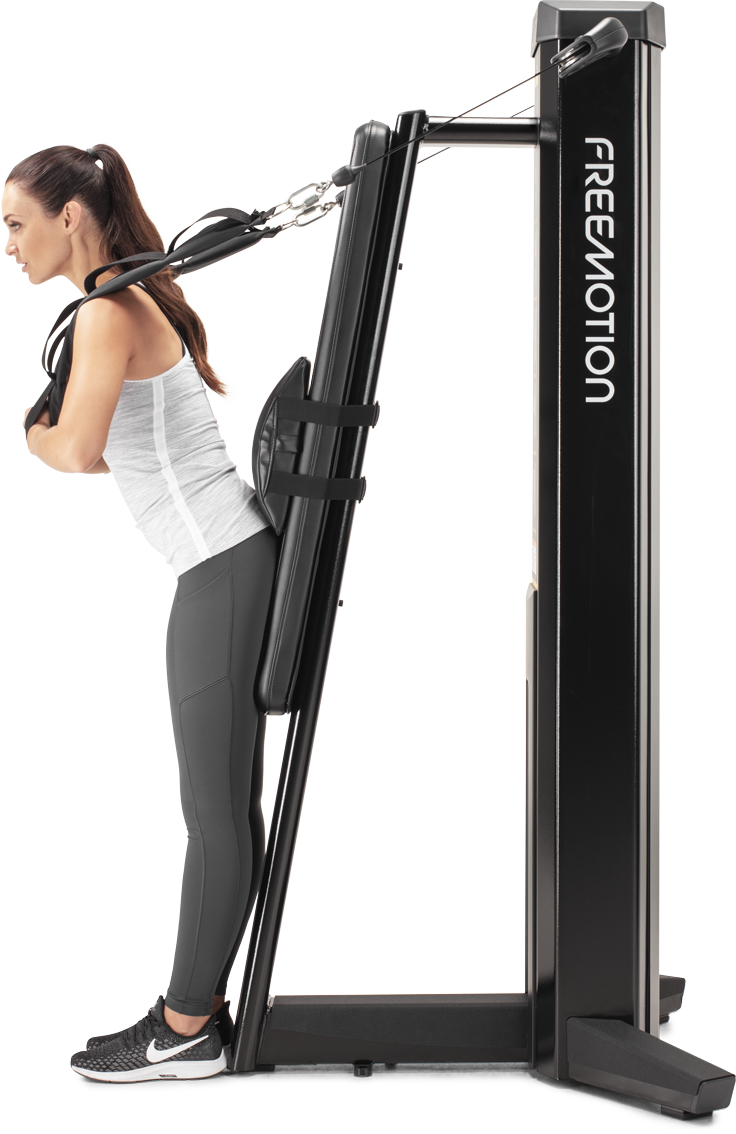

In addition to being a space saver, the standing design functionality builds core strength.
COMFORTABLE BY DESIGN

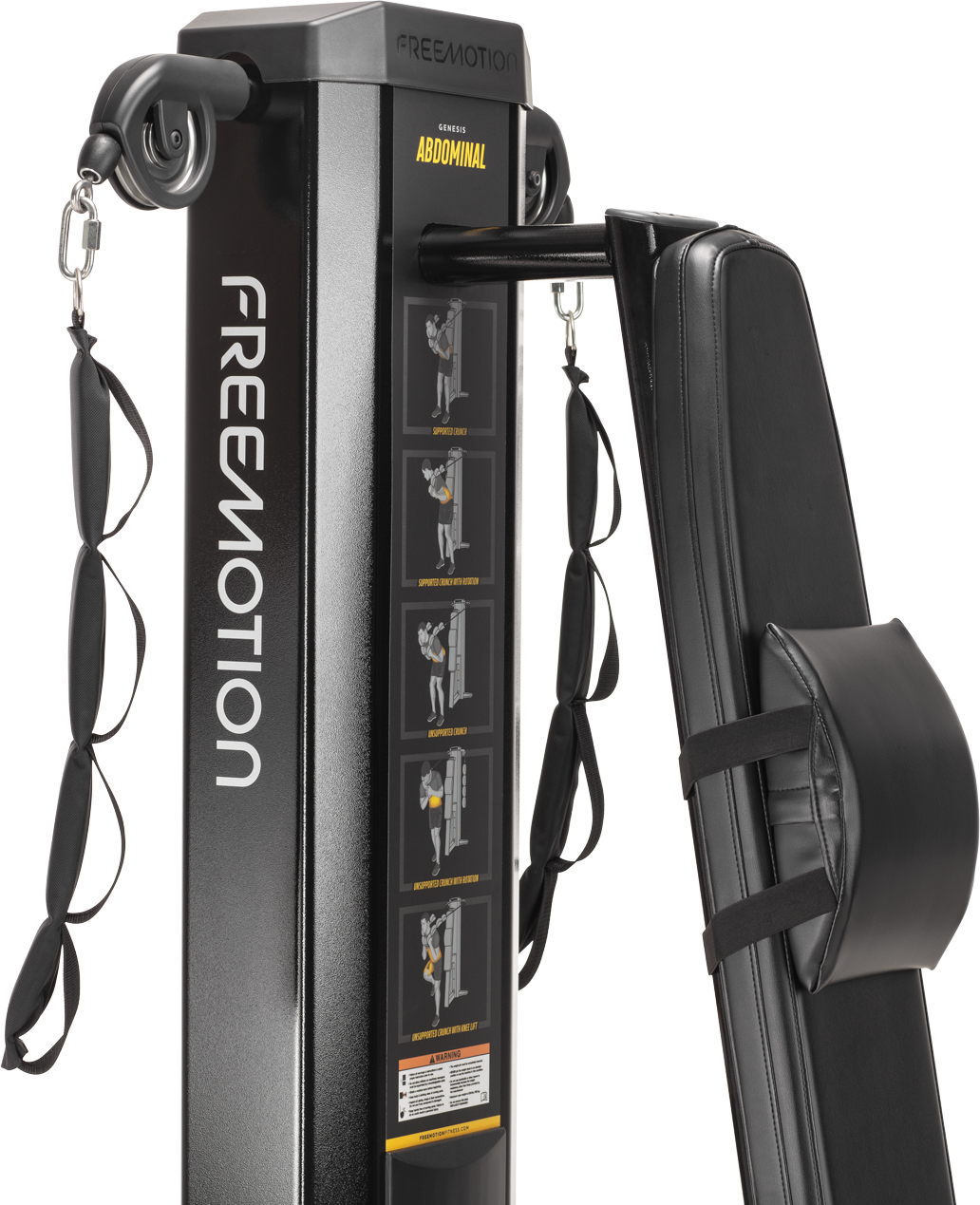

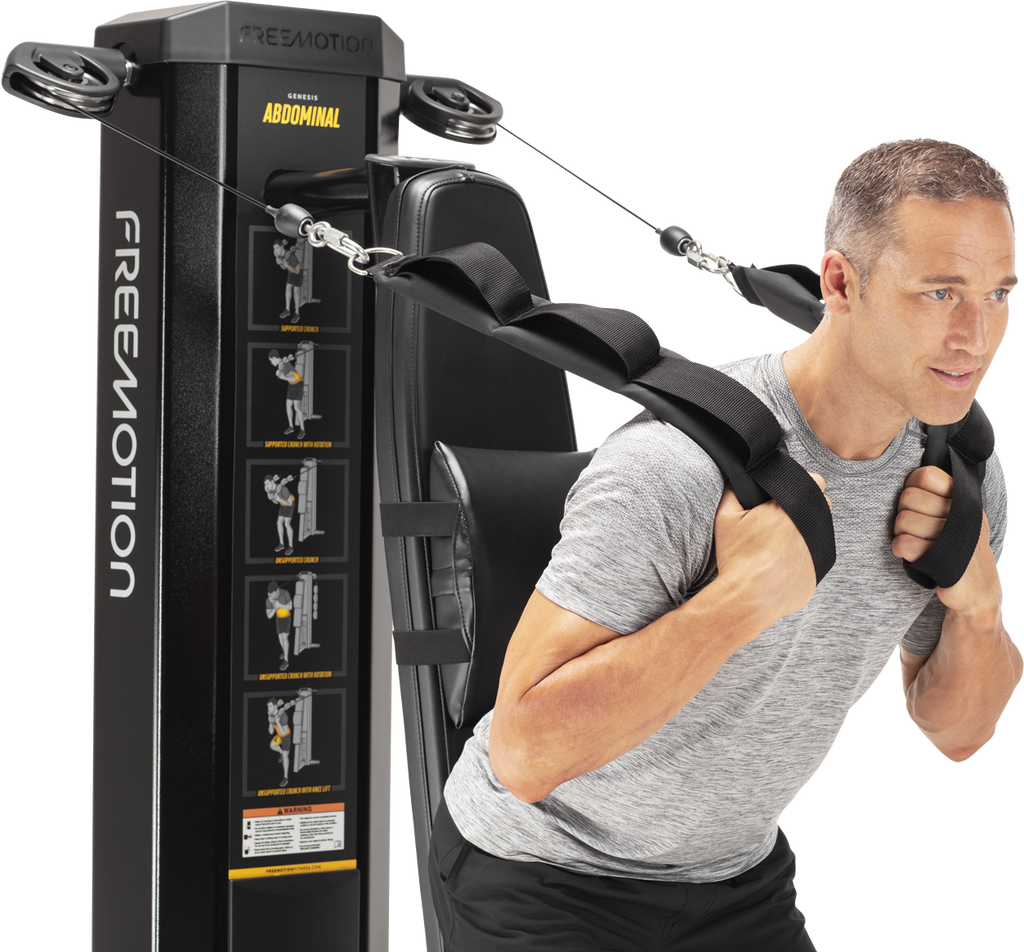

The backpad, lumbar support and handle straps are padded for comfort even under heavy loads.
FREEDOM TO MOVE

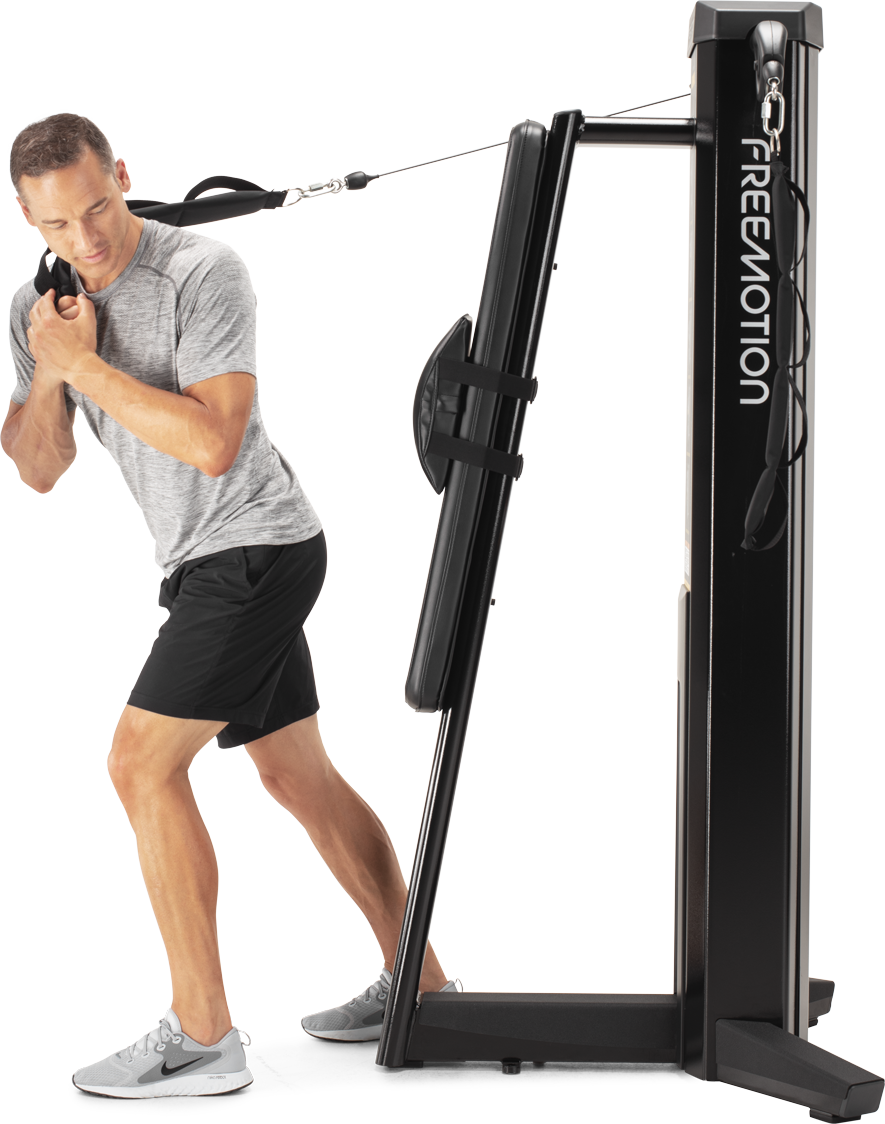

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
