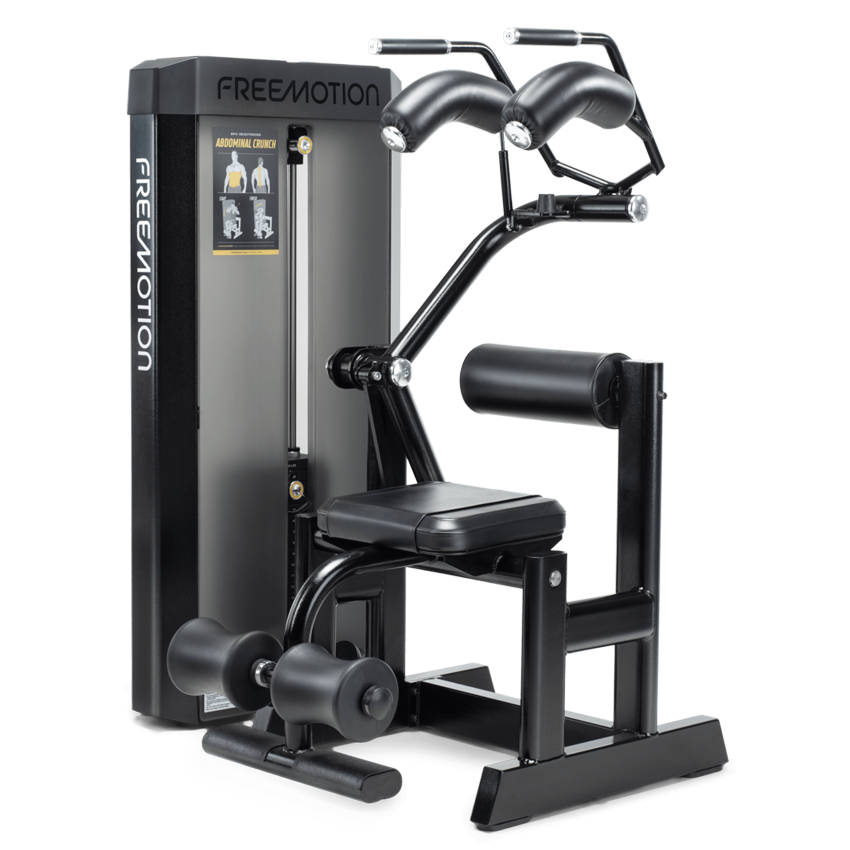

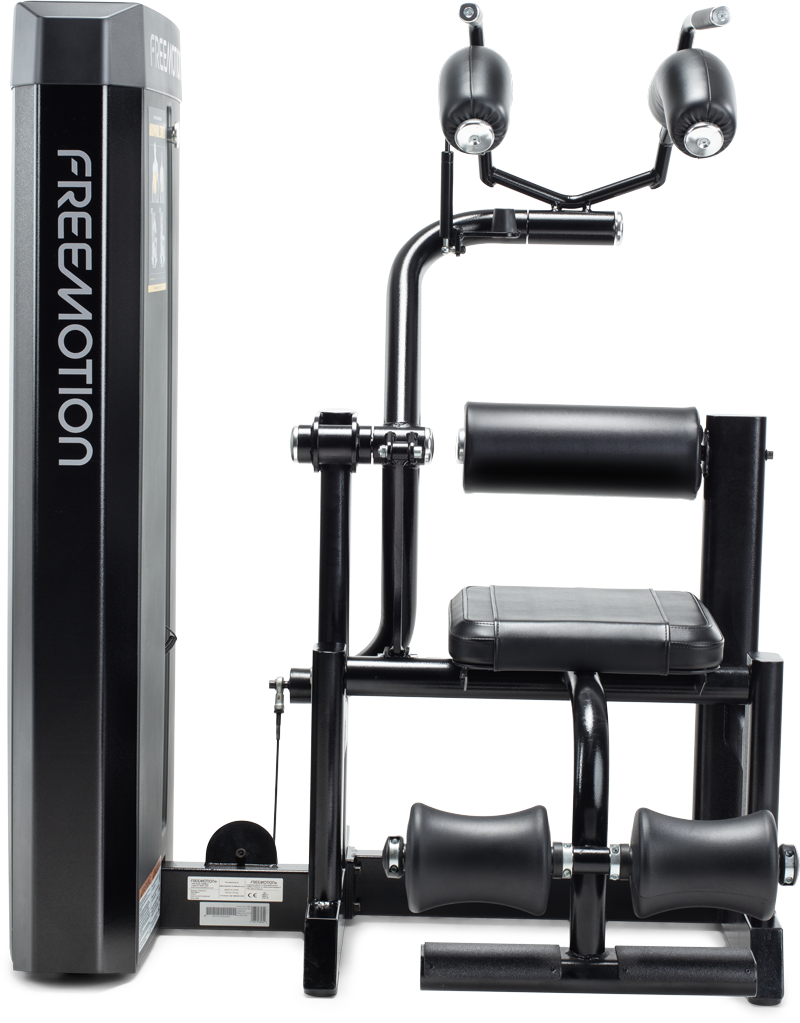

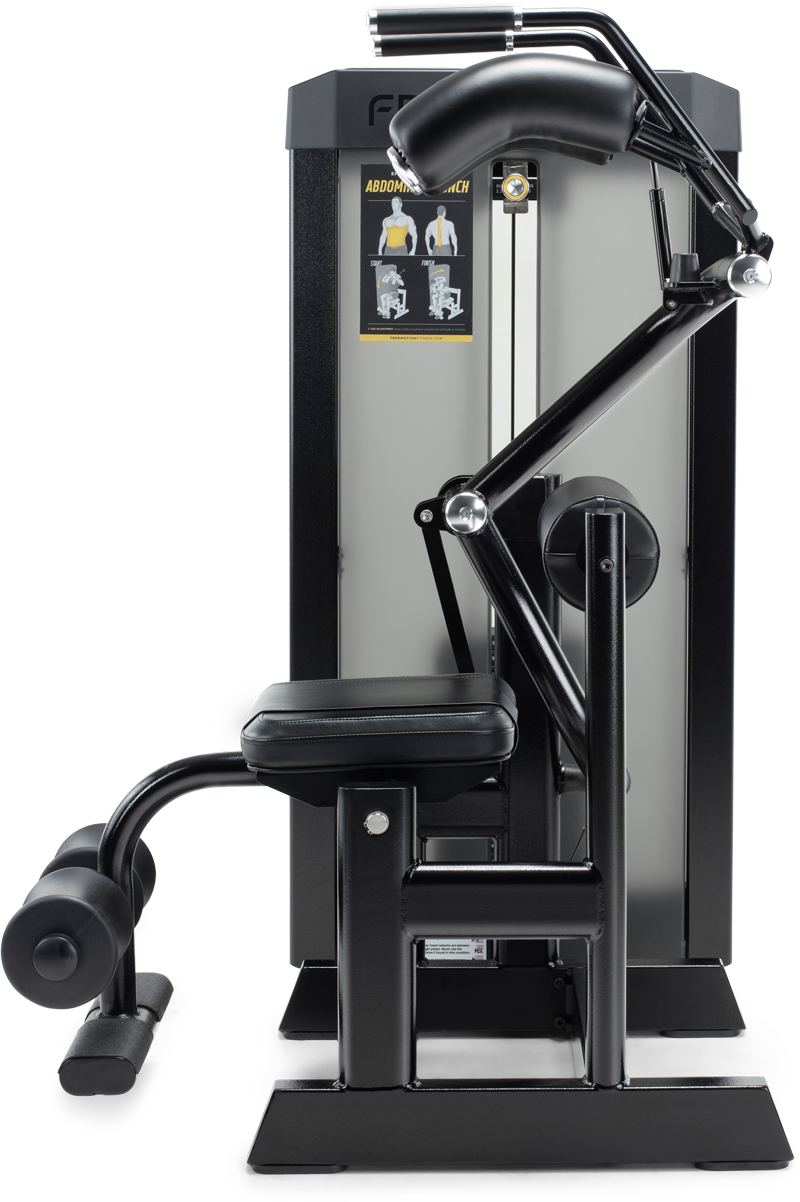

ABDOMINAL CRUNCH
ES819

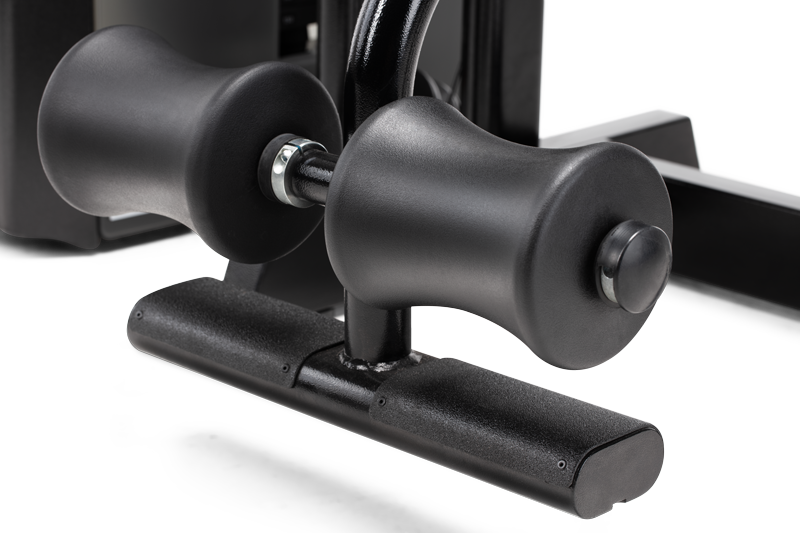

Easy to use and padded for comfort, the EPIC Selectorized Abdominal Crunch targets the abs through full range of motion. Rolling shin pads and textured foot pegs isolate the lower body. The curved shoulder pads
pivot for fit and combine with the lumbar pad to stabilize the upper body.
additional features
Shoulder Pad Release
The shoulder pad assembly features a gas-shock release for easy entry and exit.
Molded Floor Protectors
Heavy duty rubber feet guard against floor damage.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Easy Serviceability
The tower design allows for simple, routine cable service.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
N/A
Resistance
155 lb / 70.3 kg

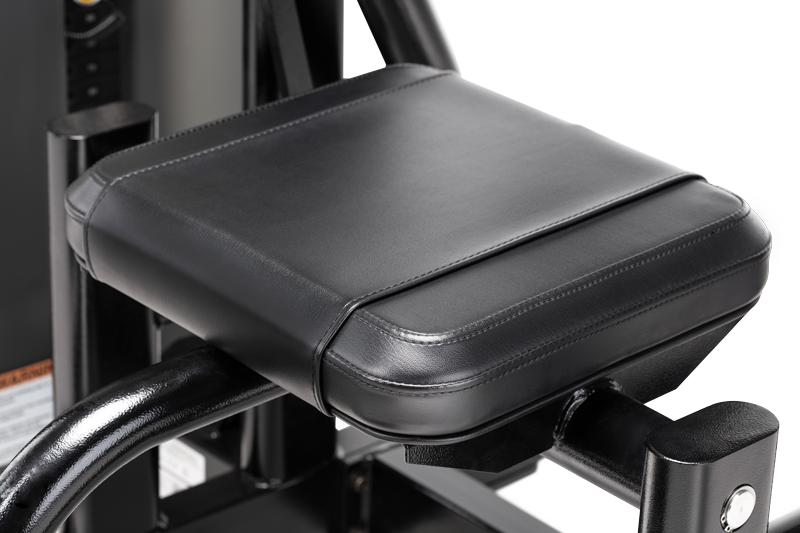

Seat
Vinyl, 1.5 in / 3.8 cm thick foam
Pulleys
N/A
Cable Travel
N/A
Rubber Feet
Heavy Duty Floor Protectors
Maximum User Weight
350 lb / 159 kg
Americans with Disabilities Act (ADA)
N/A
Product Specifications
Weight Stack
155 lb / 70.3 kg
Drop Down Weight
5 lb / 2.2 kg
Weight Stack Configuration
10 lb / 4.5 kg top plate
20-150 x 10 lb / 4.5 kg
Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Hand Grip Color
Black
Product Dimensions & Weight

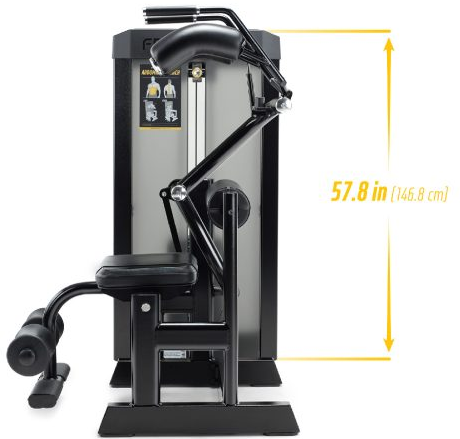

Dimensions L x W x H
47.4 x 40.5 x 57.8 in / 120.3 x 102.8 x 146.8 cm
Footprint
47.4 x 40.5 in / 120.3 x 102.8 cm
Maximum workout area
47.4 x 40.5 in / 120.3 x 102.8 cm
Weight
440.9 lb / 200 kg
Shipping Dimensions
Box 1: 46 x 43 x 65 in / 116.8 x 109.2 x 165.1 cm
Box 2: 30.3 x 16.5 x 6.8 in / 76.9 x 41.9 x 17.2 cm
Shipping Weight
Box 1: 569.8 lb / 258.4 kg
Box 2: 19.8 lb / 8.9 kg
Certifications
CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
WALK UP AND WORK OUT

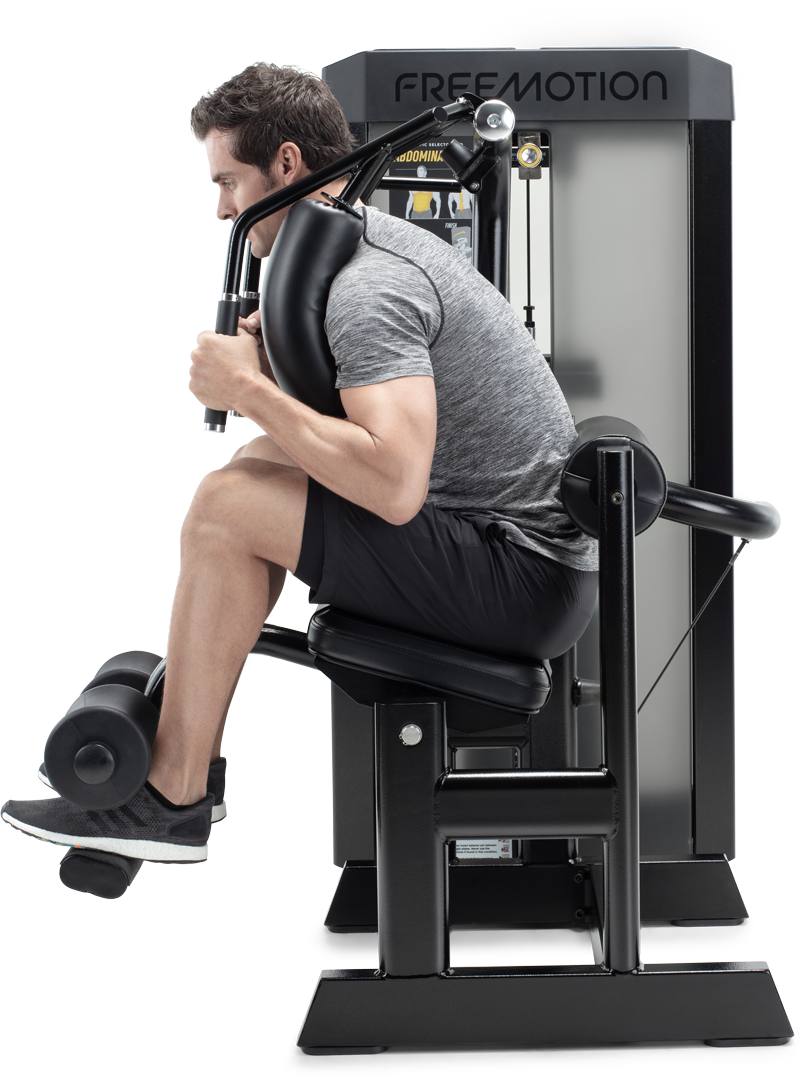

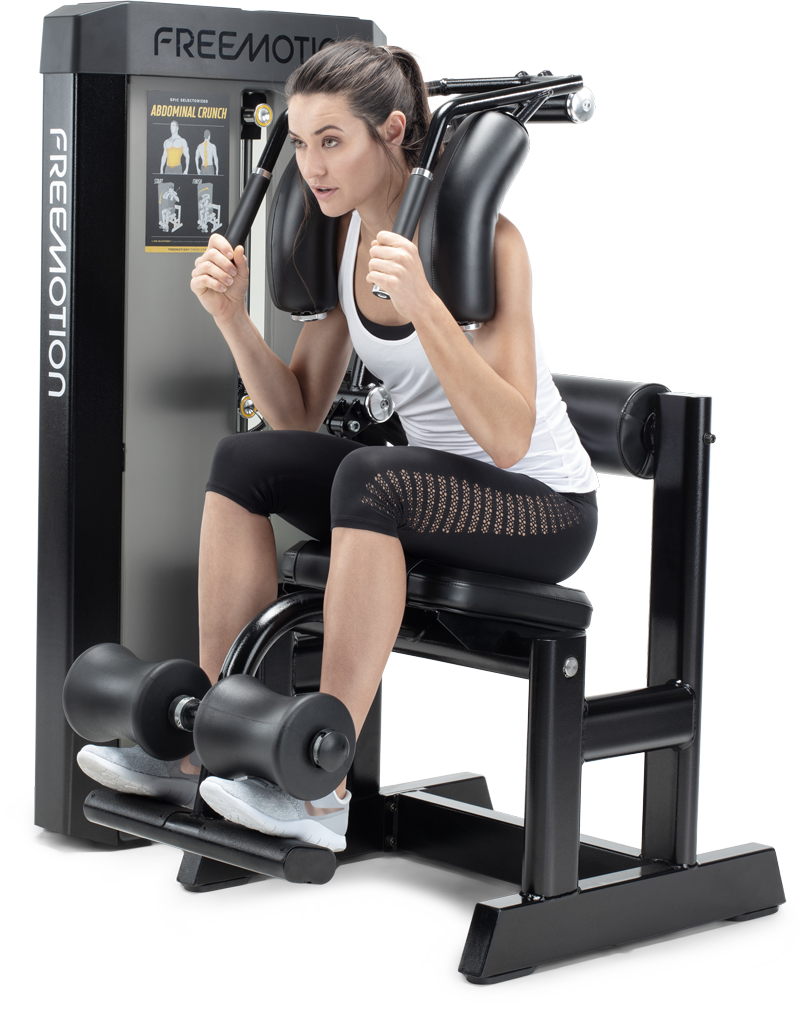

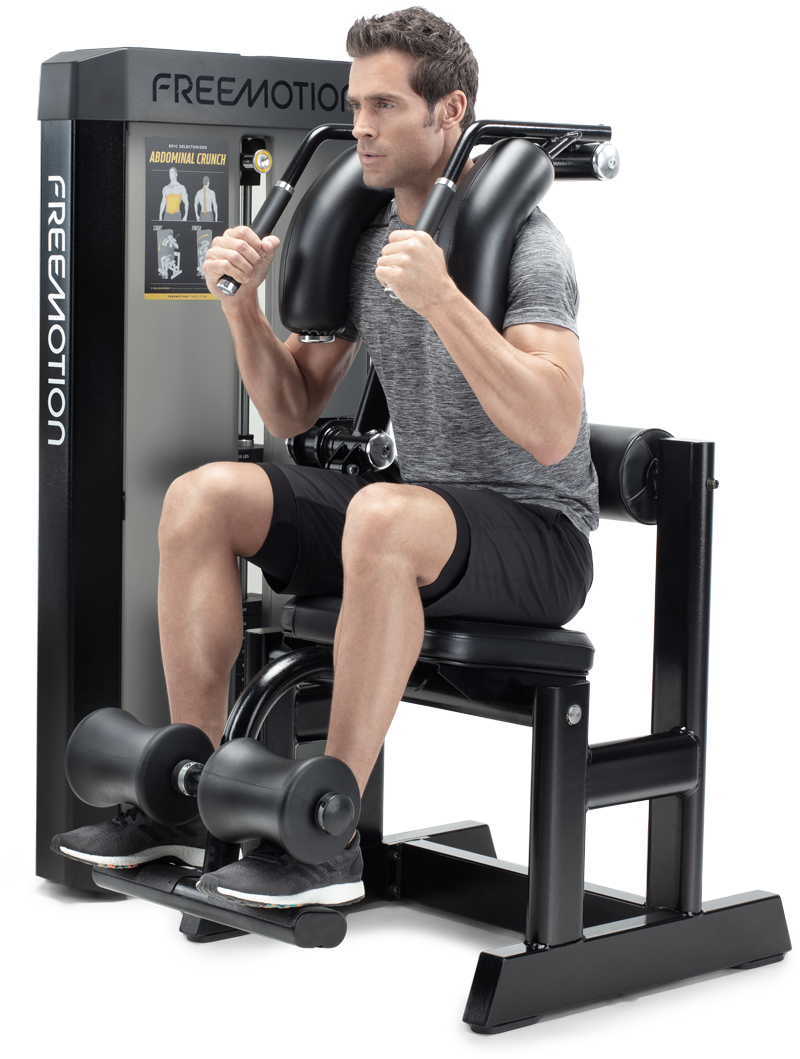

With no required adjustments, users can simply walk up, sit down and start moving.
COMFORTABLE BY DESIGN

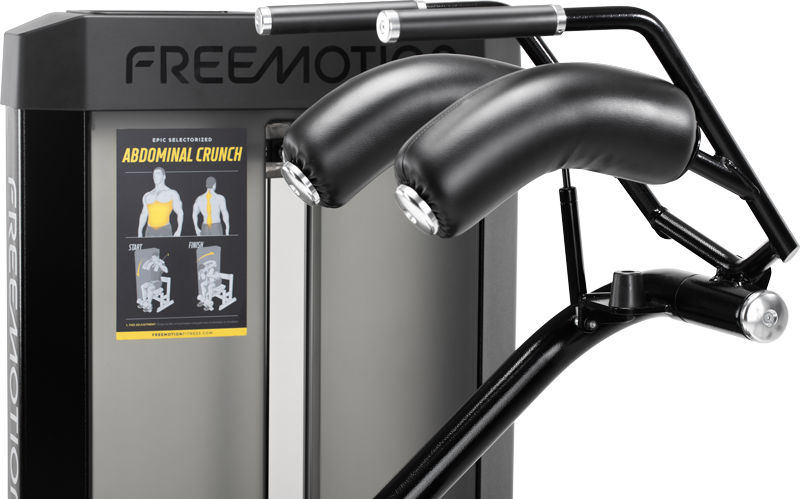

Curved shoulder pads pivot and shin pads are contoured to comfortably isolate the upper and lower body.
LOW PROFILE WEIGHT STACK
Approachable, compact design also features accessory trays so users can keep their essentials within reach.
