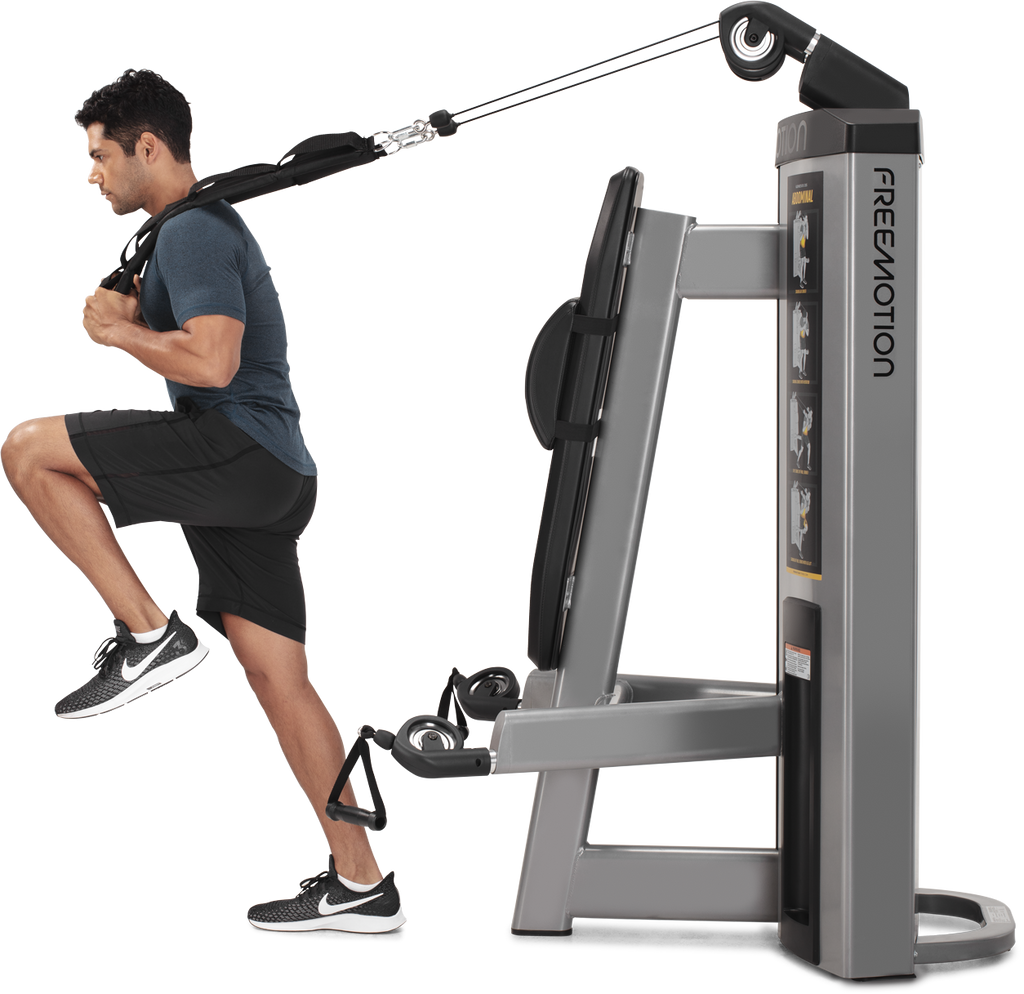

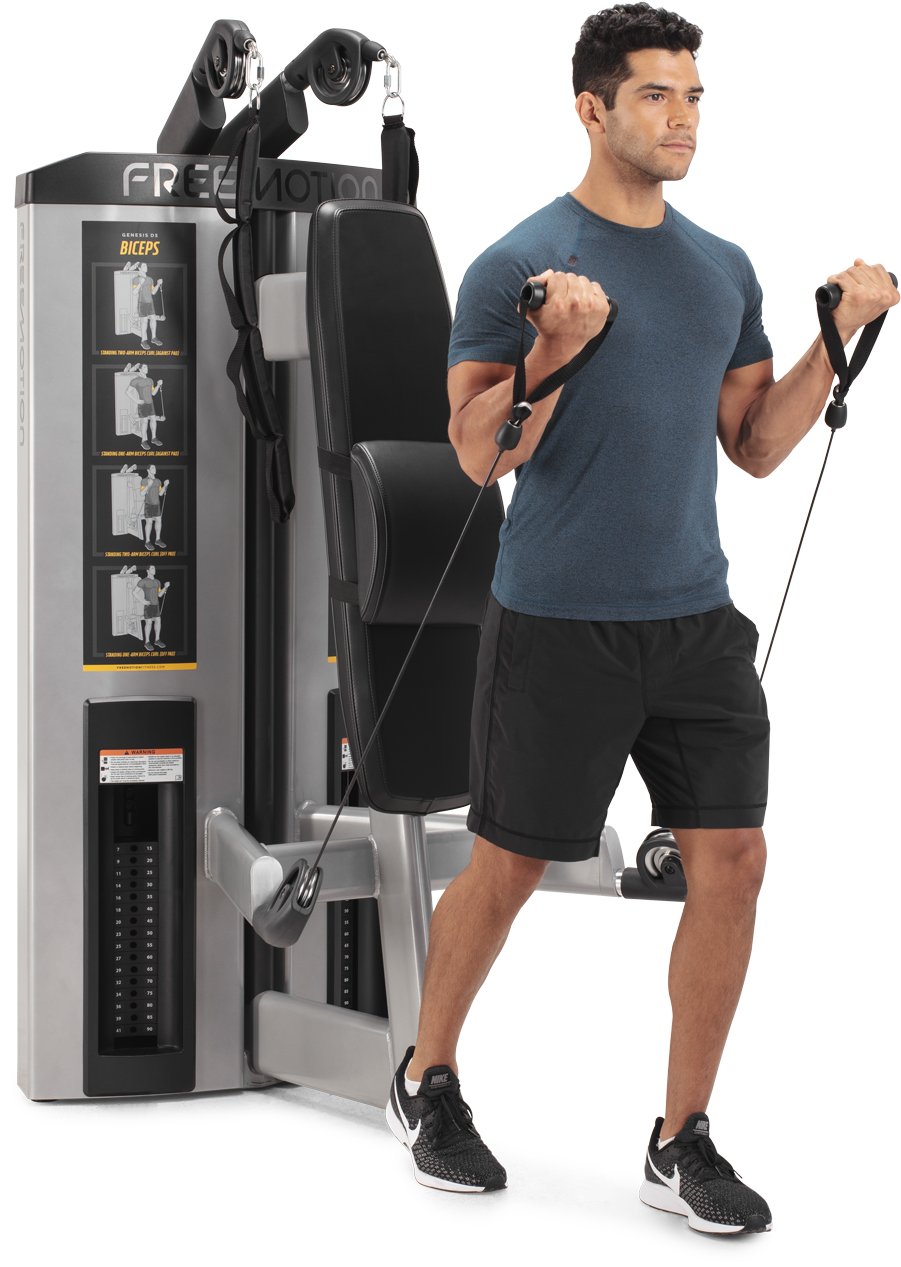

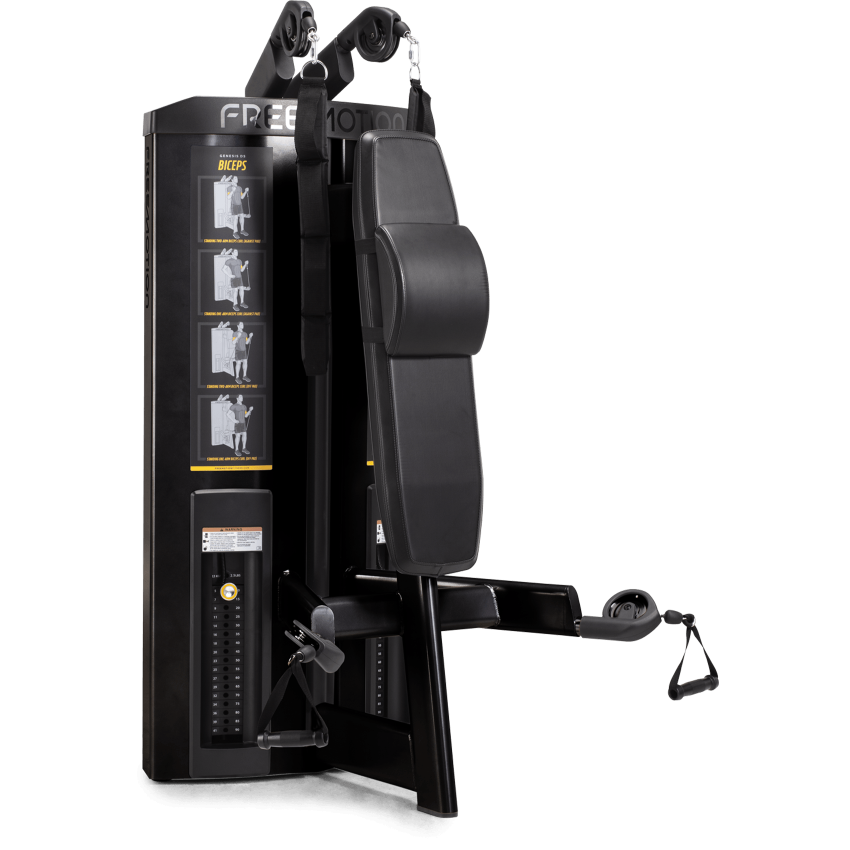

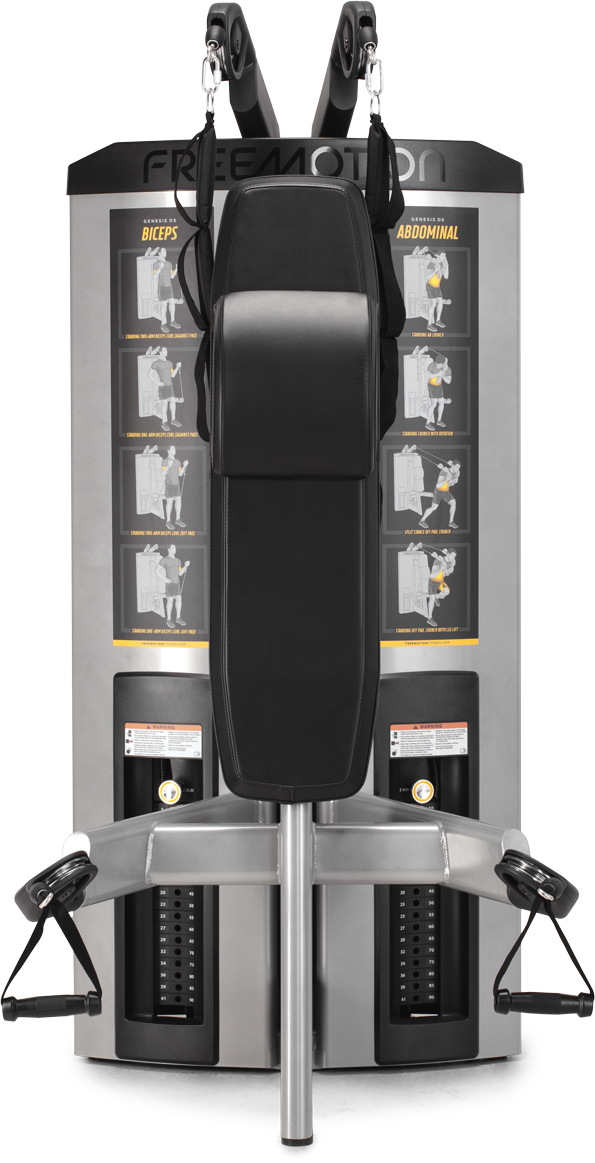

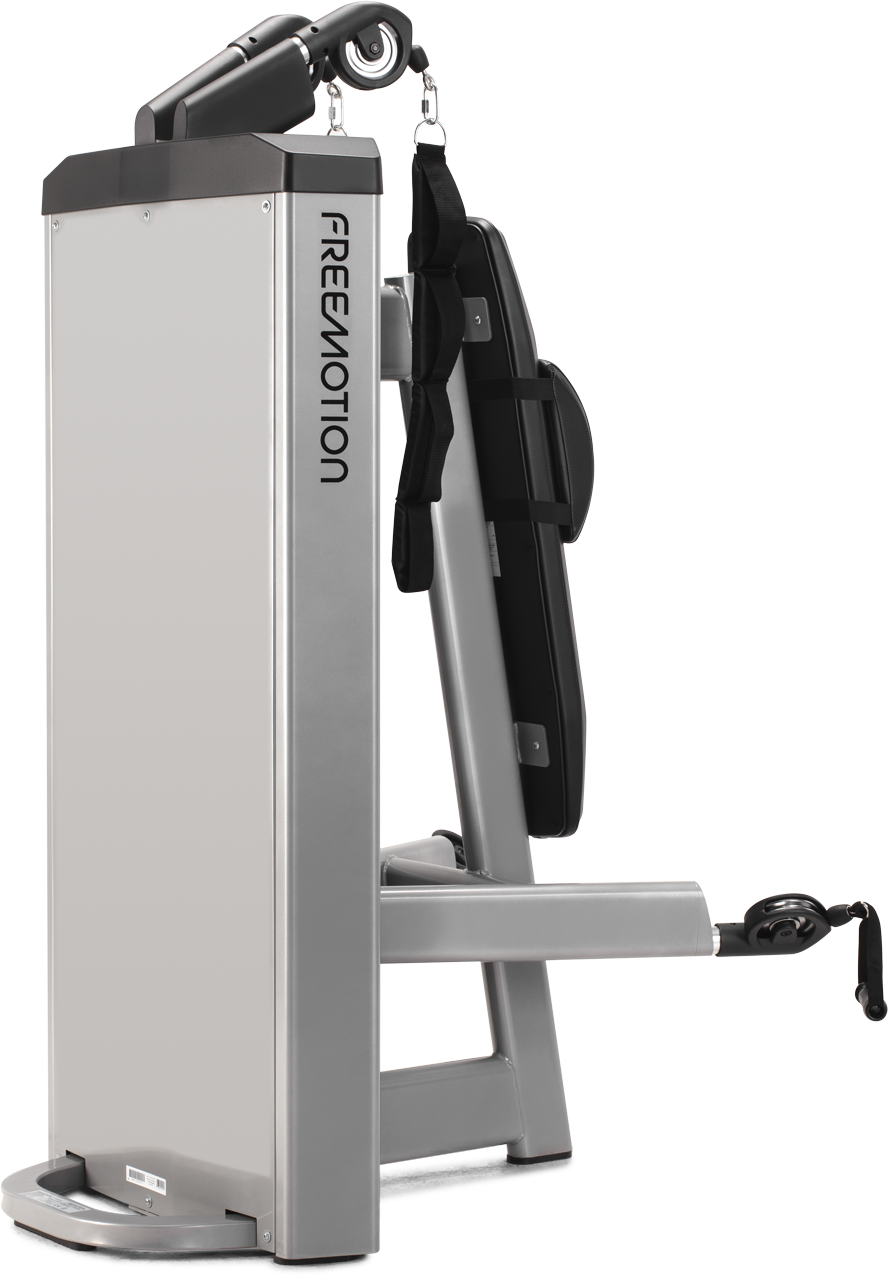

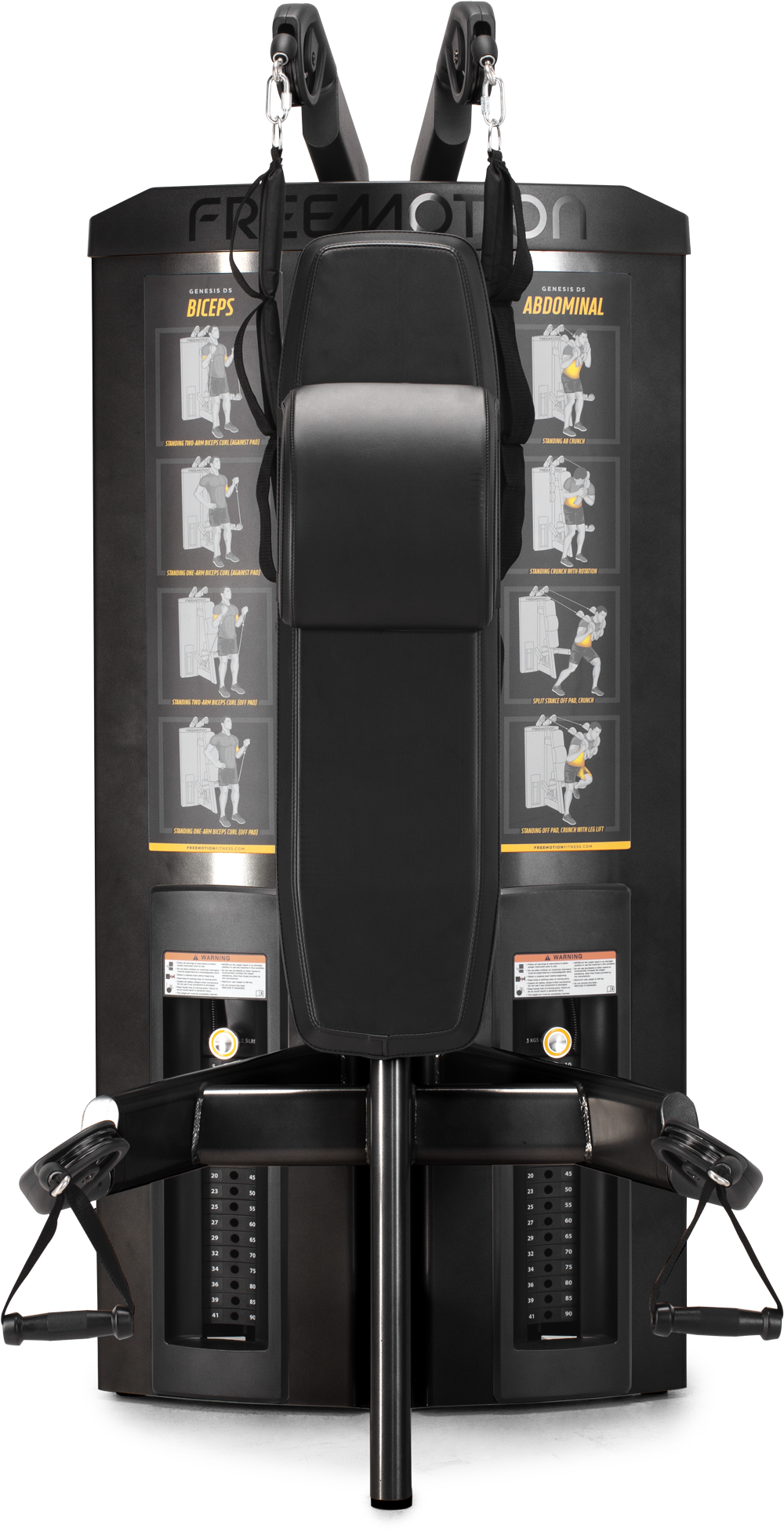

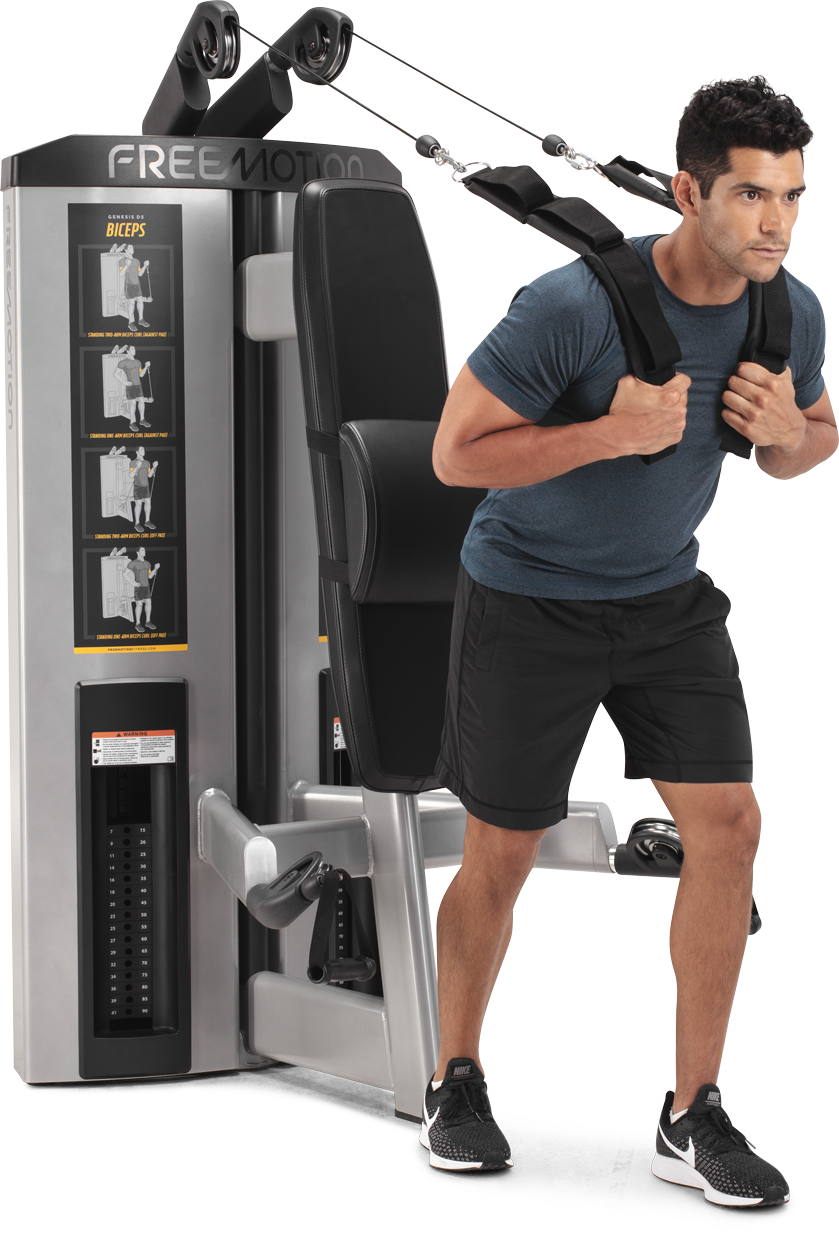

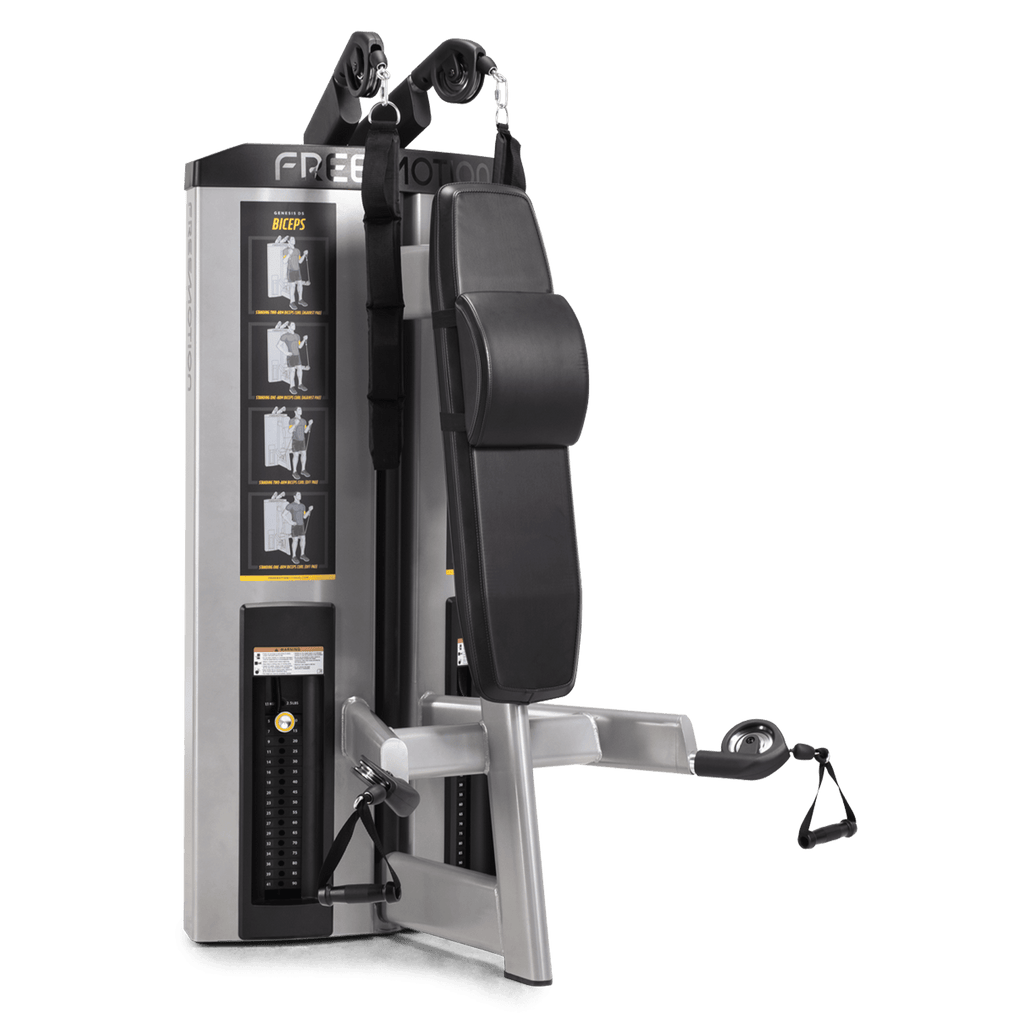

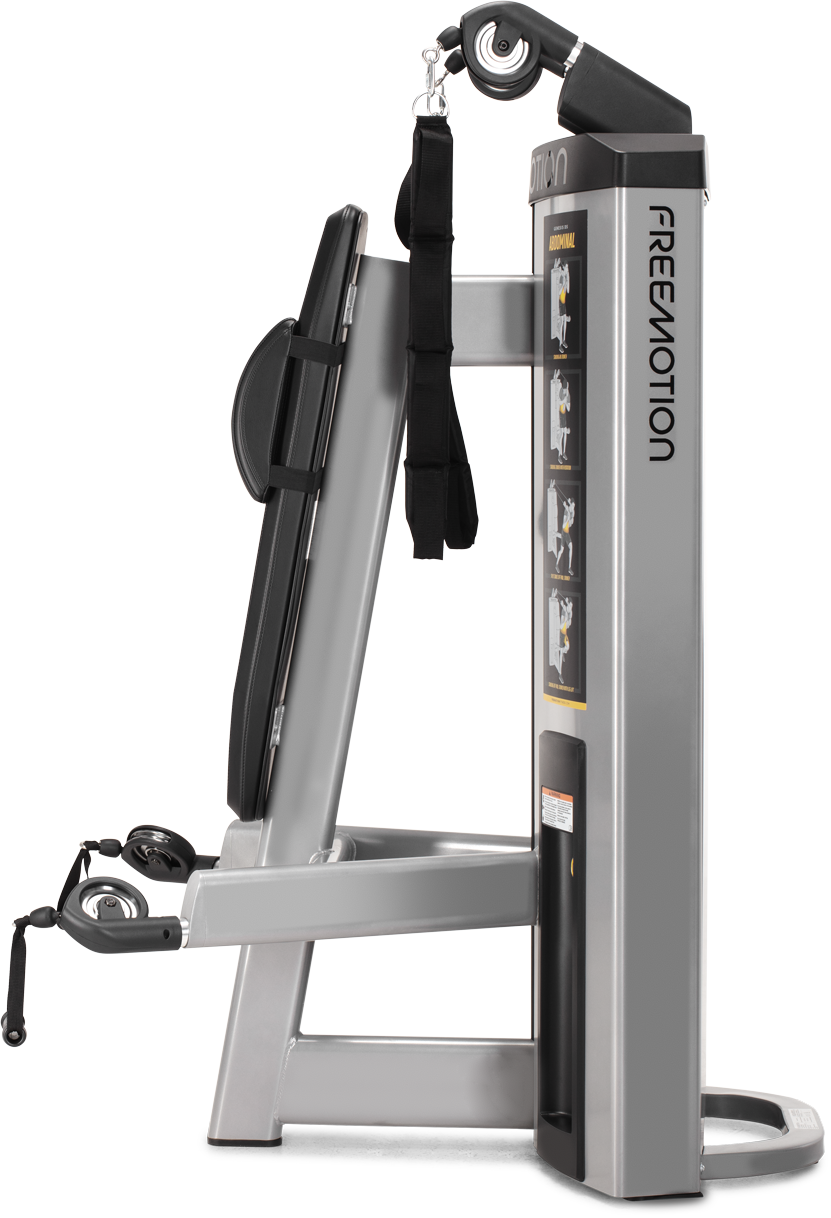

ABDOMINAL / BICEPS
GD501
Combining two exercises in one machine allows the user to superset different exercises and move through quick transitions for metabolic training. Facility owners can optimize their workout space with the
GENESIS DS™ Abdominal/Biceps' compact footprint. It is constructed with 11- and 7-gauge steel and has a powder-coated finish for extreme durability. Adjustable lumbar pad and backpad are cushioned for comfort.
additional features
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Movement Variety
Handles move independently for single and alternating side exercises.
Enclosed Weight Stacks
The weight stacks are enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this
machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards
Yes
Adjustments
Lumbar Support
Resistance
1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg
Seat
N/A
Pulleys
Aluminum swivel pulleys
Cable Travel
72 in / 182.8 cm per arm
Rubber Feet
Soft PVC
Maximum User Weight
400 lb / 181.4 kg
Americans with Disabilities Act (ADA)
Wheelchair Accessible
Product Specifications
Weight Stack
QTY 2 – 180 lb / 81.6 kg weight stacks
Drop Down Weight
N/A
Weight Stack Configuration
2 – 10 lb top plates, 34 – 10 lb plates
2 – 4.5 kg top plates, 34 – 4.5 kg plates

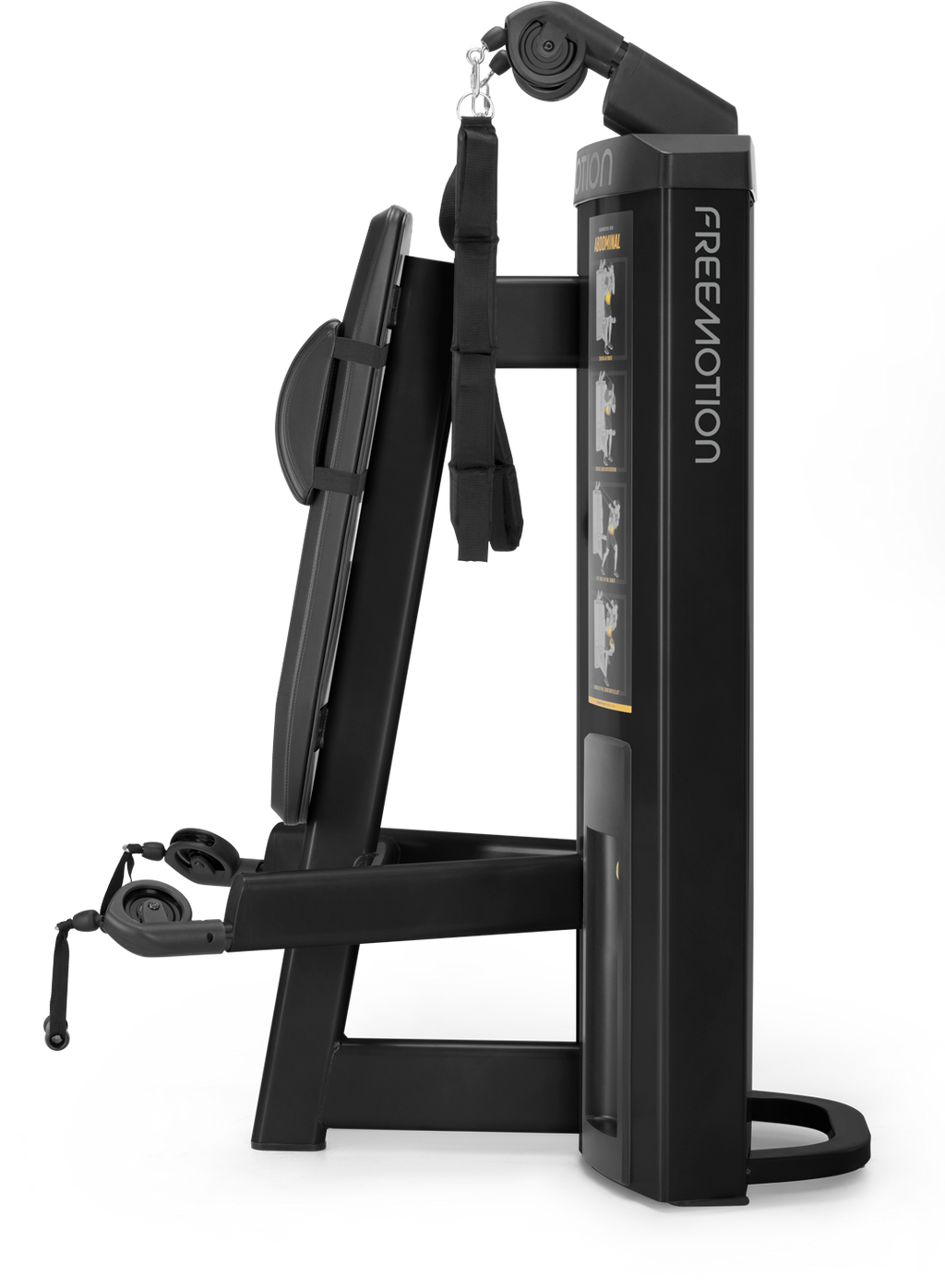

Standard Frame Color
Black River, Platinum Sparkle
Optional Frame Color
N/A
Plastic Color
Ebony
Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color
Custom colors available upon request
Product Dimensions & Weight
Dimensions L x W x H
51 x 37 x 72 in / 129.5 x 93.9 x 182.8 cm
Footprint
51 x 37 in / 129.5 x 93.9 cm
Weight
608.6 lb / 276.1 kg
Shipping Dimensions
Box 1: 74.8 x 38.9 x 47.5 in / 198.9 x 99 x 120.7 cm
Box 2: 38.9 x 11.8 x 5.1 in / 99 x 29.9 x 13 cm
Shipping Weight
731.9 lb / 332 kg
Certifications
EN957,CE
Warranty (US & Canada)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days
Warranty (International)
Frame
10 Years
Parts
3 Years
Cables & Labor
1 Year
Cosmetic & Wear Items
6 Months
Upholstery & Padding
120 Days

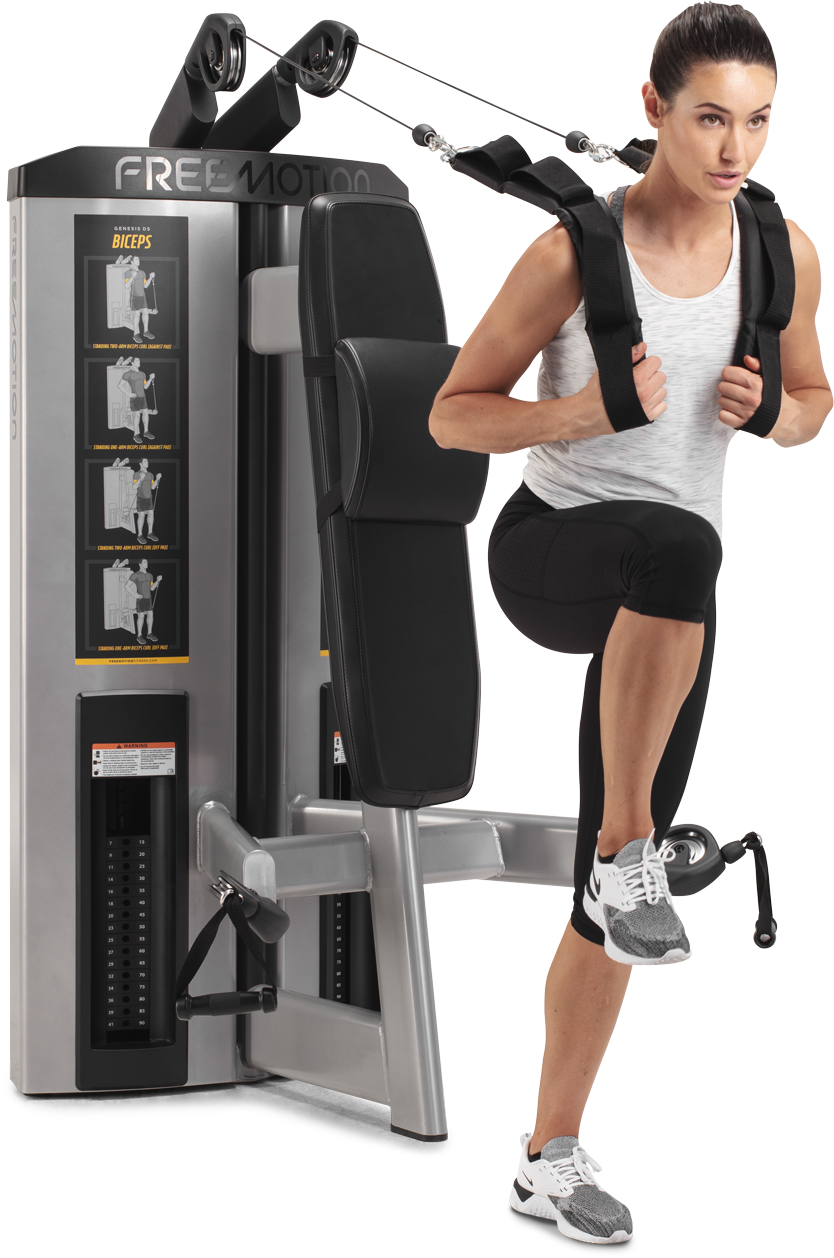

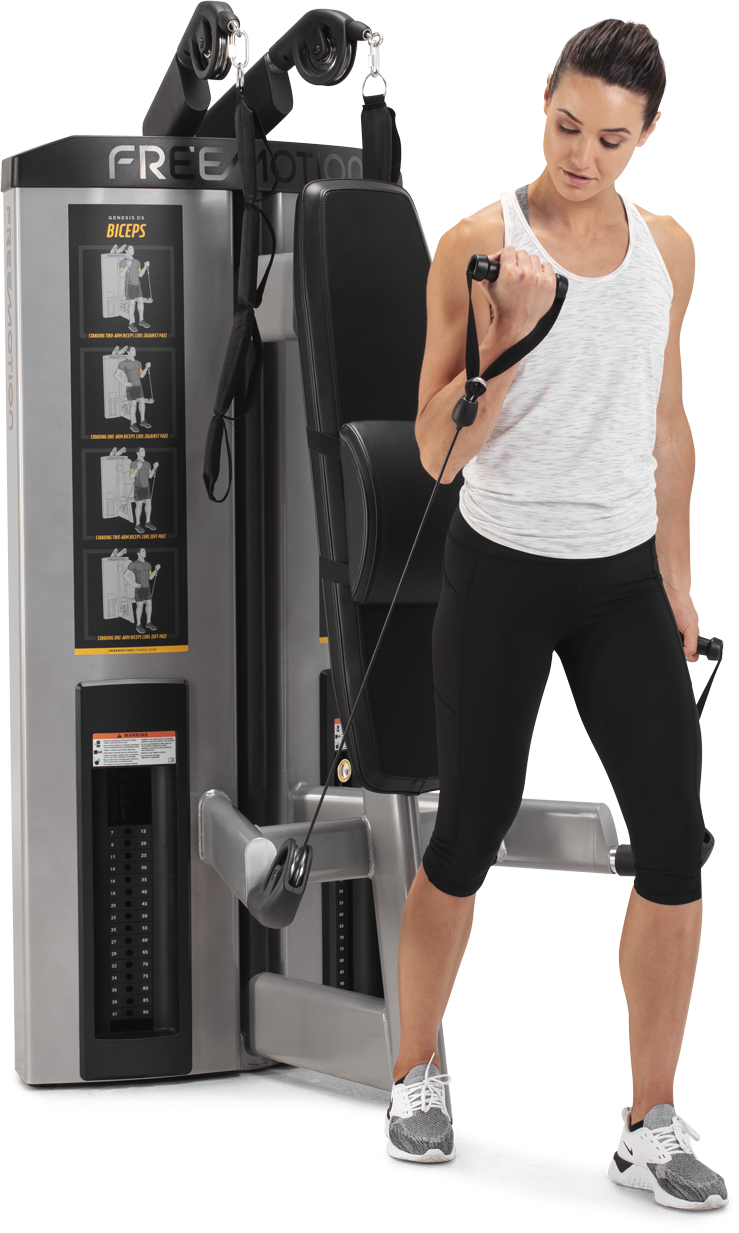

DUAL STATIONS
Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

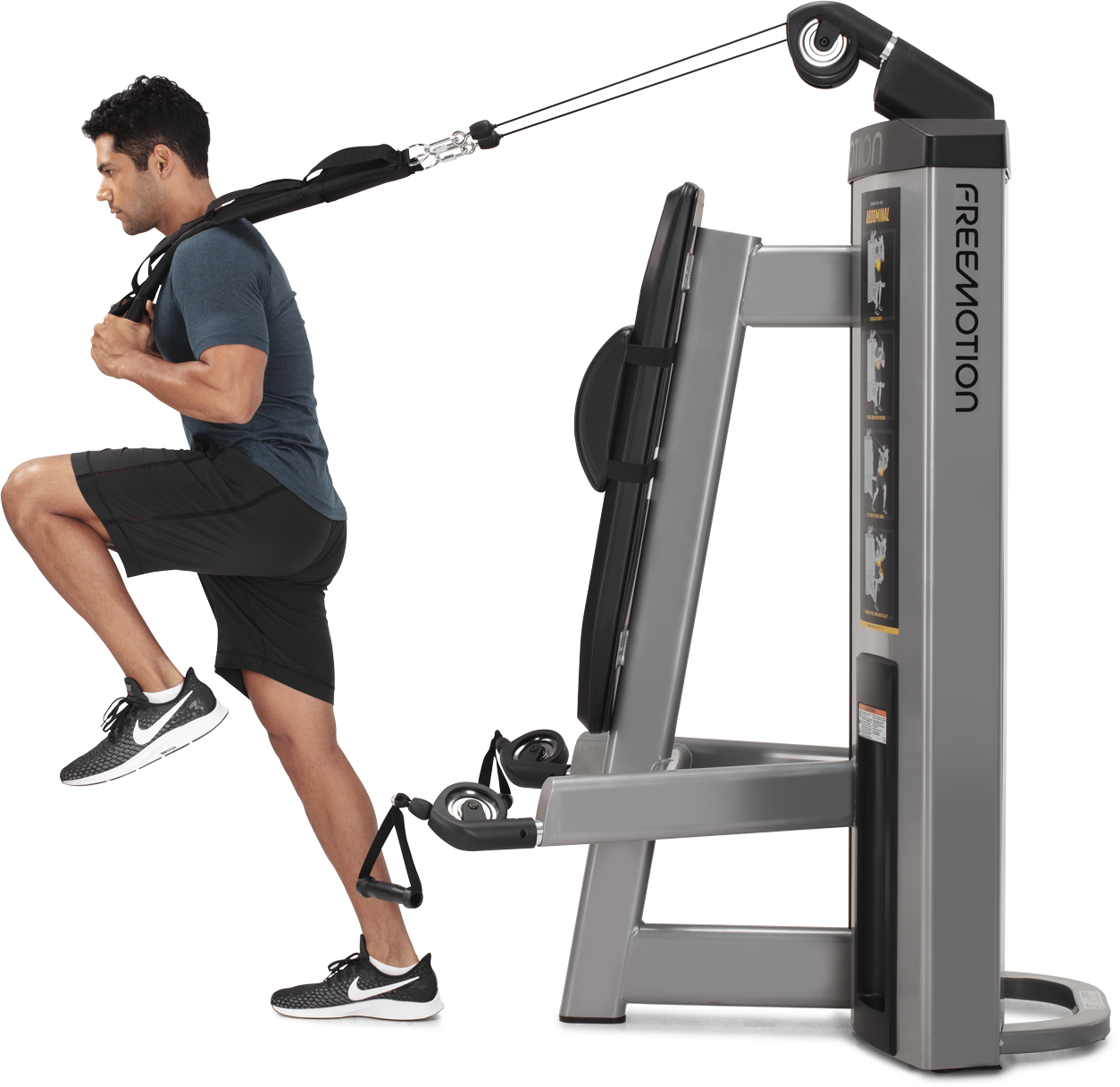

GO VERTICAL
In addition to being a space saver, the standing design functional builds core strength.
COMFORTABLE BY DESIGN
The backpad, lumbar support and handle straps are padded for comfort even under heavy loads.

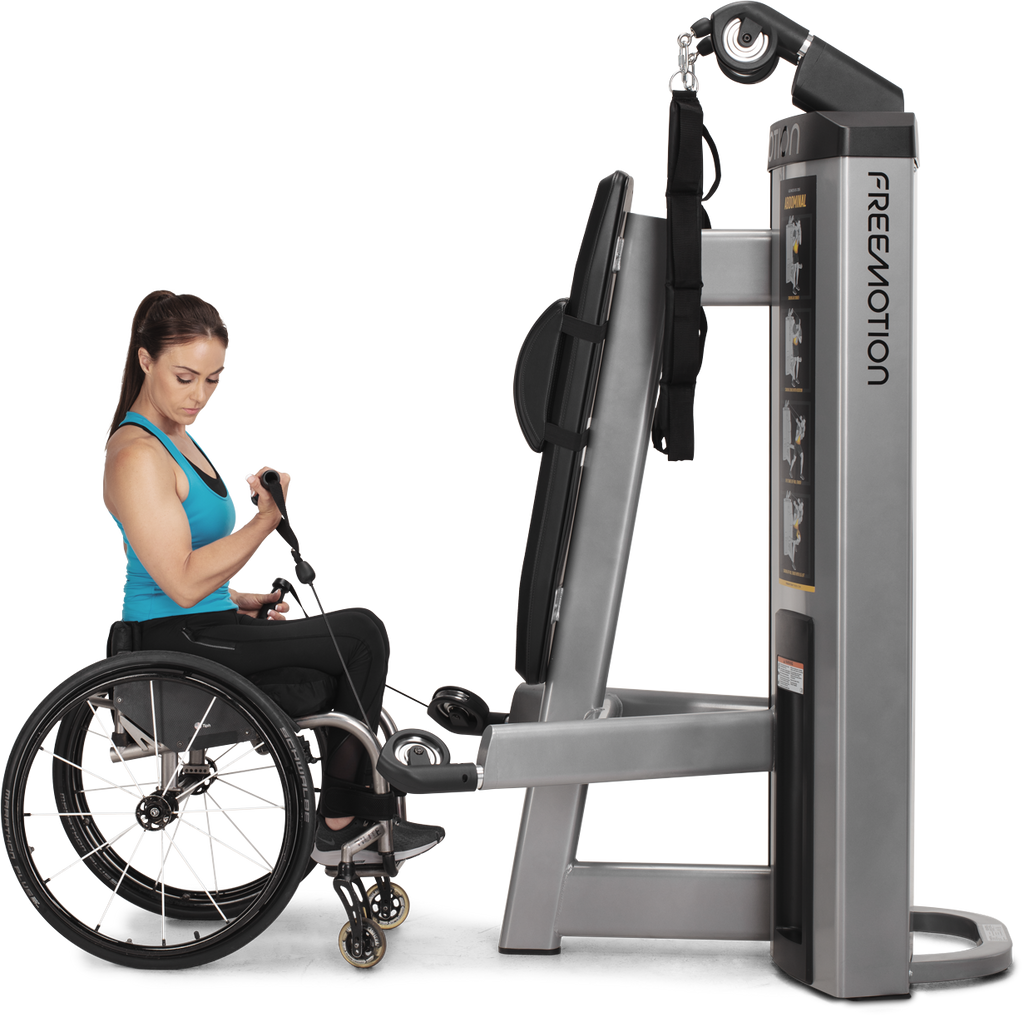

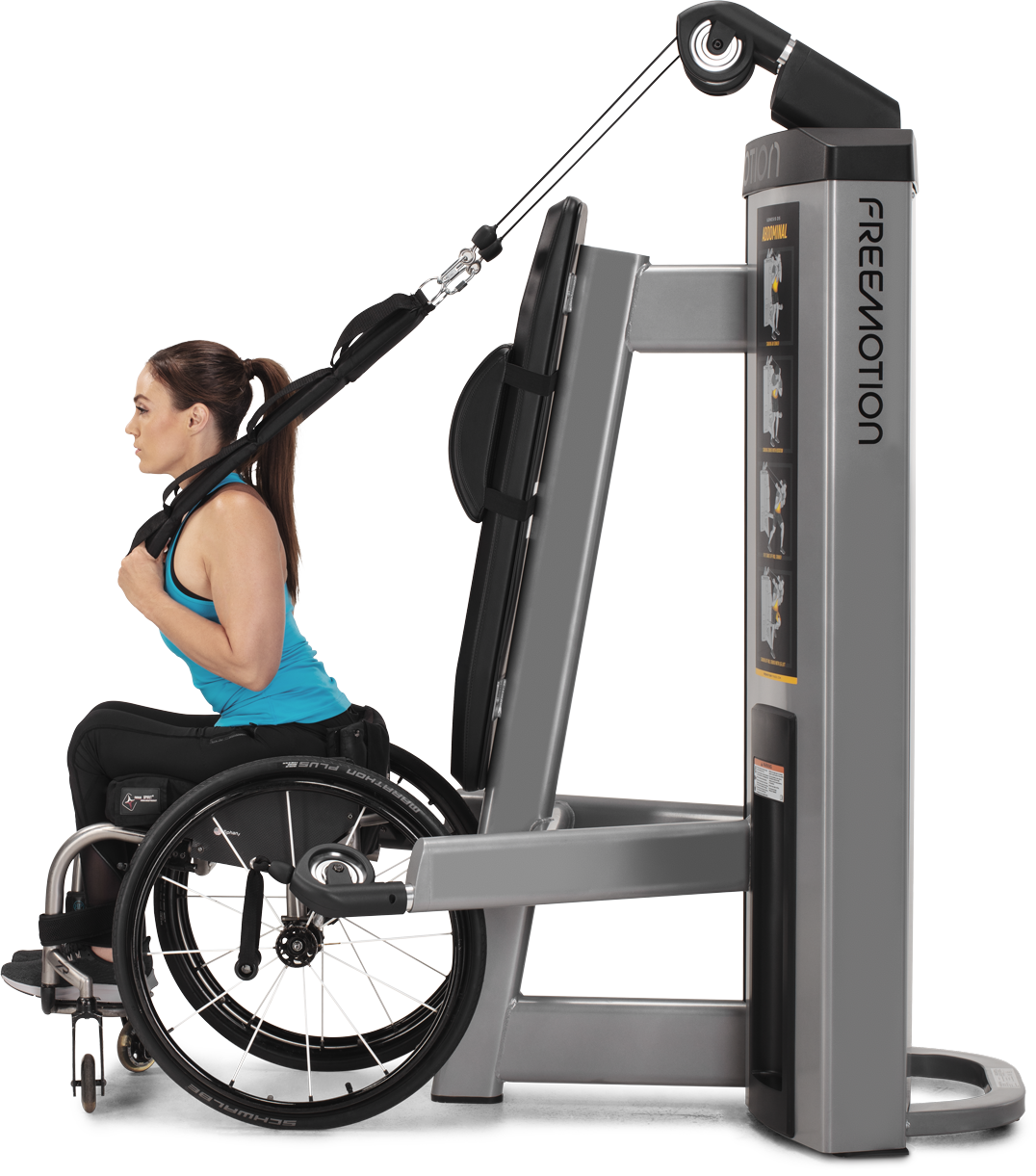

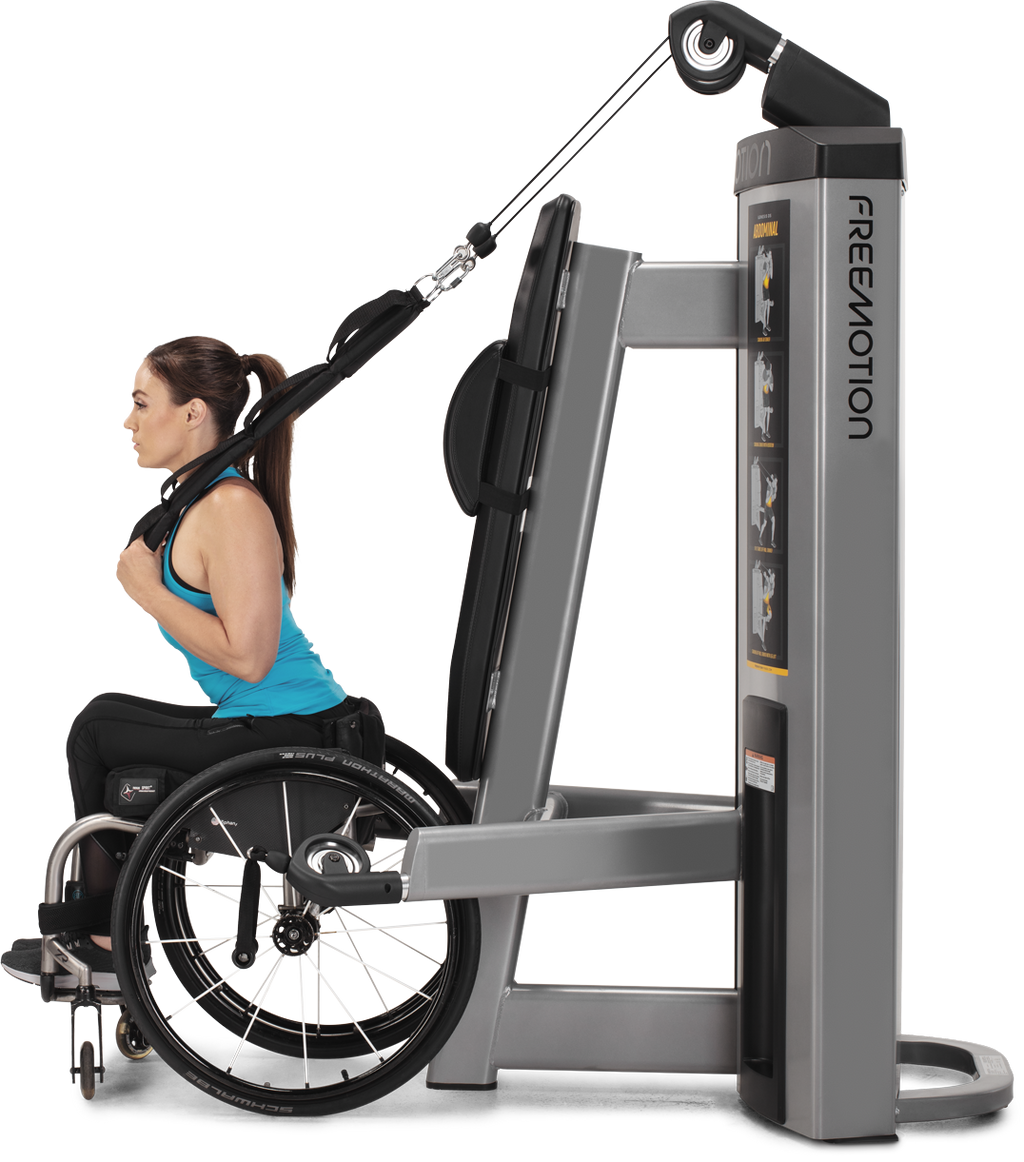

WHEELCHAIR ACCESSBILITY
The open design makes it wheelchair accessible, welcoming to users of all abilities.
