ES814

PRONE LEG CURL

The EPIC Selectorized Prone Leg Curl has contoured forearm pads and optimized torso support for comfort even under heavy loads. Adjustable leg assembly provides a great fit for users of various heights and fitness abilities. Prone positioning focuses effort on the hamstrings.
Enquire Today

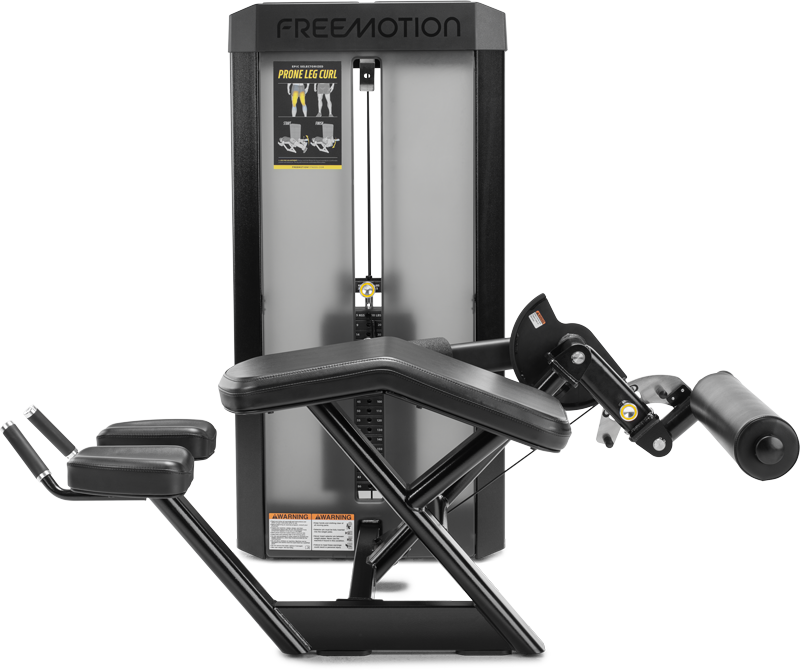

ES814_Straight

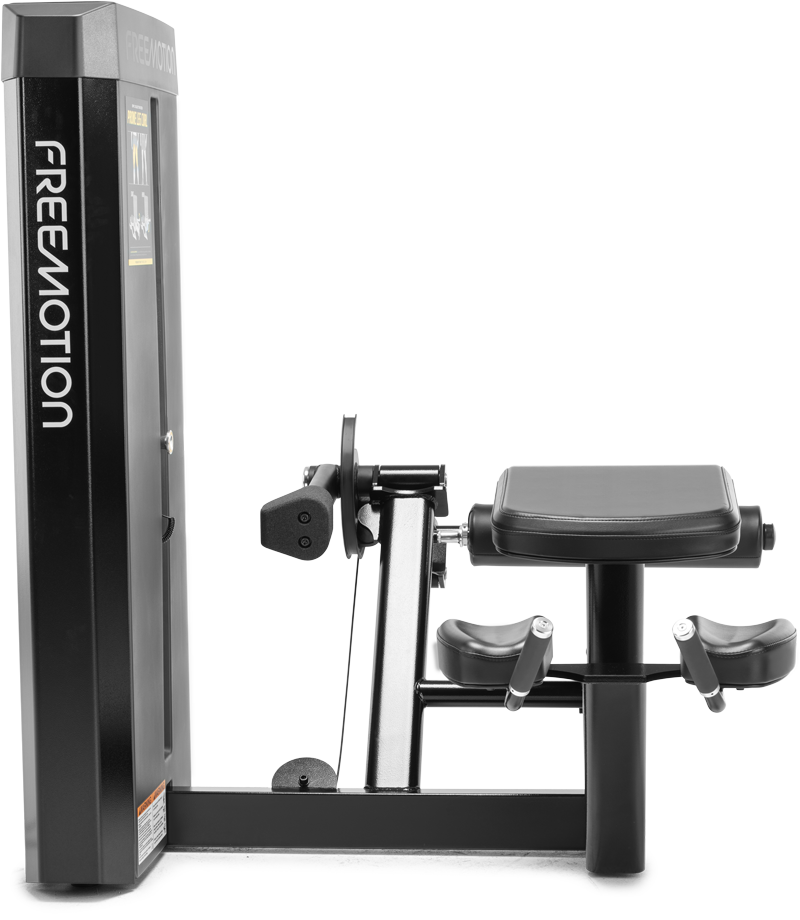

ES814_Profile

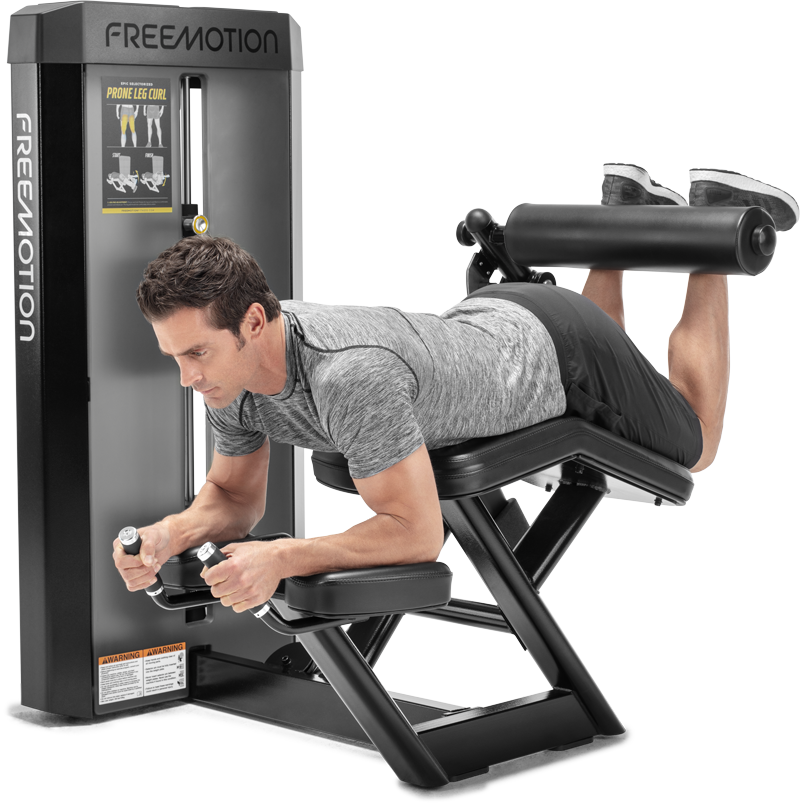

ES814_3Q_Talent_Male

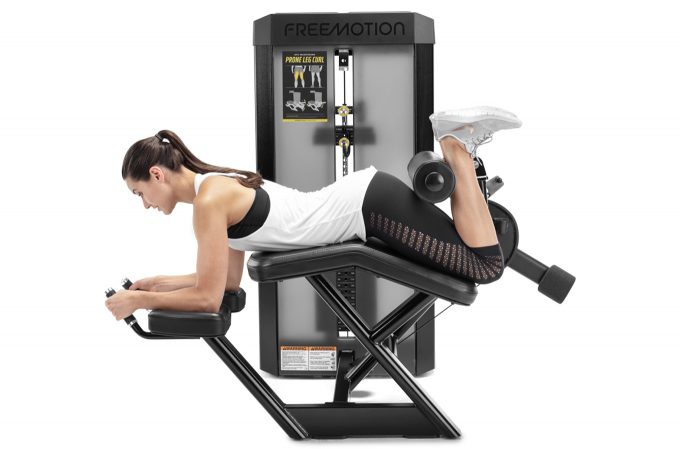

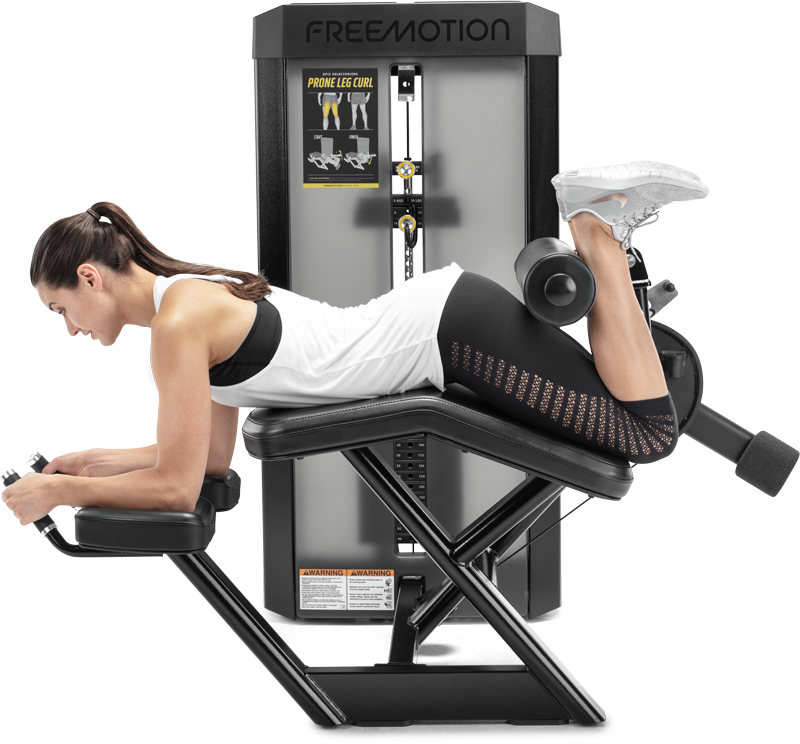

ES814_Straight_Talent

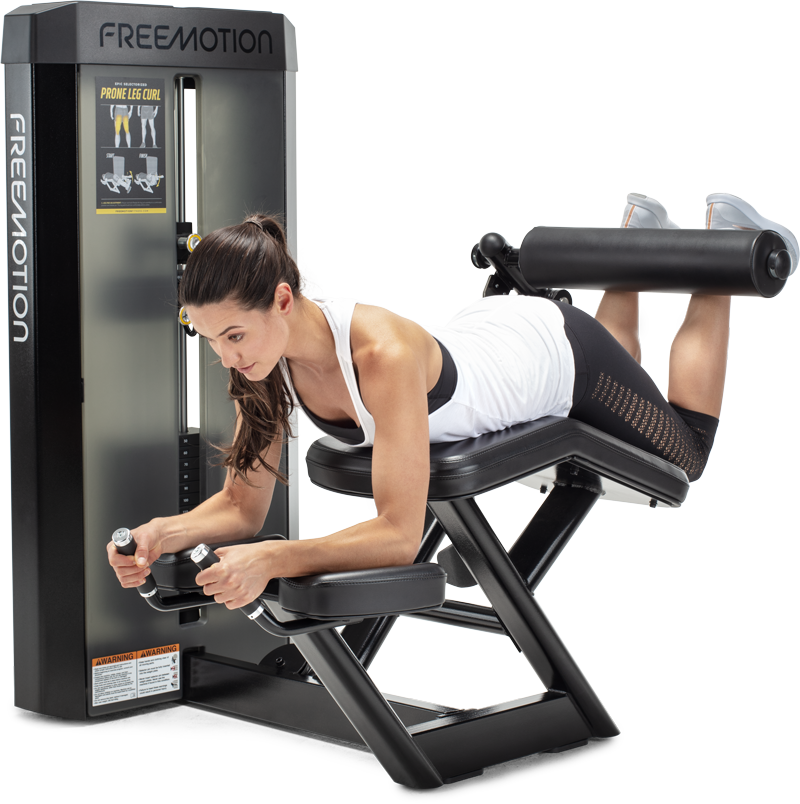

ES814_3Q_Talent_Female

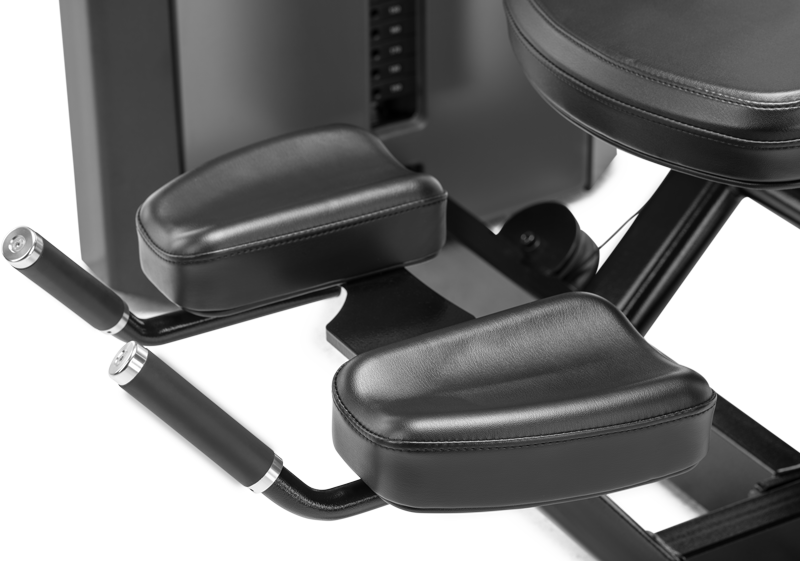

ES814_Arm_Rest
ES814_upholstery

Details & SPecs

Additional Features

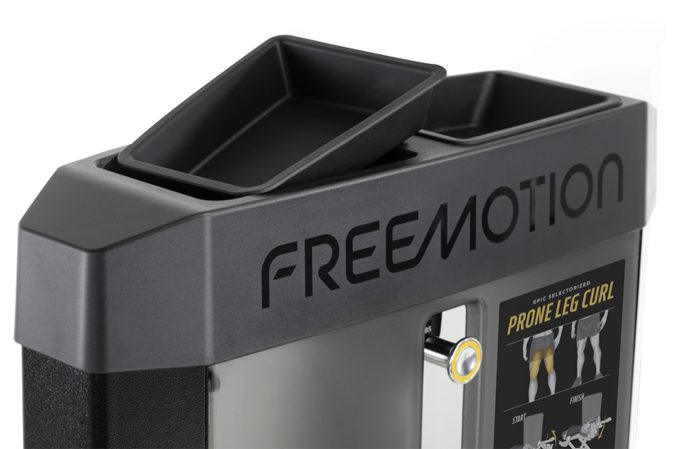

Convenient Accessory Storage

Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

Molded Floor Protectors

Heavy duty rubber feet guard against floor damage.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Easy Serviceability

The tower design allows for simple, routine cable service.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Adjustable Leg Assembly
  • Resistance
    195 lb / 88.4 kg
  • Seat
    Vinyl, 1.5 in / 3.8 cm thick foam
  • Pulleys
    N/A
  • Cable Travel
    N/A
  • Rubber Feet
    Heavy Duty Floor Protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    195 lb / 88.4 kg
  • Drop Down Weight
    5 lb / 2.2 kg
  • Weight Stack Configuration
    10 lb / 4.5 kg top plate
    20-190 x 10 lb / 4.5 kg
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
  • Hand Grip Color
    Black
Product Dimensions & Weight

  • Dimensions L x W x H
    53.4 x 66.4 x 57.8 in / 135.6 x 168.6. x 146.8 cm
  • Footprint
    53.4 x 66.4 in / 135.6 x 168.6. cm
  • Maximum workout area
    53.4 x 66.4 in / 135.6 x 168.6. cm
  • Weight
    487.4 lb / 221.1 kg
  • Shipping Dimensions
    Box 1: 75.9 x 27.1 x 40.9 in / 192.7 x 68.8 x 103.8 cm
    Box 2: 31.1 x 22.4 x 7.4 in / 78.9 x 56.8 x 18.7 cm
  • Shipping Weight
    Box 1: 617.2 lb / 279.9 kg
    Box 2: 22 lb / 9.9 kg
Certifications

  • CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Set the Range

Users can set the legs’ start position to define the range of motion for users of varying heights and fitness abilities.

Comfortable by Design

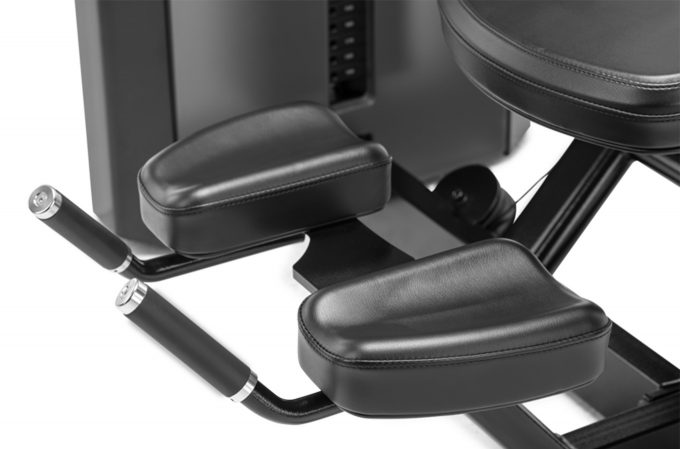

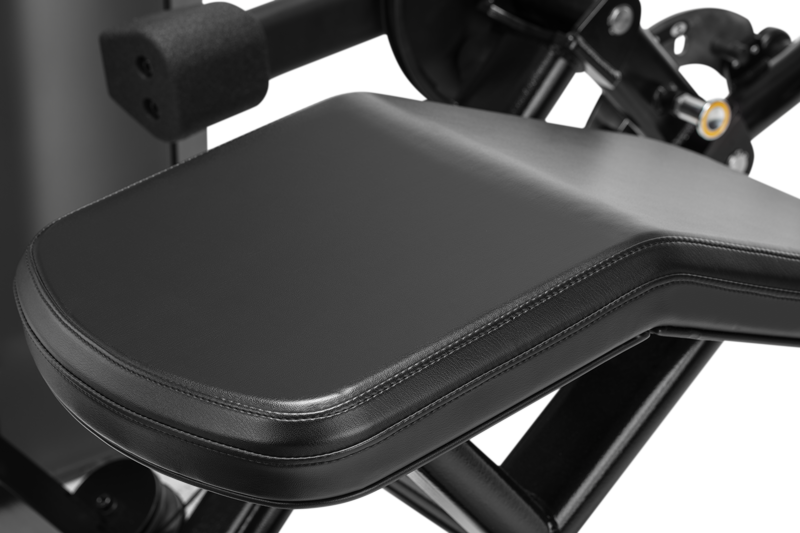

Forearm pads are contoured for comfortable support. Padded torso pad helps to isolate the body to focus on the hamstrings.

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.
