FMEX82422

u10.9b UPRIGHT BIKE

The u10.9b Upright Bike matches your mood. With an intuitive console, the bike is easy to use for those times you want to get on and go. However, when you’re looking for adventure, sync your smart device to follow a workout filmed in Europe, Africa or Hawaii — the bike will recreate the actual route with breath-taking video and automatic resistance that matches the terrain.
Enquire Today

Details & SPecs

QUICKLIFT™ Overmolded Seat

For easy, secure seat adjustments, simply lift the lever and quickly slide the seat to the desired position and it locks in place.

3-piece Crank

By separating the spindle from the crank, Freemotion has created a stronger, more durable design and realistic cycling experience. Enjoy a smoother, more comfortable ride.

Large, Self-leveling Pedals

These articulating pedals keep feet level, reducing ankle rotation. Adjust the foot straps for a custom fit and keep feet secure.

Built-in Workouts

Choose between 8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb and Heart Rate workouts with the touch of a button.

24 Levels of Digital Resistance

To burn more calories, crank up the intensity. To improve muscle tone, choose one of the 24 resistance levels.

EKG Grip Pulse

Keep an eye on heart rate levels with a built-in EKG monitor.

Personal Entertainment

Entertainment capabilities make the workout experience even better. Add an optional 15.6 in (39 cm) Personal HDTV Screen.

SmartSeries UprightBike

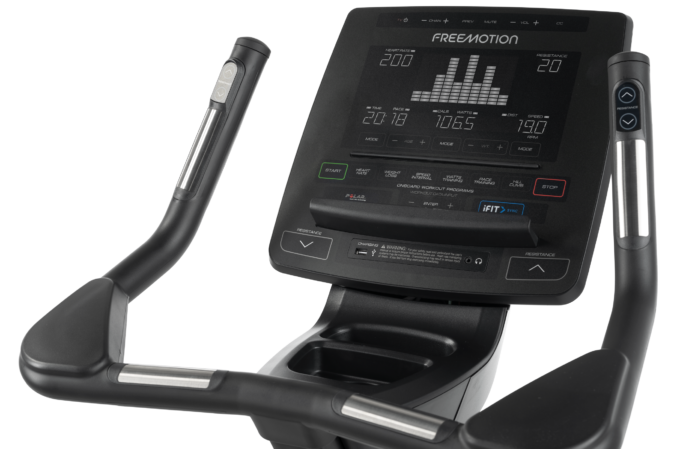

Console Features

  • Display Type
    Simplified User Interface
  • Resolution
    N/A
  • Controls
    On-handle Digital Controls
  • Workout Metrics
    Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace
  • Number of Programs
    24
  • Preset Programs
    8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training
  • Google Maps
    N/A
  • Console Language(s)
    EN, ES, DE, IT, PT, CH, NL, FR
  • Featured Languages
    EN, also DE, ES, FR, IT, PT, RU, ZH
  • Additional Options
    N/A

Entertainment

  • TV Tuner
    N/A
  • Closed Captioning
    N/A
  • Optional Upgrades
    Personal HDTV (15.6 in / 39.6 cm) with On-Console Controls (FMTV82518-16 / FMTV82518-16INT)
    900/800 MHz TV receiver (MYE900RCVR)

Connectivity

  • Recommended Internet Connection
    N/A
  • Ethernet Requirements
    N/A
  • WiFi Connection
    2.4 / 5 GHz
  • WiFi Requirements
    10 Mpbs per unit download, 500 Kpbs per unit upload
  • Video Connections
    N/A
  • Audio Connections
    3.5 mm Audio Out
  • CSAFE
    Enabled
  • ECOFIT
    N/A

Product Features

  • Crank & Axle
    3-Piece Crank
  • Drive Belt
    Quiet Belt Drive System, Hutchinson
  • Pedals
    Oversized, Self-leveling Pedals
  • Gear Ratio
    N/A
  • Resistance System
    400 Watt Self-Generator Resistance System
  • Heart Rate Monitoring
    EKG Grip Pulse/POLAR Receiver Included
  • Workout Fan
    N/A
  • Accessory Charging
    N/A
  • Accessory Holder(s)
    Water Bottle Holder
  • Seat
    Overmolded Quick Adjust Seat
  • Accessibility
    Highly-Accessible Step-Thru™ Design
  • Positioning
    Large Adjustable Leveling Feet
  • Transport Wheels
    2 in / 5 cm plastic transport wheels
  • Color Options
    N/A (Flat Black is standard color)
  • Unit Options
    Metric or Imperial
  • Power Options
    110-120 VAC, 2 Amp
    220-240 VAC, 1 Amp

Product Specifications

  • Maximum User Weight
    400 lb / 182 kg
  • Resistance Levels
    1-24 Levels of Resistance

Dimensions & Weight

  • Product Dimensions L x W x H
    50 x 24 x 58 in / 127 x 61 x 148 cm
  • Product Weight
    167.6 lb / 76.2 kg
  • Shipping Dimensions L x W x H
    51.3 x 14.7 x 32.4 in /130.3 x 37.3 x 82.2 cm
  • Shipping Weight
    183 lb / 83.2 kg

Power Requirements

  • U.S. & Canada
    110-120 VAC, 2 Amp
  • International
    220-240 VAC, 1 Amp

Certifications

  • cTUVus, FCC/IC, BQB

High-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

High-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

Low-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    3 Years
  • Cosmetic & Wear Items
    6 Months

Low-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
Enquire Today

Information At-a-glance

Let hard work be the motivation to keep pressing forward. This bike has a ‘front and center’ simplified user interface that tracks speed, resistance, RPM, distance, calories, time, heart rate, pace and watts.

Connect with your Workout like Never Before

Experience ‘What’s Next’ in smart training. The console on the r10.9b Recumbent Bike powered by iFIT goes from simple to interactive when synced with a smart device. As the industry’s first “Bring Your Own Device”-solution, the recumbent has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.

Quick Select Start & Stop

Start and stop the workout at anytime with the simple touch of a button.
