FMEX82522

r10.9b RECUMBENT BIKE

This upgraded biking experience comes with a simplified console made smarter with the addition of the exerciser’s smart device. Use “as is” and the bike tracks workout essentials such as calories, time and distance. Sync a personal device and choose from workouts filmed on location around the world and the bike will match the workout with increased/decreased resistance.
Enquire Today

Details & SPecs

Quick Select Start & Stop

Start and stop the workout at anytime with the touch of a single button.

Easy-glide Seat with Lumbar Support

This oversized, cushioned seat provides a comfortable workout experience and supports the lower back through intense workouts. Quick pop-pin adjustments allow the seat to slide horizontally or vertically to create a custom fit.

Extra-wide Ergonomic Foot Pedals

With adjustable straps, these pedals are designed to keep feet in place for a comfortable workout.

Built-in Workouts

Choose between 8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb and Heart Rate workouts with the touch of a button.

24 Levels of Digital Resistance

To burn more calories, increase intensity or improve muscle tone, simply adjust the bike’s one-touch resistance.

Dual Grip Pulse Sensors

Get, and stay, in the ideal heart-training zone with the built-in convenience of this EKG monitor.

Dual Water Bottle Holders

Convenient water bottle holders are built-in for easy access.

Personal Entertainment

Entertainment capabilities make the workout experience even better. Add an optional 15.6 in (39 cm) Personal HDTV Screen.

SmartSeries RecumbentBike New

Console Features

  • Display Type
    Simplified User Interface
  • Resolution
    N/A
  • Controls
    On-handle Digital Controls
  • Workout Metrics
    Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace
  • Number of Programs
    24
  • Preset Programs
    8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training
  • Google Maps
    N/A
  • Console Language(s)
    EN, ES, DE, IT, PT, CH, NL, FR
  • Featured Languages
    EN, also DE, ES, FR, IT, PT, RU, ZH
  • Additional Options
    N/A

Entertainment

  • TV Tuner
    N/A
  • Closed Captioning
    N/A
  • Optional Upgrades
    Personal HDTV (15.6 in / 39.6 cm) with On-Console Controls (FMTV82518-16 / FMTV82518-16INT)
    900/800 MHz TV receiver (MYE900RCVR)

Connectivity

  • Recommended Internet Connection
    N/A
  • Ethernet Requirements
    N/A
  • WiFi Connection
    2.4 / 5 GHz
  • WiFi Requirements
    10 Mpbs per unit download, 500 Kpbs per unit upload
  • Video Connections
    N/A
  • Audio Connections
    3.5 mm Audio Out
  • CSAFE
    Enabled
  • ECOFIT
    N/A

Product Features

  • Crank & Axle
    3-Piece Crank
  • Drive Belt
    Quiet Belt Drive System, Hutchinson
  • Pedals
    Oversized, Self-leveling Pedals
  • Gear Ratio
    N/A
  • Resistance System
    400 Watt Self-Generator Resistance System
  • Heart Rate Monitoring
    EKG Grip Pulse/POLAR Receiver Included
  • Workout Fan
    N/A
  • Accessory Charging
    N/A
  • Accessory Holder(s)
    Dual Water Bottle Holder
  • Grips
    Soft touch, upper-body grips
  • Seat
    Overmolded Quick Adjust Seat
  • Accessibility
    Highly-Accessible Step-Thru™ Design
  • Positioning
    Large Adjustable Leveling Feet
  • Transport Wheels
    2 in / 5 cm plastic transport wheels
  • Color Options
    N/A (Dell Gray is standard color)
  • Unit Options
    Metric or Imperial
  • Power Options
    110-120 VAC, 2 Amp
    220-240 VAC, 1 Amp

Product Specifications

  • Maximum User Weight
    400 lb / 182 kg
  • Resistance Levels
    1-24 Levels of Resistance

Dimensions & Weight

  • Product Dimensions L x W x H
    70.9 x 24.5 x 50.8 in / 180 x 62.2 x 129 cm
  • Product Weight
    204.6 lb / 93 kg
  • Shipping Dimensions L x W x H
    68.7 x 17.7 x 30.2 in / 174.4 x 44.9 x 76.7 cm
  • Shipping Weight
    220 lb / 100 kg

Power Requirements

  • U.S. & Canada
    110-120 VAC, 2 Amp
  • International
    220-240 VAC, 1 Amp

Certifications

  • CE

High-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

High-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

Low-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    3 Years
  • Cosmetic & Wear Items
    6 Months

Low-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
Enquire Today

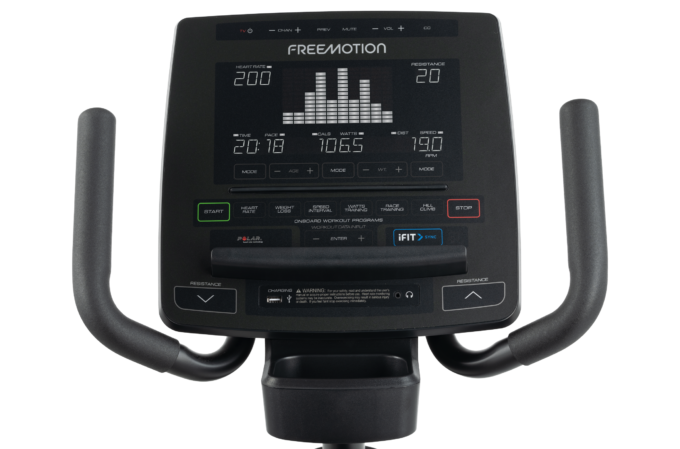

Front and Center

Members can keep an eye on everything that keeps them motivated: RPM/speed, distance/time, watts/calories, level and heart rate on the simplified user interface.

Connect with your Workout like Never Before

Experience ‘What’s Next’ in smart training. The console on the r10.9b Recumbent Bike powered by iFIT goes from simple to interactive when synced with a smart device. As the industry’s first “Bring Your Own Device”-solution, the recumbent has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.

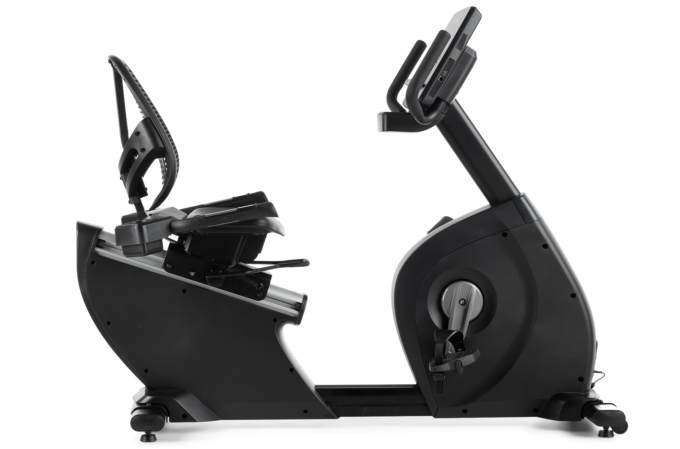

Step-Thru™ Design

This bikes innovative design eliminates the traditional base, making it easier to get on and off the bike.
