FMTK74222

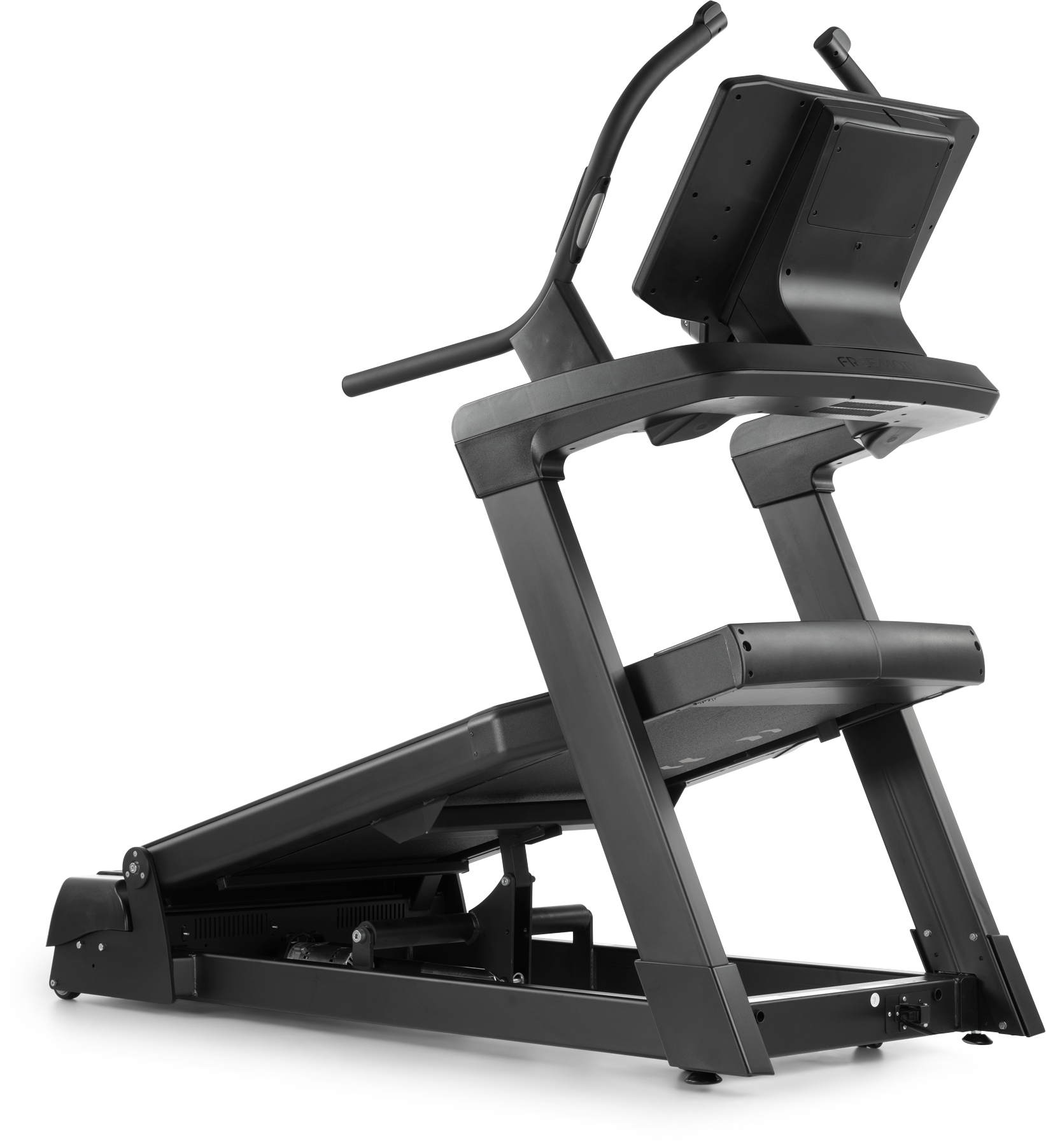

i10.9b INCLINE TRAINER

Experience ‘What’s Next’ with the new Freemotion SMARTSERIES™ powered by iFIT®. The i10.9b Incline Trainer features -3% decline, +30% incline and easy-to-use 1-STEP™ Controls for HIIT training. The console powered by iFIT® goes from simple to interactive when synced with a user’s smart device.
Enquire Today

Details & SPecs

In-Handle Controls for Speed and Incline

Convenient in-handle controls allow users to increase/decrease speed and incline/decline without moving their hands from the handles.

Crossflow™ Workout Fan

The strong, adjustable fan is positioned at the top of the console, allowing for a more effective cooling of the user.

Efficient Lift System

Enjoy consistent performance and intense durability with this lift motor designed to run stronger and longer.

Tapered Roller Belt Drive Guide System

The machine’s narrowed drive dramatically extends the life of the walking deck.

Pulse Sensors

Get real time data during the workout with ergonomically positioned, built-in EKG grips.

Retractable, Swivel Casters

These welcome rollers make it easier for the Incline Trainer to be moved around the facility.

Removable Cup Holders

Made from flexible Santoprene™ (a mix of plastic and rubber), the Incline Trainer’s cup holders are more durable and can be removed for easy cleaning.

Efficient Footprint

The product width of this Incline Trainer is smaller than previous models. This makes it easier for operators to have several Incline Trainers side-by-side.

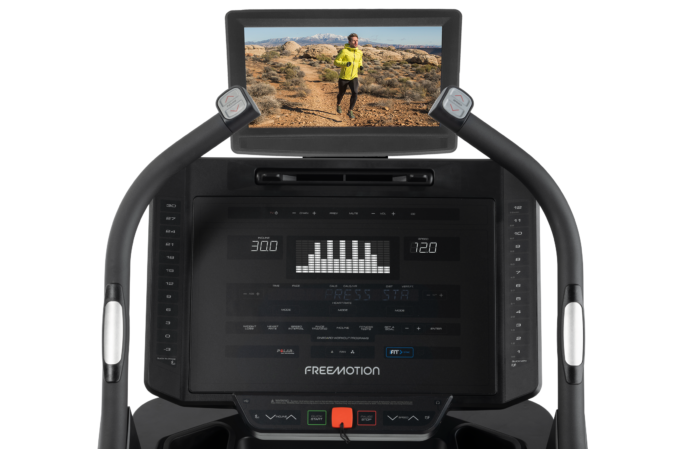

Personal Entertainment

Entertainment capabilities make the workout experience even better. Add an optional 15.6 in / 39 cm Personal HDTV Screen.

SmartSeries_InclineTrainer

Console Features

  • Display Type
    SImplified User Interface
  • Resolution
    N/A
  • Controls
    1-STEP™ Decline Control -3%, 1-STEP™ Incline Control 0-30%, 1-STEP™ Speed Control 0-12 mph (0-19 km/h)
  • Workout Metrics
    Speed, Time, Incline/Decline, Distance, Vertical Feet, Cal, Cal/HR, Heart Rate and Pace
  • Number of Programs
    44
  • Preset Programs
    Set a Goal Workout Center (Time, Distance, Calories), 8 Weight Loss, 8 Heart Rate, 8 Speed Interval, 3 Race Training, 8 Incline, Fitness Tests: Army, Navy, USMC, USAF, WFI, Bruce, Gerkin, PEB
  • Google Maps
    N/A
  • Console Language(s)
    English, French-Canadian
  • Manual / Decal Languages
    FMTK74218: EN, FCA
    FMTK74218-INT: EN, DE, ES, FR, IT, PT, NL, CH
  • Additional Options
    N/A

Entertainment

  • TV Tuner
    N/A
  • Closed Captioning
    N/A
  • Optional Upgrades
    Personal HDTV (15.6 in / 39.6 cm) with On-console Controls (FMTV74817-16 / FMTV74817-16INT)
    900/800 MHz Receiver (MYE900RCVR)

Connectivity

  • Recommended Internet Connection
    N/A
  • Ethernet Requirements
    N/A
  • WiFi Connection
    N/A
  • WiFi Requirements
    10 Mbps per unit download, 500 Kbps per unit upload
  • Video Connections
    N/A
  • Audio Connections
    USB Charging Port, 3.5 mm Audio Out, TV Input
  • CSAFE
    Enabled
  • ECOFIT
    N/A

Product Features

  • Drive Motor
    AC 5.0 HP Commercial Drive Motor
  • Deck
    1 in / 2.5 cm Double-Sided, Cushioned Deck
  • Belt
    21.5 x 60 in / 54.6 x 152 cm Double Layer Belt
  • Rollers
    3.5 in Spin Balanced Rollers with Tapered Belt Guide
  • Platform
    Spacious Rear Platform
  • Elevation System
    -3% decline to +30% incline
  • Heart Rate Monitoring
    Dual Grip Pulse Sensors and Polar® Wireless Receiver
  • Emergency Stop
    Safety Key and Clip
  • Workout Fan
    CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan
  • Accessory Charging
    USB charging port
  • Accessory Holder(s)
    Dual Water Bottle Holders, Secure Phone Holder, all with Removable Inserts
  • Grips
    Soft touch upper body grips
  • Positioning
    Large adjustable leveling feet
  • Transport Wheels
    Yes + Retractable, swivel casters
  • Color Options
    Dell Gray (Custom colors available upon request)
  • Unit Options
    N/A
  • Power Options
    N/A

Product Specifications

  • Maximum User Weight
    400 lb / 182 kg
  • Step-up Height
    10.7 in / 27.3 cm
  • Running Surface
    21.5 x 60 in / 54.6 x 152 cm
  • Speed Range
    0-12 mph / 0-20 km/h

Dimensions & Weight

  • Product Dimensions L x W x H
    80 x 34.8 x 76 in / 203.2 x 88.3 x 193 cm
  • Shipping Dimensions L x W x H
    85 x 43 x 33.7 in / 215.9 x 109.2 x 85.5 cm
  • Shipping Weight
    731 lb / 331.5 kg

Power Requirements

  • U.S. & Canada
    110-120 VAC, 20 Amp, Dedicated Circuit
  • International
    220-240 VAC, 15 Amp, Dedicated Circuit

Certifications

  • FCC/IC, BQB

High-Usage Warranty (US & Canada)

  • Frame
    7 Years
  • Drive Motor
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

High-Usage Warranty (International)

  • Frame
    7 Years
  • Drive Motor
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

Low-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Drive Motor
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    3 Years
  • Cosmetic & Wear Items
    6 Months

Low-Usage Warranty (International)

  • Frame
    7 Years
  • Drive Motor
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
Enquire Today

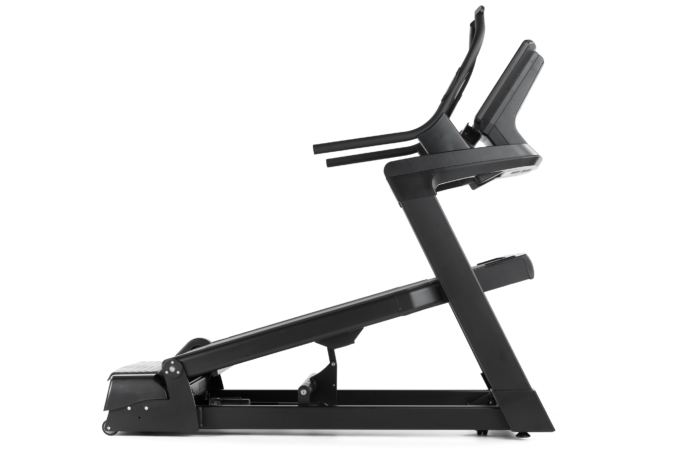

Incline and Decline Training

With up to 30% incline, users can recruit more muscle on the incline trainer, targeting quads and glutes to get results while the -3% decline builds the “all over” muscles used in everyday life. The tough lift motor delivers 1,500 lb / 680 kg of lift force for reliable deck movement and stabilization.

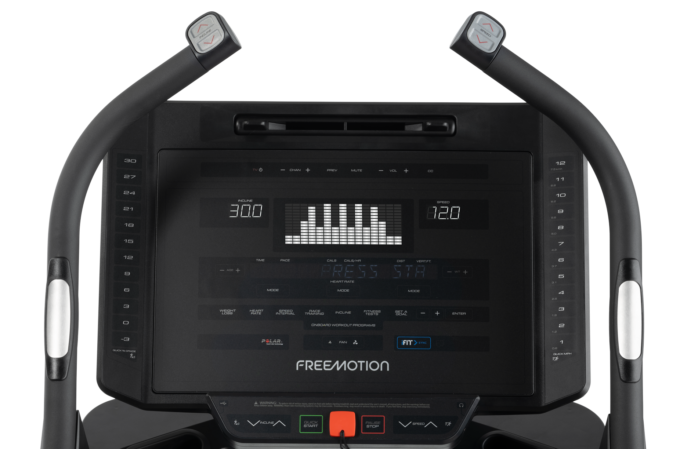

1-STEP™ Controls for Instant Response

The ideal treadmill for a HIIT workout or functional training, with 1-STEP™ Controls you can quickly adjust speed, incline and decline with convenient console controls.

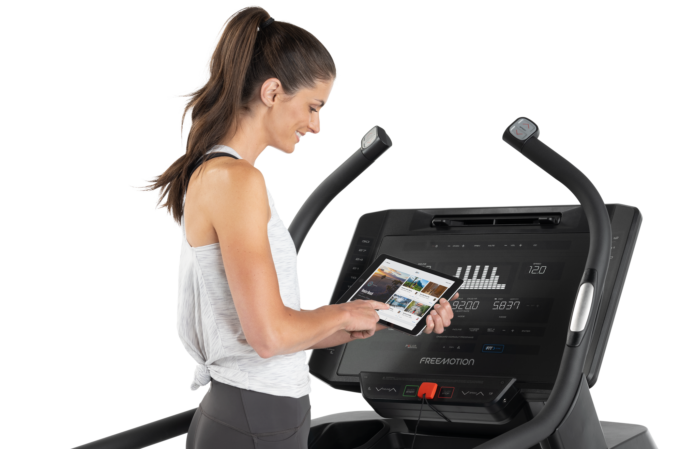

iFIT® Sync

Users sync their smart device to the machine to create an interactive workout experience. Users can choose from over 17,000+ workouts filmed on-location throughout the world or in a studio setting and the iFIT® Sync will create a hands-off solution where the machine’s incline, decline and speed is controlled by the on-screen workout and iFIT® trainer.

The Ultimate in Personalization with iFIT®

Integrated, interactive and targeted, iFIT® is a comprehensive wellness solution that keeps the workout exciting and progressive. After one workout is completed, the next time the same user steps on the i10.9b Incline Trainer their smart device will launch a new workout designed to help them reach their personal fitness goals.

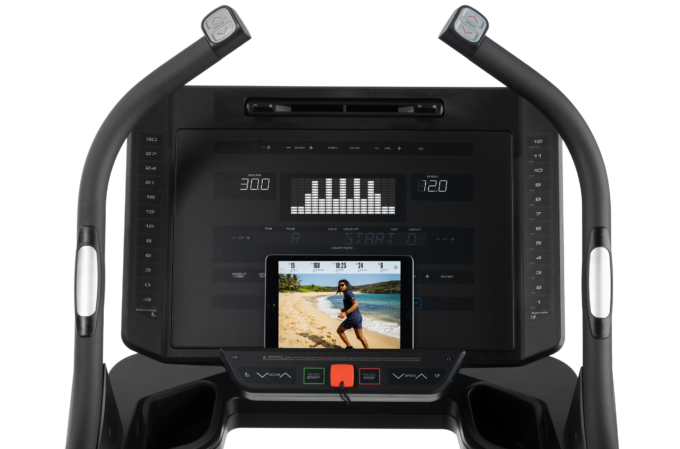

iFIT® Enabled with a Smart Device

iFIT® wirelessly controls the speed/incline/decline when synced with the Incline Trainer. This hands-free solution takes members into exciting, exotic locations from around the world.

The Ultimate in Personalization with iFIT®

Integrated, interactive and targeted, iFIT® is a comprehensive wellness solution that keeps the workout exciting and progressive. After one workout is completed, the next time the same user steps on the i10.9b Incline Trainer their smart device will launch a new workout designed to help them reach their personal fitness goals.
