FMEL84420

e22.9 ELLIPTICAL

Deliver an engaging, total-body workout to your members with this ergonomically-enhanced, low-impact cardio solution. Burn more calories and get fit faster with less joint strain and improved balance and mobility.

Details & SPecs

Low Impact, Total-Body Training

Give yourself a total-body exercise with the smooth-flowing motions of this redesigned cardio machine. Cross train your way to your fitness goals while treating your body to a low-impact, joint-friendly workout.

Accessible and Engaging Solution

Participate in the high-intensity studio classes you’ve been wanting to attend but may not have felt comfortable joining because the equipment accessibility. With a 9.5 in / 24.1 cm step-up-height and ergonomically engineered 20 in / 50.8 cm stride, you have the equipment to thrive.

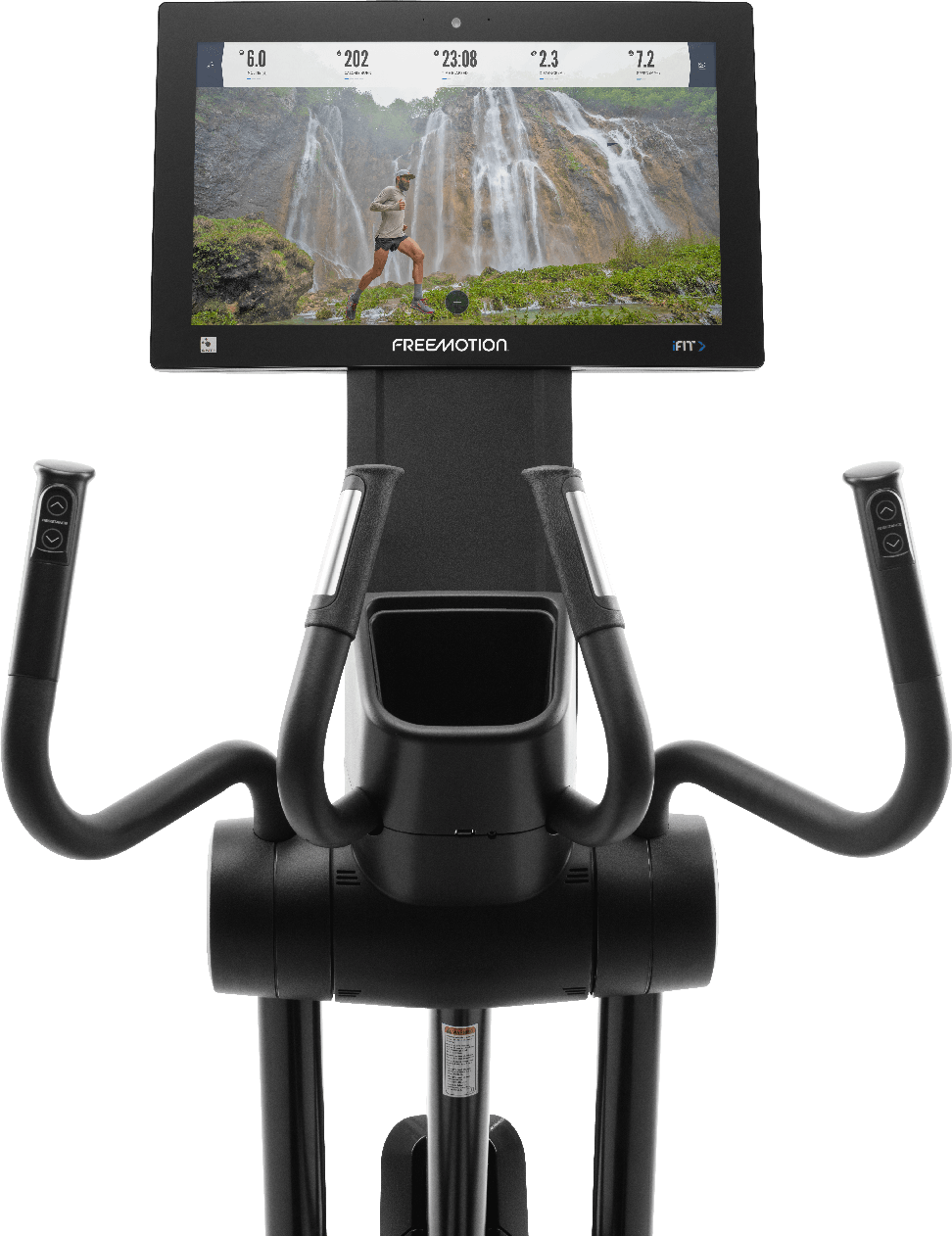

High-definition Display

Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22in / 55cm capacitive touchscreen.

On-the-fly Adjustments

Override or adapt the programming to meet your needs by quickly adjusting the resistance with controls conveniently placed directly on the handlebars.

Know Your Zone

Get real-time data during your workout with built-in EKG grips, so you know when you’re in the ideal heart-healthy zone. Also compatible with ANT+ and Polar®.

Audio-enhanced Experience

Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.

Advanced Workout Metrics

Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.

Power Up

Charge your devices during your workout with a convenient USB port.

Freemotion 22 Series Elliptical Specs

Console Features

  • Display Type
    22 in / 55 cm HD Capacitive Touchscreen
  • Resolution
    1080p ISP LCD Screen
  • Controls
    Touchscreen, On-handle Digital Controls
  • Workout Metrics
    Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
  • Number of Programs
    Thousands of Global Workouts and Studio Classes with iFIT
  • Preset Programs
    Limitless iFIT Training Options
  • Google Maps
    Enabled
  • Console Language(s)
    English
  • Featured Languages
    EN, also DE, ES, FR, IT, PT, RU, ZH
  • Maximum Workout Time
    99:59 (99 Minutes + 59 Seconds)
  • Maximum Pause Time
    60 Seconds
  • Additional Options
    Quick-start Manual Mode

Entertainment

  • TV Tuner
    US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
    International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
  • Closed Captioning
    CC1-4, TEXT 1-4
  • Optional Upgrades
    N/A

Connectivity

  • Recommended Internet Connection
    Dedicated Ethernet – Cat 6
  • Ethernet Requirements
    Cat 6 Preferred (Cat 5e or higher required)
  • WiFi Connection
    2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
  • WiFi Minimum Requirements
    10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
  • Video Connections
    Coax, HDMI Input
  • Audio Connections
    3.5 mm audio out, Bluetooth

Product Features

  • Drive System
    Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive
  • Crank & Axle
    2 PC, 20 in / 50.8 cm Stroke
  • Drive Belt
    Quiet Belt Drive System
  • Pedals
    Non-Skid Traction Control Pedals
  • Gear Ratio
    8.85:1
  • Resistance System
    400 Watt EMS Brake Resistance System
  • Heart Rate Monitoring
    Dual EKG Pulse Sensors, ANT+ and Polar Compatible
  • Workout Fan
    N/A
  • Accessory Charging
    USB Charging Port
  • Accessory Holder(s)
    Water Bottle Holder, Secure Phone Holder
  • Grips
    Soft touch upper body grips
  • Positioning
    Large Adjustable Leveling Feet
  • Transport Wheels
    3.3 in / 8.38 cm plastic wheels
  • Color Options
    N/A (Flat Black is standard color)
  • Unit Options
    N/A
  • Power Options
    110-120 VAC, 2 Amp
    220-240 VAC, 1 Amp

Product Specifications

  • Maximum User Weight
    400 lb / 181 kg
  • Step-up Height
    9.5 in / 24.1 cm
  • Stride Length
    20 in / 50.8 cm stride length
  • Resistance Levels
    1-24 Levels of Resistance

Dimensions & Weight

  • Product Dimensions L x W x H
    87.2 x 28.5 x 71 in / 221.5 x 72.3 x 180.3 cm
  • Product Weight
    279.4 lbs / 126.7 kg
  • Shipping Dimensions
    91.3 x 26.2 x 33.1 in / 232 x 66.5 x 84 cm
  • Shipping Weight
    309.4 lbs / 140.3 kg

Power Requirements

  • U.S. & Canada
    Input 110~240V, Output 15V 3A
  • International
    Input 110~240V, Output 15V 3A

Certifications

  • cTUVus, FCC/IC, BQB

High-Usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

High-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

Low-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    3 Years
  • Cosmetic & Wear Items
    6 Months

Low-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
