FMEL84422

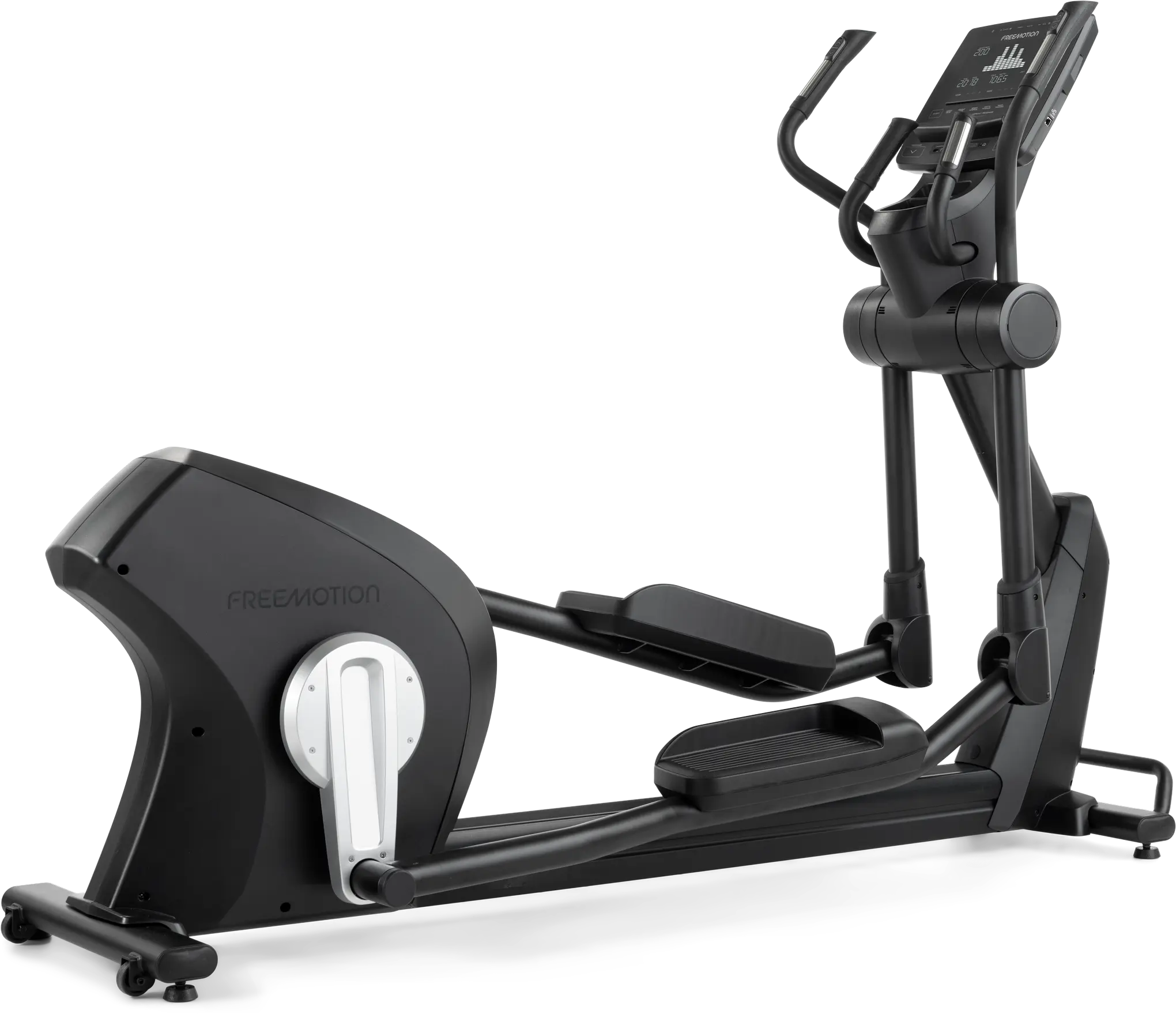

e10.9b ELLIPTICAL

Low impact, all adventure. The e10.9b Elliptical comes with a simplified console that can be upgraded with the addition of a smart device. Sync the iFIT-compatible machine with a smart device and the elliptical will match the resistance to recreate the actual route on the screen. The elliptical’s foot placement makes the run, walk or ski easier on the knees, joints and back.

Details & SPecs

Built-in Workouts

Choose between preset workouts, fitness tests, or heart rate control workouts with the touch of a button.

Quick Select Start & Stop

Start and stop the workout at any time with the simple touch of a button.

Non-Skid Traction Control Cushion Pedals

Stay stable and comfortable through every stride with non-skid, traction control cushion pedals designed to fit multiple users with a secure grip.

24 Levels of Digital Resistance

To burn more calories, increase intensity and improve muscle tone, simply adjust the elliptical’s resistance with convenient one-touch resistance controls.

Dual-Grip Pulse Sensors

Get in the heart-healthy zone with these built-in handlebar sensors.

Rear Mobility Wheels

The nice-to-have wheels make this machine as mobile as it is effective. Tip up one end to move the elliptical from one place to another.

Electronic Readouts

A simplified console lists Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace.

Upper-body Workout Arms with Pulse Sensors

Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.

Personal Entertainment

Entertainment capabilities make the workout experience even better. Add an optional 15.6 in / 39 cm Personal HDTV Screen.

Rear-access design

To maximize floor space and increase user safety, the e10.9b Elliptical was built with a rear-access design. It saves space and allows the user to enter and exit the machine in one easy step.

SmartSeries_Elliptical

Console Features

  • Display Type
    Simplified User Interface
  • Resolution
    N/A
  • Controls
    Digital resistance control
  • Workout Metrics
    Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace
  • Number of Programs
    24
  • Preset Programs
    8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training
  • Google Maps
    N/A
  • Console Language(s)
    EN, ES, DE, IT, PT, CH, NL, FR
  • Featured Languages
    N/A
  • Maximum Workout Time
    99:59 (99 Minutes + 59 Seconds)
  • Maximum Pause Time
    60 Seconds
  • Additional Options
    N/A

Entertainment

  • TV Tuner
    N/A
  • Closed Captioning
    N/A
  • Optional Upgrades
    15.6 in (39 cm) Personal TV with on-console controls (FMTV 84414),
    900/800 MHz TV receiver (MYE900RCVR)

Connectivity

  • Recommended Internet Connection
    N/A
  • Ethernet Requirements
    N/A
  • WiFi Connection
    2.4 / 5 GHz
  • WiFi Requirements
    10 Mpbs per unit download, 500 Kpbs per unit upload
  • Video Connections
    N/A
  • Audio Connections
    N/A
  • CSAFE Enabled
    Enabled
  • ECOFIT
    N/A

Product Features

  • Drive System
    Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive
  • Crank & Axle
    2 PC, 20 in / 50.8 cm Stroke
  • Drive Belt
    Quiet Belt Drive System
  • Pedals
    Non-skid, traction control cushion pedals
  • Gear Ratio
    8.85:1
  • Resistance System
    400 Watt self-generator resistance system
  • Heart Rate Monitoring
    Dual-Grip Pulse Sensors, Polar® Wireless Receiver
  • Workout Fan
    N/A
  • Accessory Charging
    N/A
  • Accessory Holder(s)
    Water bottle holder
  • Grips
    Soft touch upper body grips
  • Positioning
    N/A
  • Transport Wheels
    3.3 in / 8.38 cm plastic wheels
  • Color Options
    N/A (Dell Gray is standard color)
  • Unit Options
    N/A
  • Power Options
    N/A

Product Specifications

  • Maximum User Weight
    400 lb / 182 kg
  • Step-up Height
    9.5 in / 24.1 cm
  • Stride Length
    20 in / 50.8 cm stride length
  • Resistance Levels
    1-24 Levels of Resistance

Dimensions & Weight

  • Product Dimensions L x W x H
    85 x 27 x 63 in / 215.9 x 68.5 x 160 cm
  • Product Weight
    286.4 lb / 130.2 kg
  • Shipping Dimensions
    91.7 x 32.6 x 25.9 in / 232.9 x 82.8 x 65.7 cm
  • Shipping Weight
    301.8 lb / 137.2 kg

Power Requirements

  • U.S. & Canada
    Input 110~240V, Output 15V 3A
  • International
    Input 110~240V, Output 15V 3A

Certifications

  • FCC, BQB

High-Usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

High-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    2 Years
  • Console
    2 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

Low-usage Warranty (US & Canada)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    3 Years
  • Cosmetic & Wear Items
    6 Months

Low-Usage Warranty (International)

  • Frame
    7 Years
  • Parts
    3 Years
  • Console
    3 Years
  • Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months

Simplified User Interface

Get all the workout information you need in one place. Easy-to-read results lets you know what you’ve accomplished during the workout.

Upper-body Workout Arms with Soft Grips

Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.

IFit® Sync

The console of the e10.9b Elliptical goes from simple to interactive when synced with a smart device. As the industry’s first “Bring Your Own Device”-solution, the elliptical has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.
